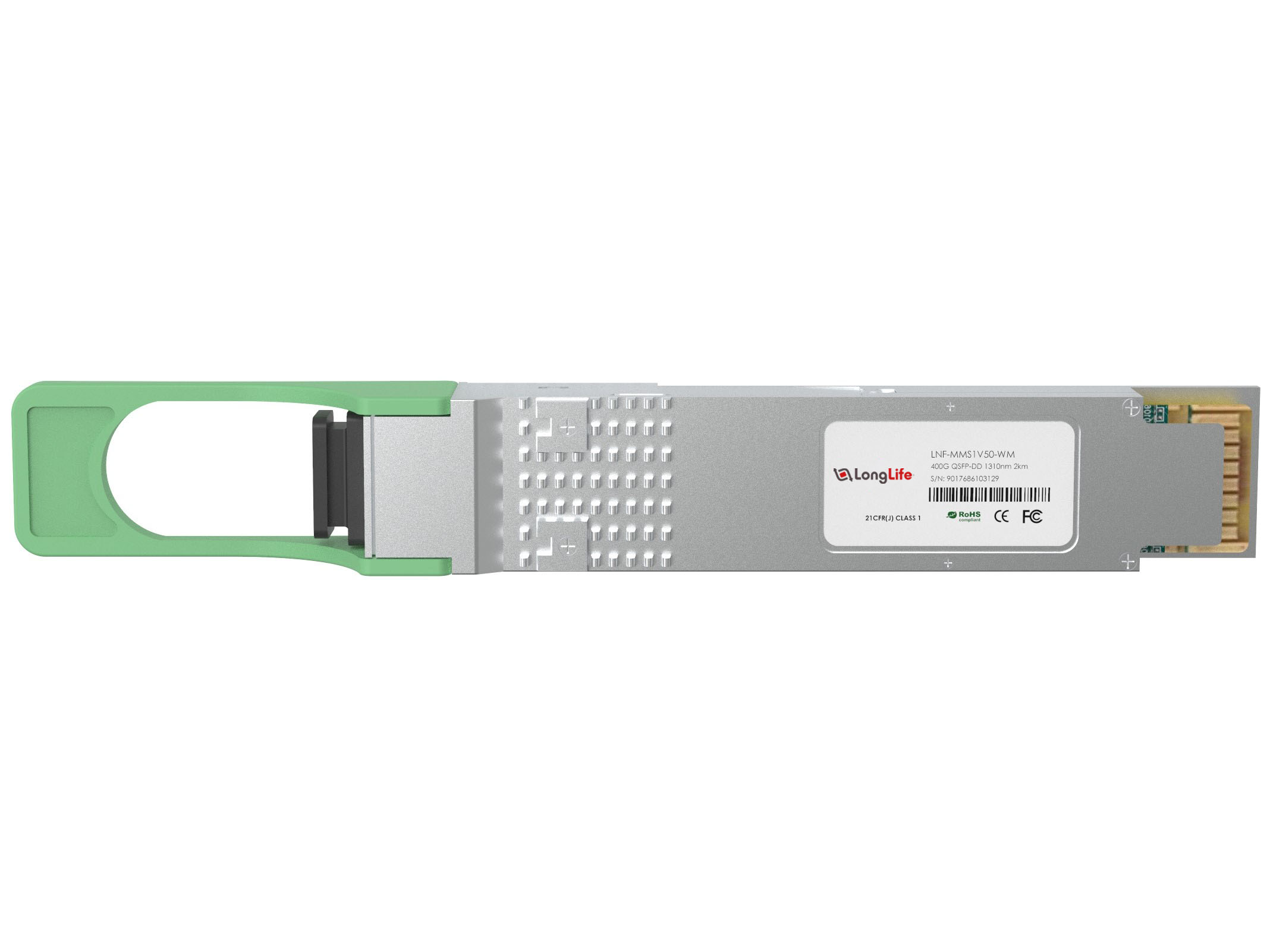

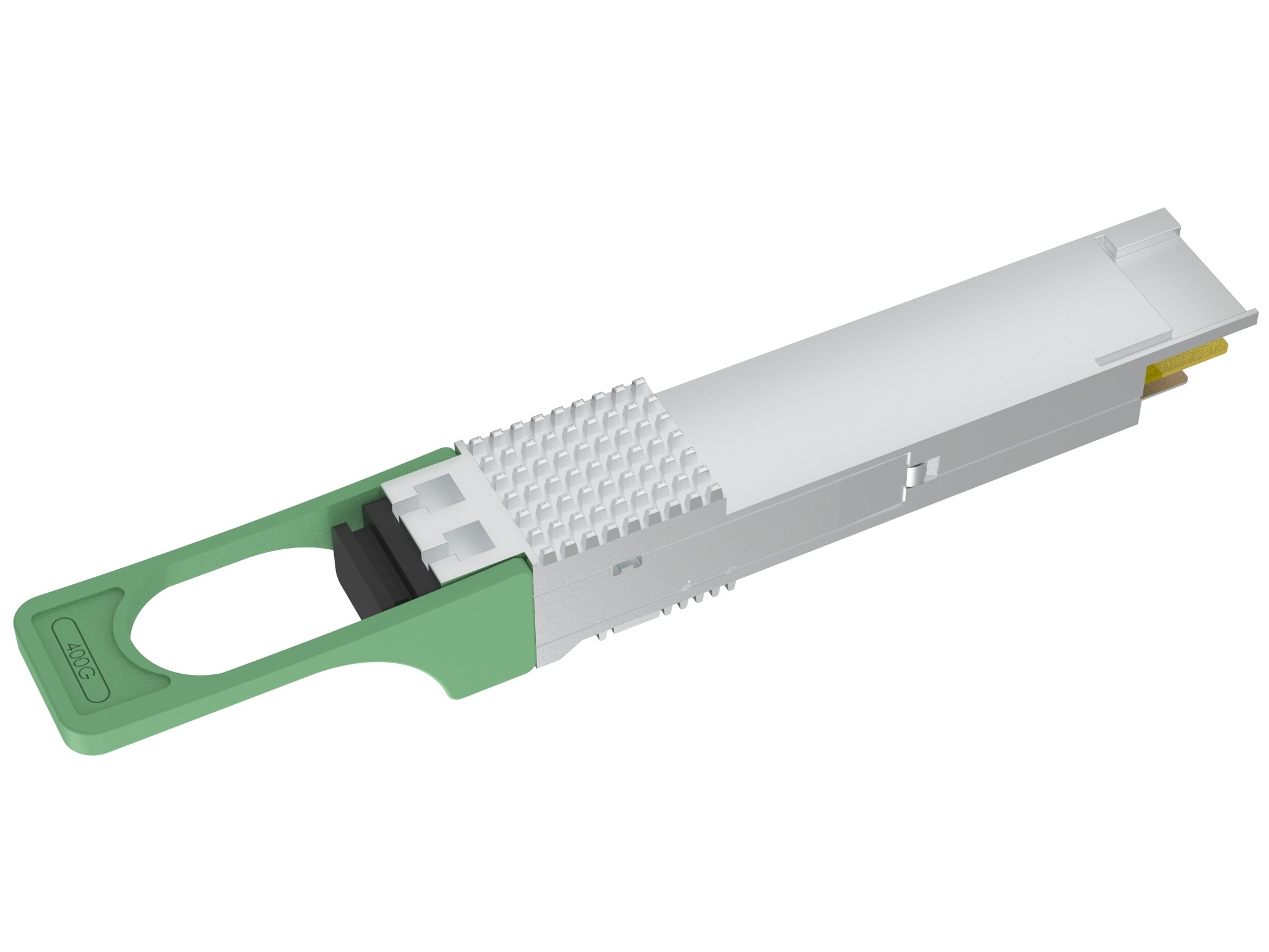

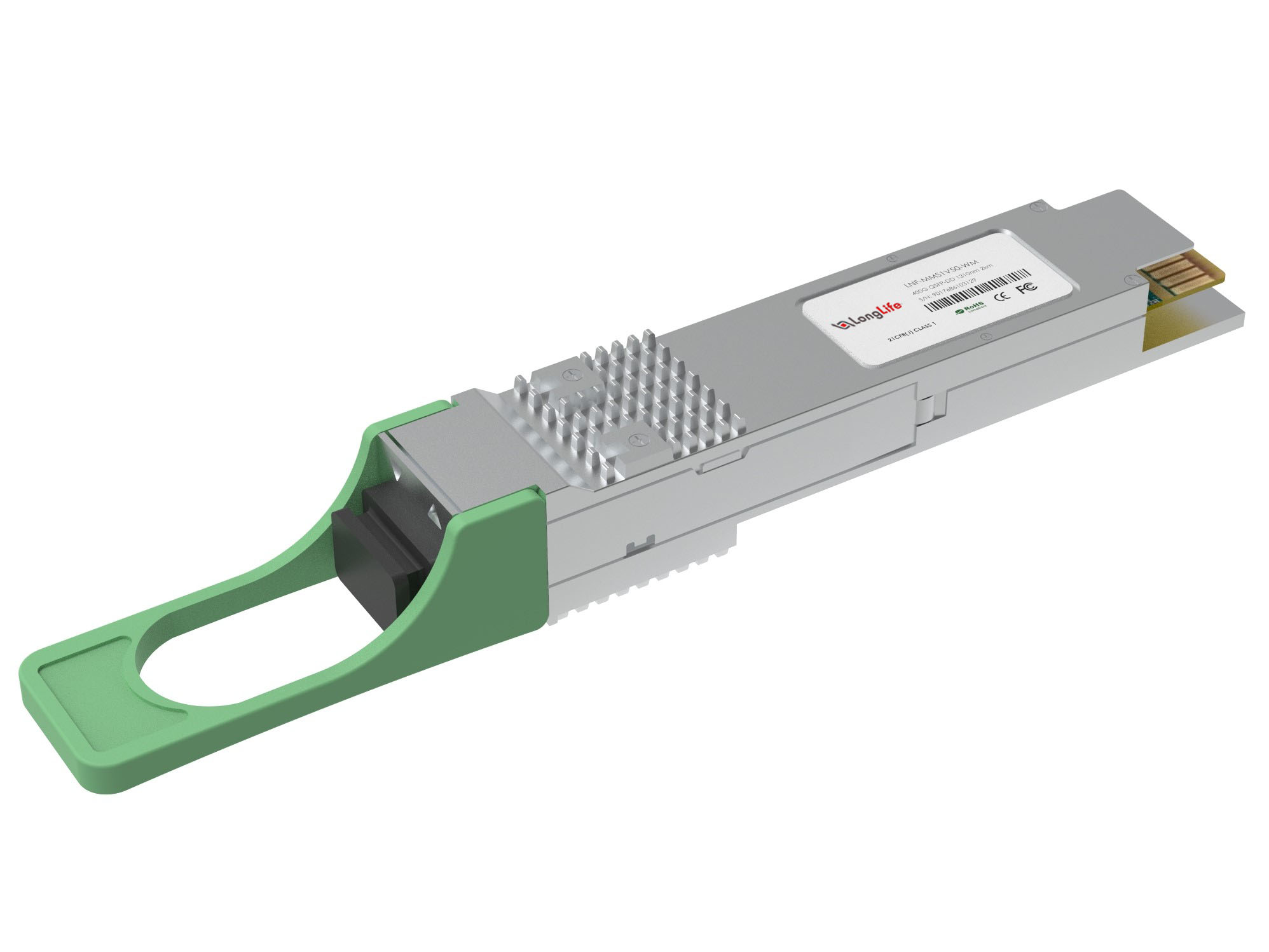

Mellanox MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module
Ethernet MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km DOM Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The 400GBASE-FR4 module, Duplex LC connector, up to 2km over parallel single-mode fiber. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
Specifications
Mellanox Ethernet Compatible |
MMS1V50-WM
|
Vendor Name | Longlife |
|
Form Factor
|
QSFP-DD |
Max Data Rate
|
400Gbps |
|
Wavelength
|
1271nm,1291nm,1311nm,1331nm
|
Max Cable Distance
|
2km
|
|
Connector
|
Duplex LC (UPC) |
Media
|
SMF |
|
Transmitter Type
|
CWDM EML |
Receiver Type
|
PIN
|
|
TX Power
|
-3.3~3.5dBm |
RX Power
|
-7.3~3.5dBm
|
|
Powerbudget
|
4dB |
Modulation
|
8x 50G PAM4 |
|
Power Consumption
|
≤ 10W |
Extinction Ratio
|
3.5dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
DSP
|
TX and RX |
Inbuilt FEC
|
No |
|
Core Size
|
G.652/9um |
Packaging Technology
|
COB |
|
Protocols
|
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
Warranty
|
5 Years |
