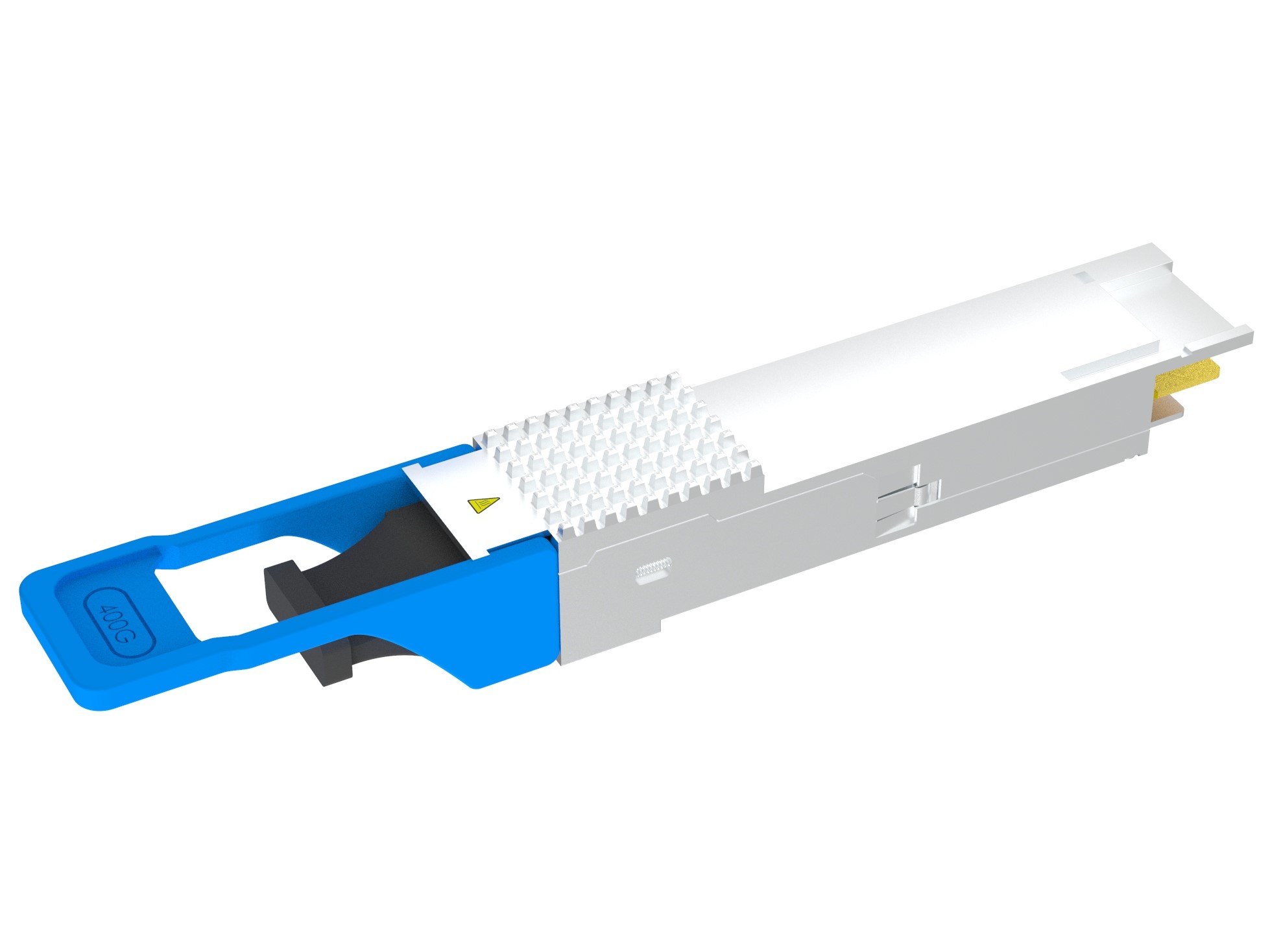

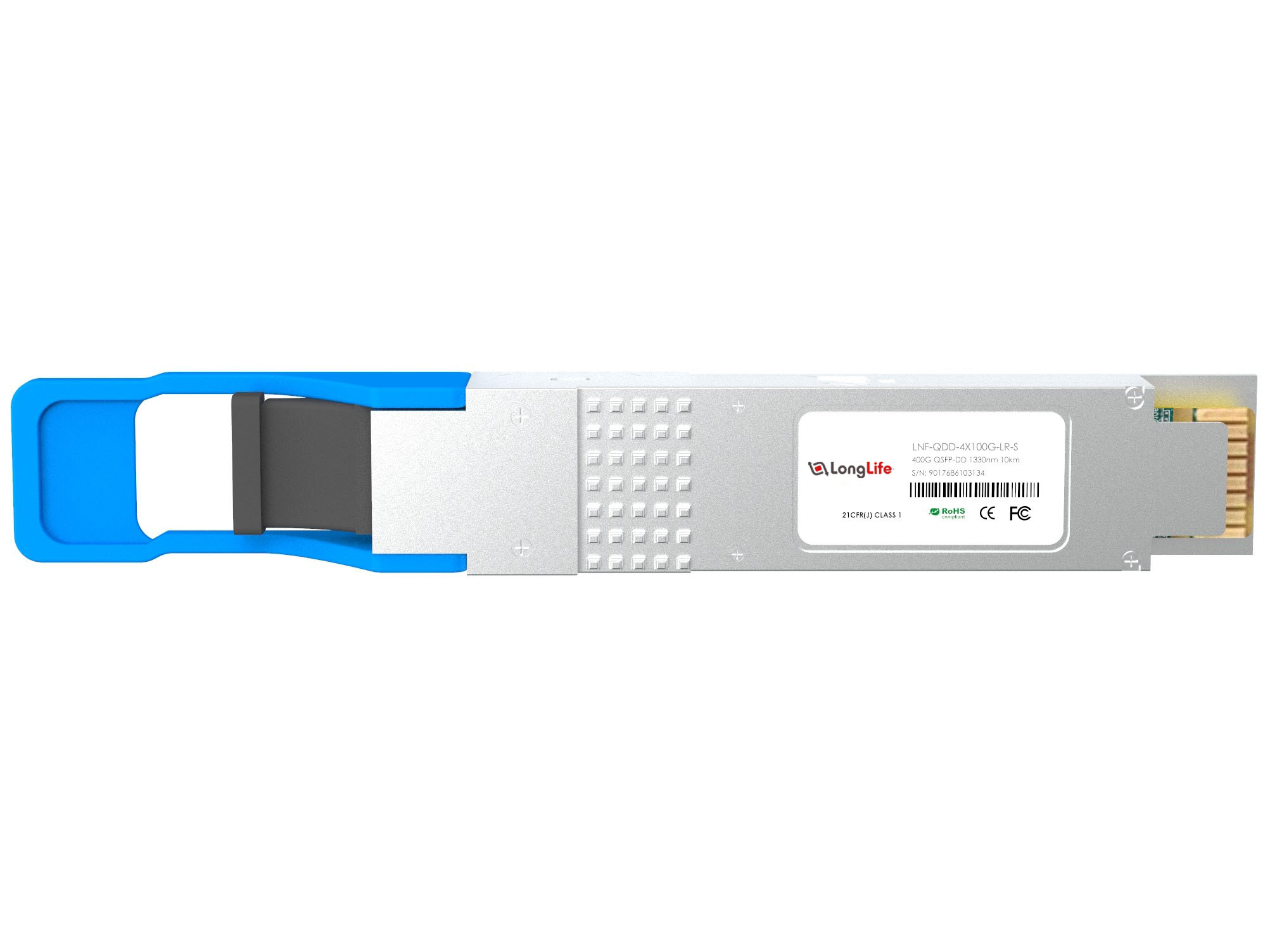

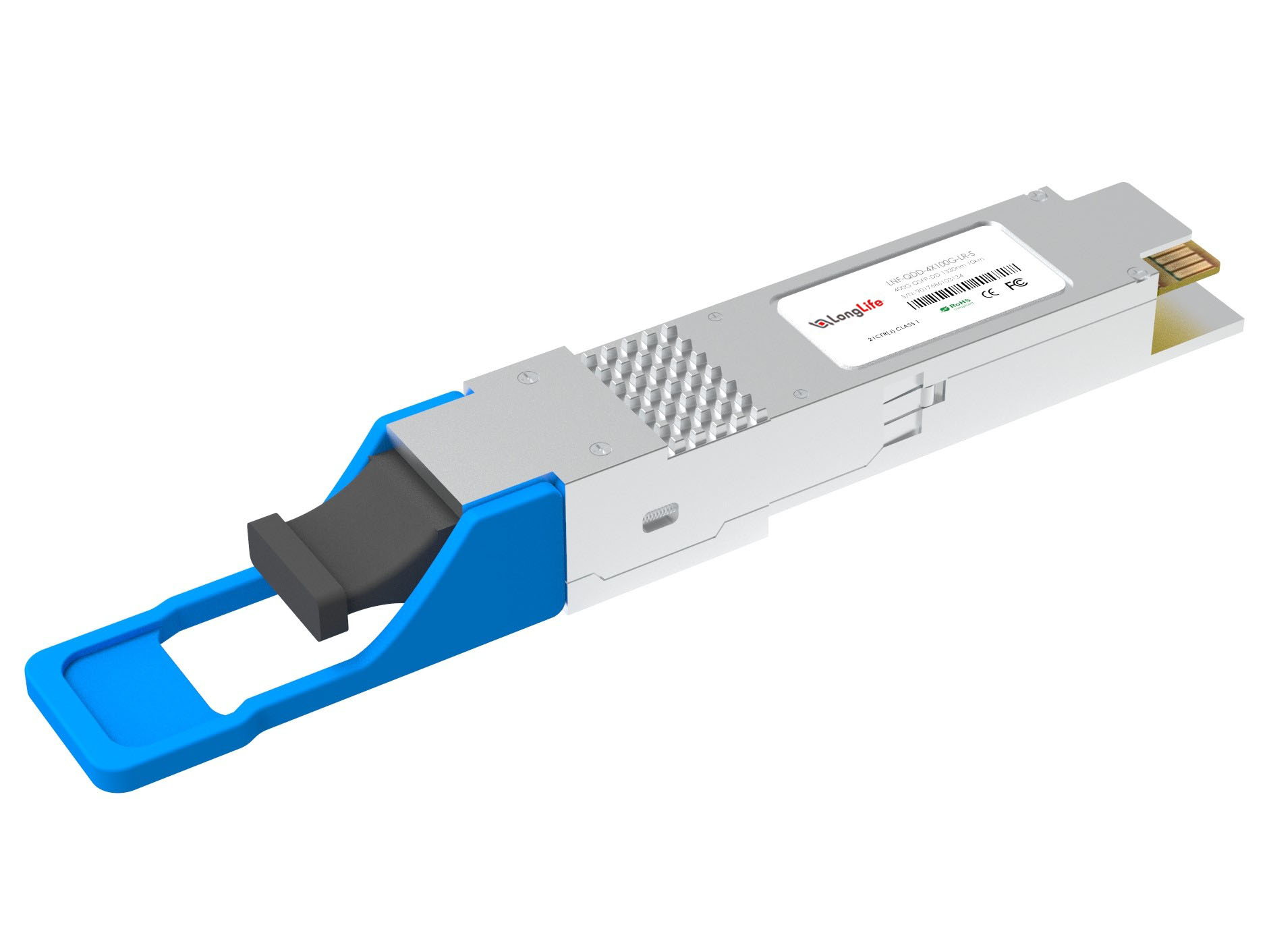

Juniper Networks QDD-4X100G-LR Compatible 4x100GBASE-LR QSFPDD 1310nm 10km DOM MTP/MPO-12 SMF Optical Transceiver Module
Juniper Networks QDD-4X100G-LR Compatible 4x100GBASE-LR QSFP-DD PAM4 Transceiver Module (SMF, 1310nm, 10Km, MTP/MPO, DOM)
The 400GBASE-PLR4 Module, MTP/MPO-12 connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-LR-100G.
Specifications
|
Juniper Networks Compatible
|
QDD-4X100G-LR
|
Vendor Name | Longlife |
|
Form Factor
|
QSFP-DD |
Max Data Rate
|
206.24Gbps(8x 25.78Gbps) |
|
Wavelength
|
1310nm |
Max Cable Distance
|
100m |
|
Connector
|
MTP/MPO-12 (APC) |
Media
|
MMF |
|
Transmitter Type
|
EML |
Receiver Type
|
PIN |
|
TX Power
|
-1.9~4.8dBm |
RX Power
|
-8.2~5.8dBm |
|
Powerbudget
|
6.3dB |
Modulation
|
8x 50G PAM4 |
|
Power Consumption
|
≤ 9W
|
Extinction Ratio
|
＞2dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
DSP
|
TX and RX |
Inbuilt FEC
|
No |
|
Core Size
|
G.652/9um |
Packaging Technology
|
COB
|
|
Protocols
|
IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 |
Warranty
|
5 Years |
