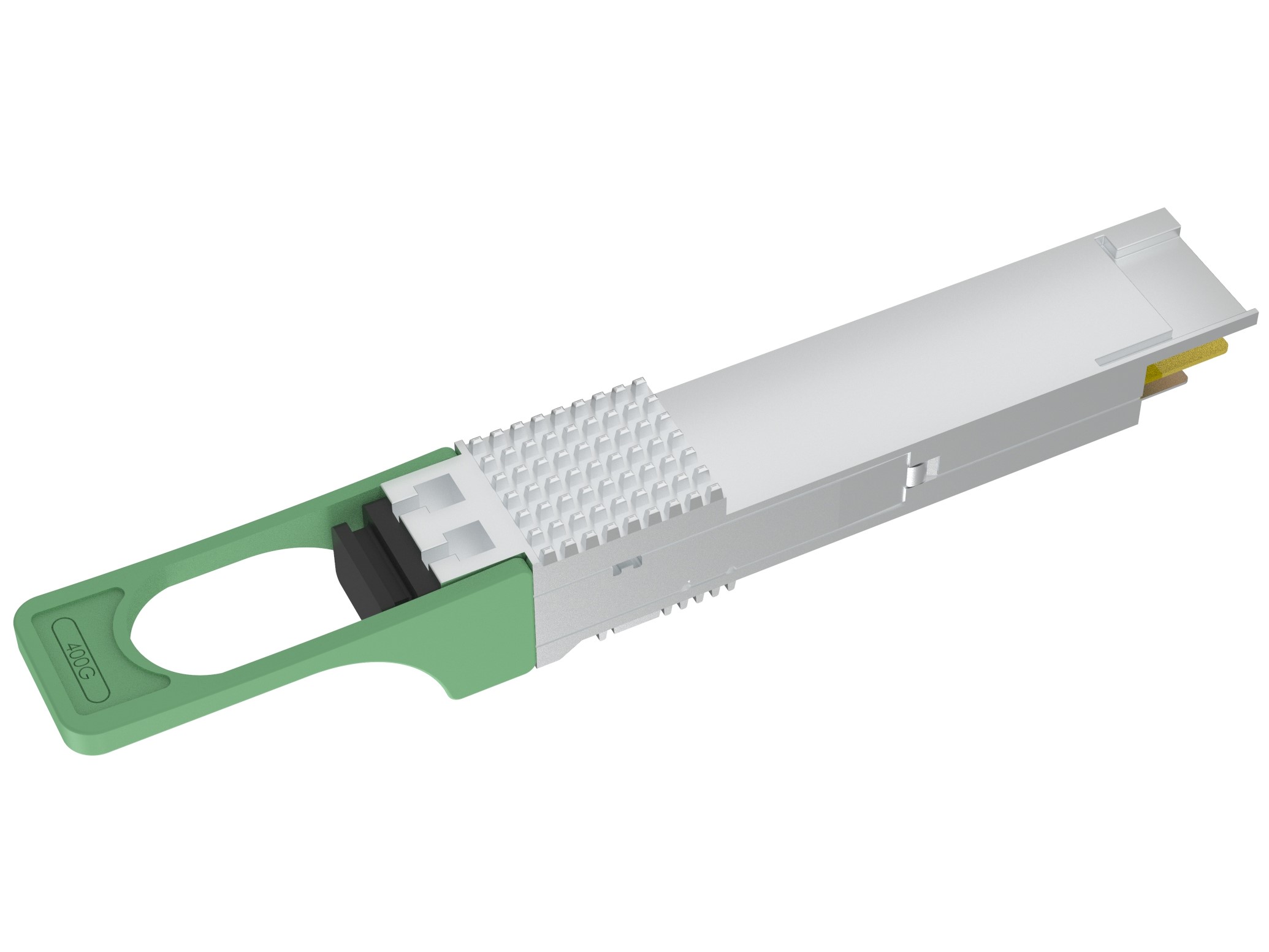

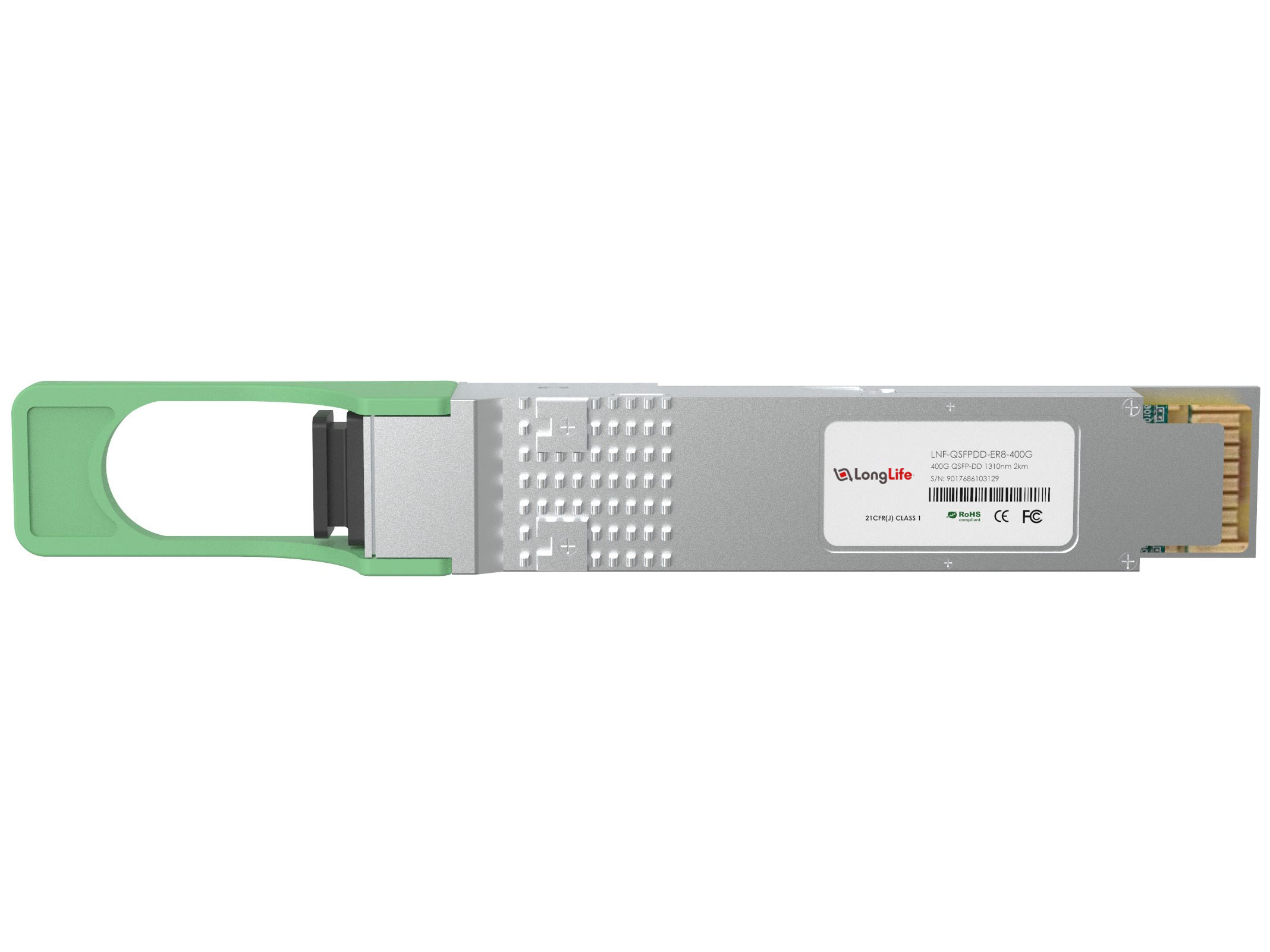

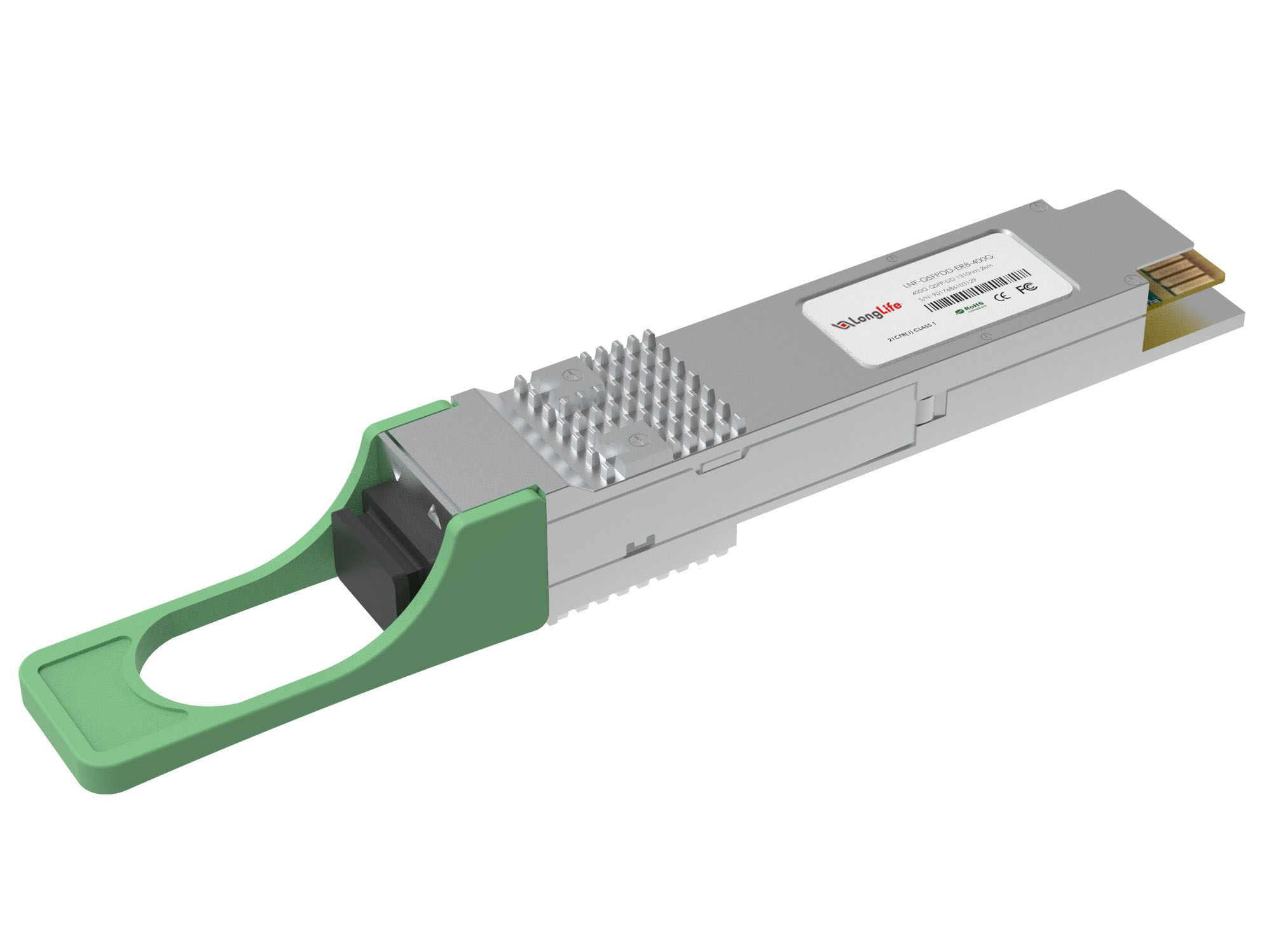

Juniper Networks Compatible 400GBASE-ER8 QSFP-DD PAM4 1310nm 40km Duplex LC SMF DOM Optical Transceiver Module
Juniper Networks Compatible 400GBASE-ER8 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
The 400GBASE-ER8 module, Duplex LC connector, up to 40km over parallel single-mode fiber. It is compliant to IEEE 802.3cn protocol and 400GAUI-8, QSFP-DD HW Rev 5.0 and QSFP-DD CMIS Rev 4.0 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
Specifications
|
Part Number
|
QDD-ER8-400G | Vendor Name | Longlife |
|
Form Factor
|
QSFP-DD |
Max Data Rate
|
206.24Gbps(8x 25.78Gbps) |
|
Wavelength
|
1310nm |
Max Cable Distance
|
100m |
|
Connector
|
Duplex LC (UPC) |
Media
|
MMF |
|
Transmitter Type
|
LWDM EML |
Receiver Type
|
PIN |
|
TX Power
|
-0.6~5.6dBm |
Receiver Sensitivity
|
＜-10.3dBm |
|
Powerbudget
|
15.5dB |
Receiver Overload
|
3.4dBm |
|
Power Consumption
|
≤10W |
Extinction Ratio
|
＞2dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
DSP
|
TX and RX |
Inbuilt FEC
|
No |
|
Core Size
|
G.652/9um |
Inbuilt FEC
|
No |
|
Protocols
|
IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 |
Warranty
|
5 Years |
