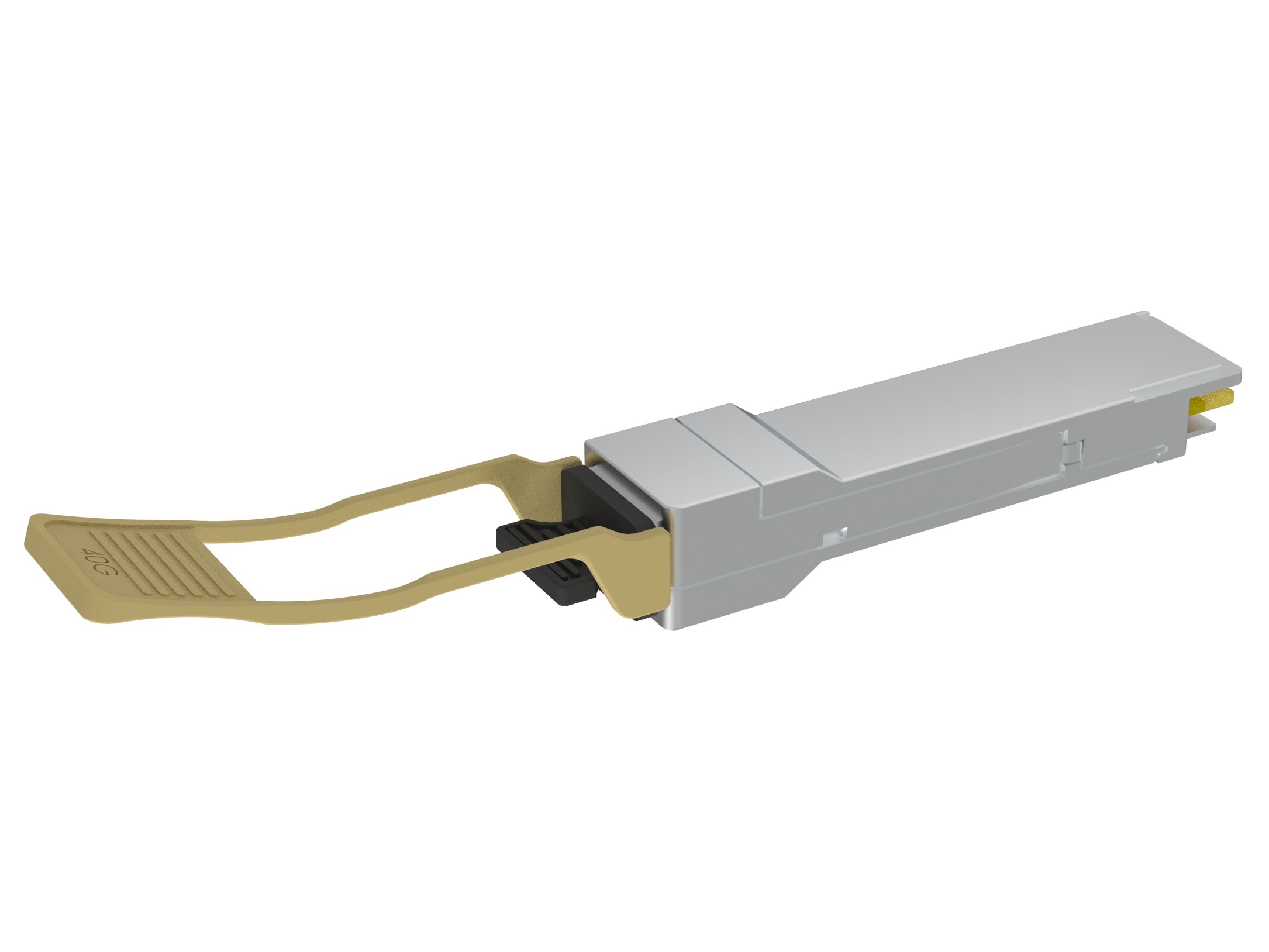

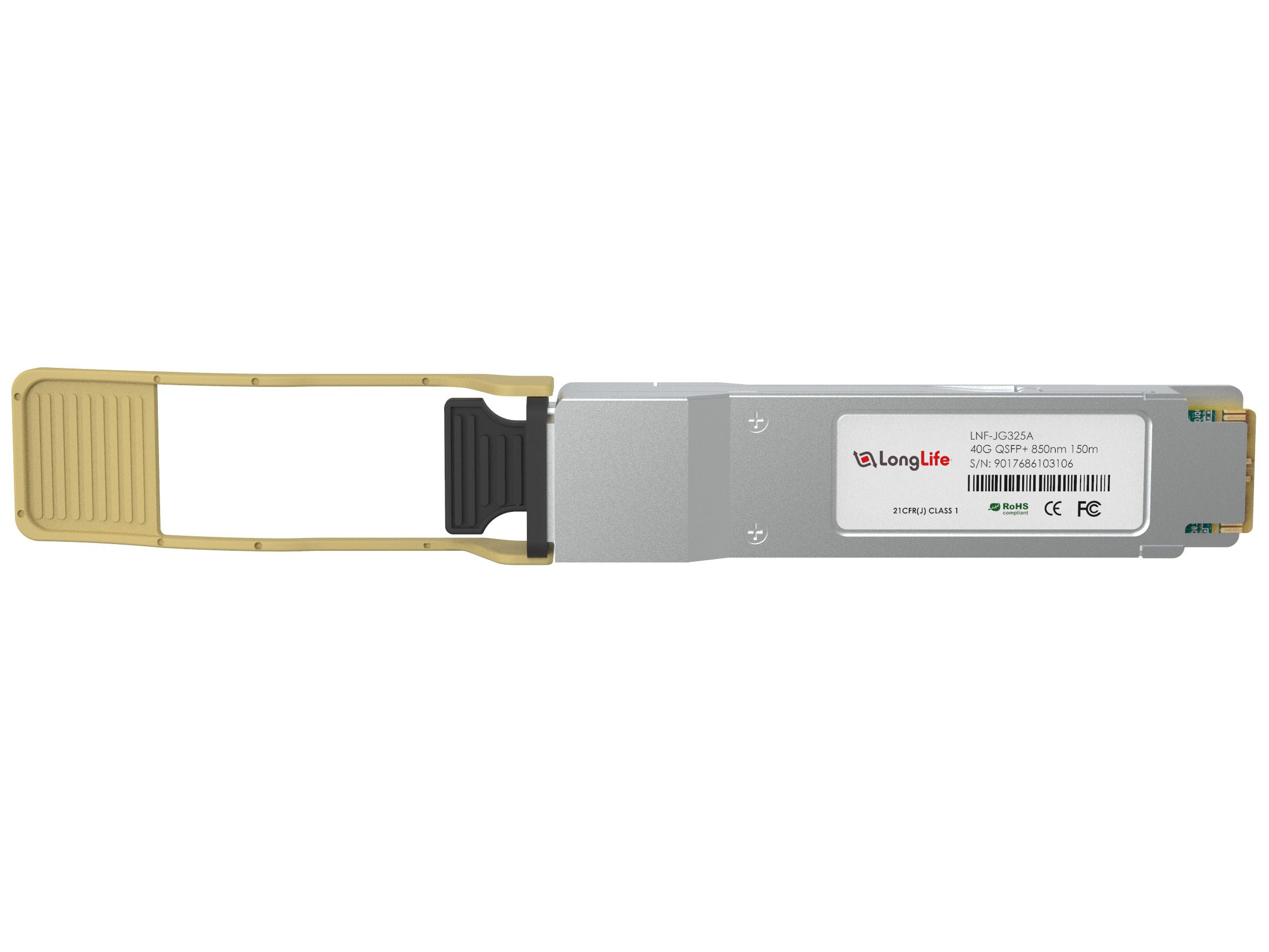

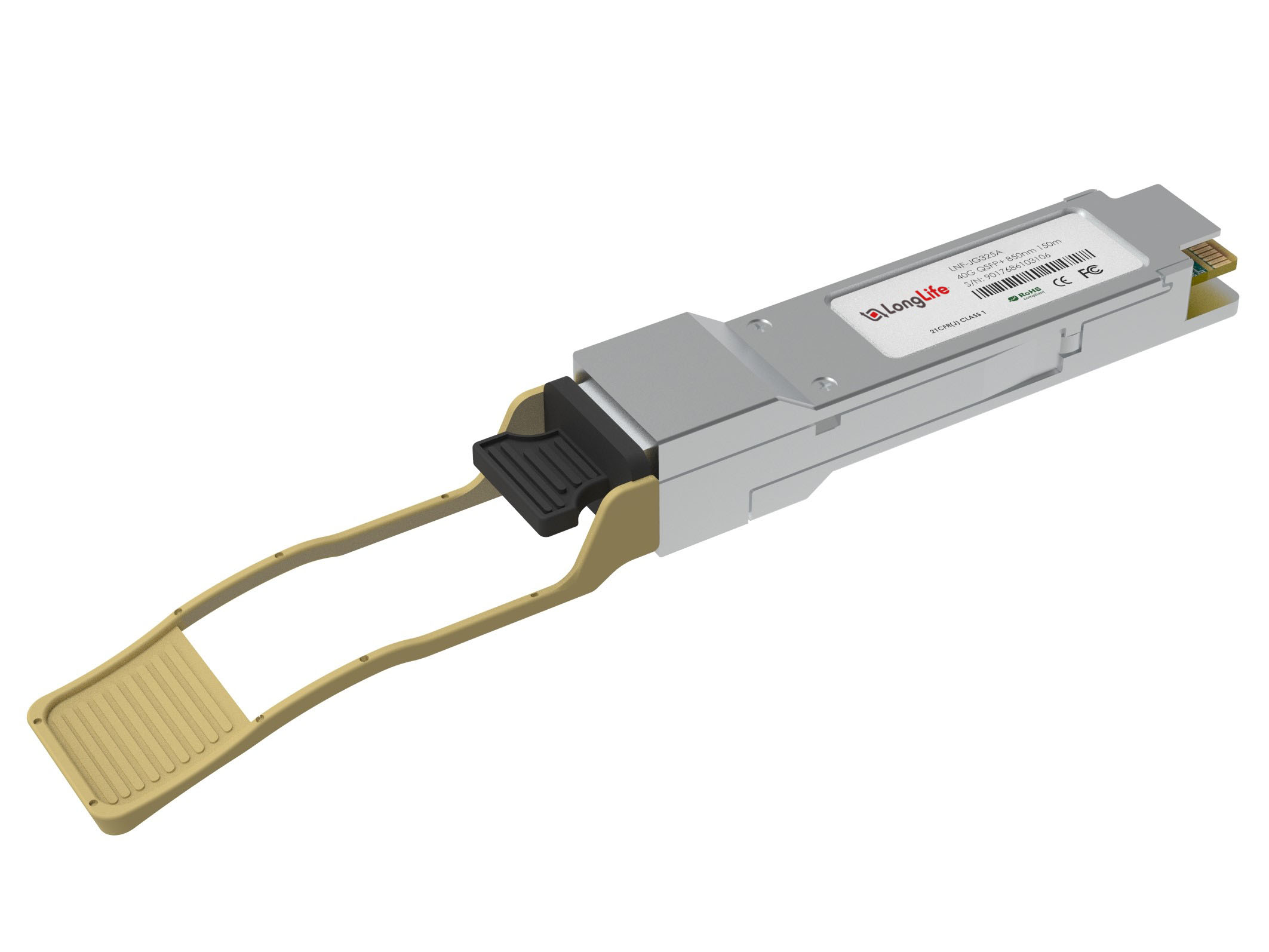

JG325A HPE H3C Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO-12 MMF Optical Transceiver Module for HPE FlexNetwork and FlexFabric Switch Series
HPE H3C JG325A Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)
The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.
Note: This module has been tested on Switch built-in “ArubaOS-CX”, if you want to use it with “ArubaOS” switch, we suggest initiating a test order in advance.
HPE H3C Compatible
|
JG325A |
Vendor Name
|
Longlife |
Form Factor
|
QSFP+ |
Max Data Rate
|
41.25Gbps (4x 10.3125Gbps) |
Wavelength
|
850nm |
Max Cable Distance
|
150m@OM4/100m@OM3 |
Connector
|
MTP/MPO-12 Male |
Media
|
MMF |
Transmitter Type
|
VCSEL |
Receiver Type
|
PIN |
TX Power
|
-7.1~1.9dBm |
Receiver Sensitivity
|
<-10.3dBm |
Powerbudget
|
3.5dB |
Receiver Overload
|
2.4dBm |
Power Consumption
|
<1.5W |
Core Size
|
50um |
Extinction Ratio
|
>3dB |
Modulation
|
NRZ |
Host FEC
|
Supported |
Bit Error Ratio (BER)
|
1E-12 |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
