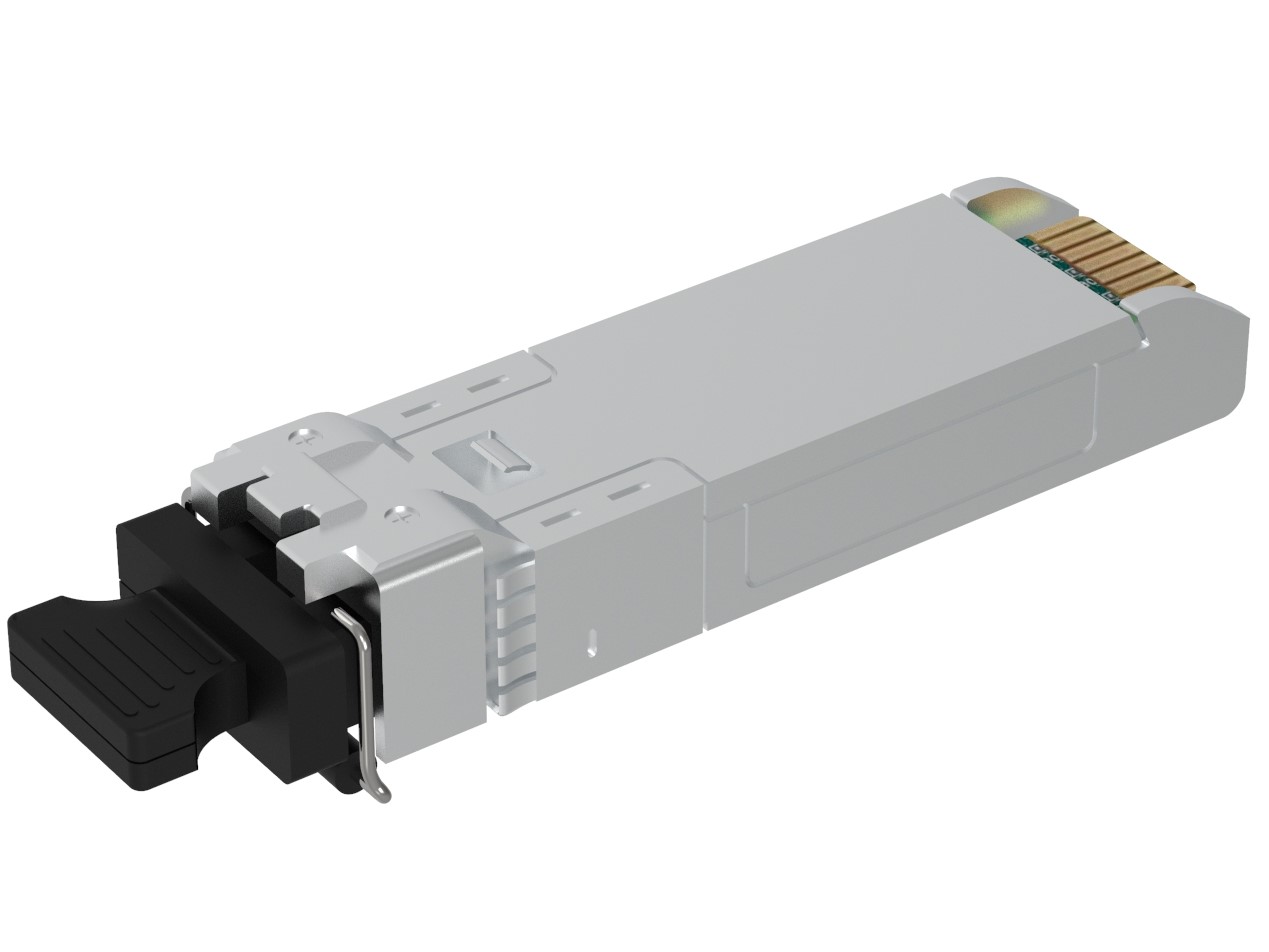

Intel TXN22120 Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Duplex LC MMF/SMF Transceiver Module

Stok kodu: LNF-TXN22120







    Intel TXN22120 Compatible 1000BASE-LX SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

    Intel TXN22120 compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Intel switches, routers, servers, network interface card (NICs) etc.
    Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

    Specifications
    Intel Compatible
    TXN22120
    Vendor Name
    Longlife
    Form Factor
    SFP
    Max. Data Rate
    1.25Gbps
    Wavelength
    1310nm
    Max. Cable Distance
    10km@SMF
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    FP
    Receiver Type
    PIN
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    TX Power
    -9.5 ~ -3dBm
    Receiver Sensitivity
    < -20dBm
    Power Consumption
    ≤1W
    Receiver Overload
    -3dBm
    Bit Error Ratio (BER)
    1E-12
    Extinction Ratio
    >9dB
    EMC (Electro Magnetic Compatibility)
    Supported
    MTBF (LX)
    4,761,904 Hours
    Protocols
    IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
    Warranty
    5 Years
