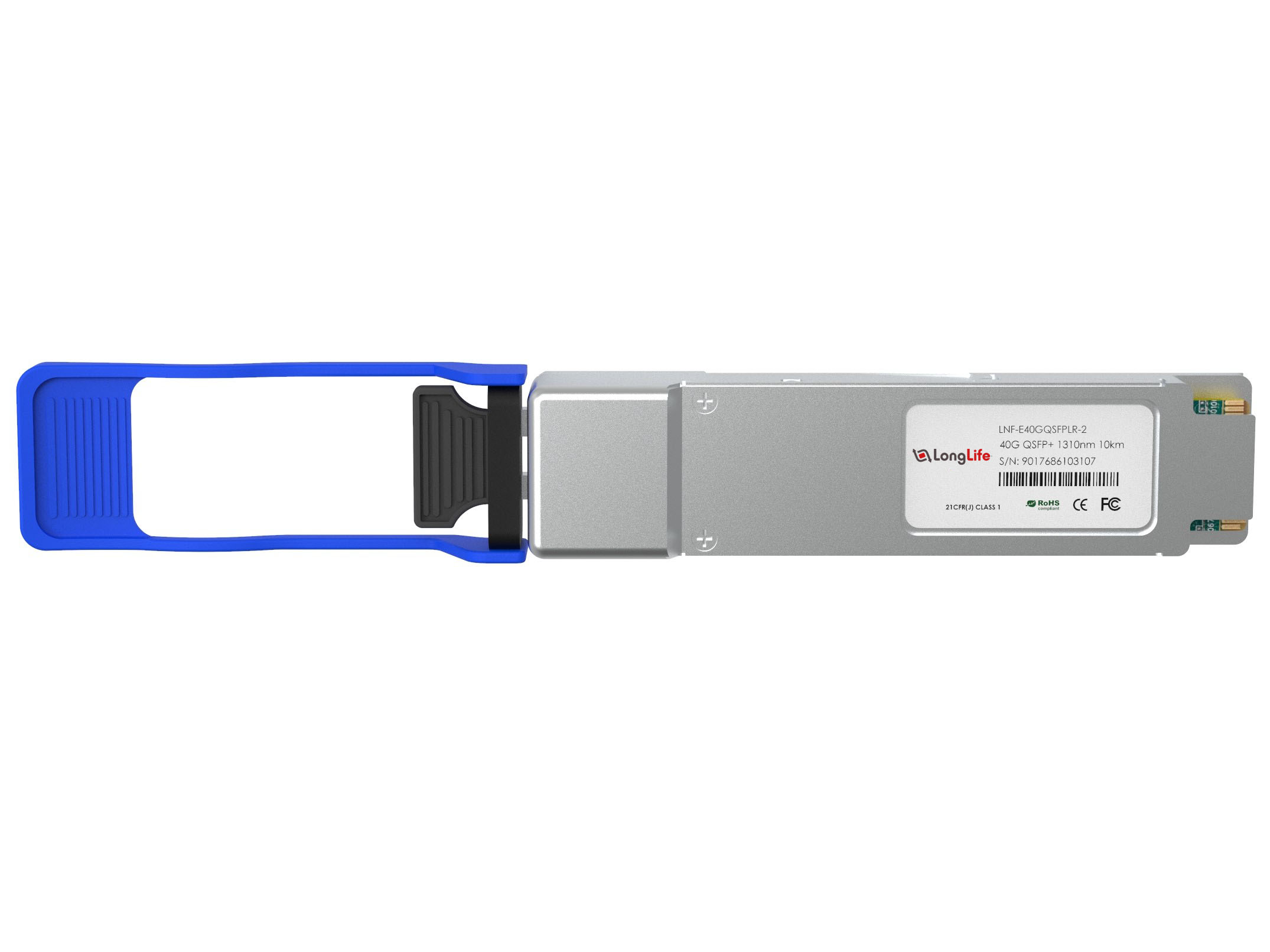

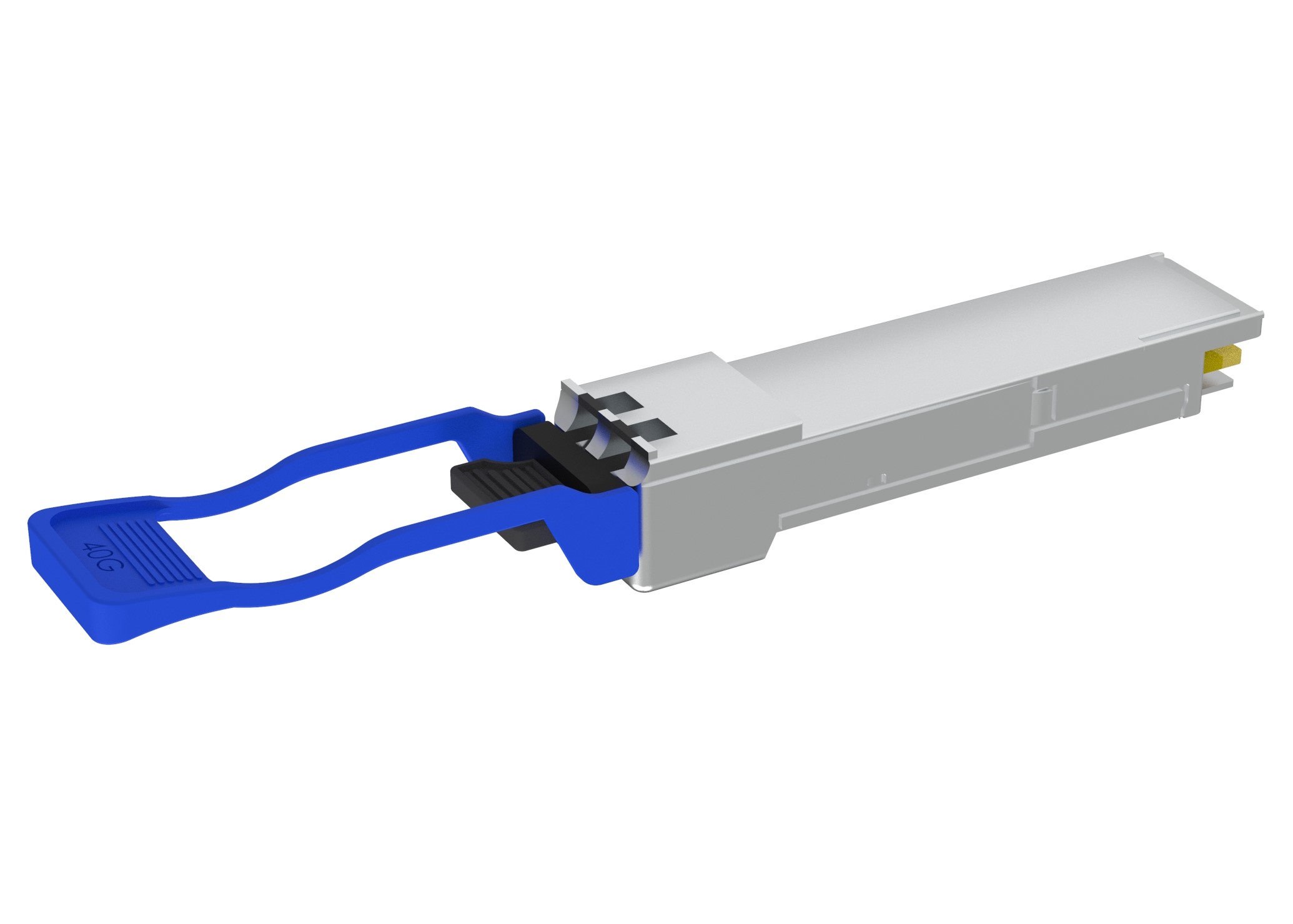

Intel E40GQSFPLR-2 Compatible 40GBASE-PLR4 QSFP+ 1310nm 10km DOM MTP/MPO-12 SMF Optical Transceiver Module
Intel Compatible 40GBASE-PLR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA.
Note: If this transceiver needs to be used to break out one 40G signal into 4x 10G signals, the interface of the device is required to support the breakout feature.
Specifications
Part Number
|
QSFP-PLR4-40G | Vendor Name | Longlife |
Form Factor
|
QSFP+ |
Max Data Rate
|
44.4Gbps (4x 11.1Gbps) |
Wavelength
|
1310nm | Max Cable Distance | 10km |
Connector
|
MTP/MPO-12 Male |
Media
|
SMF |
Transimitter Type
|
4x DFB |
Receiver Type
|
PIN |
TX Power
|
-6~-1dBm |
Receiver Sensitivity
|
<-14.4dBm |
Powerbudget
|
8.4dB |
Receiver Overload
|
0.5dBm |
Power Consumption
|
≤2.5W |
Core Size
|
9um |
Extinction Ratio
|
>4.5dB |
Modulation
|
NRZ |
Host FEC
|
Supported |
Bit Error Ratio (BER)
|
1E-12
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
40G Ethernet, MSA Compliant |
