25G SFP Modules, SFP

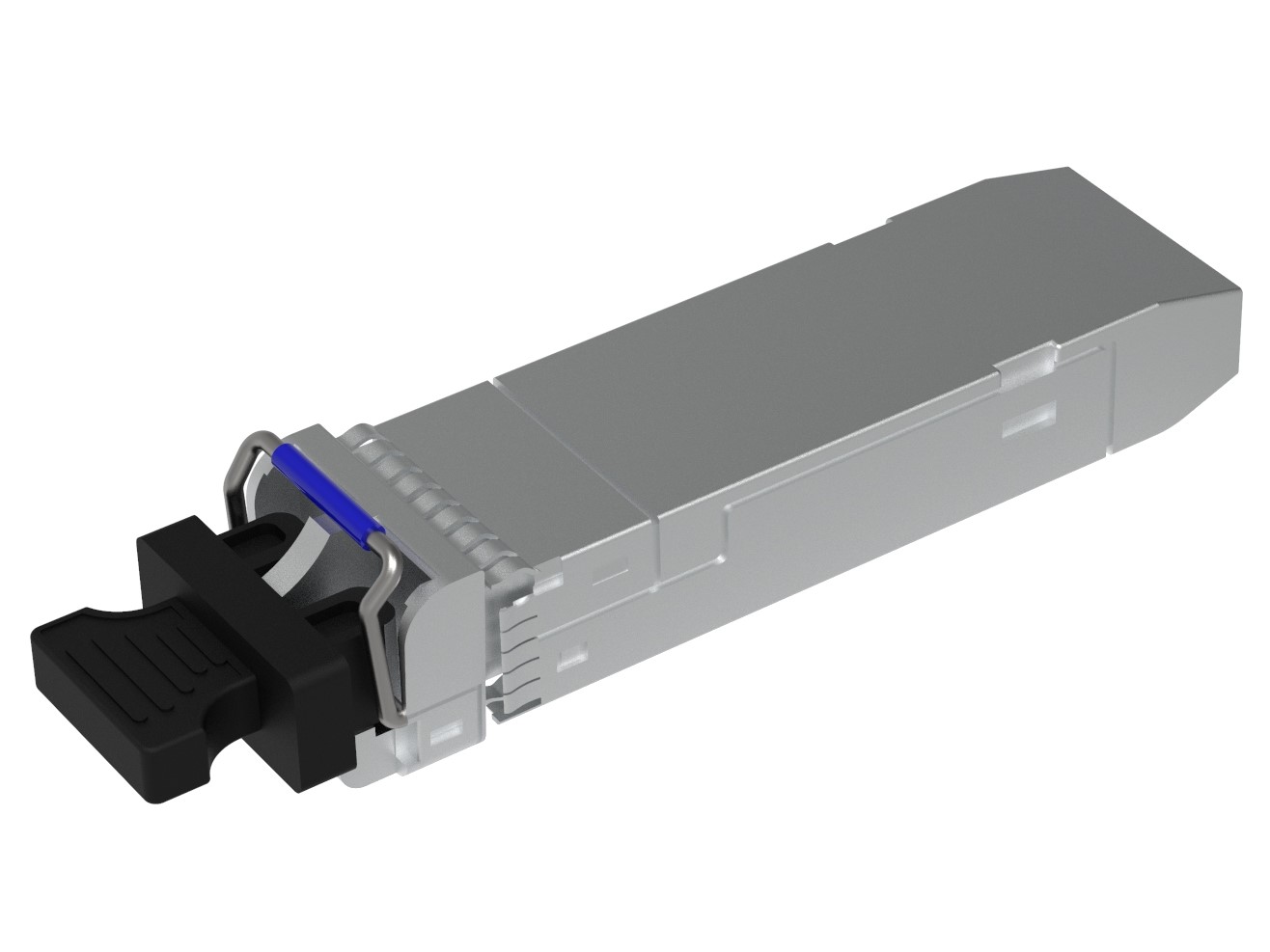

Intel E25GSFP28SR Compatible 25GBASE-ESR SFP28 850nm 300m DOM Duplex LC MMF Optical Transceiver Module
Intel Compatible 25GBASE-ESR SFP28 Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM)
The Intel compatible SFP28 transceiver provides 25GBase-ESR throughput up to 300m over OM3 MMF (400m over OM4) using a wavelength of 850nm via a LC duplex connector. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, and is fully compliant with the SFP28 MSA, RoHS, SFF-8424, SFF-8431 and SFF-8432 standards.
Featuring low power consumption and high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.
Specifications
Part Number
|
SFP28-25GESR-85 | Vendor Name | Longlife |
Form Factor
|
SFP28 |
Max Data Rate
|
25Gbps |
Wavelength
|
850nm |
Max Cable Distance
|
300m@OM3/400m@OM4 |
Connector
|
Duplex LC |
Media
|
MMF |
Transmitter Type
|
VCSEL |
Receiver Type
|
PIN |
TX Power
|
-6.4~2.4dBm |
Receiver Sensitivity
|
-6dBm |
Powerbudget
|
-0.4dB |
Receiver Overload
|
2.4dBm |
Power Consumption
|
≤1W |
Extinction Ratio
|
2dB |
CDR (Clock and Data Recovery)
|
TX & RX Built-in CDR |
Host FEC
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
Core Size
|
50/125 µm |
Packaging Technology
|
COB Packaging |
DOM
|
Supported |
Warranty
|
5 Years |
