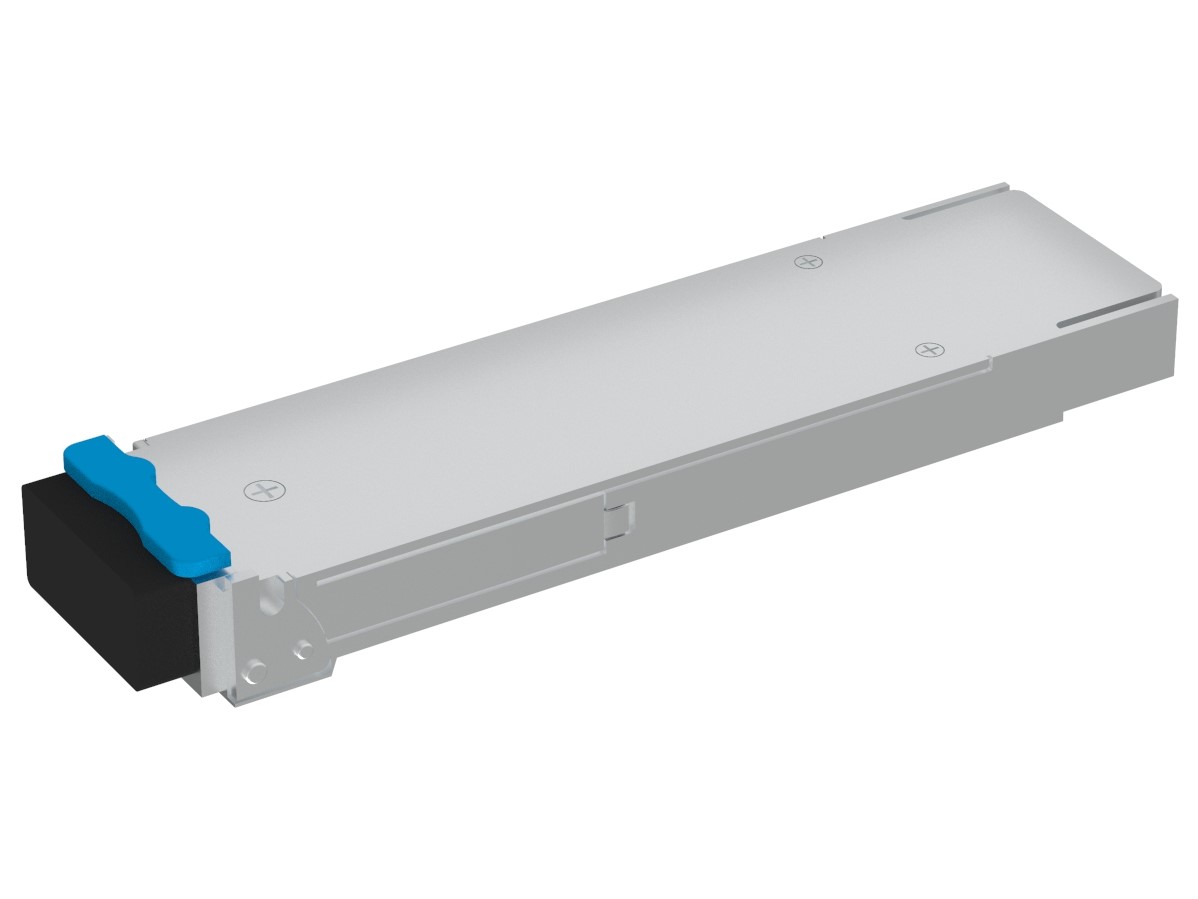

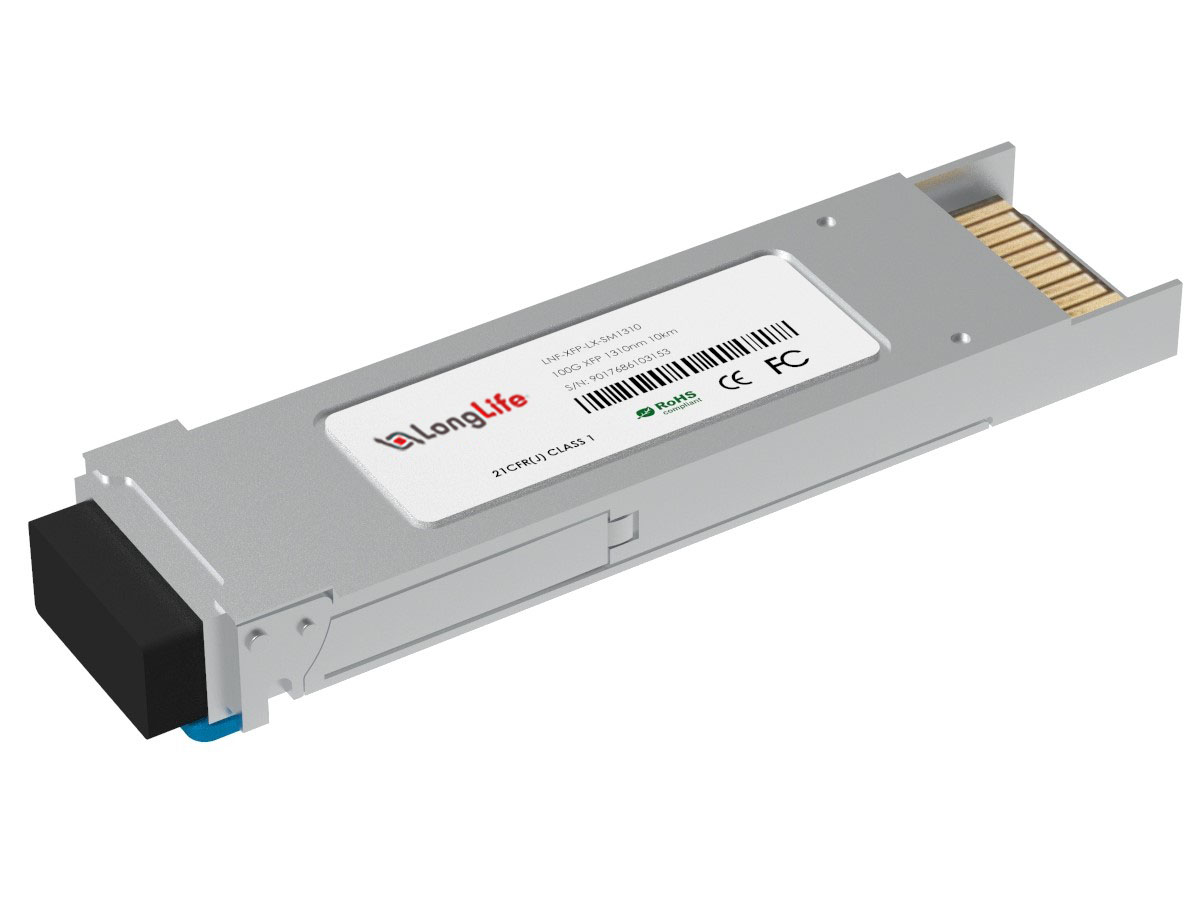

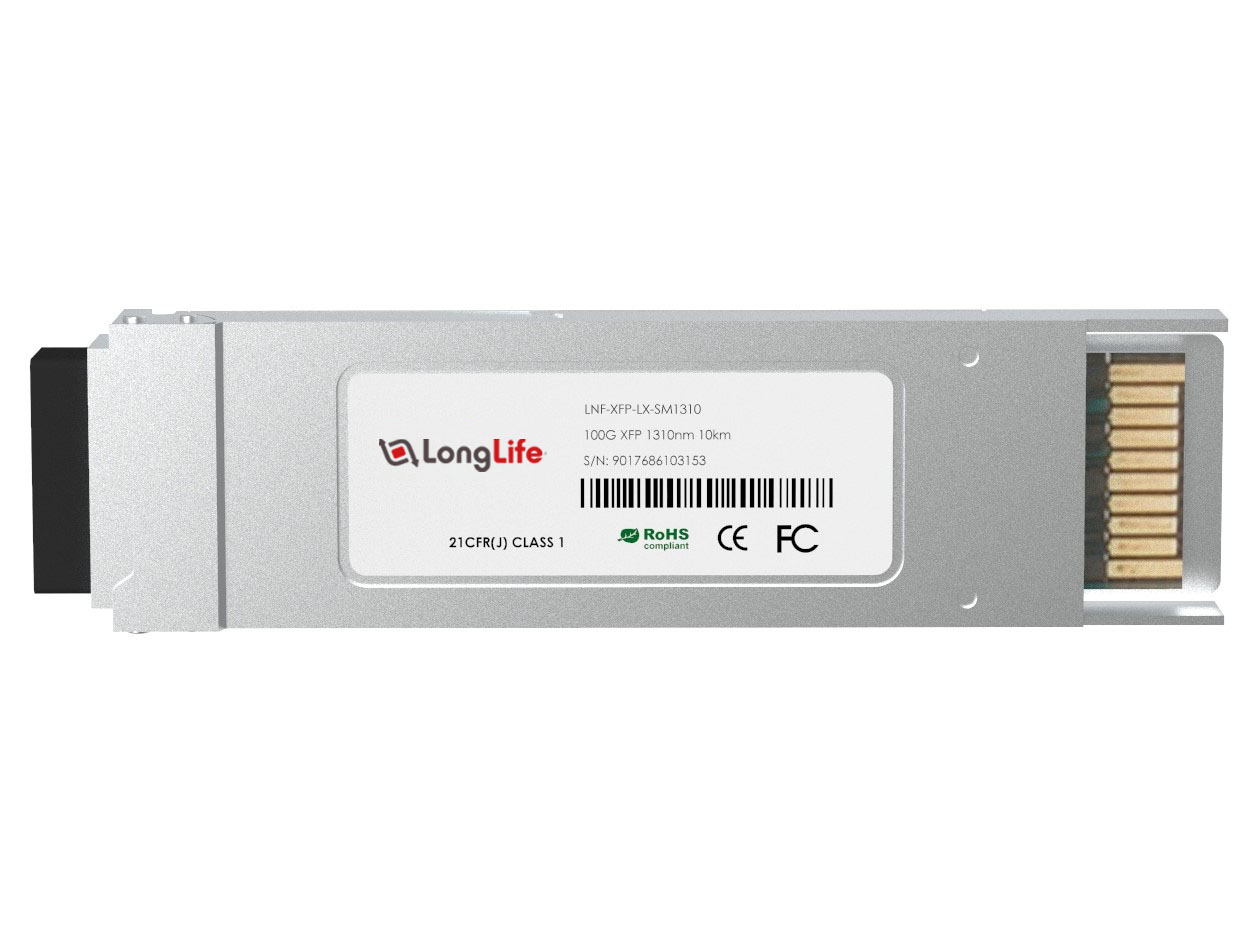

HW XFP-LX-SM1310 Compatible 10GBASE-LR XFP 1310nm 10km DOM LC SMF Transceiver Module

Stok kodu: LNF-XFP-LX-SM1310







    HW Compatible 10GBASE-LR XFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

    HW compatible XFP transceiver provides up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. The multirate XFP supports both 10GBASE-LR and 10GBASE-LW Ethernet applications and OC-192/STM-64 Short-Reach (SR-1) POS applications. This transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-SM-L. Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. It is suitable for data center, enterprise wiring closet, and service provider transport applications.

    Specifications
    Part Number
    XFP-10GLR-31Vendor NameLonglife
    Form Factor
    XFP
    Max Data Rate
    11.3Gbps
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    DFB
    Receiver Type
    PIN
    TX Power
    -6~0dBm
    Receiver Sensitivity
    <-12.6dBm
    Powerbudget
    6.6dB
    Receiver Overload
    0dBm

    Typical Power Consumption

    ≤1.5W

    Extinction Ratio

    3.5dB
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)

    Core Size

    9/125 µm

    Modulation

    NRZ
    Protocols
    IEEE 802.3ae, XFP MSA
    Warranty
    5 Years
