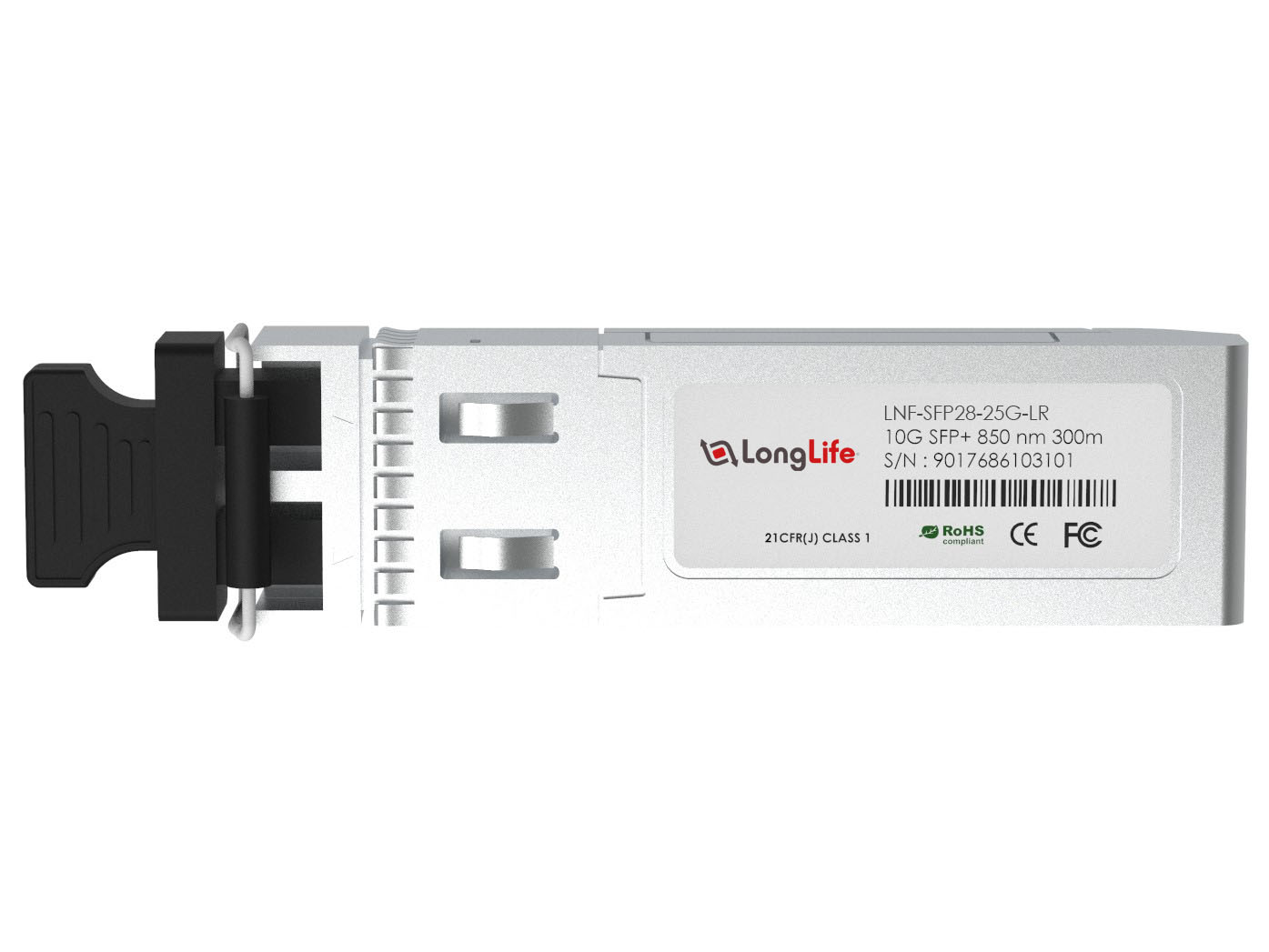

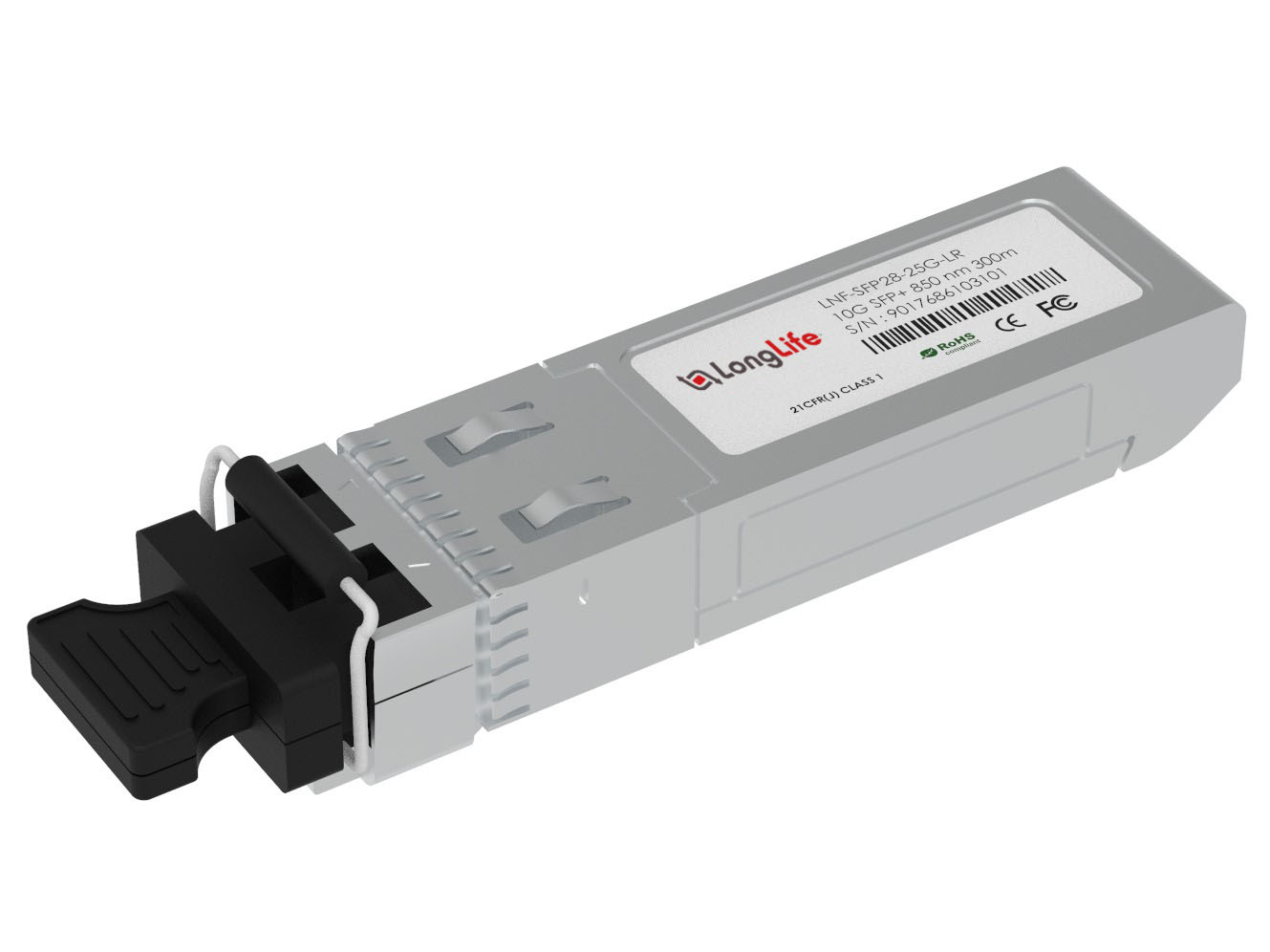

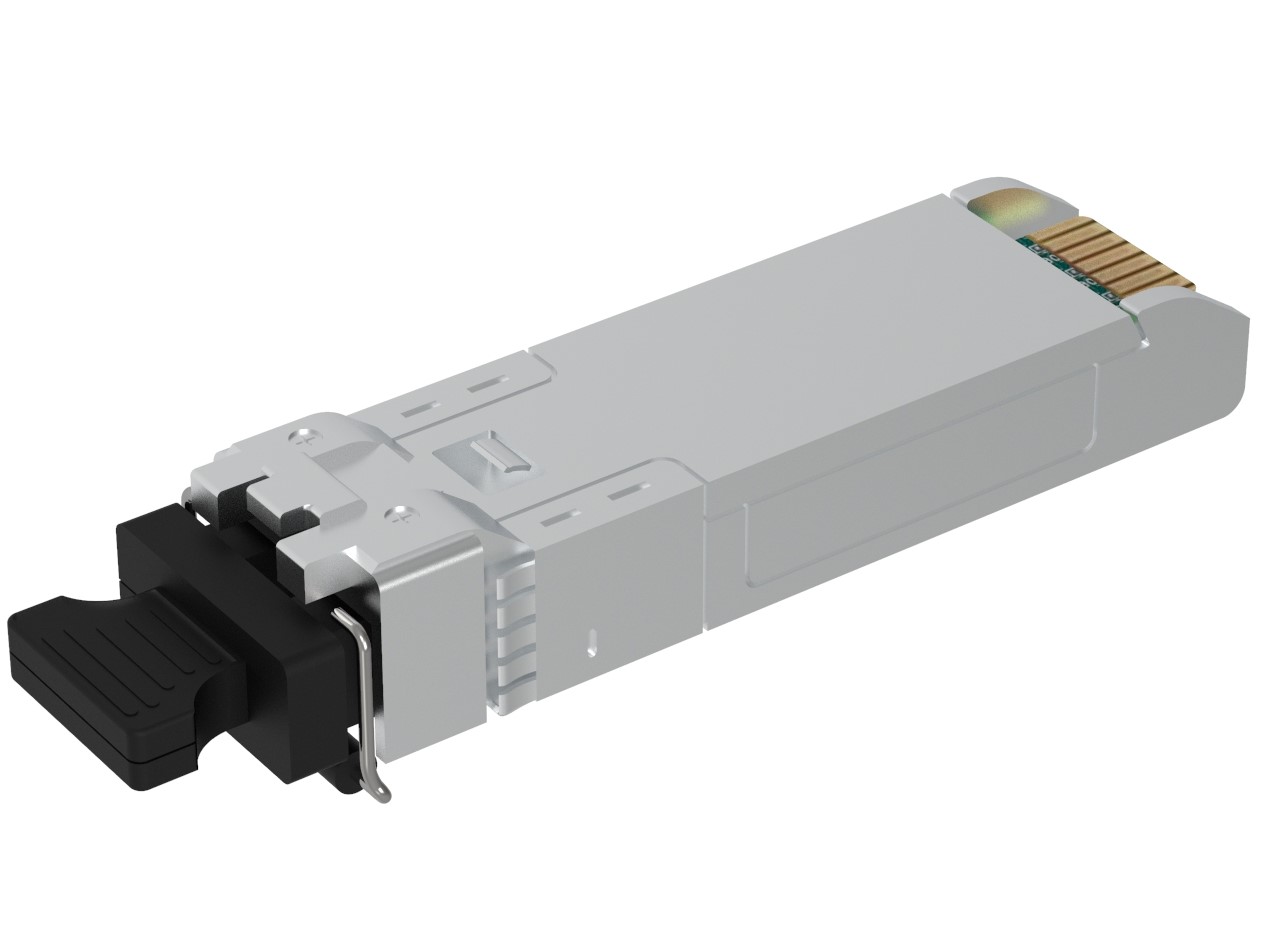

HW SFP28-25G-LR Compatible 25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Stok kodu: LNF-SFP28-25G-LR







    HW SFP-25G-LR Compatible 25GBASE-LR SFP28 DOM Optical Transceiver Module for Data Center and Telecom (SMF, 1310nm, 10km, LC, DOM)

    The HW SFP-25G-LR compatible SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

    Specifications
    HW Compatible
    SFP-25G-LRVendor NameLonglife
    Form Factor
    SFP28
    Max Data Rate
    25.78Gbps
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    DFB 1310nm
    Receiver Type
    PIN
    TX Power
    -4~2dBm
    Receiver Sensitivity
    <-12dBm
    Powerbudget
    8dB
    Receiver Overload
    2dBm
    Power Consumption
    <1.2W
    Extinction Ratio
    3.5dB
    CDR
    TX and RX
    FEC Function

    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Protocols
    MSA Compliant, CPRI, eCPRI
    Core Size
    G.652
    Packaging Technology
    COB Packaging

    DOM

    Supported
    Warranty
    5 Years
