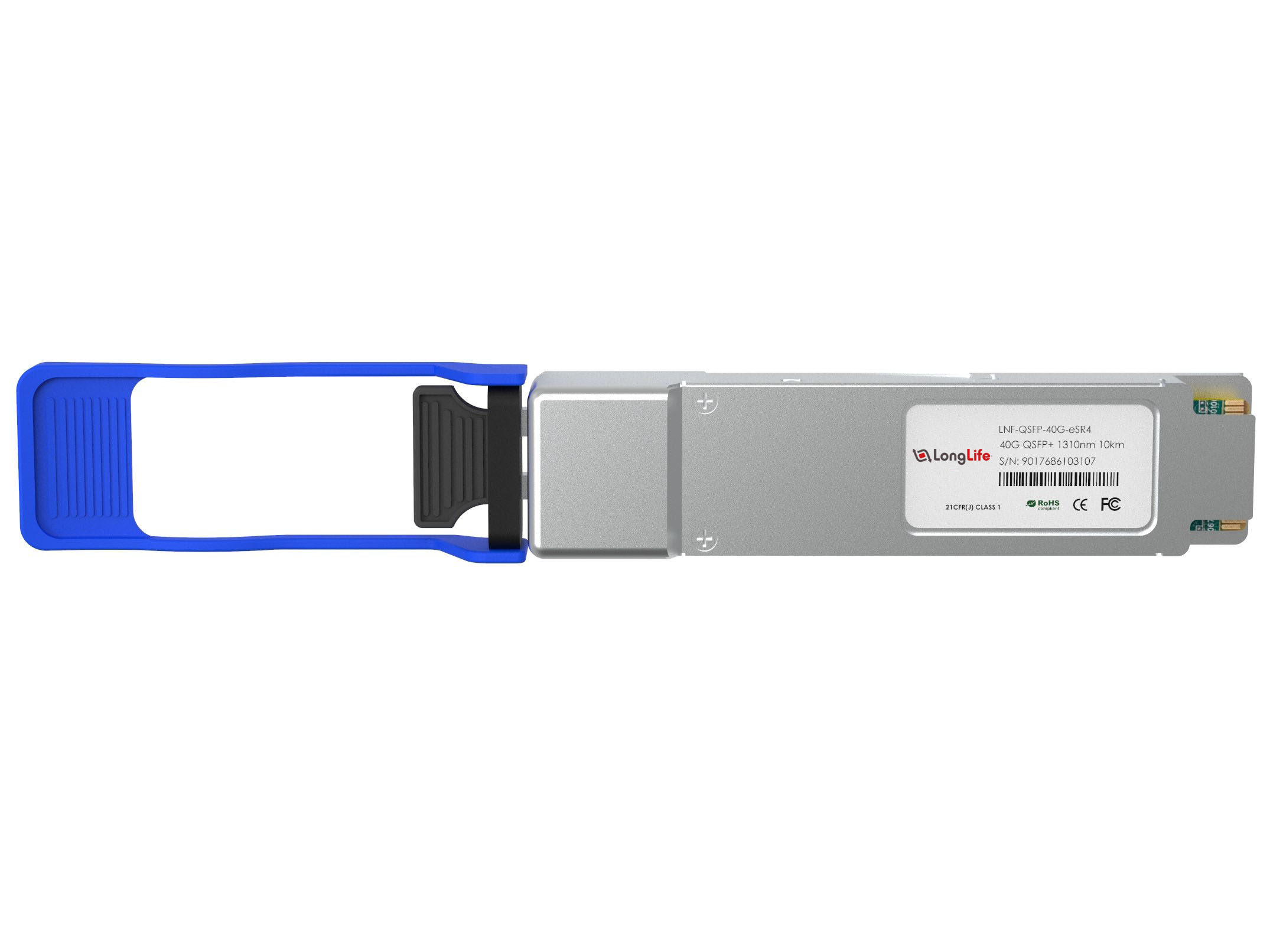

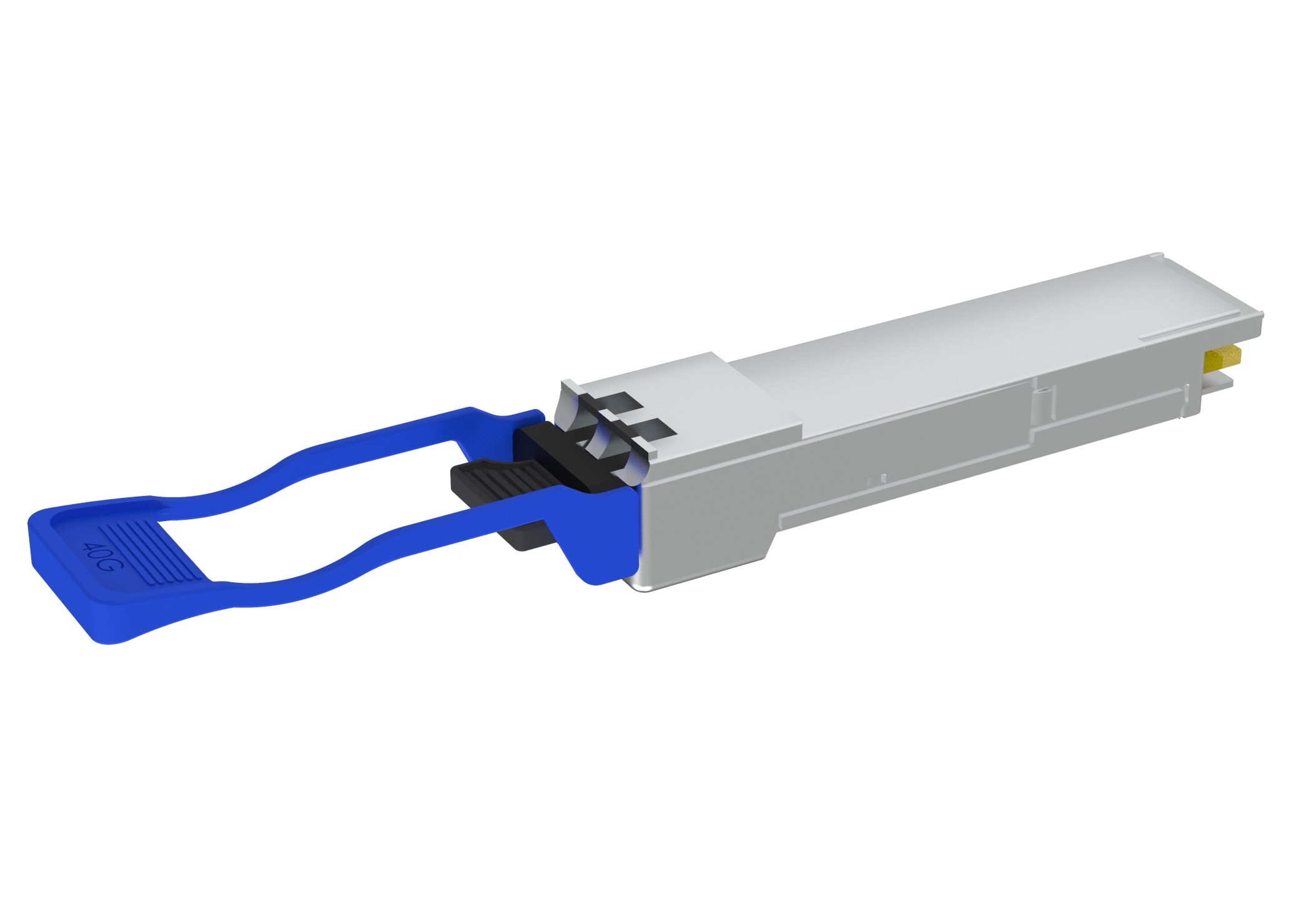

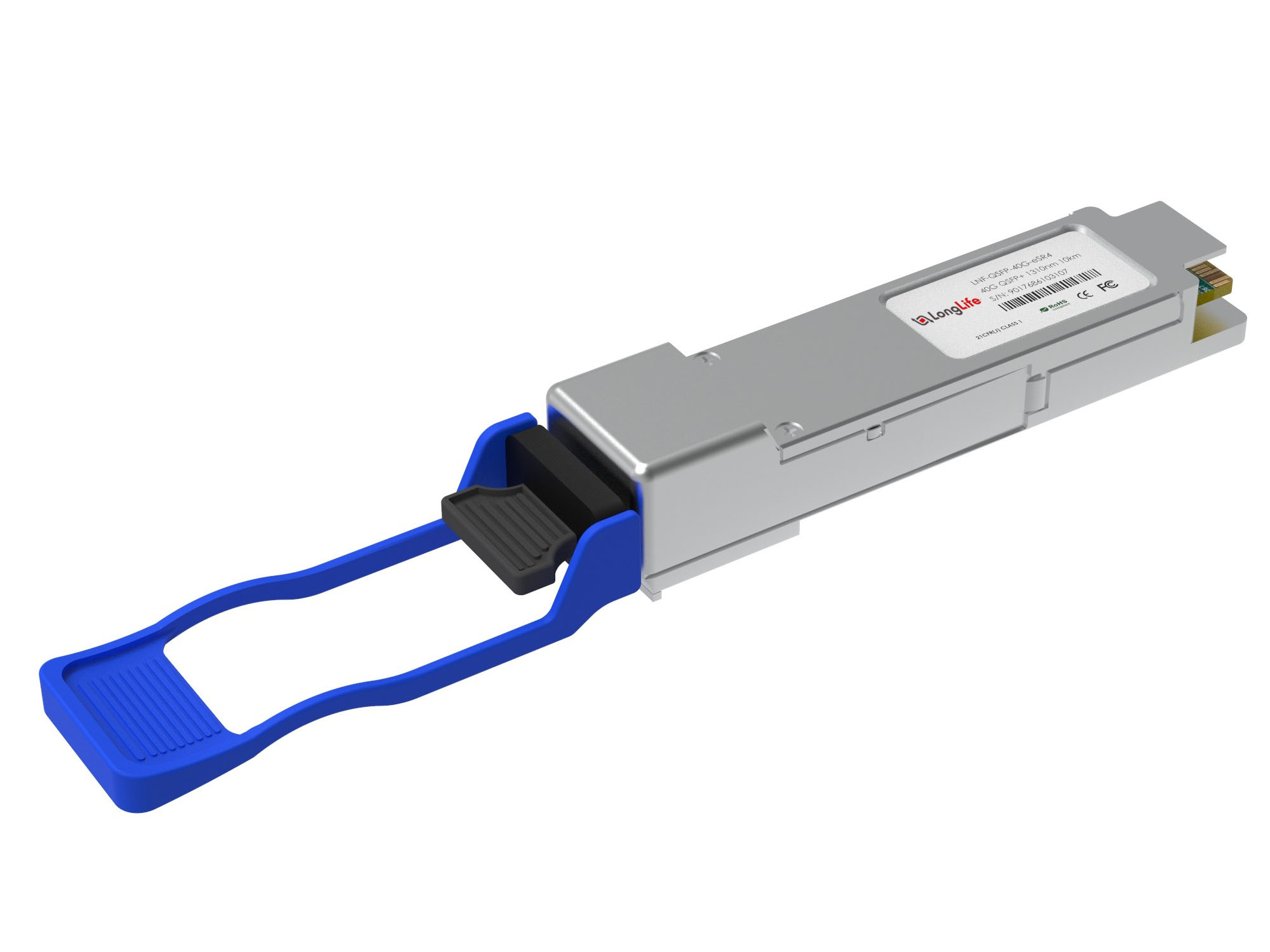

HW QSFP-40G-eSR4 Compatible 40GBASE-ESR4 QSFP+ 850nm 400m DOM MTP/MPO-12 MMF Optical Transceiver Module
HW QSFP-40G-eSR4 Compatible 40GBASE-ESR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 400m, MTP/MPO, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core, distribution layers.
Specifications
HW Compatible | QSFP-40G-eSR4 | Vendor Name | Longlife |
Form Factor | QSFP+ | Max Data Rate | 42Gbps (4x 10.5Gbps) |
Wavelength | 850nm | Max Cable Distance | 400m@OM4 |
Connector | MTP/MPO-12 Male | Media | MMF |
Transimitter Type | VCSEL 850nm | Receiver Type | PIN |
TX Power | -7.5~0dBm | Receiver Sensitivity | <-9.9dBm |
Powerbudget | 2.4dB | Receiver Overload | 2.4dBm |
Power Consumption | ≤1.2W | Extinction Ratio | >3dB |
Host FEC | Supported | Bit Error Ratio (BER) | 1E-12 |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | 40G Ethernet, SATA/SAS3, IEEE 802.3ba, MSA Compliant |
