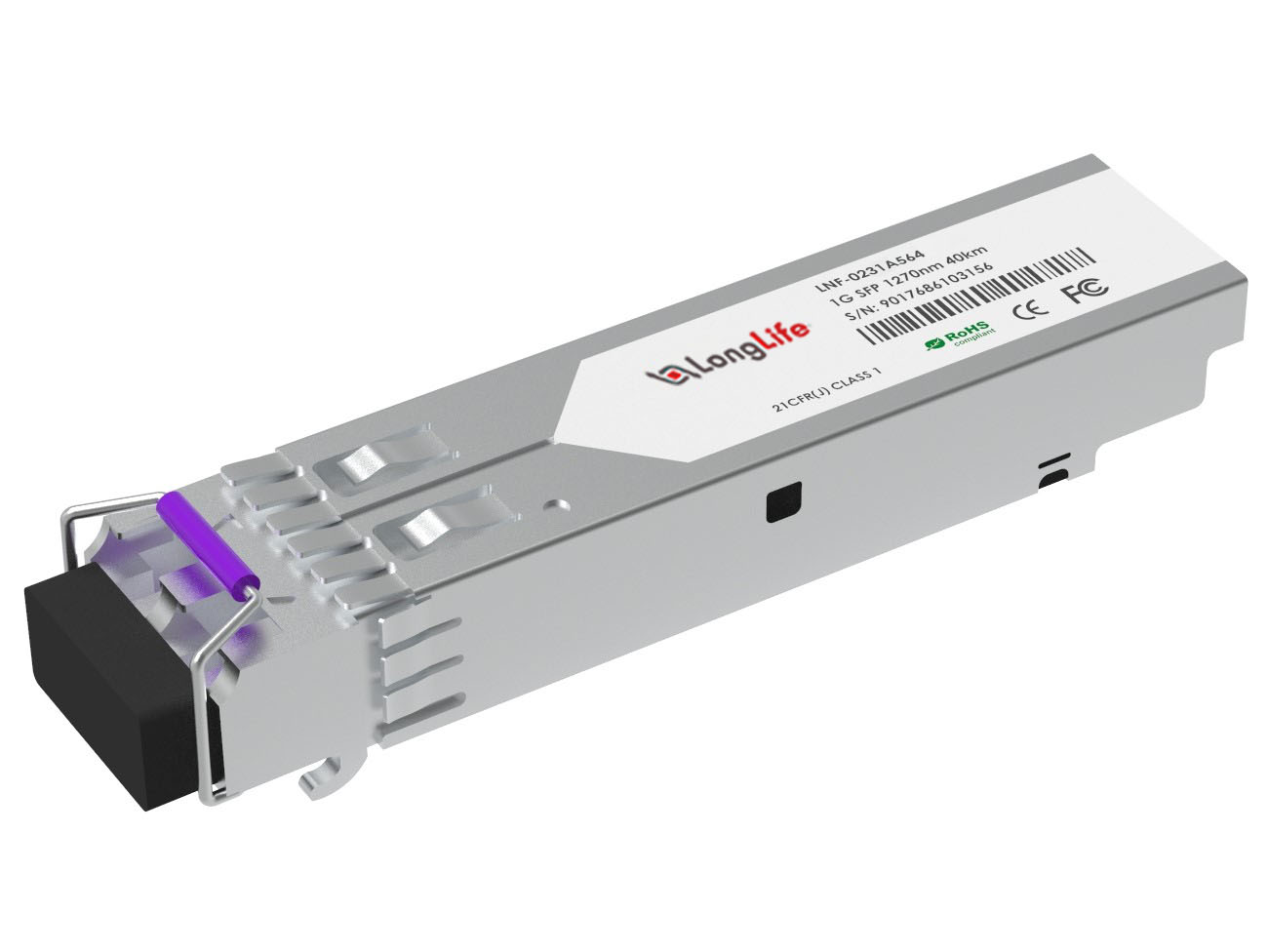

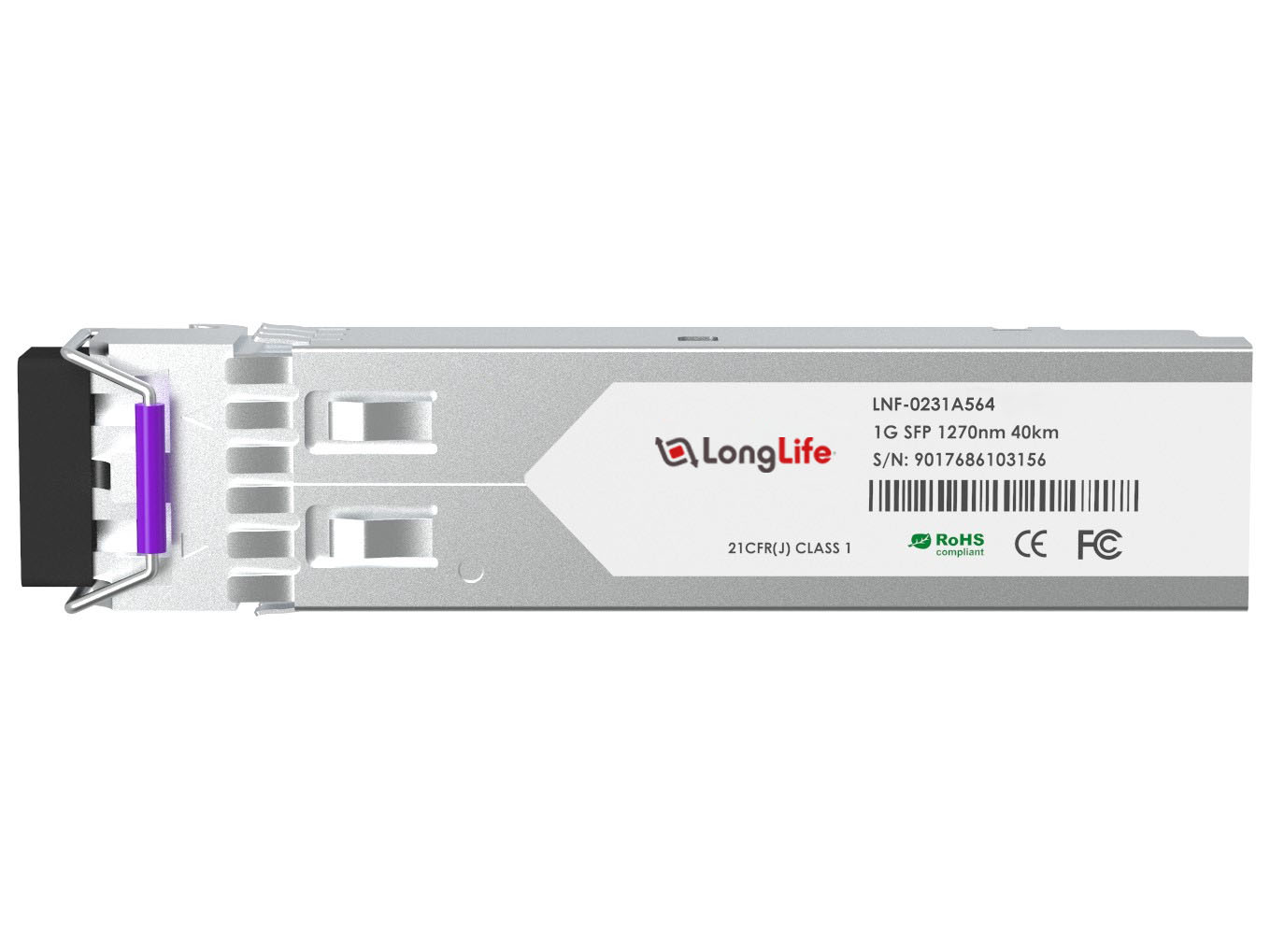

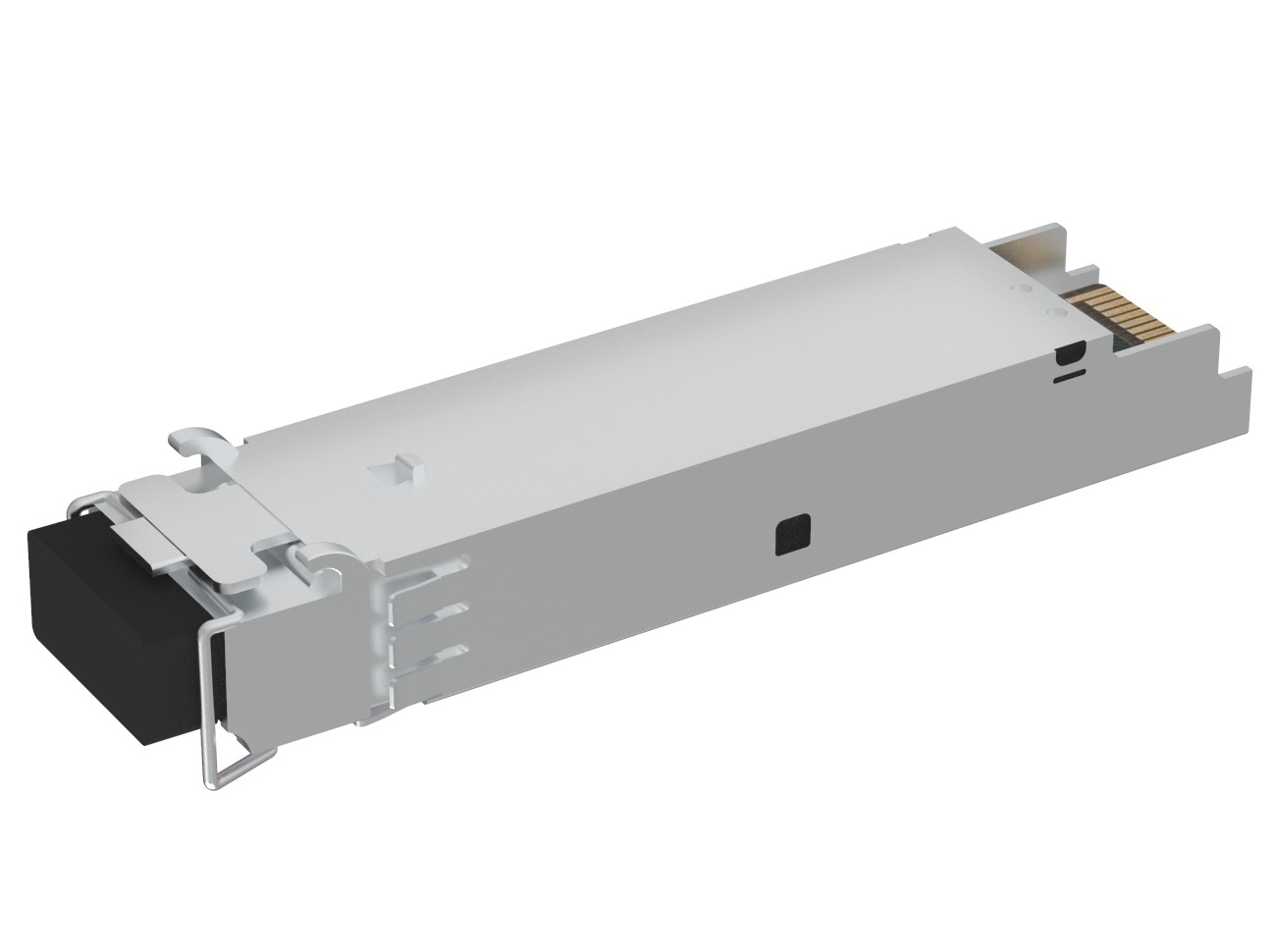

HW 0231A564 Compatible 100BASE-LX SFP 1310nm 10km DOM Duplex LC SMF Transceiver Module

Stok kodu: LNF-0231A564







    HW 0231A564 Compatible 100BASE-LX SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

    HW 0231A564 compatible SFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of HW switches, routers, servers, network interface card (NICs) etc.
    Featuring low power consumption, the hot swappable 100BASE SFP transceiver is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

    Specifications
    HW Compatible
    0231A564
    		 Vendor Name Longlife
    Form Factor
    		 SFP
    Max Data Rate
    		 100Mbps
    Wavelength
    		 1310nm
    Max Cable Distance
    10km
    Connector
    		 Duplex LC
    Optical Components
    		 FP 1310nm
    Media
    		 SMF
    DOM Support
    Yes

    TX Power

    		 -15~-8dBm

    Receiver Sensitivity
    < -32.5dBm
    Commercial Temperature Range
    		 0 to 70°C (32 to 158°F)
    Protocols
    		 IEEE802.3ab, GR-468, MSA Compliant
    Stok kodu: LNF-0231A564 Kategoriler: ,
