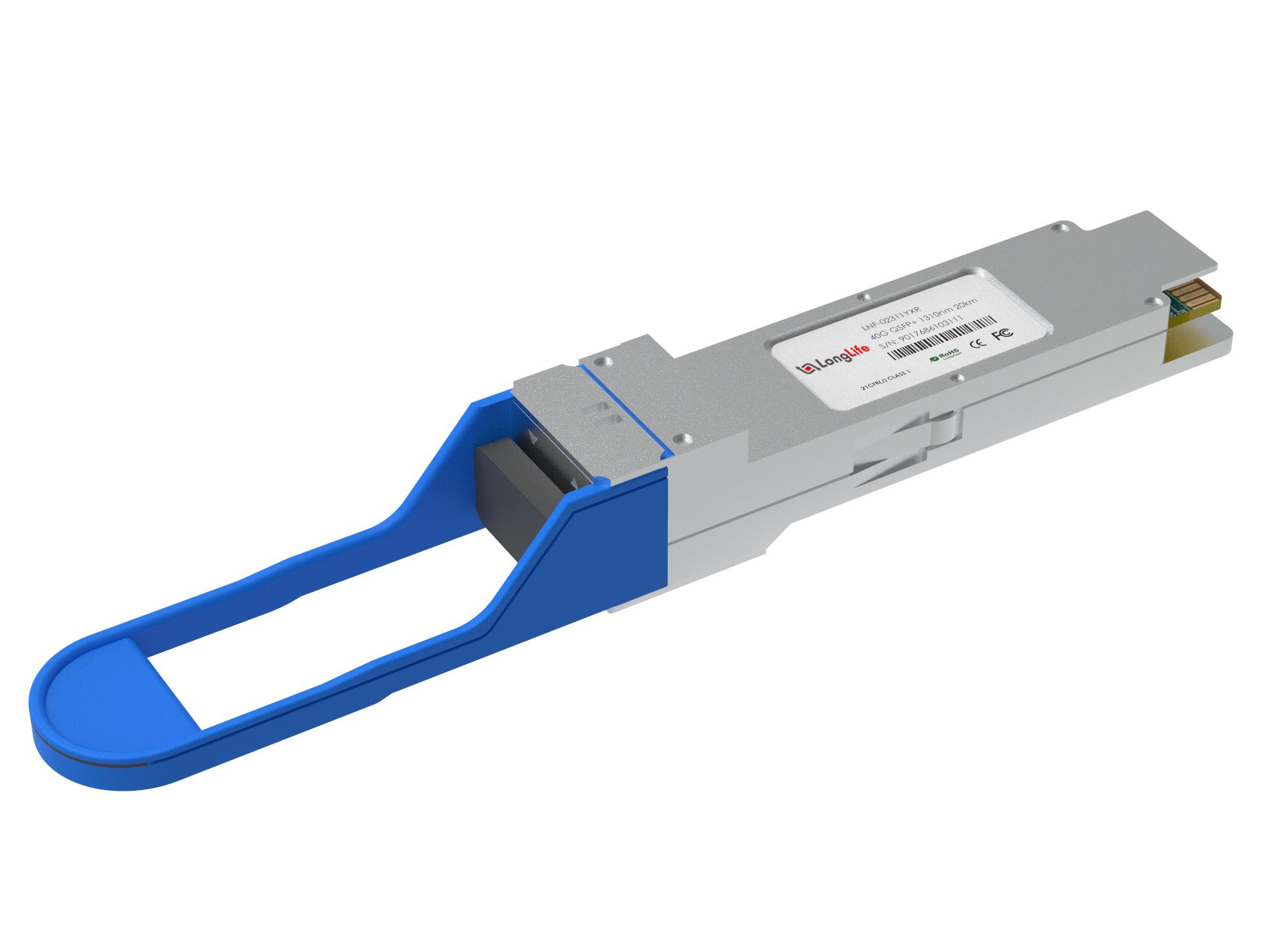

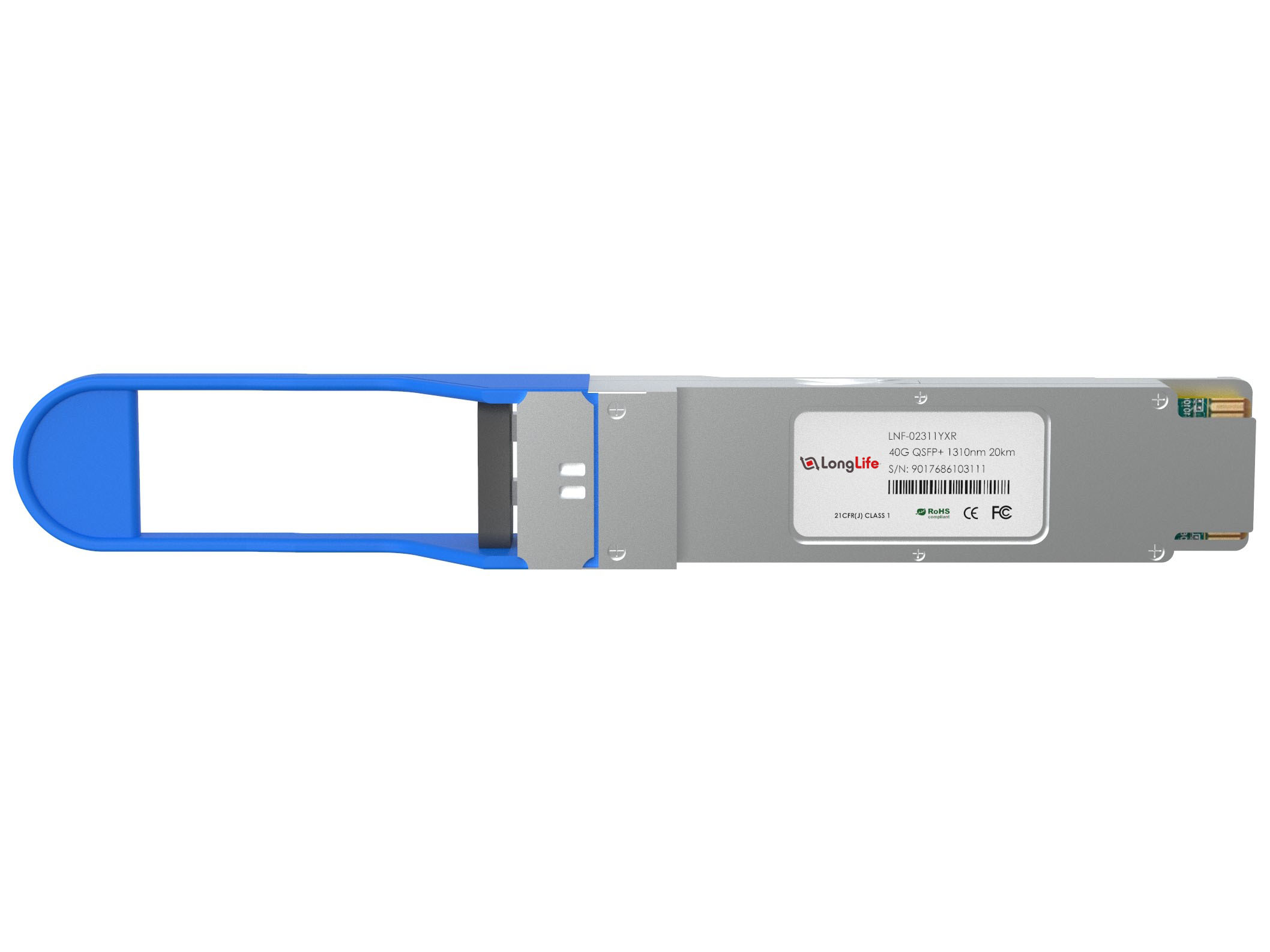

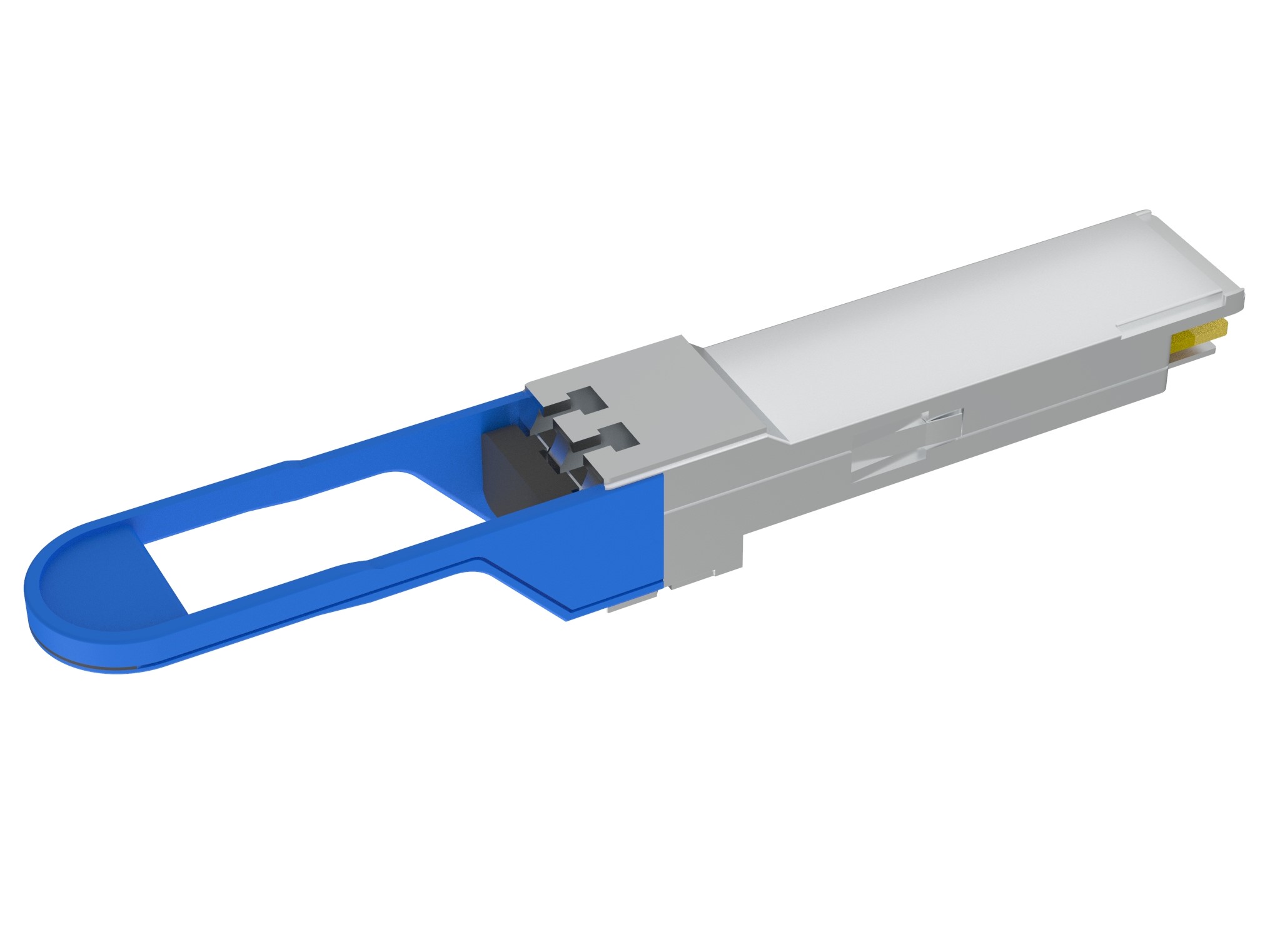

HW 02311YXR Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Duplex LC SMF Optical Transceiver Module

Stok kodu: LNF-02311YXR







    Extreme 100G-ER4LT-QSFP40KM Compatible 100GBASE-ER4L QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

    The Extreme 100G-ER4LT-QSFP40KM compatible QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. Featuring a BOX+FPC+PCBA separate design, it offers great reliability, airtightness, and heat dissipation performance. This transceiver complies with the IEEE 802.3ba standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, such as 100G telecom connections, data centers, high-performance computing networks, and enterprise core and distribution layer applications.
    Note: The FS P/N is changed from QSFP28-ER4-100G to QSFP-ER4L-100G, but the product is the same. Only the FS P/N has been changed.

    Specifications
    Extreme Compatible
    100G-ER4LT-QSFP40KMVendor NameLonglife
    Form Factor
    QSFP28
    Max Data Rate
    103.125Gbps (4x 25.78Gbps)
    Wavelengths
    1310nmMax Cable Distance25km-40km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    4x EML
    Receiver Type
    APD
    TX Power
    -2.9~4.5dBm
    RX Power
    -20.9~-4.9dBm
    Power Consumption
    ≤4.5W
    Extinction Ratio
    >4dB
    CDR (Clock and Data Recovery)
    TX & RX Built-in CDR
    Inbuilt FEC
    Supported
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Packaging Technology
    BOX Packaging
    Modulation Format
    4x 25G NRZ

    Core Size

    9um/125u

    Protocols
    QSFP28 MSA Compliant
