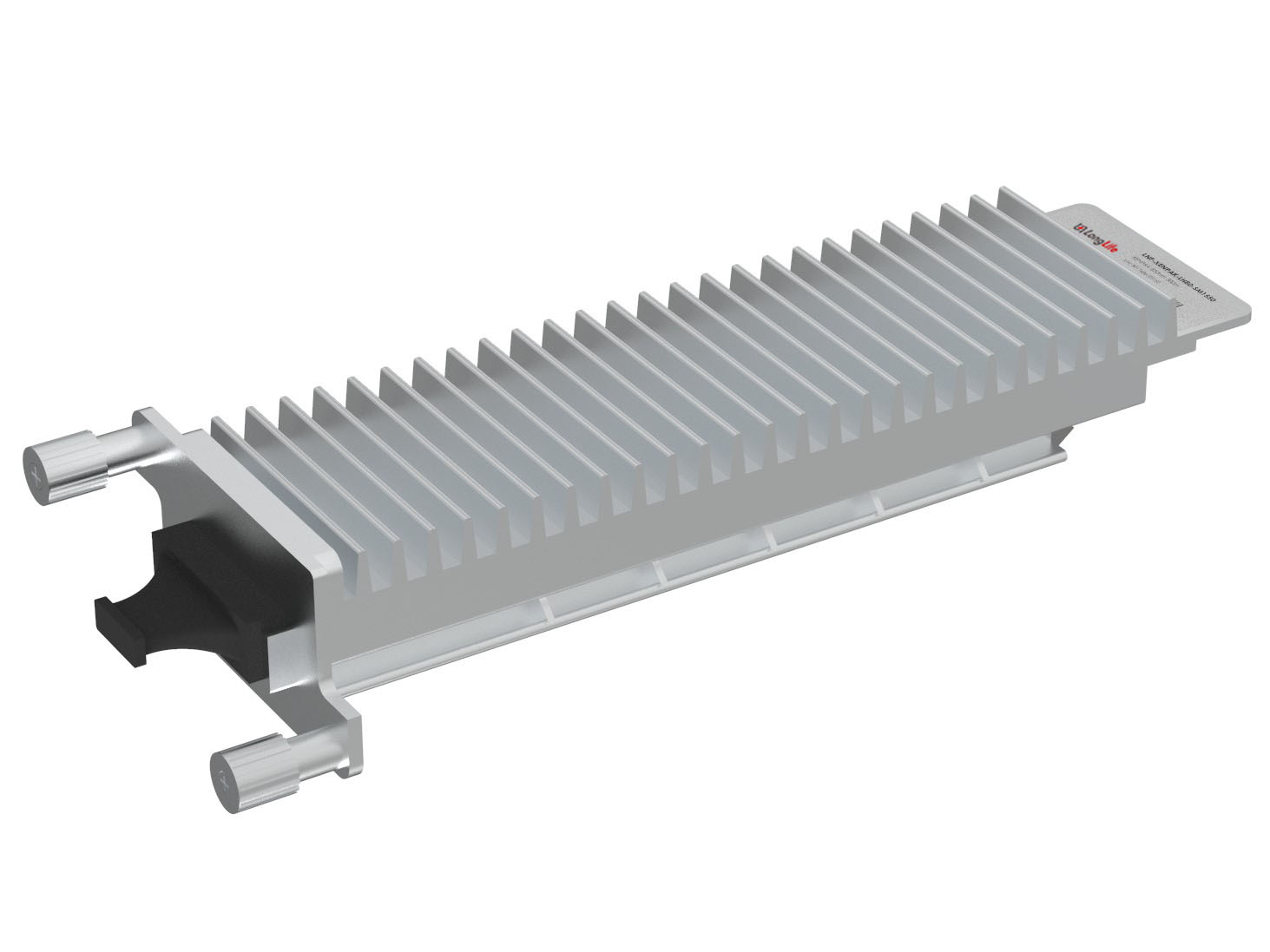

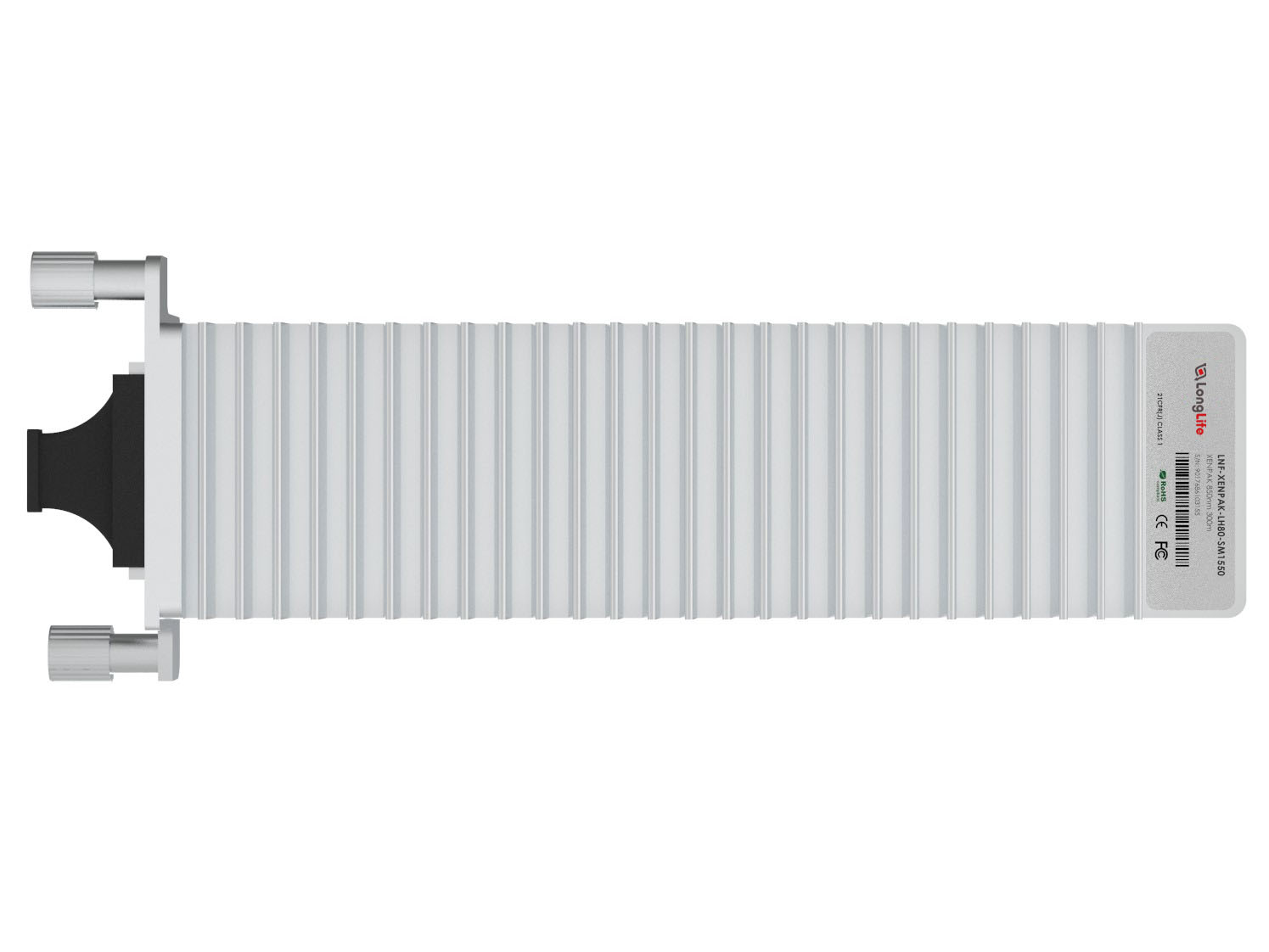

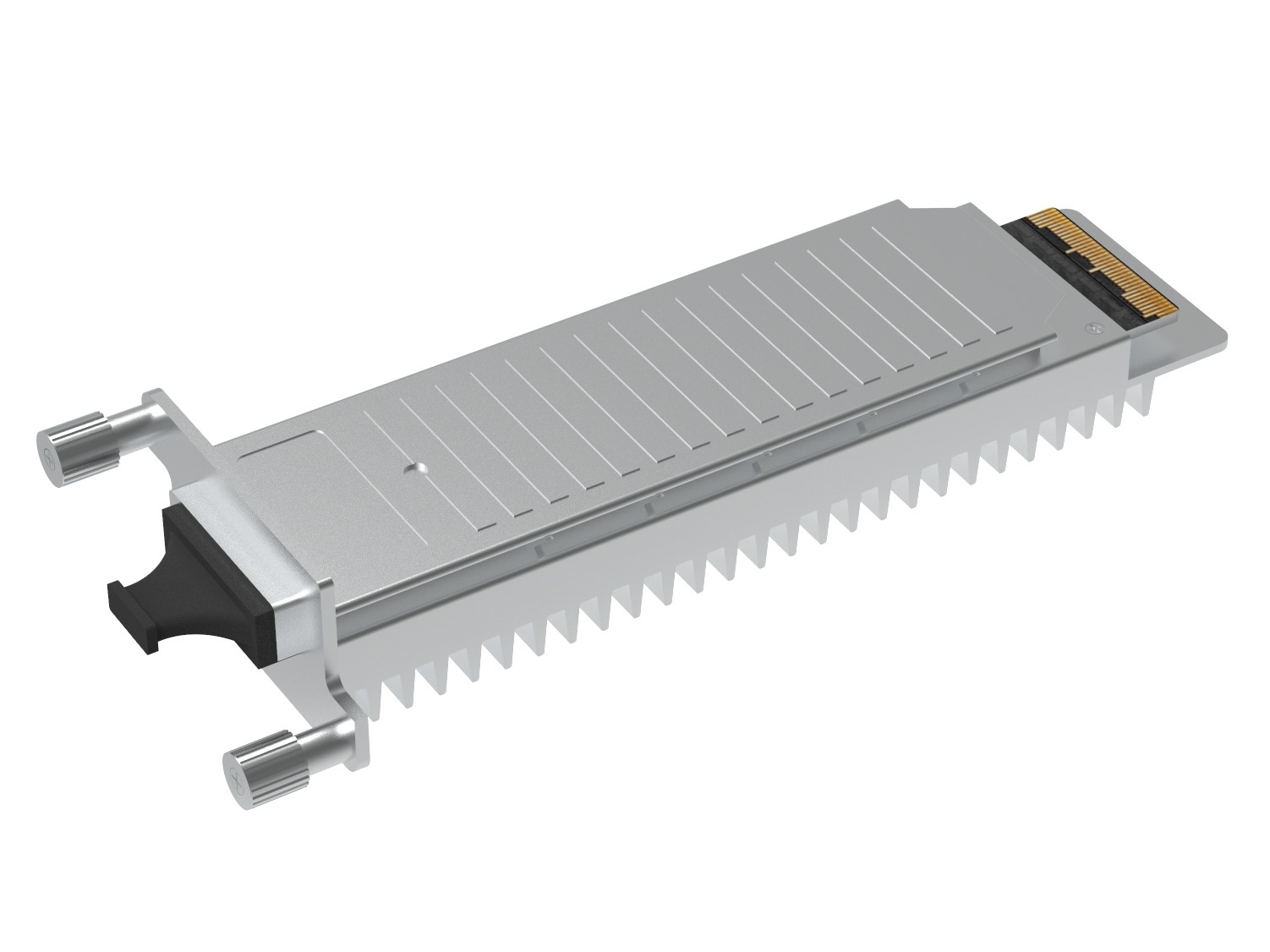

H3C XENPAK-LH80-SM1550 Compatible 10GBASE-ZR XENPAK 1550nm 80km DOM SC SMF Transceiver Module
H3C SFP-XG-LH80-SM1550 Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 80km, LC, DOM)
H3C SFP-XG-LH80-SM1550 Compatible SFP+ transceiver supports up to 80km over OS2 SMF via an LC duplex connector. This transceiver is compliant with per the RoHS Directive 2011/65/EU. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.
Specifications
|
H3C Compatible
|
SFP-XG-LH80-SM1550
|
Vendor Name | Longlife |
|
Form Factor
|
SFP+ |
Max Data Rate
|
11.3Gbps |
|
Wavelength
|
1550nm
|
Max Cable Distance
|
80km
|
|
Connector
|
Duplex LC |
Optical Components
|
EML |
|
Media
|
SMF |
DOM Support
|
Yes
|
|
TX Power
|
0~5dBm
|
Receiver Sensitivity
|
<-23dBm
|
|
Core Size
|
9/125µm |
Modulation
|
NRZ |
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
SFP+ MSA Compliant, CPRI, eCPRI |
