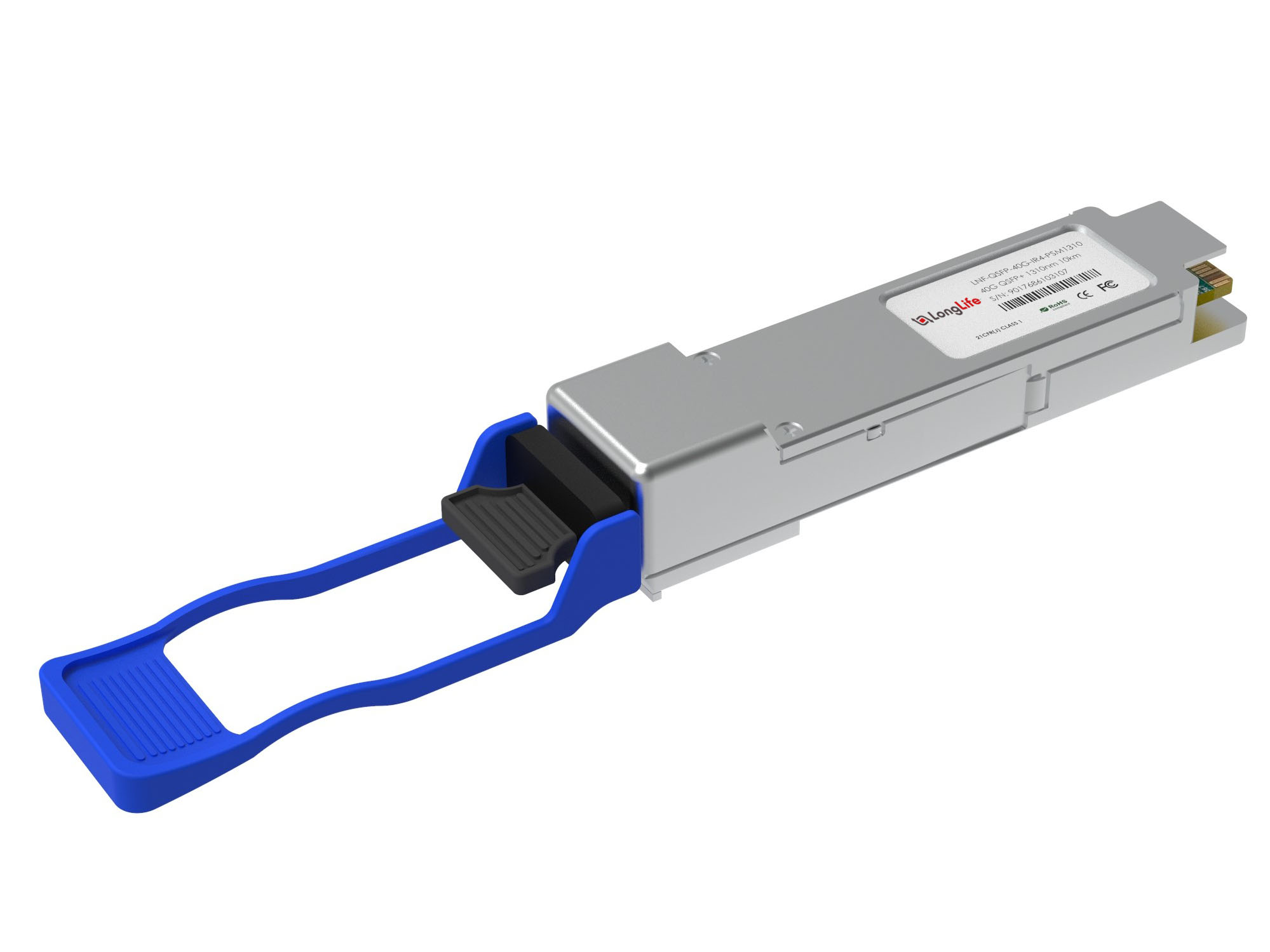

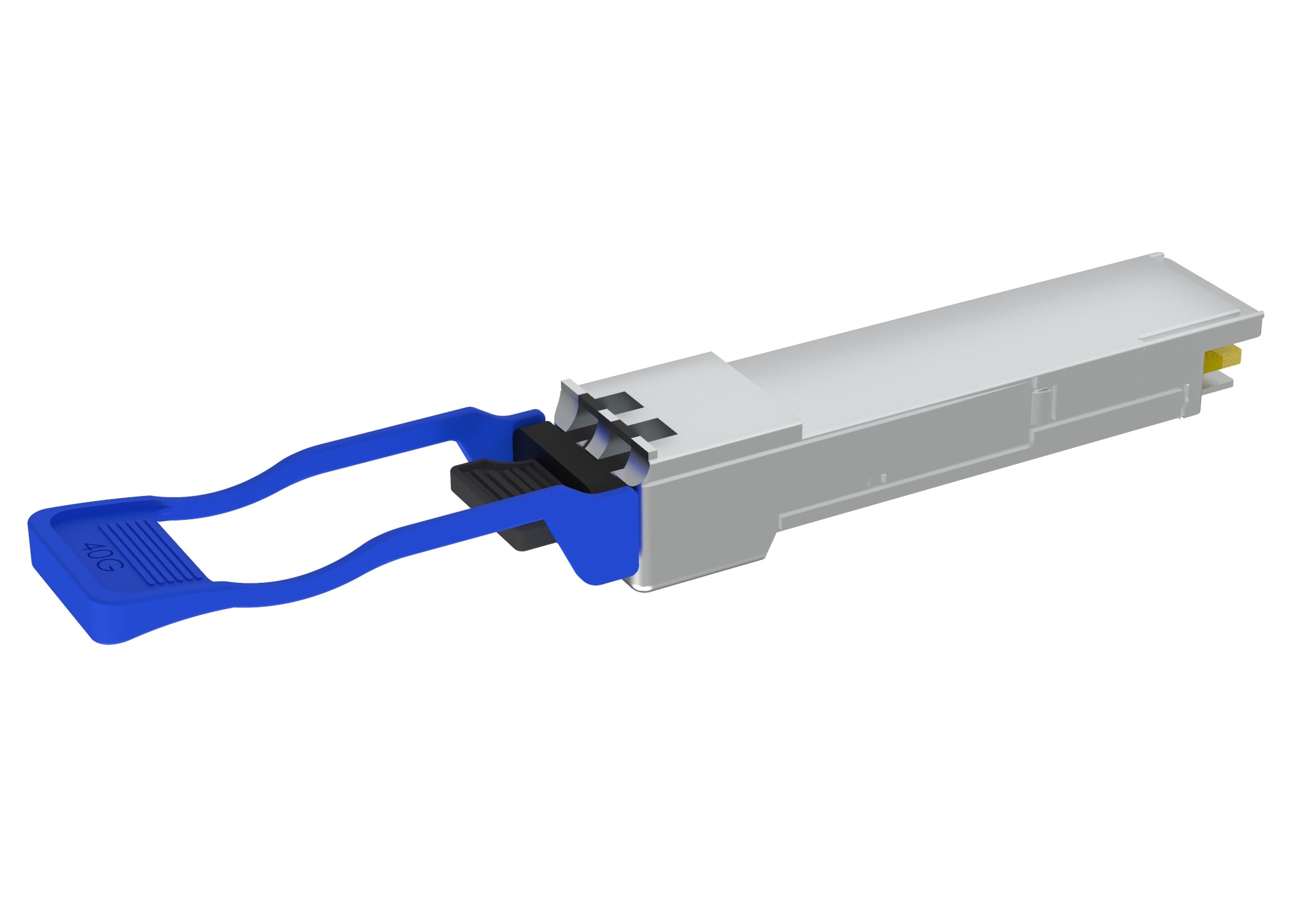

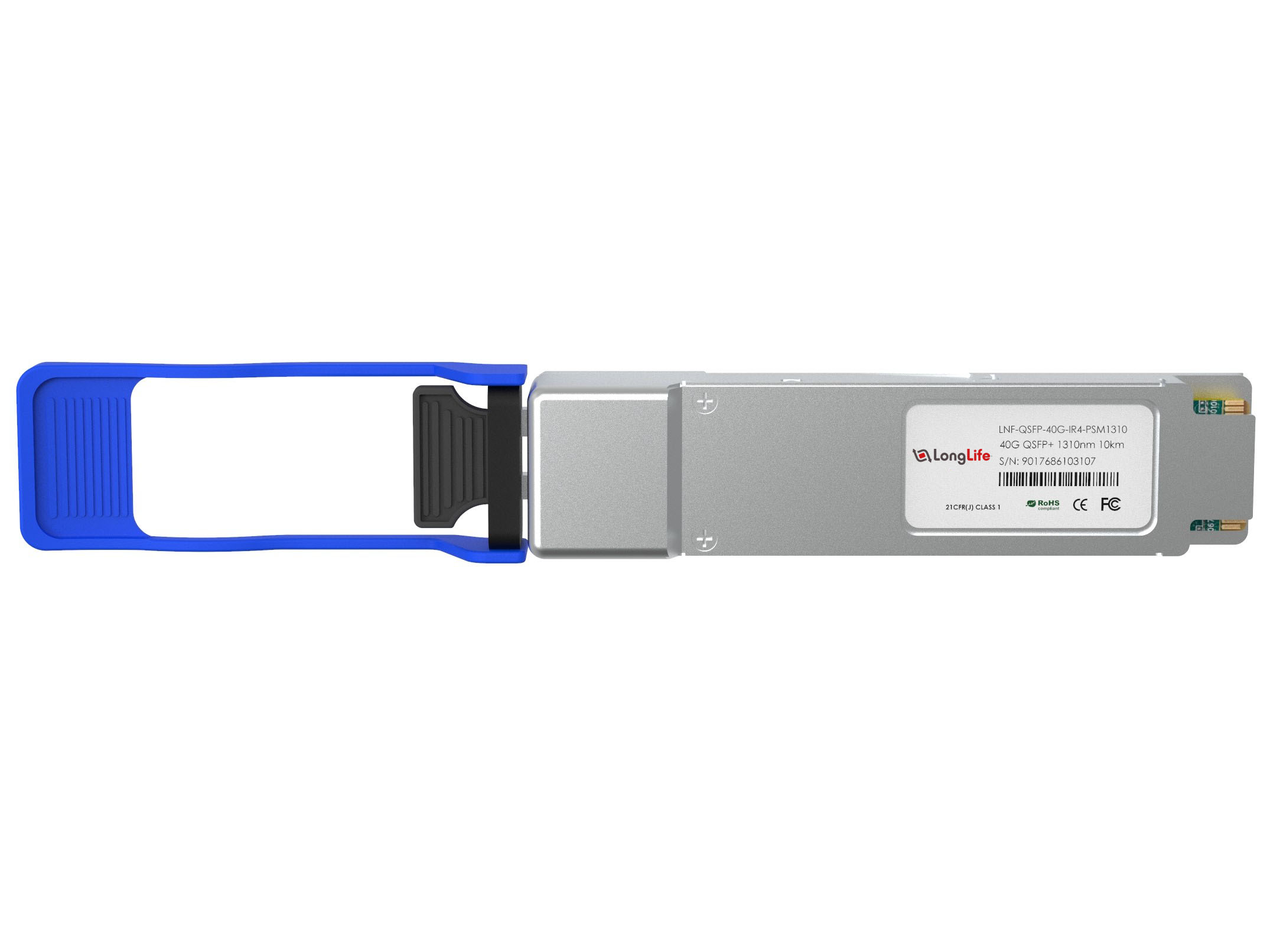

H3C QSFP-40G-IR4-PSM1310 Compatible 4x10G-IR QSFP+ 1310nm 1.4km DOM MTP/MPO-12 SMF Optical Transceiver Module
H3C QSFP-40G-IR4-PSM1310 Compatible 4x10G-IR QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with 100G PSM4 MSA. Digital diagnostics functions are also available via the I2C interface, as specified by the 100G PSM4 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications
Note: The FS P/N is changed from QSFP-PIR4-40G to QSFP-PLR4L-40G, but the product is the same. Only the FS P/N has been changed.
H3C Compatible | QSFP-40G-IR4-PSM1310 | Vendor Name | Longlife |
Form Factor | QSFP+ | Max Data Rate | 41.2Gbps (4x 10.3Gbps) |
Wavelength | 1310nm | Max Cable Distance | 2km |
Connector | MTP/MPO-12 Male | Media | SMF |
Transimitter Type | DFB CWDM | Receiver Type | PIN |
TX Power | -9.4~0.5dBm | Receiver Sensitivity | <-14.4dBm |
Powerbudget | 5dB | Receiver Overload | 0.5dBm |
Power Consumption | ≤2.5W | Extinction Ratio | >3.5dB |
Host FEC | Supported | Bit Error Ratio (BER) | 1E-12 |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | 100G PSM4 MSA |
