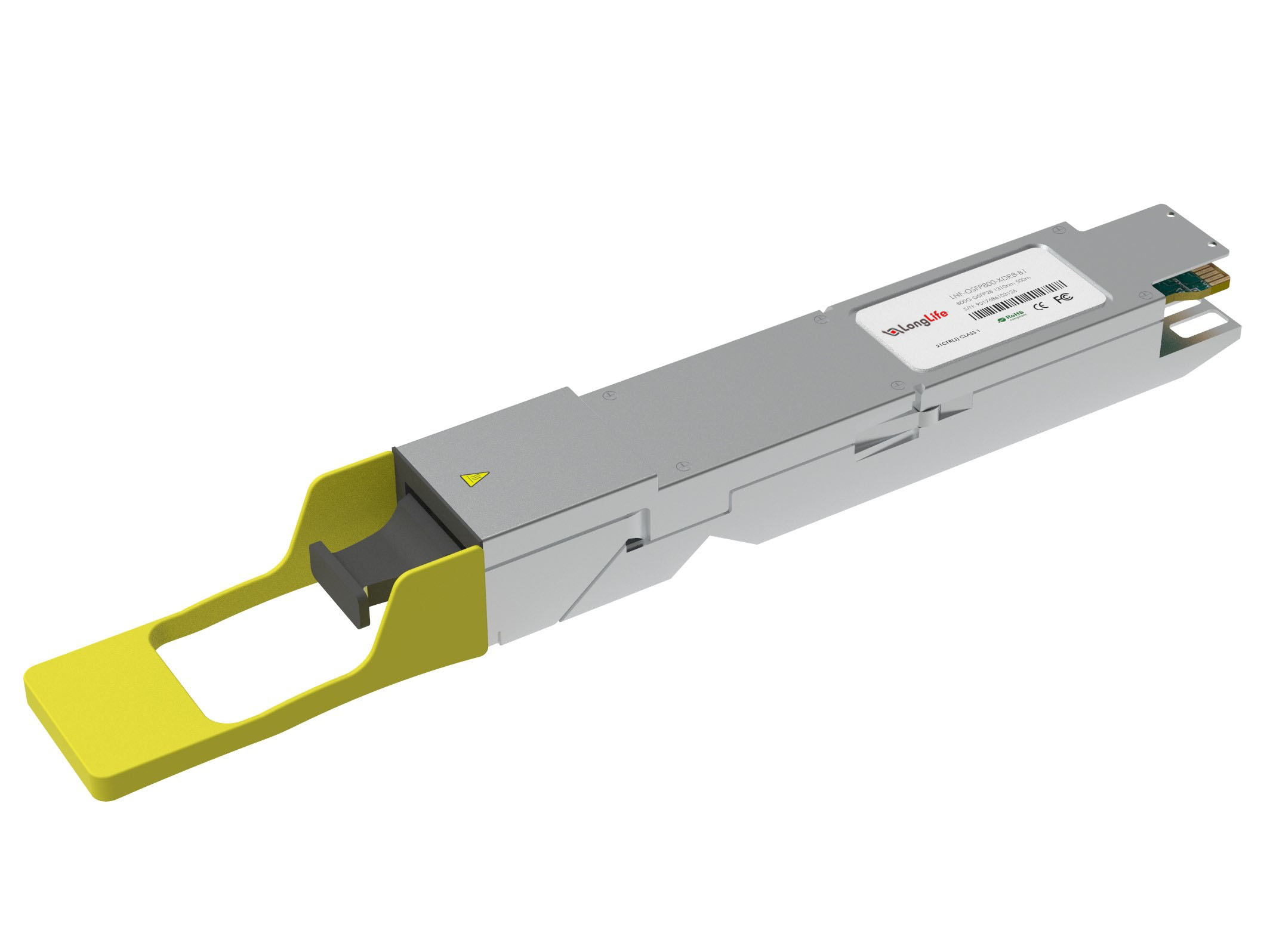

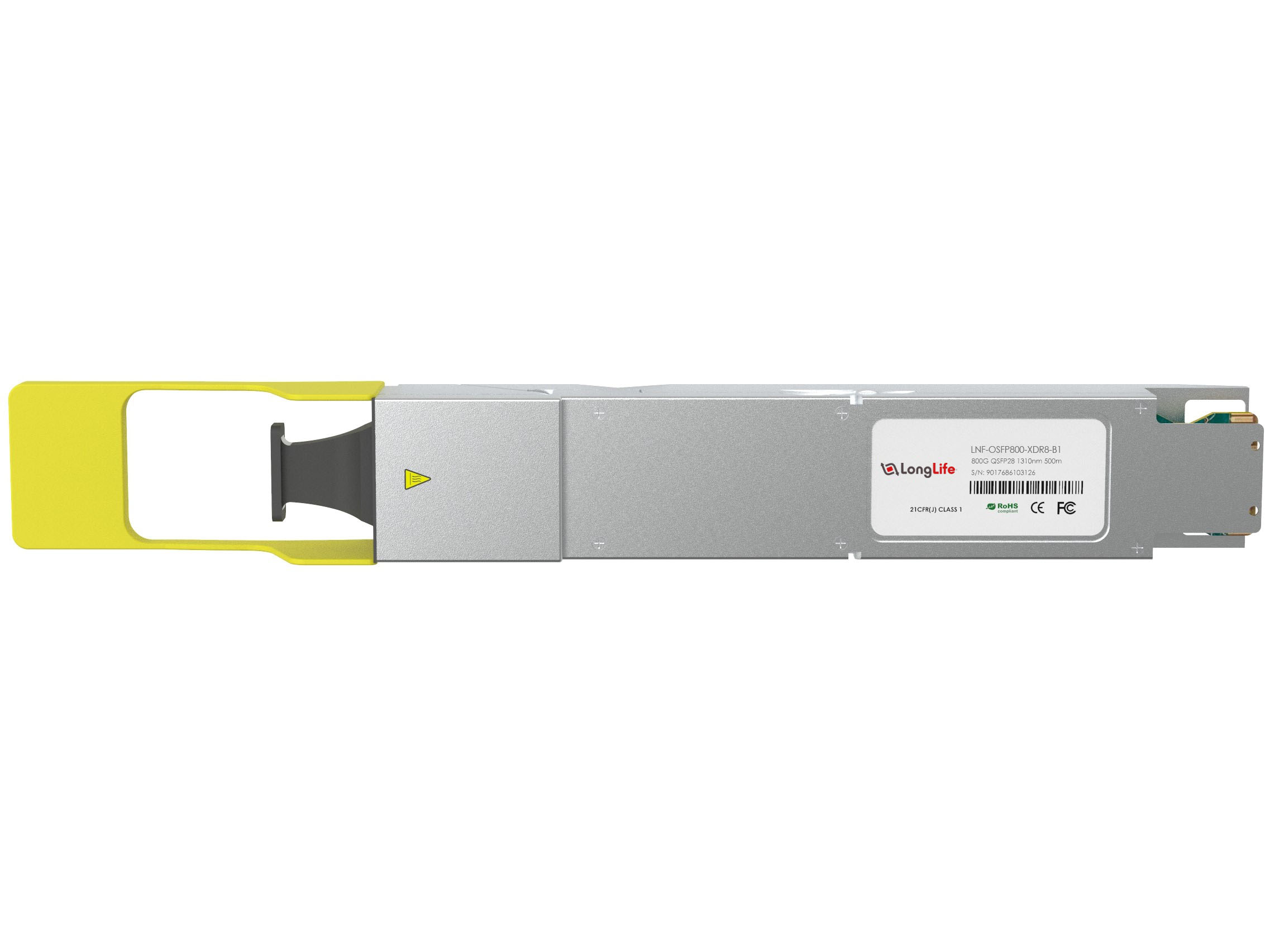

Generic Compatible 800GBASE-XDR8 OSFP PAM4 1310nm 2km DOM MTP/MPO-16 SMF Optical Transceiver Module

Stok kodu: LNF-OSFP800-XDR8-B1

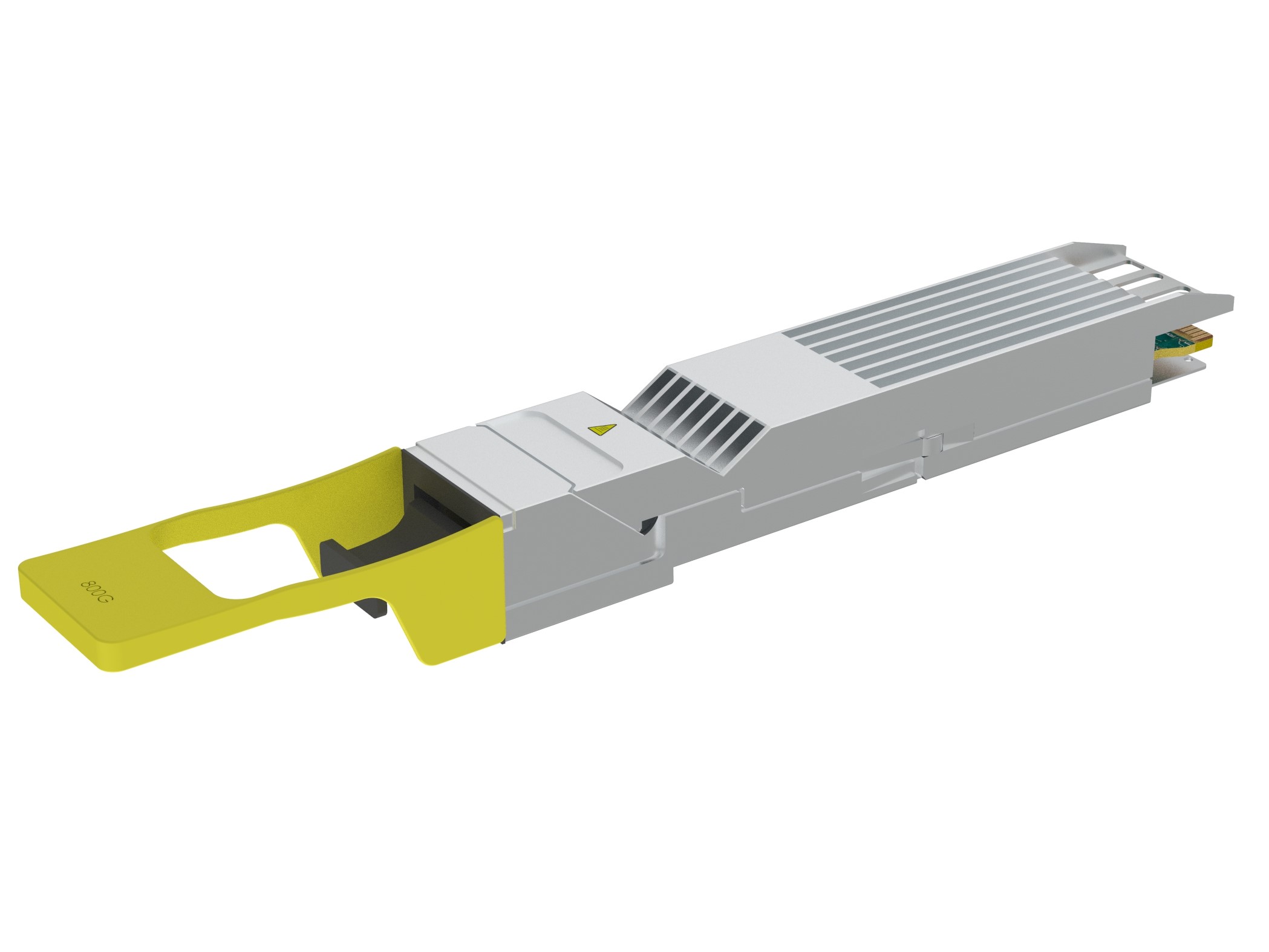

    Customized 800GBASE-XDR8 OSFP Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO-16, DOM, Finned Top)

    The 800GBASE-XDR8 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 2km over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with lEEE802.3ck, IEEE 802.3cu, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G XDR4 or 8x 100G FR Application.

    Specifications
    Part Number
    OSFP800-XDR8-B1 Vendor Name Longlife
    Form Factor
    OSFP
    Max Data Rate
    850Gbps (8x 106.25Gbps)
    Wavelength
    1310nm
    Max Cable Distance
    2km
    Connector
    MTP/MPO-16
    Media
    SMF
    Transmitter Type
    EML
    Receiver Type
    SiFotonics PD array
    TX Power
    -3.1~4.0dBm
    Minimum Receiver Power
    -7.1dBm
    Powerbudget
    4dB
    Receiver Overload
    4dBm
    Power Consumption
    ≤16.5W
    Extinction Ratio
    >3.5dB
    Packaging Technology
    COB (Chip on Board) Packaging
    Modulation Format
    PAM4
    CDR
    TX and RX Built-in DSP
    Inbuilt FEC
    No
    Protocols
    CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, OSFP MSA
    Warranty
    5 Years
