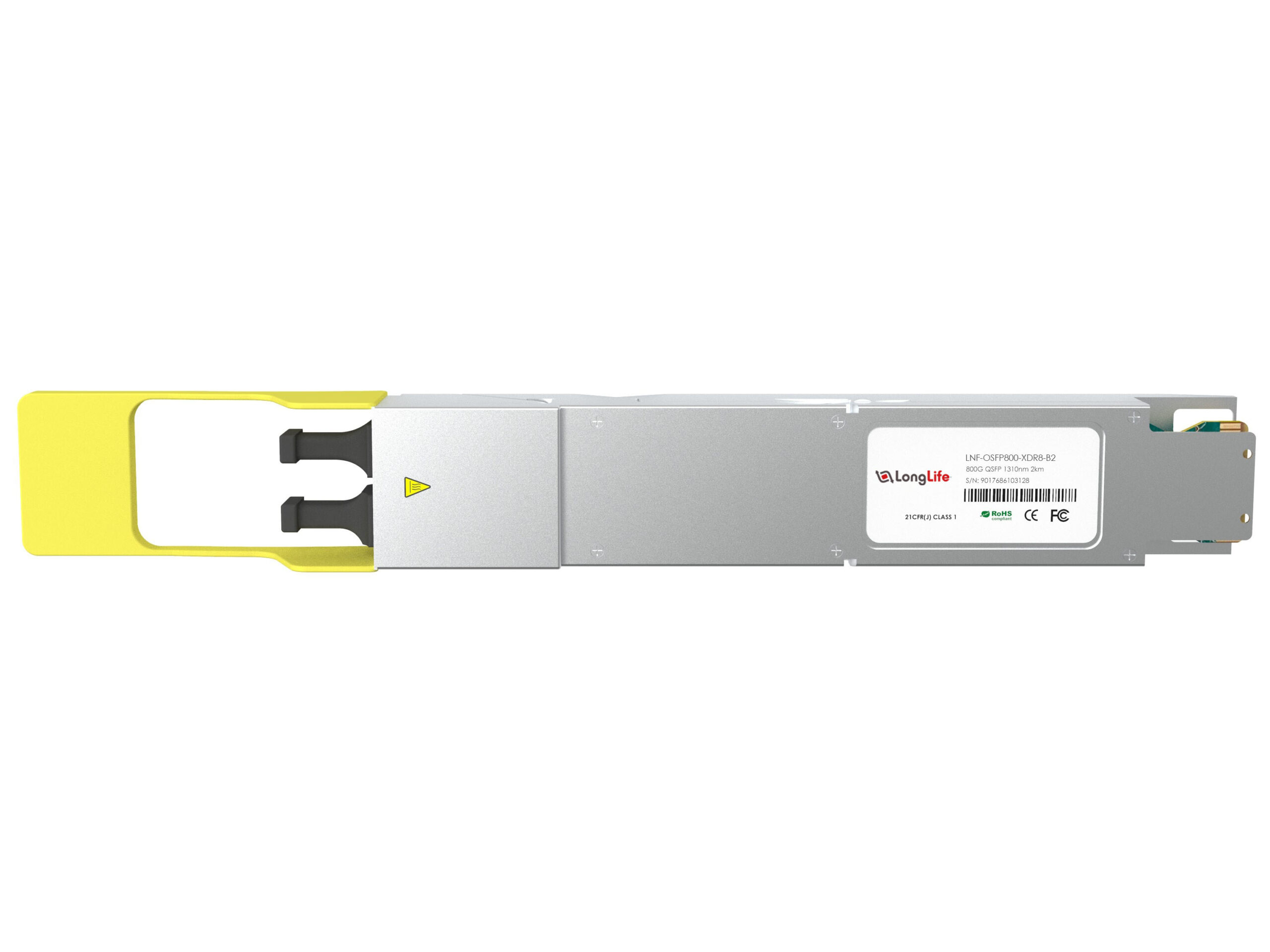

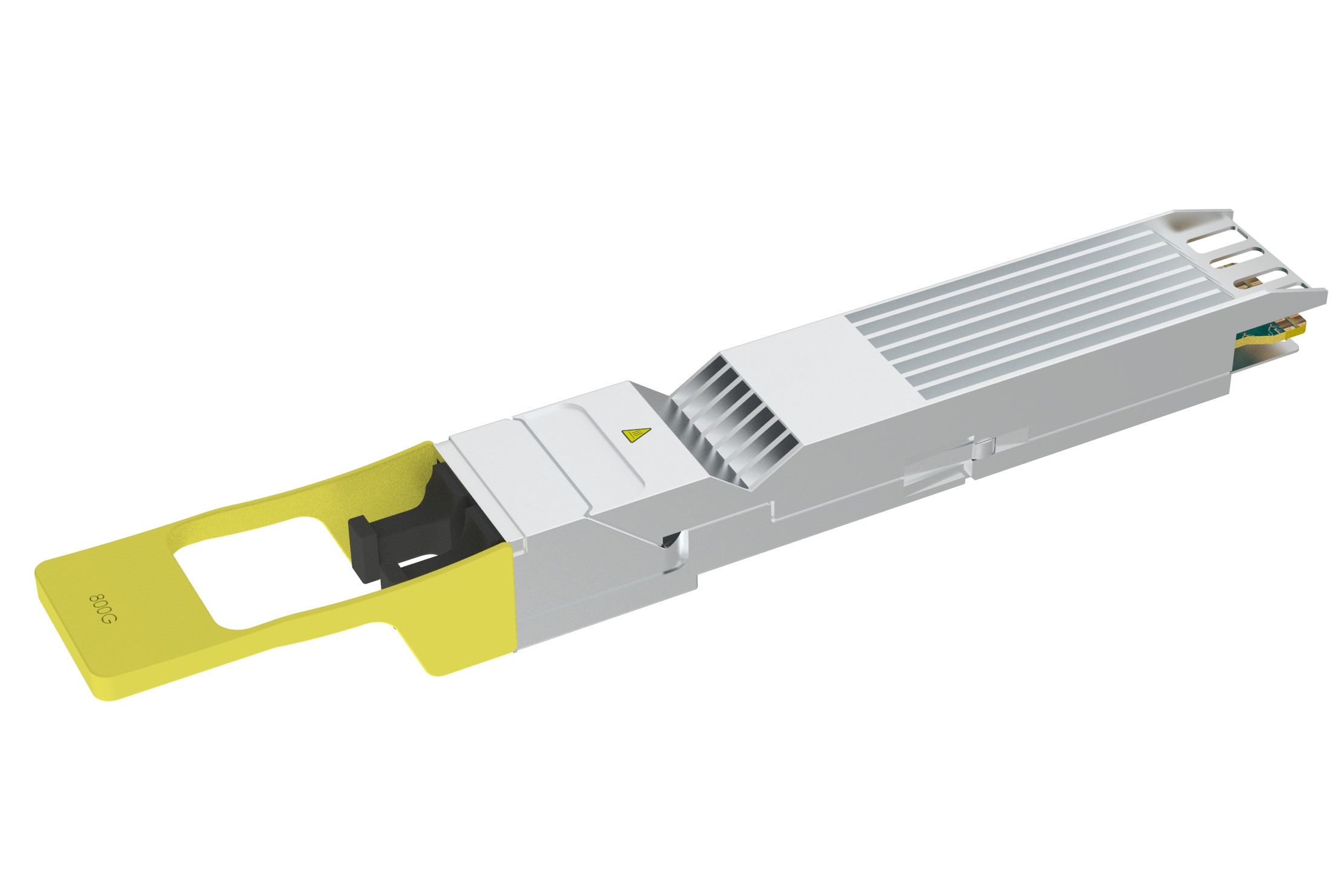

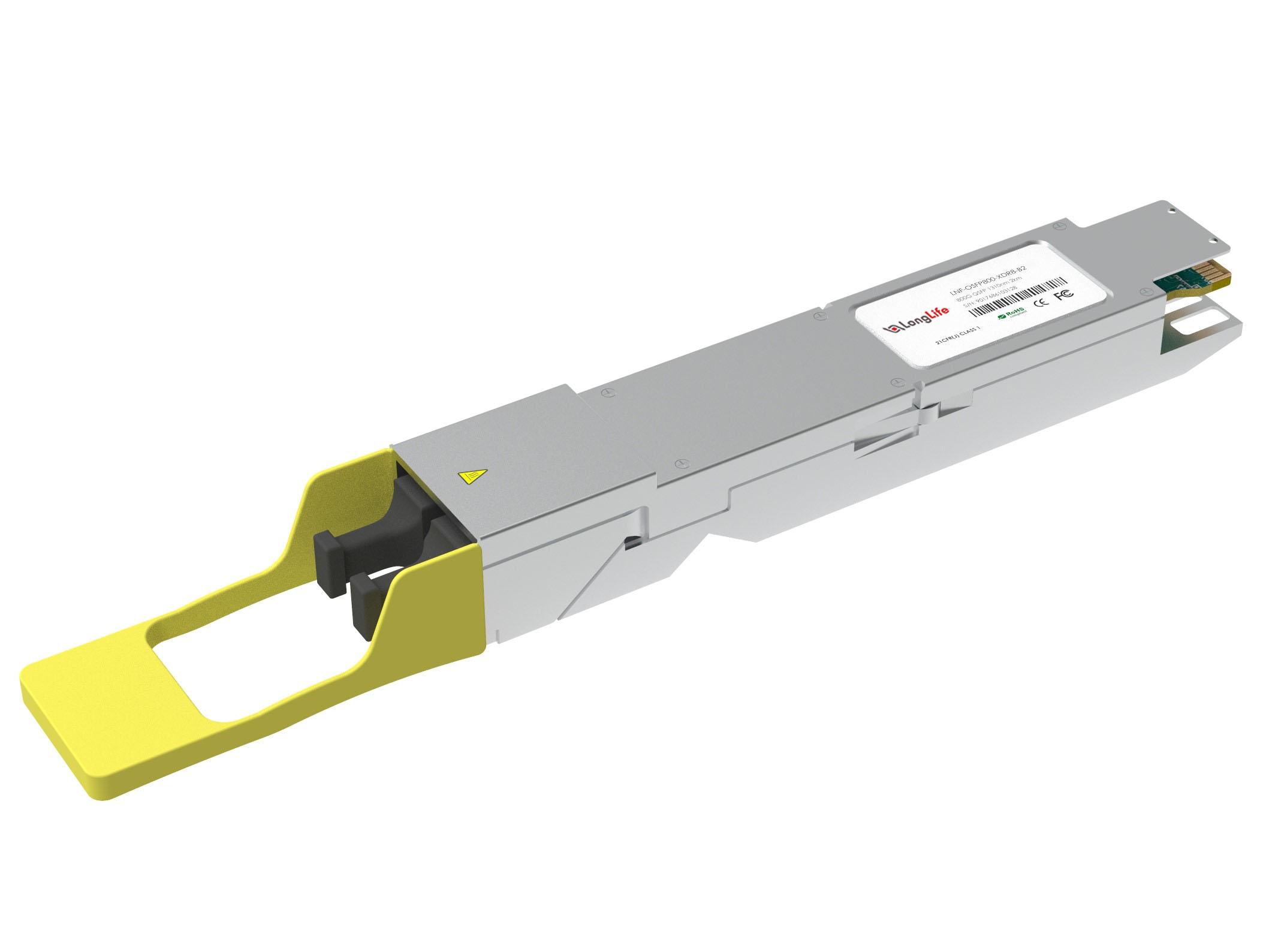

Generic Compatible 800GBASE-XDR8 OSFP PAM4 1310nm 2km DOM Dual MTP/MPO-12 SMF Optical Transceiver Module

Stok kodu: LNF-OSFP800-XDR8-B2







    Customized 800GBASE-XDR8 OSFP Optical Transceiver Module (SMF, 1310nm, 2km, Dual MTP/MPO-12, DOM, Finned Top)

    The 800GBASE-XDR8 OSFP Optical Transceiver Module supports up to 2km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu-2021, OSFP MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2x 400G XDR4 or 8x 100G FR, 800G Ethernet and Data Center applications.

    Specifications
    Part Number
    OSFP800-XDR8-B2 Vendor Name Longlife
    Form Factor
    OSFP
    Max Data Rate
    206.24Gbps(8x 25.78Gbps)
    Wavelength
    1310nm
    Max Cable Distance
    100m
    Connector
    Dual MTP/MPO-12
    Media
    MMF
    Transmitter Type
    EML
    Receiver Type
    Siphotonics PIN PD
    TX Power
    -3.1~4dBm
    Minimum Receiver Power
    -7.1dBm
    Powerbudget
    4dB
    Receiver Overload
    4dBm
    Power Consumption
    ≤16.5W
    Extinction Ratio
    >3.5dB
    Packaging Technology
    COB (Chip on Board) Packaging
    Modulation Format
    PAM4

    CDR (Clock and Data Recovery)

    TX & RX Built-in CDR
    Inbuilt FEC
    No

    Protocols

    IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0
    Warranty
    5 Years
