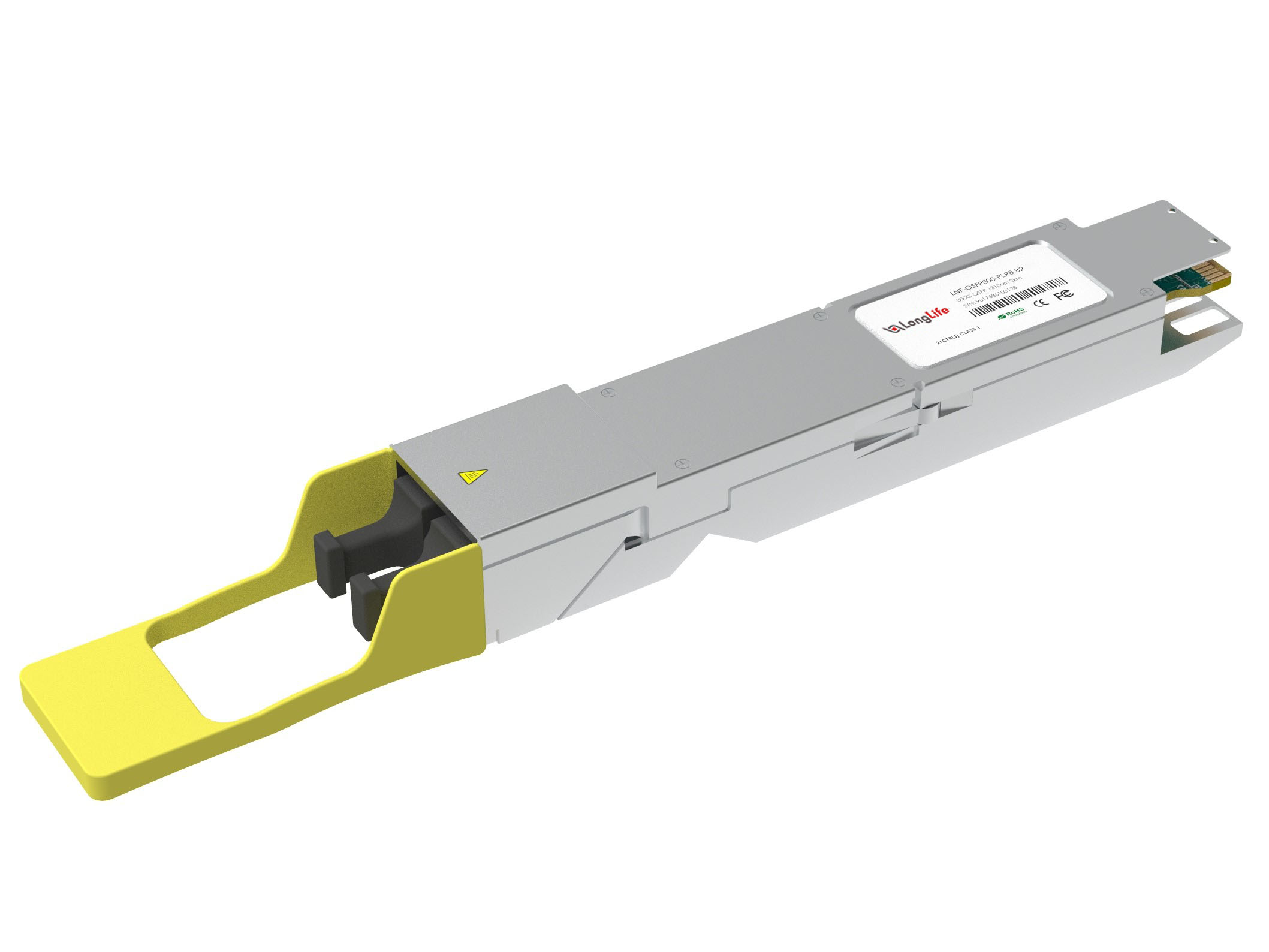

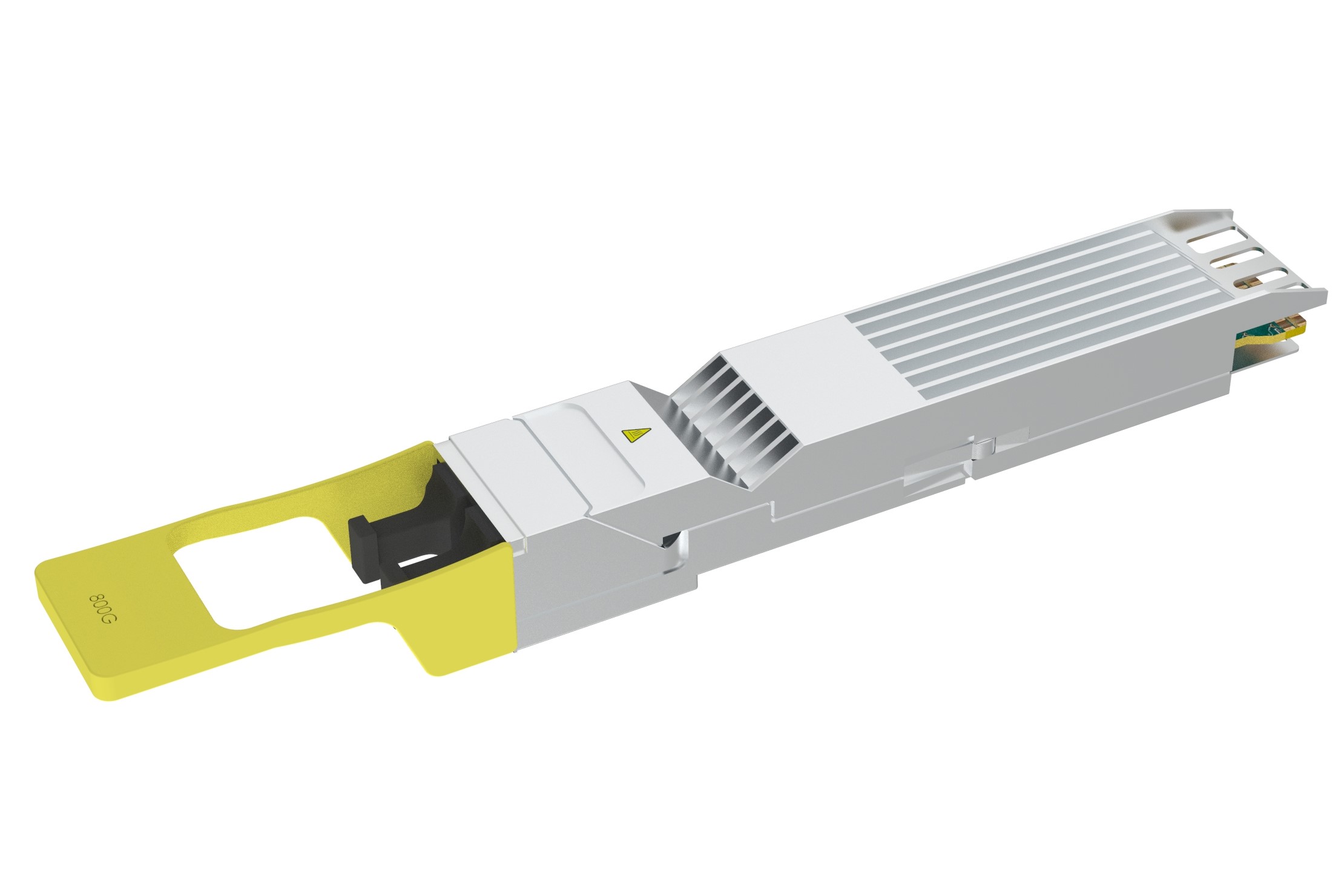

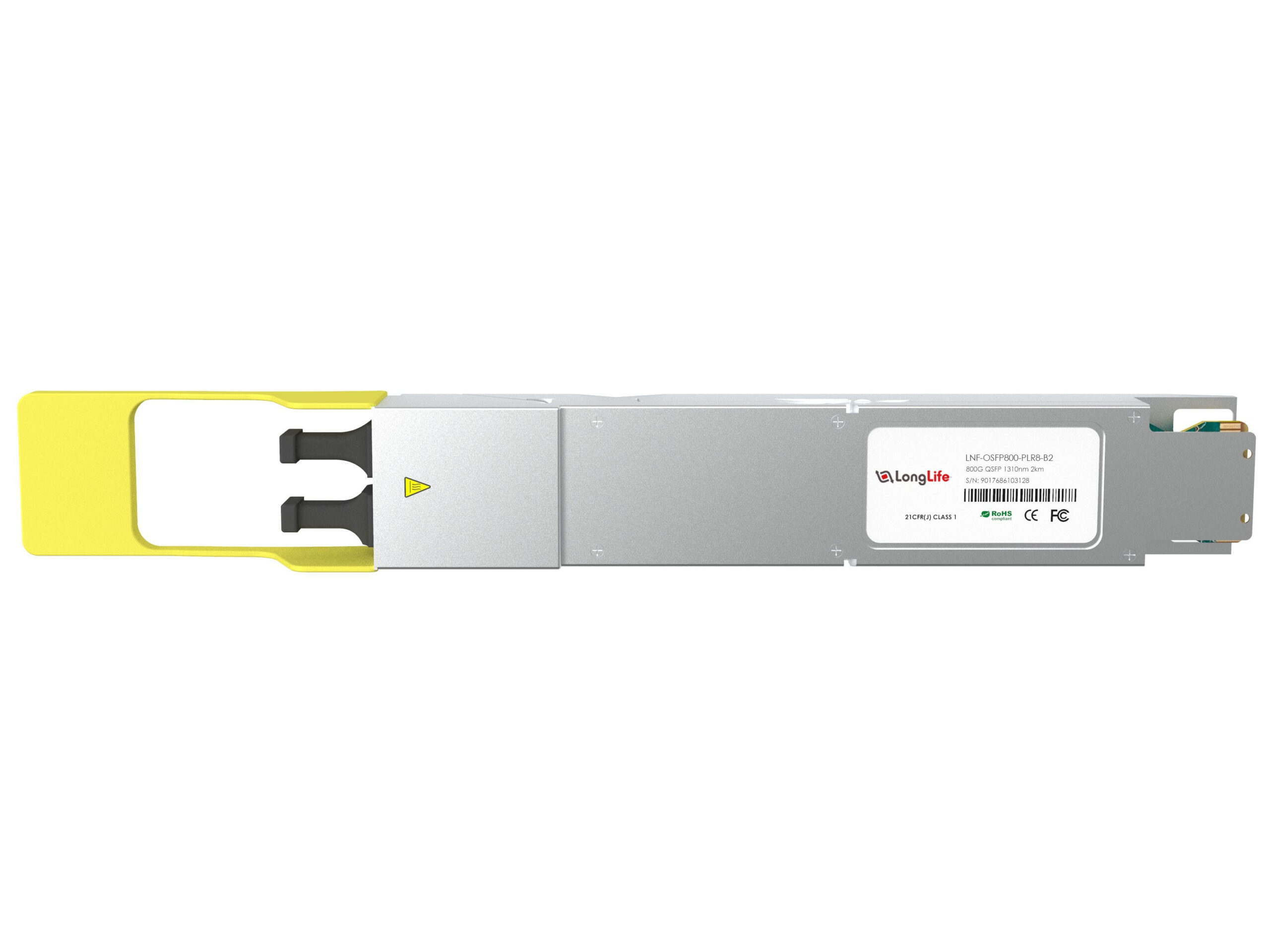

Generic Compatible 800GBASE-PLR8 OSFP PAM4 1310nm 10km DOM Dual MTP/MPO-12 SMF Optical Transceiver Module

Stok kodu: LNF-OSFP800-PLR8-B2







    800GBASE-PLR8 OSFP Optical Transceiver Module (SMF, 1310nm, 10km, Dual MTP/MPO-12, DOM, Finned Top)

    The Generic Compatible OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu-2021 and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for Breakout 2x 400G PLR4 or 8x 100G LR, 800G Ethernet and Data Center Applications.

    Specifications
    Part Number
    OSFP800-PLR8-B2 Vendor Name Longlife
    Form Factor
    OSFP Finned Top
    Max Data Rate
    850Gbps (8x 106.25Gbps)
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    Dual MTP/MPO-12 APC
    Media
    SMF
    Transmitter Type
    EML
    Receiver Type
    PIN
    TX Power
    -1.9~4.8dBm
    Minimum Receiver Power
    -8.2dBm
    Powerbudget
    6.3dB
    Receiver Overload
    4.8dBm
    Power Consumption
    ≤16.5W
    Extinction Ratio
    >3.5dB
    Packaging Technology
    COB (Chip on Board) Packaging
    Modulation Format
    PAM4

    CDR (Clock and Data Recovery)

    TX & RX Built-in CDR
    Inbuilt FEC
    No

    Protocols

    IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0
    Warranty
    5 Years
