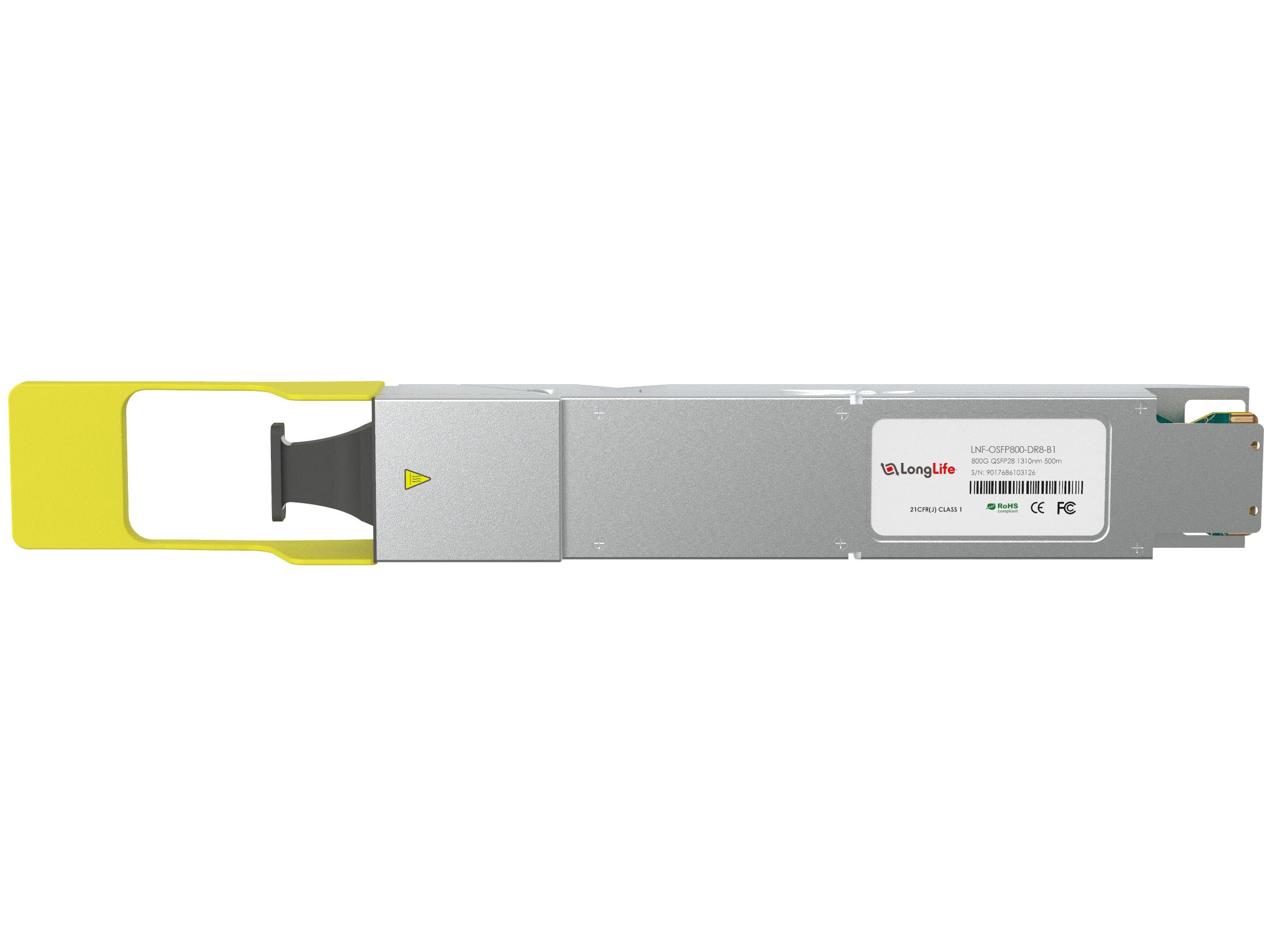

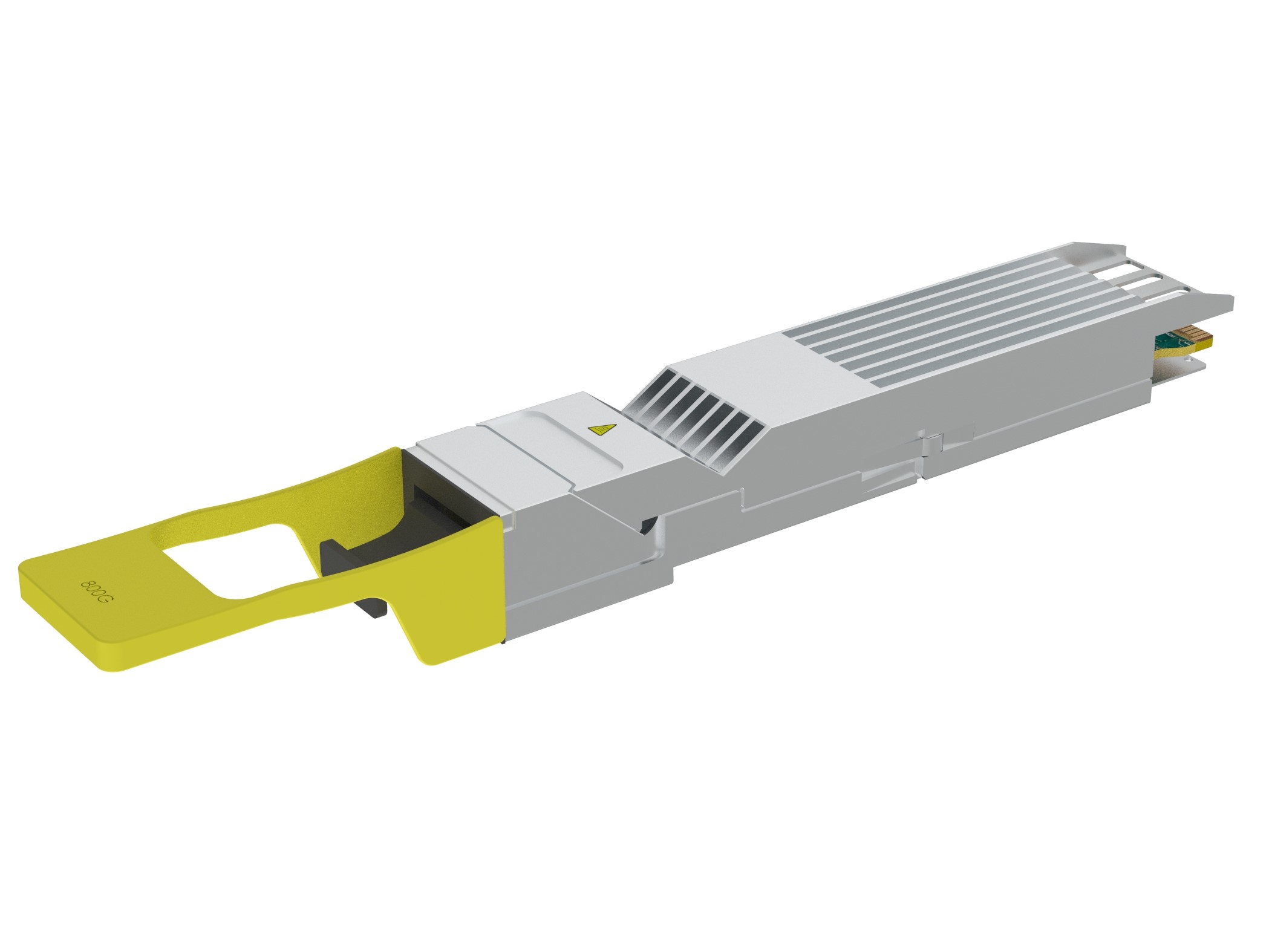

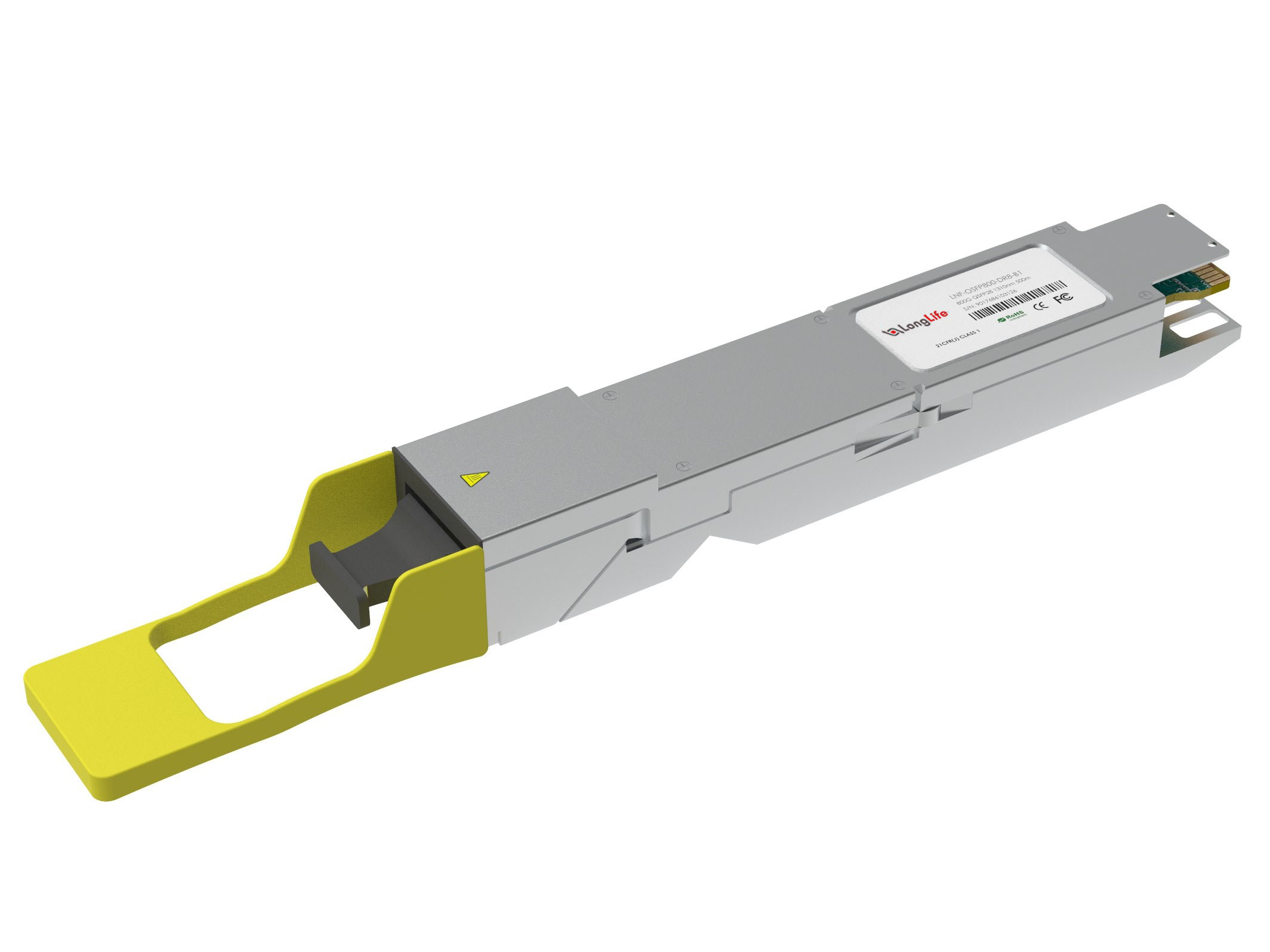

Generic Compatible 800GBASE-DR8 OSFP PAM4 1310nm 500m DOM MTP/MPO-16 SMF Optical Transceiver Module
Customizedd 800GBASE-DR8 OSFP Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO-16, DOM, Finned Top)
The 800GBASE-DR8 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with lEEE P802.3ck, IEEE 802.3cu, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR Application.
Specifications
|
Part Number
|
OSFP800-DR8-B1 | Vendor Name | Longlife |
|
Form Factor
|
OSFP |
Max Data Rate
|
850Gbps (8x 106.25Gbps) |
|
Wavelength
|
1310nm |
Max Cable Distance
|
500m |
|
Connector
|
MTP/MPO-16 |
Media
|
SMF |
|
Transmitter Type
|
EML |
Receiver Type
|
SiFotonics PD array |
|
TX Power
|
-2.9~4.0dBm |
Minimum Receiver Power
|
-5.9dBm
|
|
Powerbudget
|
3dB |
Receiver Overload
|
4dBm |
|
Power Consumption
|
≤16.5W |
Extinction Ratio
|
>3.5dB |
|
Packaging Technology
|
COB (Chip on Board) Packaging |
Modulation Format
|
PAM4 |
|
CDR
|
TX and RX Built-in DSP |
Inbuilt FEC
|
No |
|
Protocols
|
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
|
Warranty
|
5 Years |
