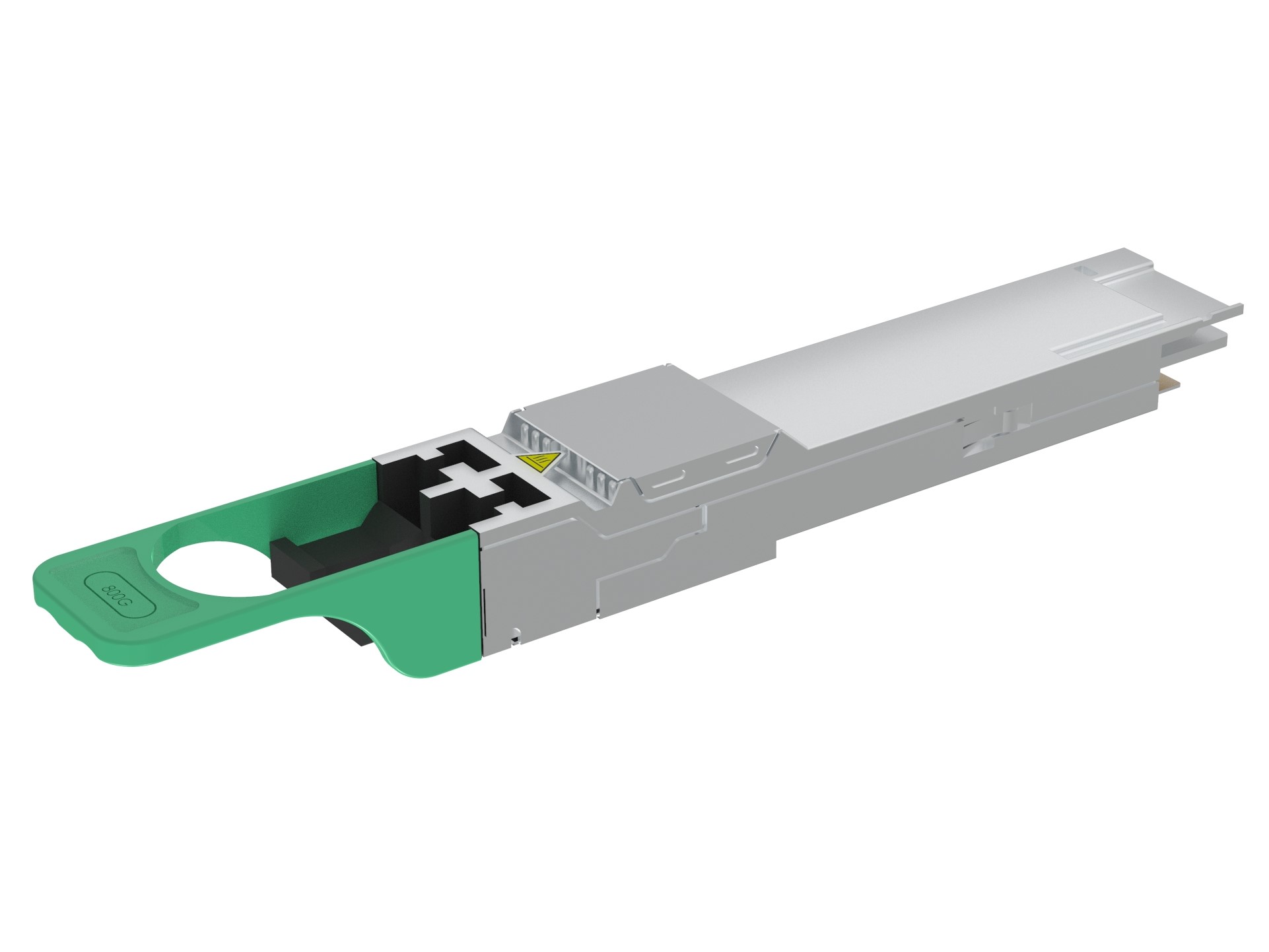

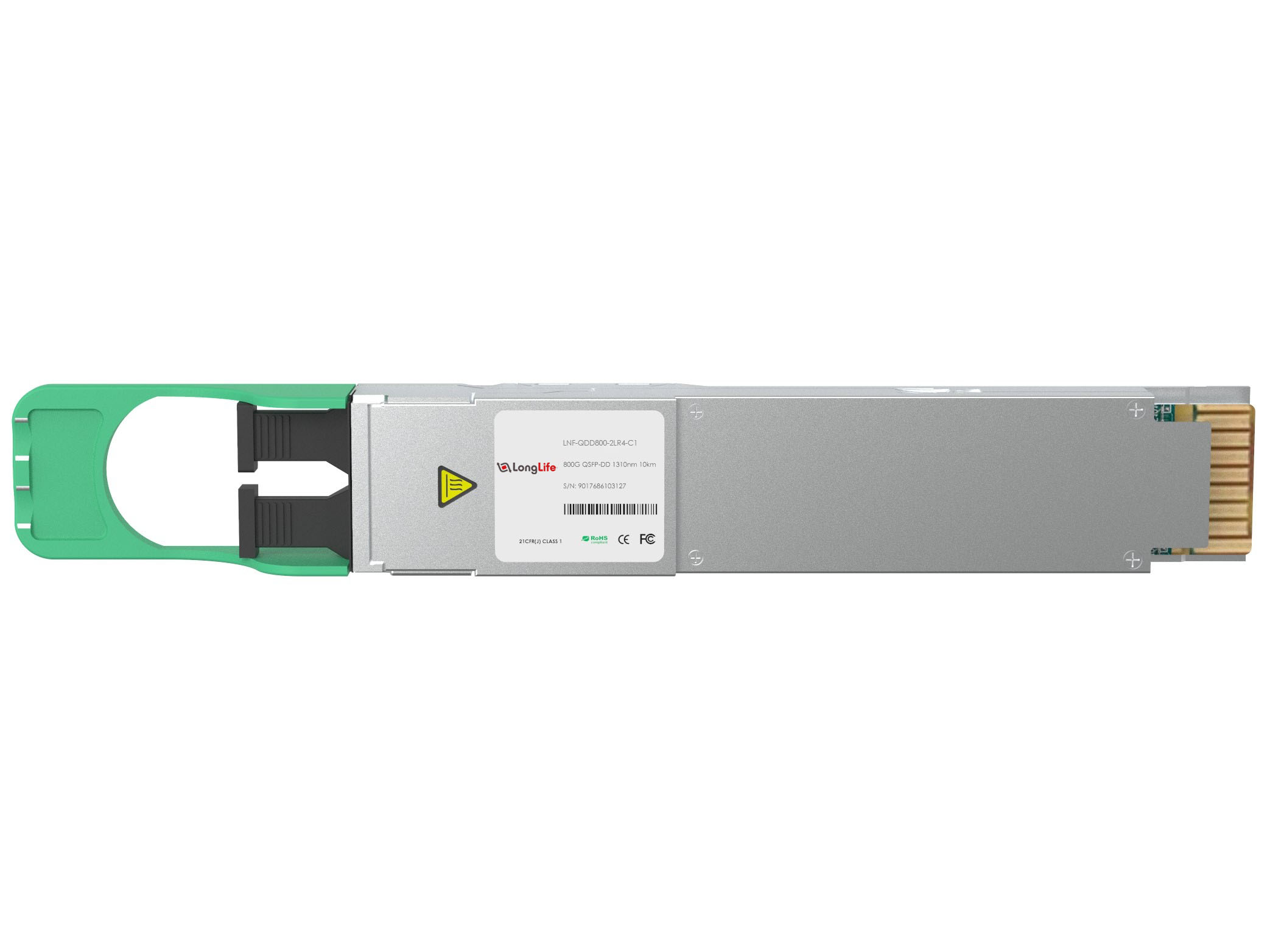

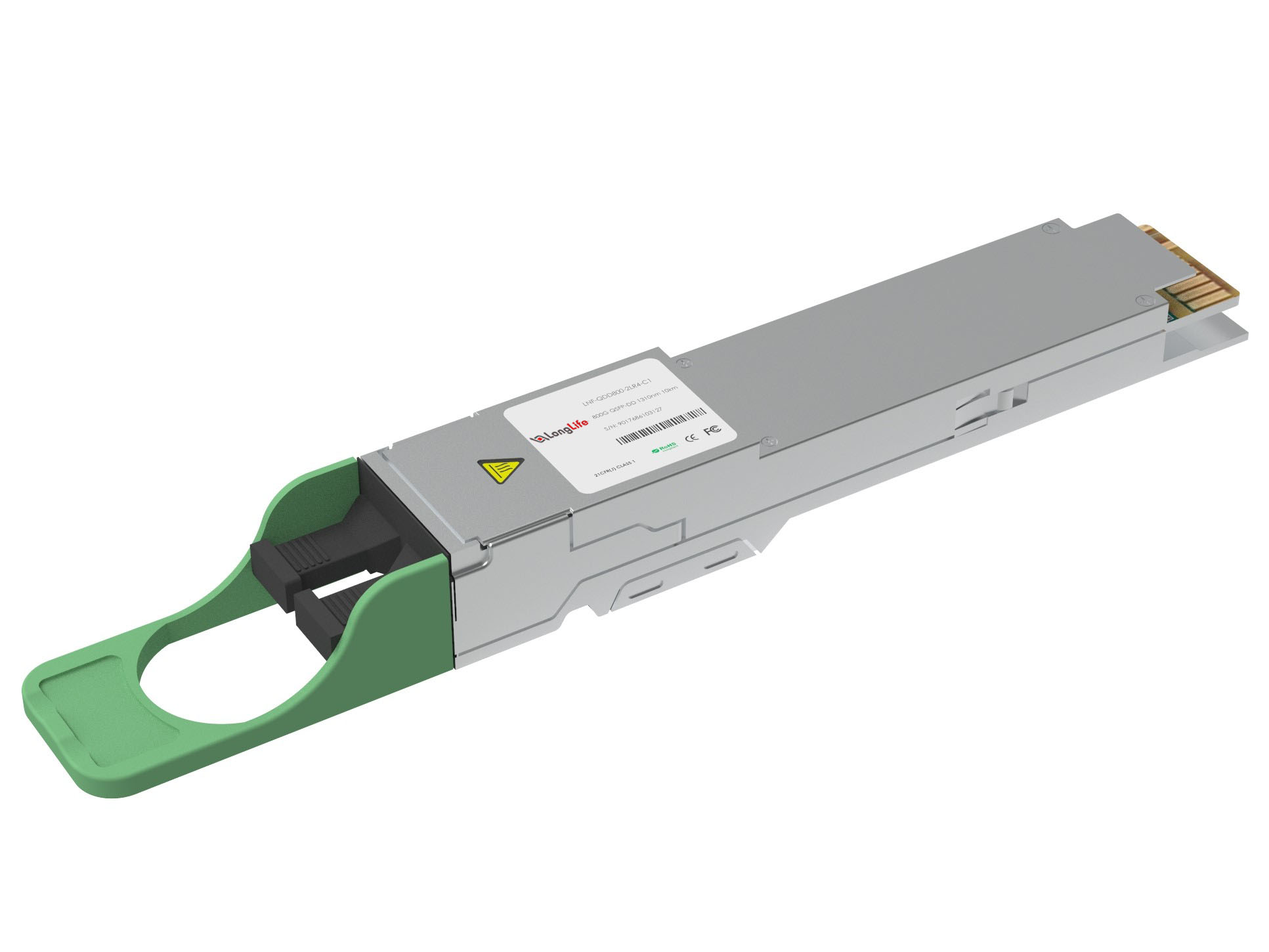

800GBASE-2LR4 OSFP Optical Transceiver Module (SMF, 1310nm, 10km, Dual Duplex LC, DOM, Finned Top)
The Generic Compatible OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual LC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G LR4 and Data Center applications.
Specifications
|
Part Number
|
OSFP800-2LR4-A2
|
Vendor Name | Longlife |
|
Form Factor
|
OSFP Finned Top |
Max Data Rate
|
850Gbps (8x 106.25Gbps)
|
|
Wavelength
|
1271nm, 1291nm, 1311nm and 1331nm
|
Max Cable Distance
|
10km
|
|
Connector
|
Dual LC Duplex/UPC |
Media
|
SMF |
|
Transmitter Type
|
EML |
Receiver Type
|
Siphotonics PIN PD
|
|
TX Power
|
-2.7~5.1dBm
|
Minimum Receiver Power
|
-9dBm
|
|
Powerbudget
|
6.3dB |
Receiver Overload
|
5.1dBm |
|
Power Consumption
|
≤18W |
Extinction Ratio
|
>3.5dB |
|
Packaging Technology
|
COB (Chip on Board) Packaging |
Modulation Format
|
PAM4 |
|
CDR (Clock and Data Recovery)
|
TX & RX Built-in DSP |
Inbuilt FEC
|
No |
|
Protocols
|
IEE802.3ck, OSFP MSA, CMIS Rev 5.0 |
Warranty
|
5 Years |
