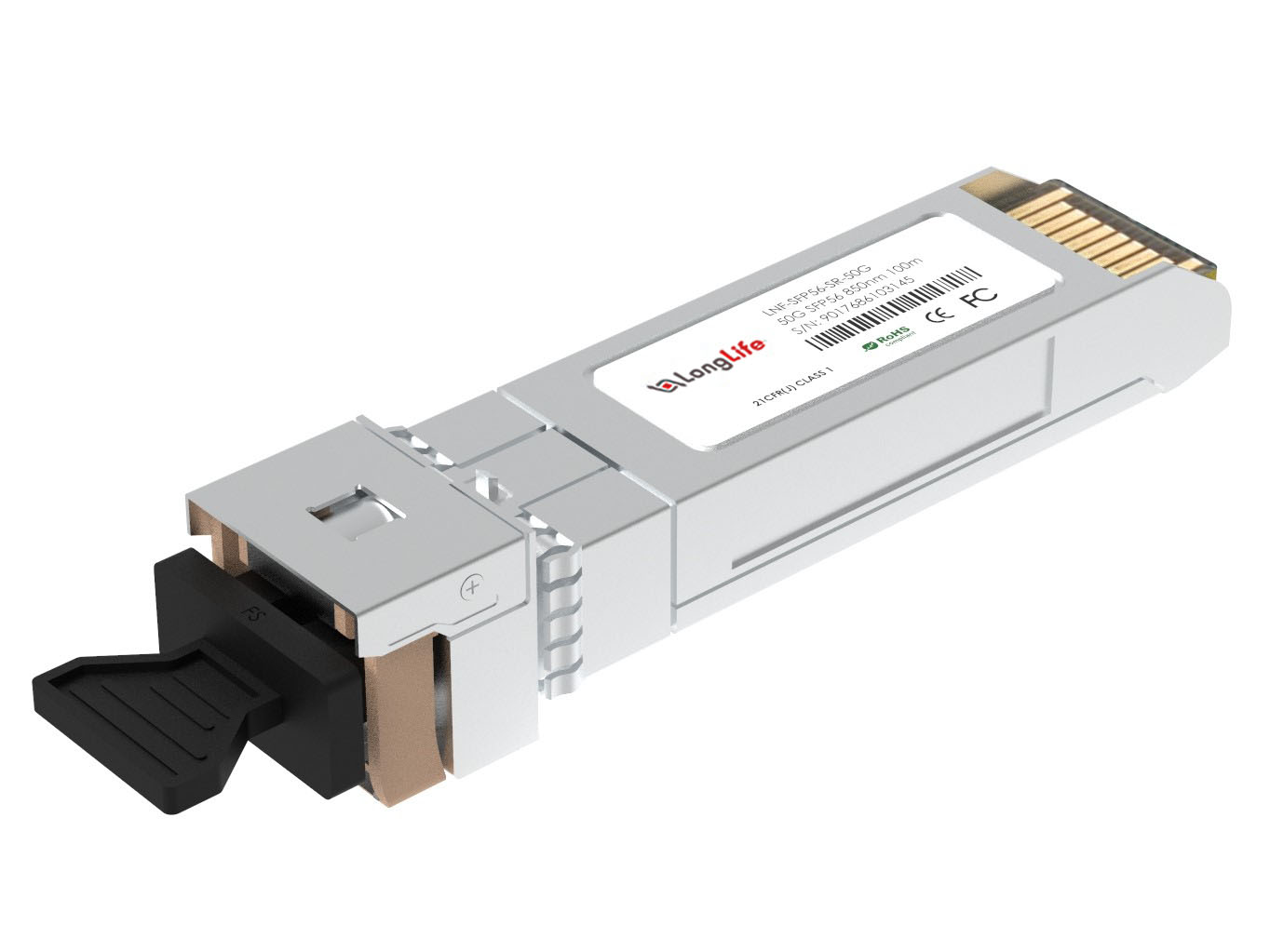

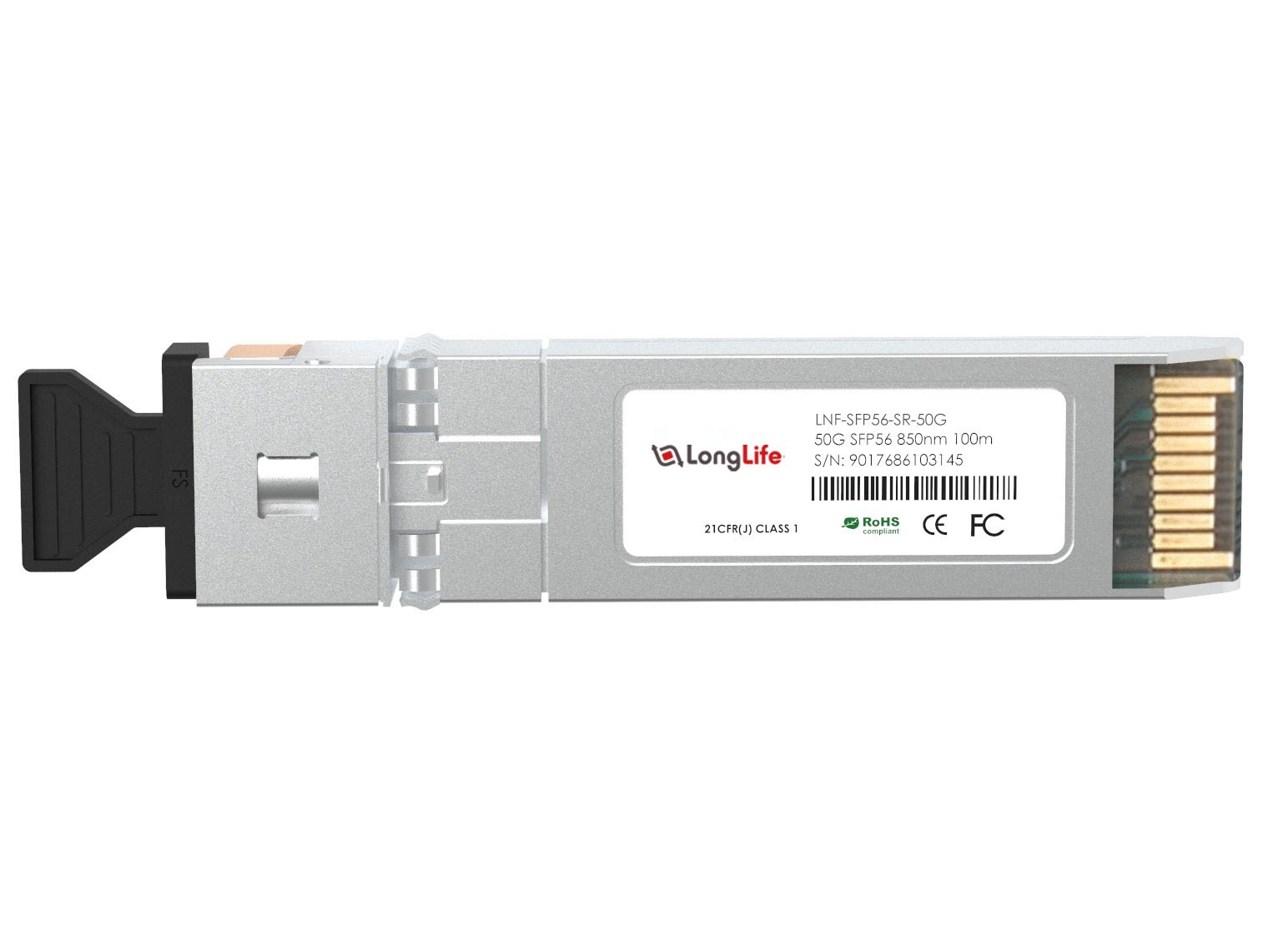

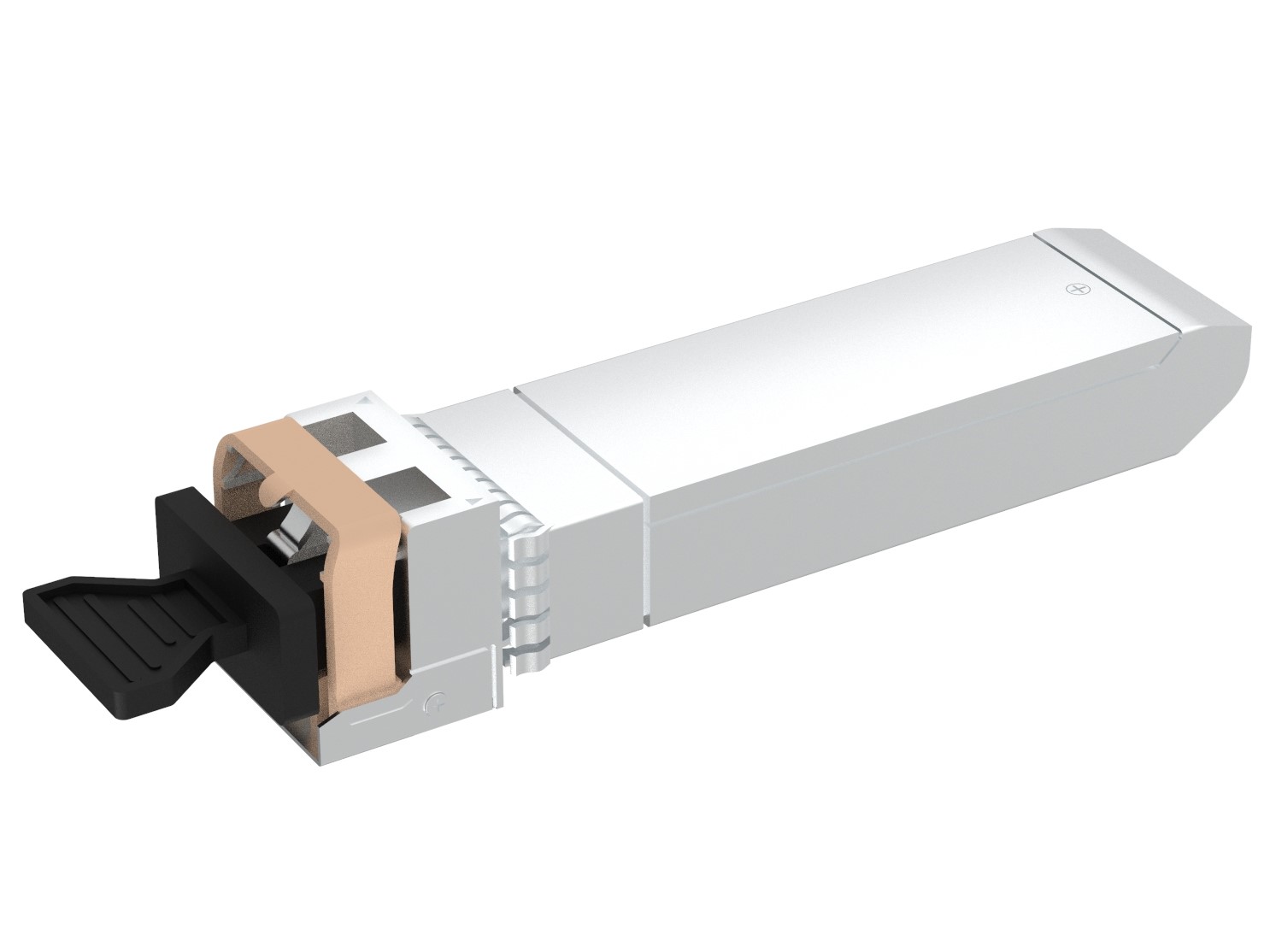

Generic Compatible 50GBASE-SR SFP56 850nm 100m DOM Duplex LC MMF Transceiver Module
Generic Compatible 50GBASE-SR SFP56 Optical Transceiver Module (MMF, 850nm, 100m, LC, DOM)
Generic Compatible 50GBASE-SR SFP56 transceiver supports up to 100m link lengths over OM4 MMF via a LC duplex connector. Digital Diagnostics functions are available via a 2-wire serial interface. The transceivers are compliant with the applicable requirements defined in SFF-8402, SFF-8472, IEEE 802.3cd, OIF-CEI-04.0, and RoHS-6 compliant. It is suitable for 50GBase Ethernet applications.
Specifications
|
Part Number
|
SFP-50GSR-85 | Vendor Name | Longlife |
|
Form Factor
|
SFP56 |
Max Data Rate
|
53.125Gbps |
|
Wavelength
|
850nm |
Max Cable Distance
|
100m@OM4 |
|
Connector
|
Duplex LC |
Media
|
MMF |
|
Transmitter Type
|
VCSEL |
Receiver Type
|
PIN |
|
TX Power
|
-6.5~4dBm |
Receiver Sensitivity
|
<-8.4dBm |
|
Powerbudget
|
1.9dB |
Receiver Overload
|
4dBm |
|
Power Consumption
|
≤1.5W |
Extinction Ratio
|
＞3dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
CDR (Clock and Data Recovery)
|
TX & RX Built-in CDR |
Modulation Format
|
PAM4 |
|
Protocols
|
IEEE802.3cd, SFF-8472, SFF-8402, SFF-8419, OIF-CEI-04.0 |
Warranty
|
5 Years |
