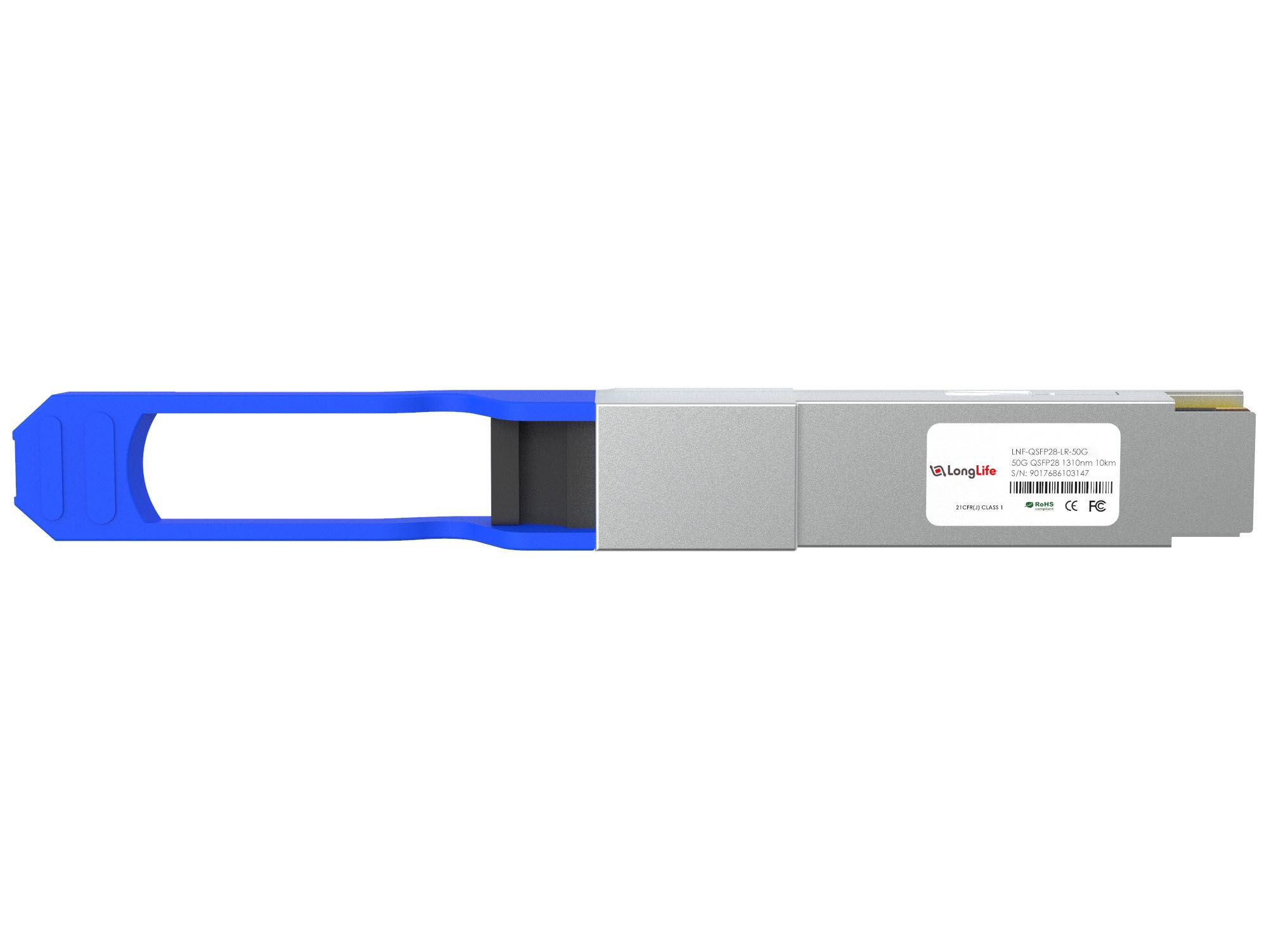

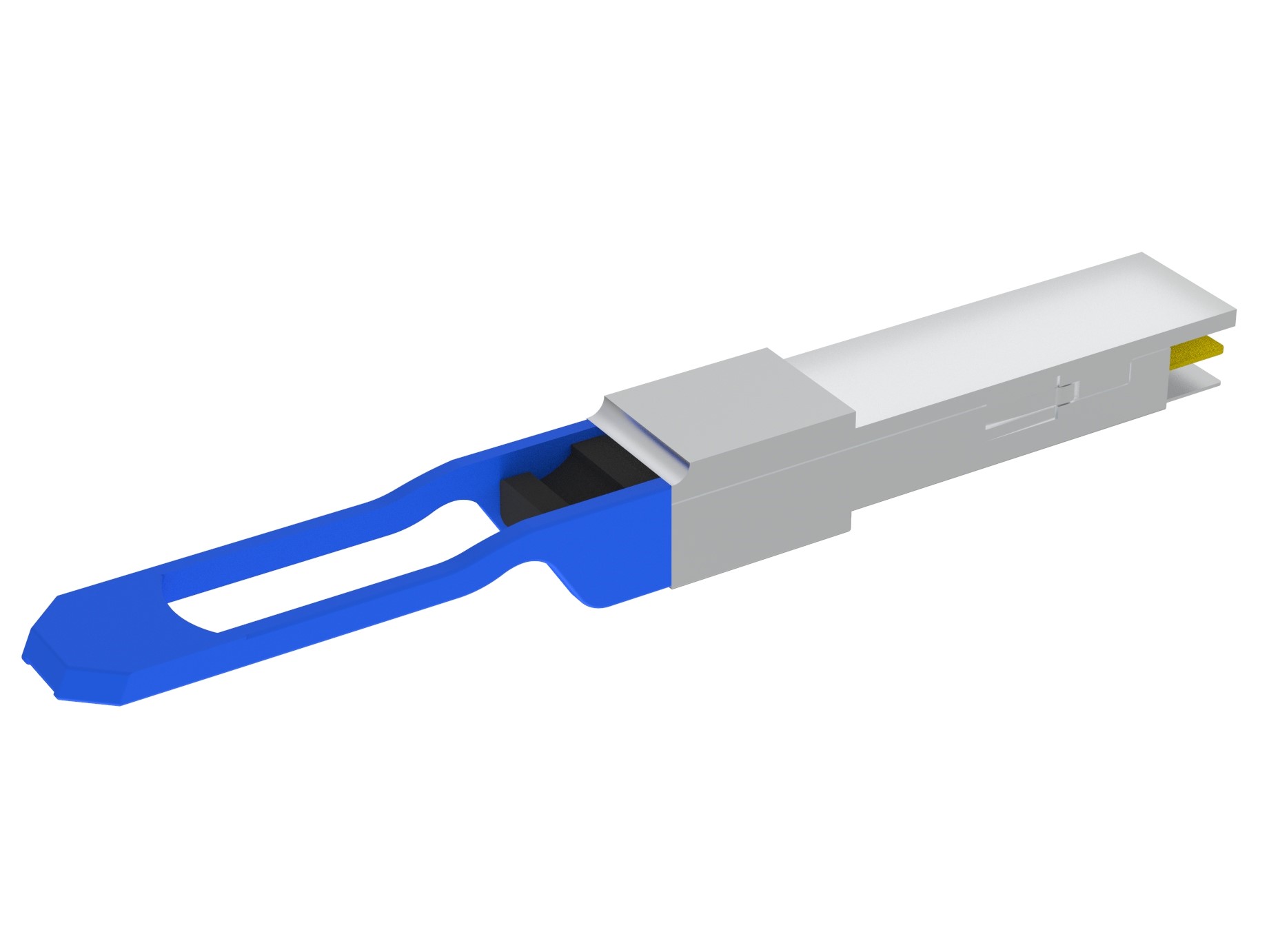

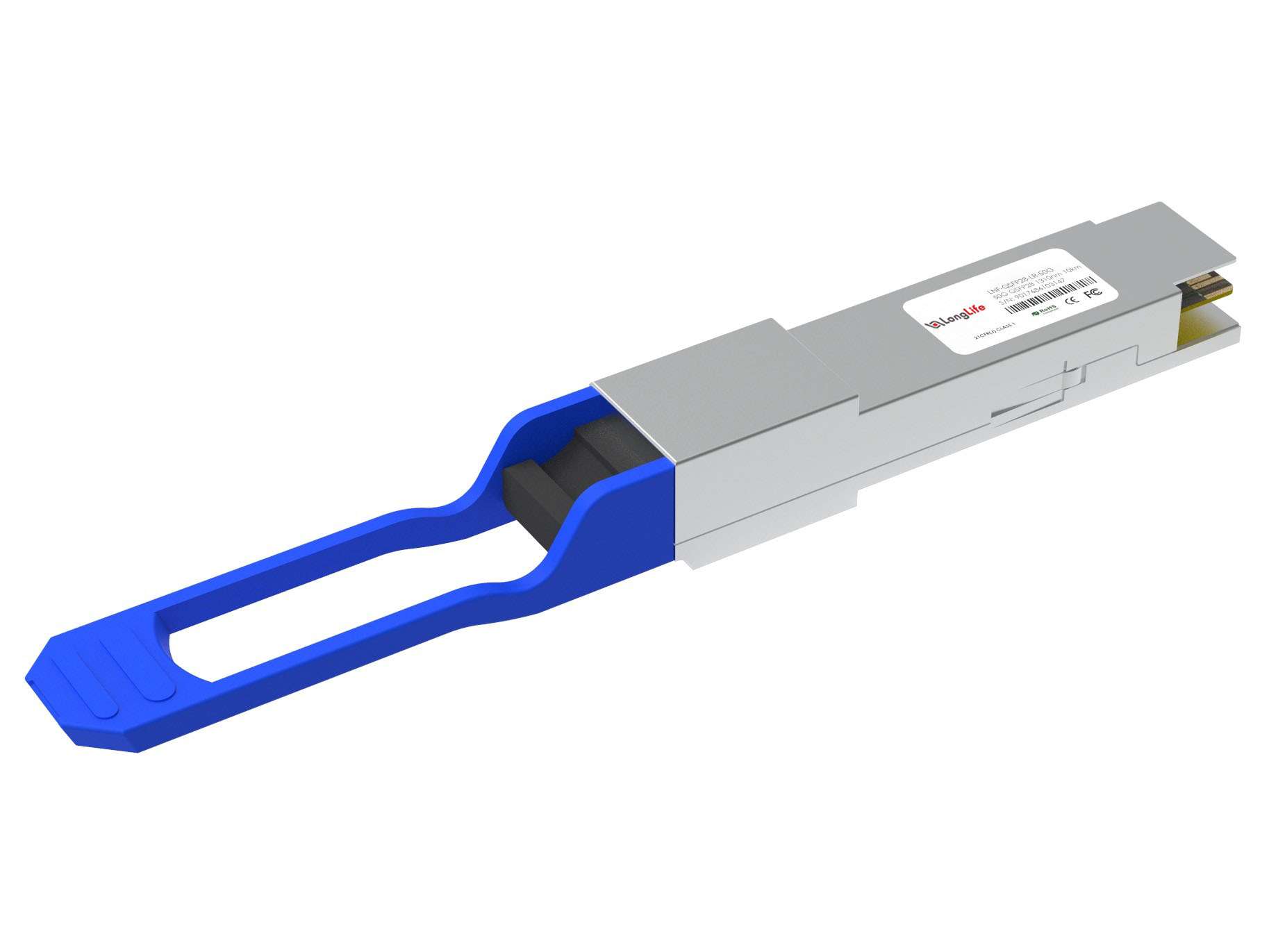

Generic Compatible 50GBASE-LR QSFP28 PAM4 1310nm 10km DOM Duplex LC SMF Transceiver Module
Generic Compatible 50GBASE-LR QSFP28 PAM4 Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Generic Compatible 50GBASE-LR QSFP28 transceiver supports up to 10km link lengths over OS2 SMF via a LC duplex connector. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is compliant with QSFP28 MSA, SFF-8636 and SFF-8679 standard, and is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.
Specifications
|
Part Number
|
QSFP-LR-50G | Vendor Name | Longlife |
|
Form Factor
|
QSFP28 |
Max Data Rate
|
53.125Gbps |
|
Wavelength
|
1310nm |
Max Cable Distance
|
10km |
|
Connector
|
Duplex LC |
Media
|
SMF |
|
Transmitter Type
|
DFB |
Receiver Type
|
PIN |
|
TX Power
|
-4.5~4.2dBm |
Receiver Sensitivity
|
<-10.8dBm |
|
Powerbudget
|
6.3dB |
Receiver Overload
|
5.2dBm |
|
Power Consumption
|
<3.5W |
Extinction Ratio
|
3.5dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
Protocols
|
MSA Compliant |
Warranty
|
5 Years |
