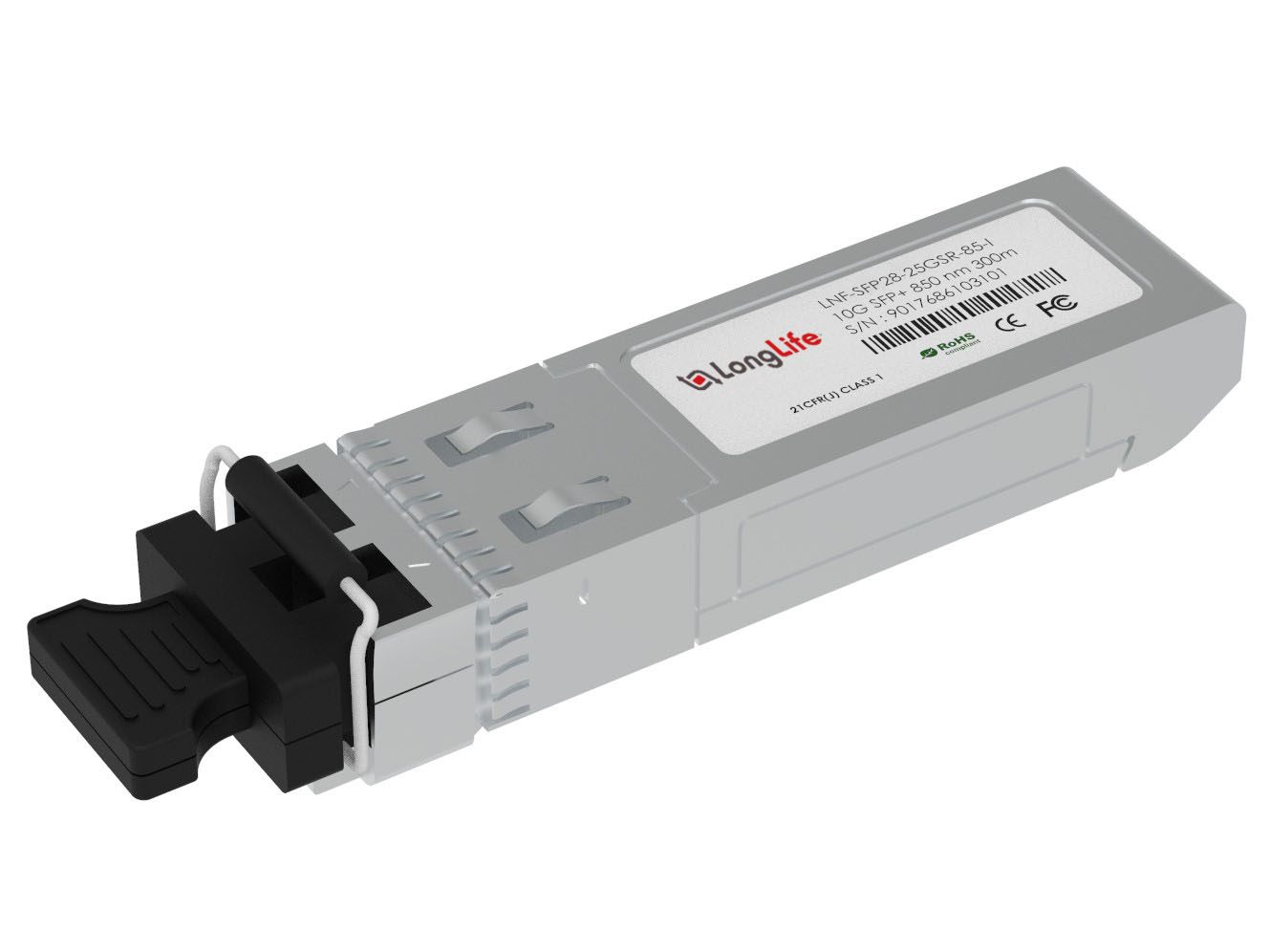

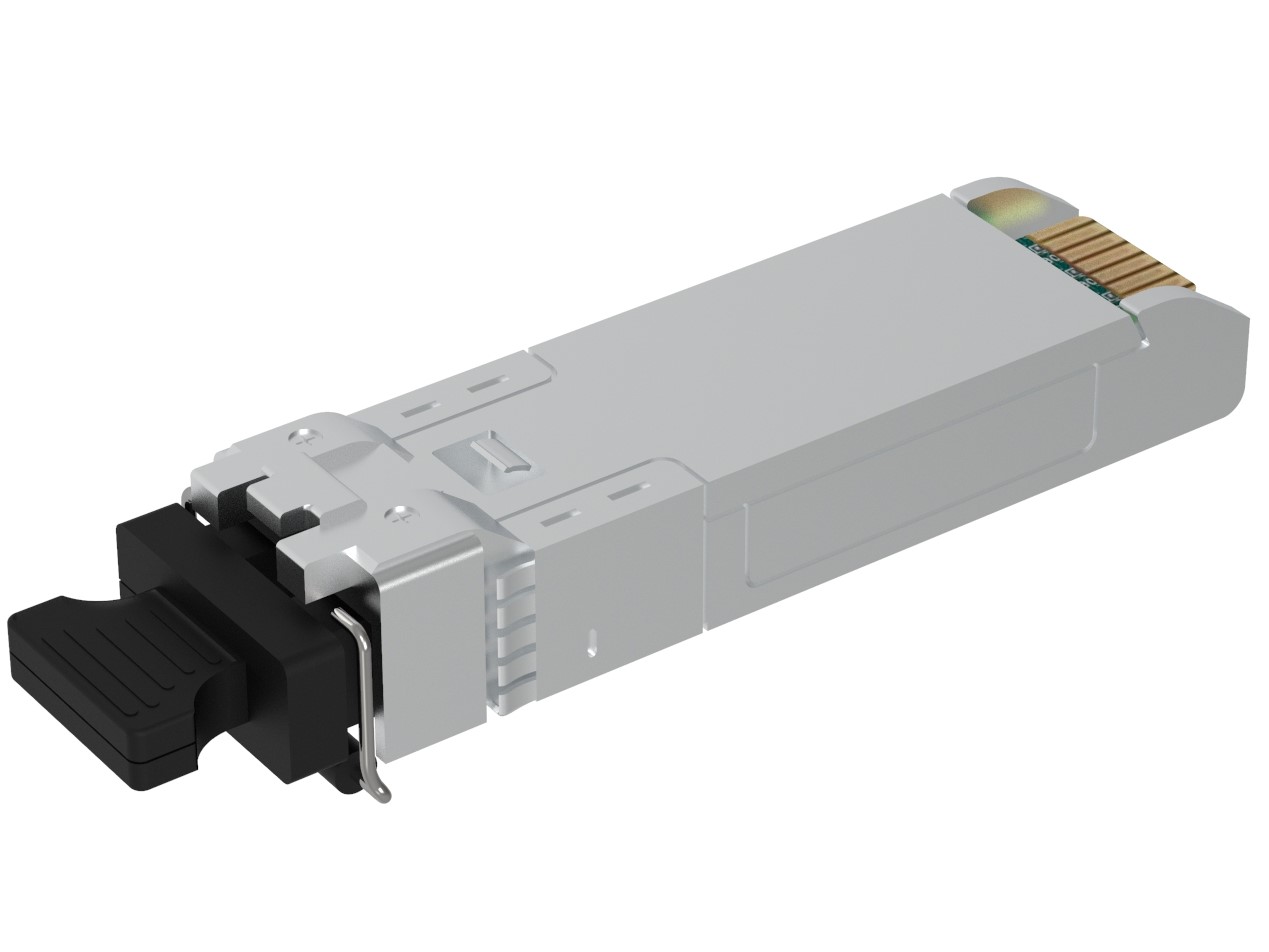

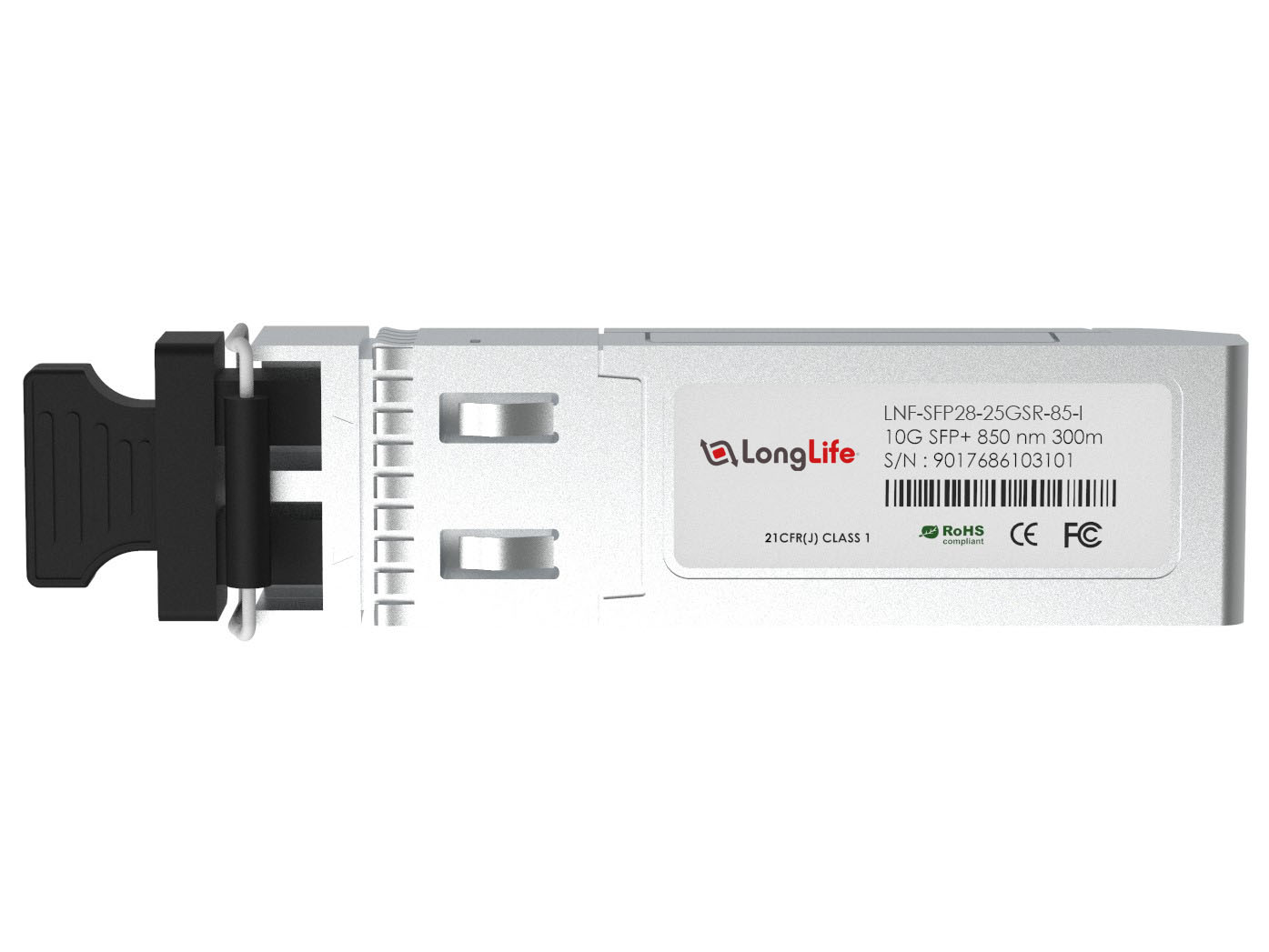

Generic Compatible 25GBASE-SR SFP28 850nm 100m Industrial DOM Duplex LC MMF Optical Transceiver Module

Stok kodu: LNF-SFP28-25GSR-85-I







    25GBASE-SR SFP28 Industrial Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)

    The SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, data center, and 5G Wireless Network, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

    Specifications
    Part Number
    SFP28-25GSR-85-I
    Vendor NameLonglife
    Form Factor
    SFP28
    Max Data Rate
    25.78Gbps
    Wavelength
    850nm
    Max Cable Distance
    100m@OM4/70m@OM3
    Connector
    Duplex LC
    Media
    MMF
    Transmitter Type
    VCSEL
    Receiver Type
    PIN
    TX Power
    -7.9~1.9dBm
    Receiver Sensitivity
    <-6dBm
    Powerbudget
    -1.9dB
    Receiver Overload
    2.4dBm
    Power Consumption
    <1W
    Extinction Ratio
    >2dB
    DDM/DOM
    Supported
    Industrial Temperature Range
    -40 to 85°C (-40 to 185°F)
    CDR
    TX & RX Built-in CDR
    FEC Function
    Support RS-FEC, FC-FEC
    Protocols
    IEEE 802.3by, SFF-8472, SFF-8432, SFP28 MSA, CPRI, eCPRI
    Warranty
    5 Years

    Core Size

    50/125 µm
    Packaging Technology
    COB Packaging
    Stok kodu: LNF-SFP28-25GSR-85-I Kategoriler: ,
