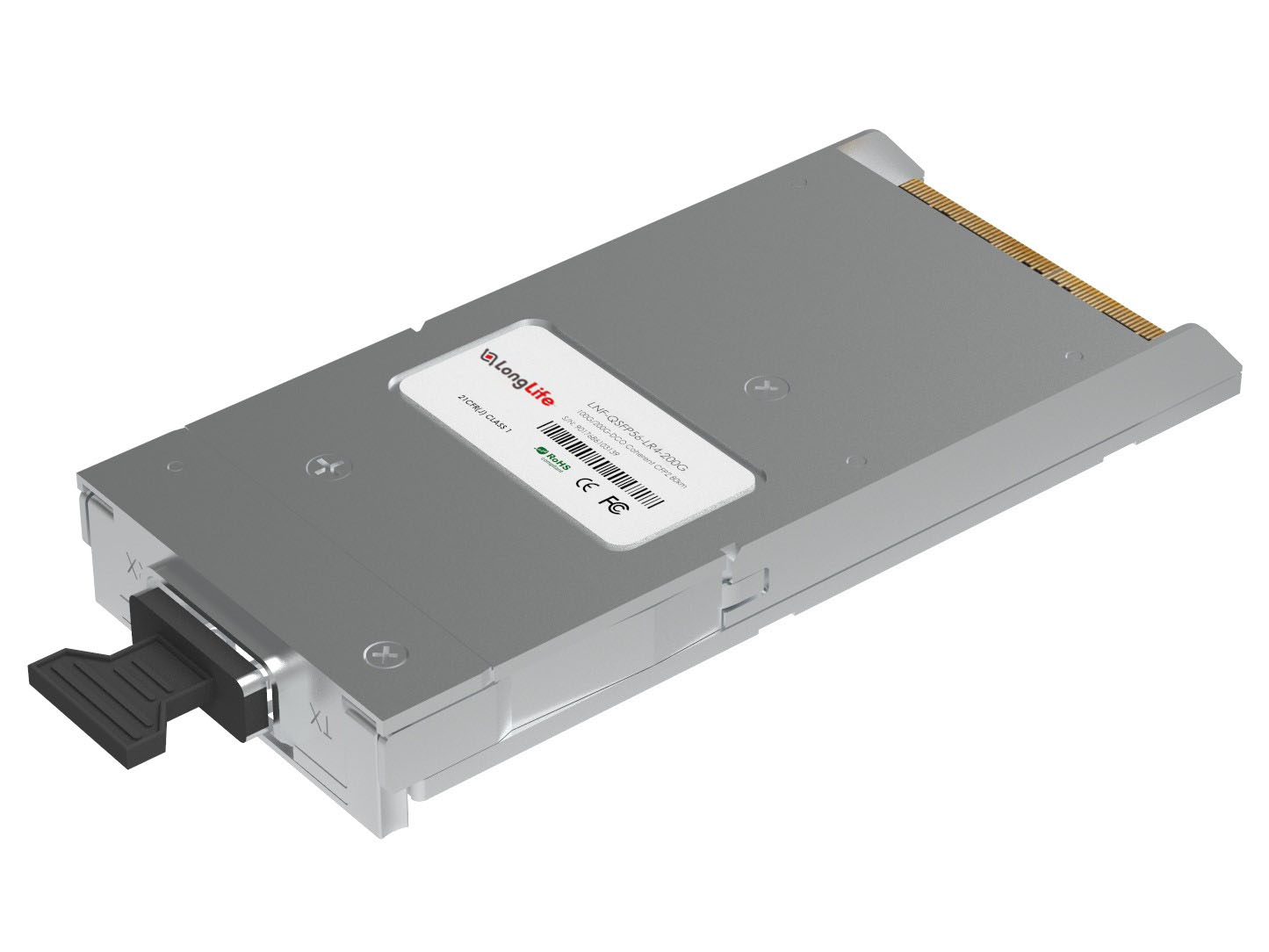

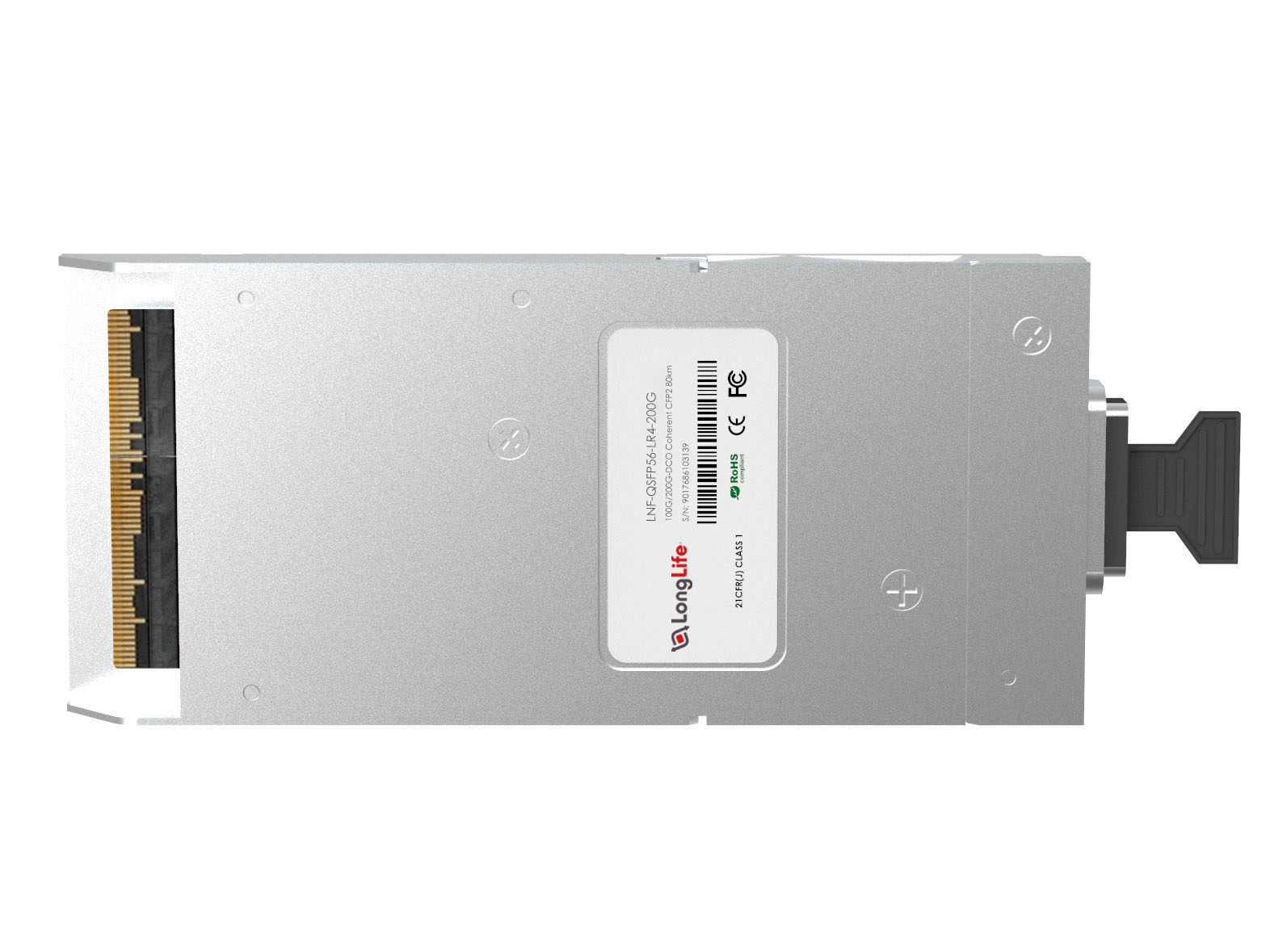

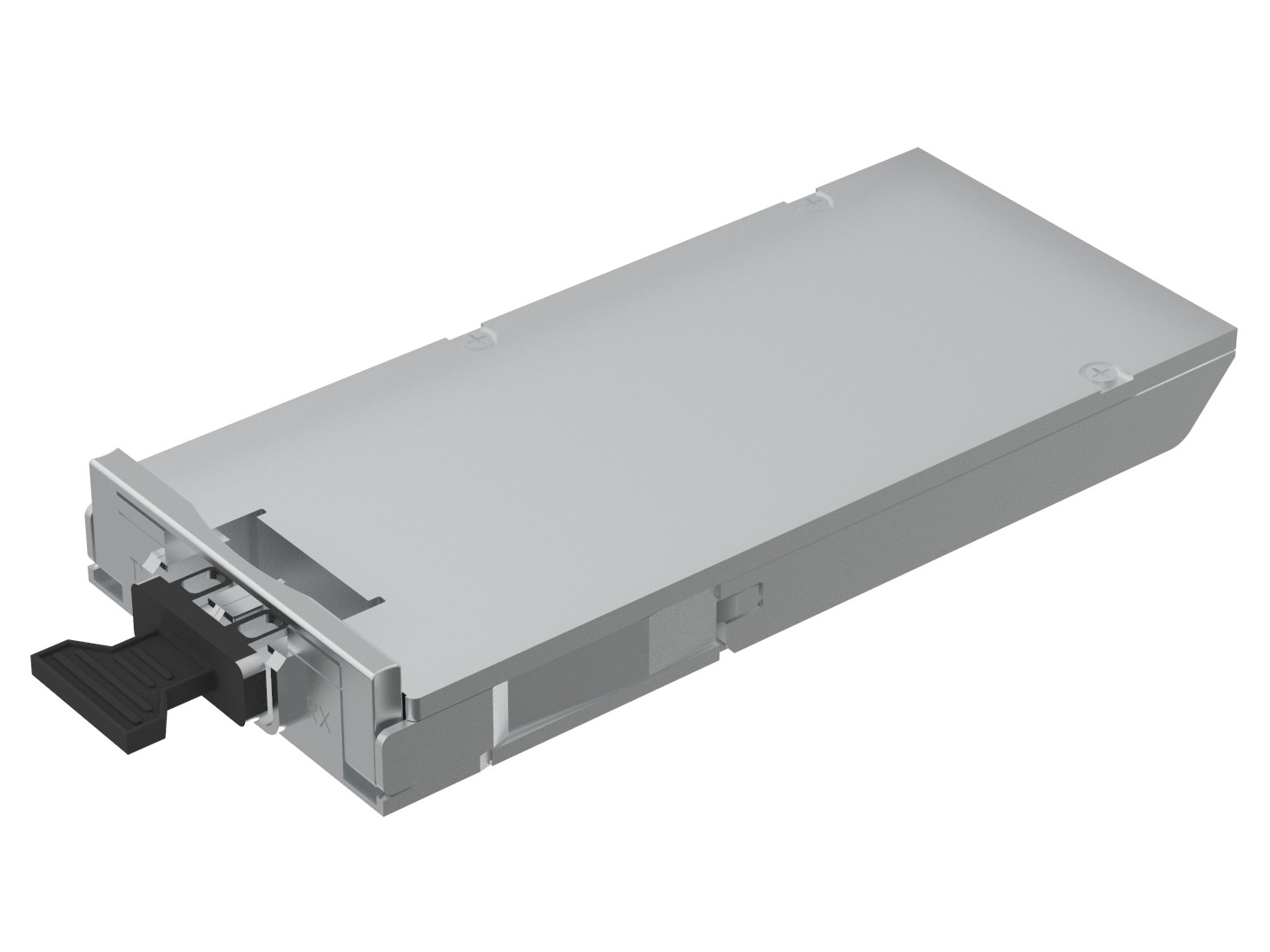

Generic Compatible 200GBASE-LR4 QSFP56 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
Generic Compatible 200GBASE-LR4 QSFP56 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 10km, LC, DOM)
Generic Compatible QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector.
This transceiver is compliant with SFF-8661,and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
Specifications
|
Part Number
|
QSFP-LR4-200G |
Vendor Name
|
Longlife |
|
Form Factor
|
QSFP56 |
Max Data Rate
|
200Gbps |
|
Wavelength
|
1310nm |
Max Cable Distance
|
10km |
|
Connector
|
Duplex LC |
Media
|
SMF |
|
Transmitter Type
|
DFB |
Receiver Type
|
PIN
|
|
TX Power
|
-3.4~5.3dBm
|
Receiver Sensitivity
|
＜-9.7dBm
|
|
Powerbudget
|
6.3dBm |
Receiver Overload
|
5.1dBm |
|
Power Consumption
|
≤8W |
Extinction Ratio
|
＞3.5dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
Modulation Format
|
PAM4 |
Inbuilt FEC
|
No |
|
Protocols
|
IEEE 802.3bs, QSFP56 MSA, SFF-8661 |
Warranty
|
5 Years |
