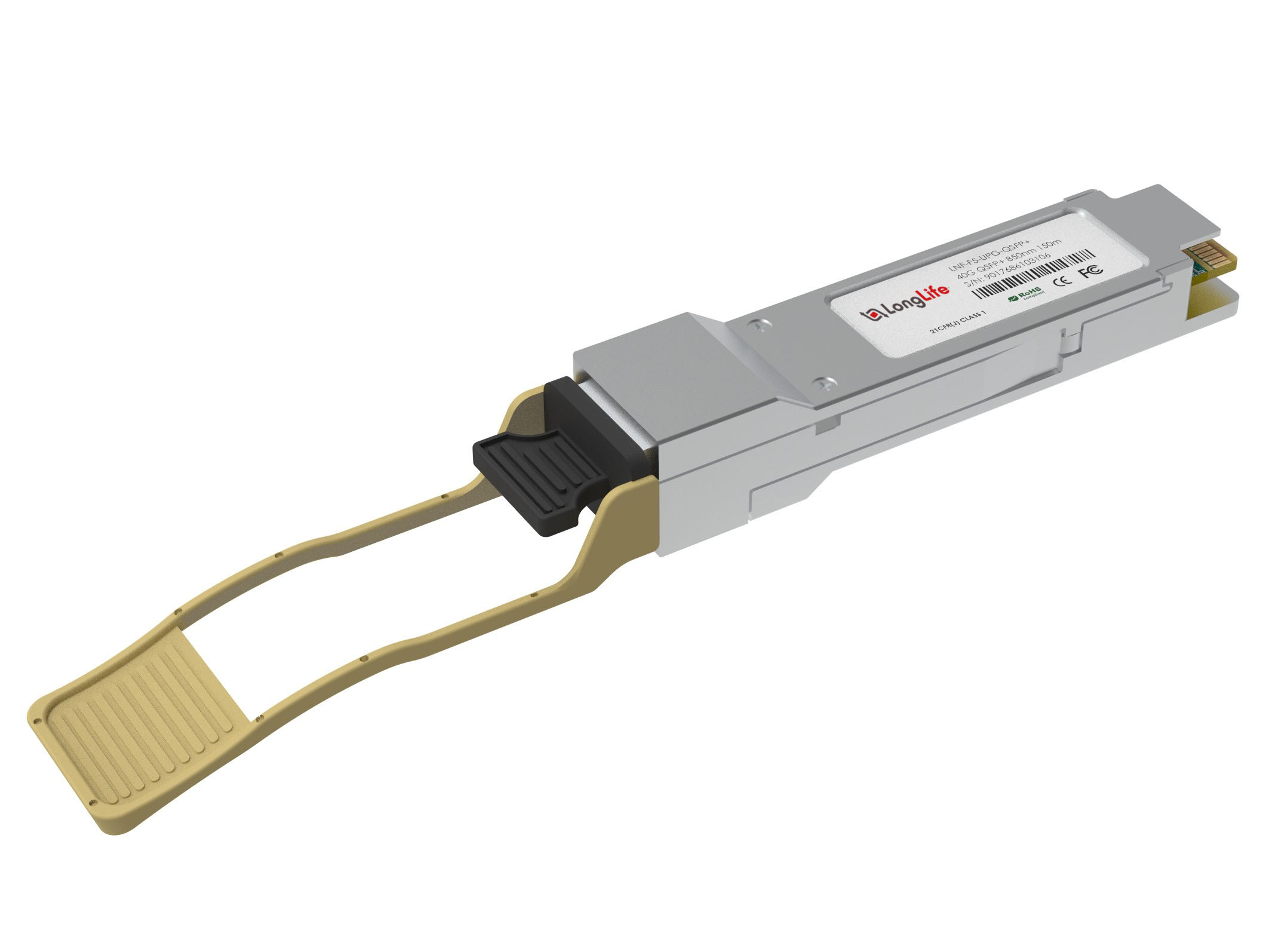

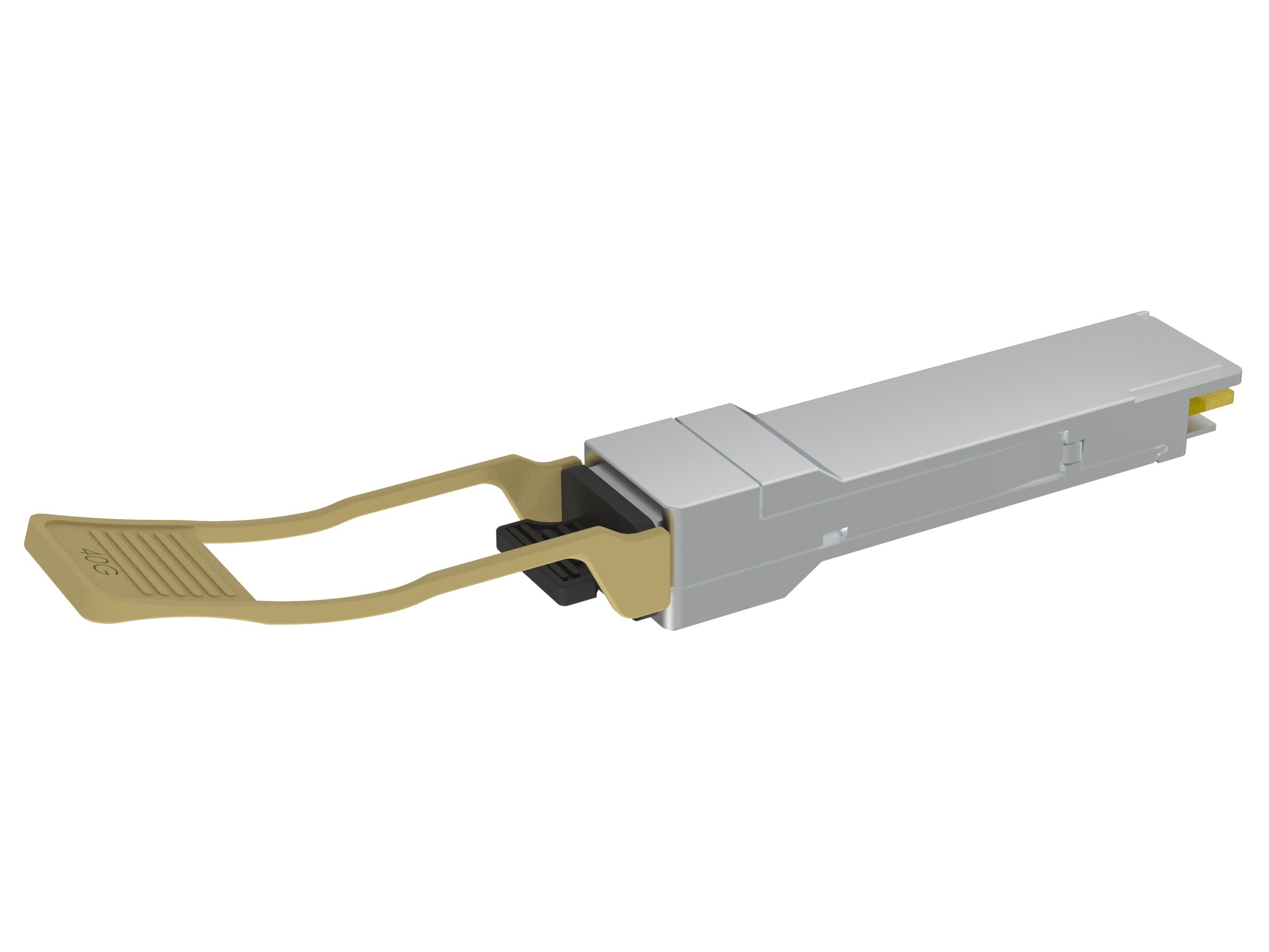

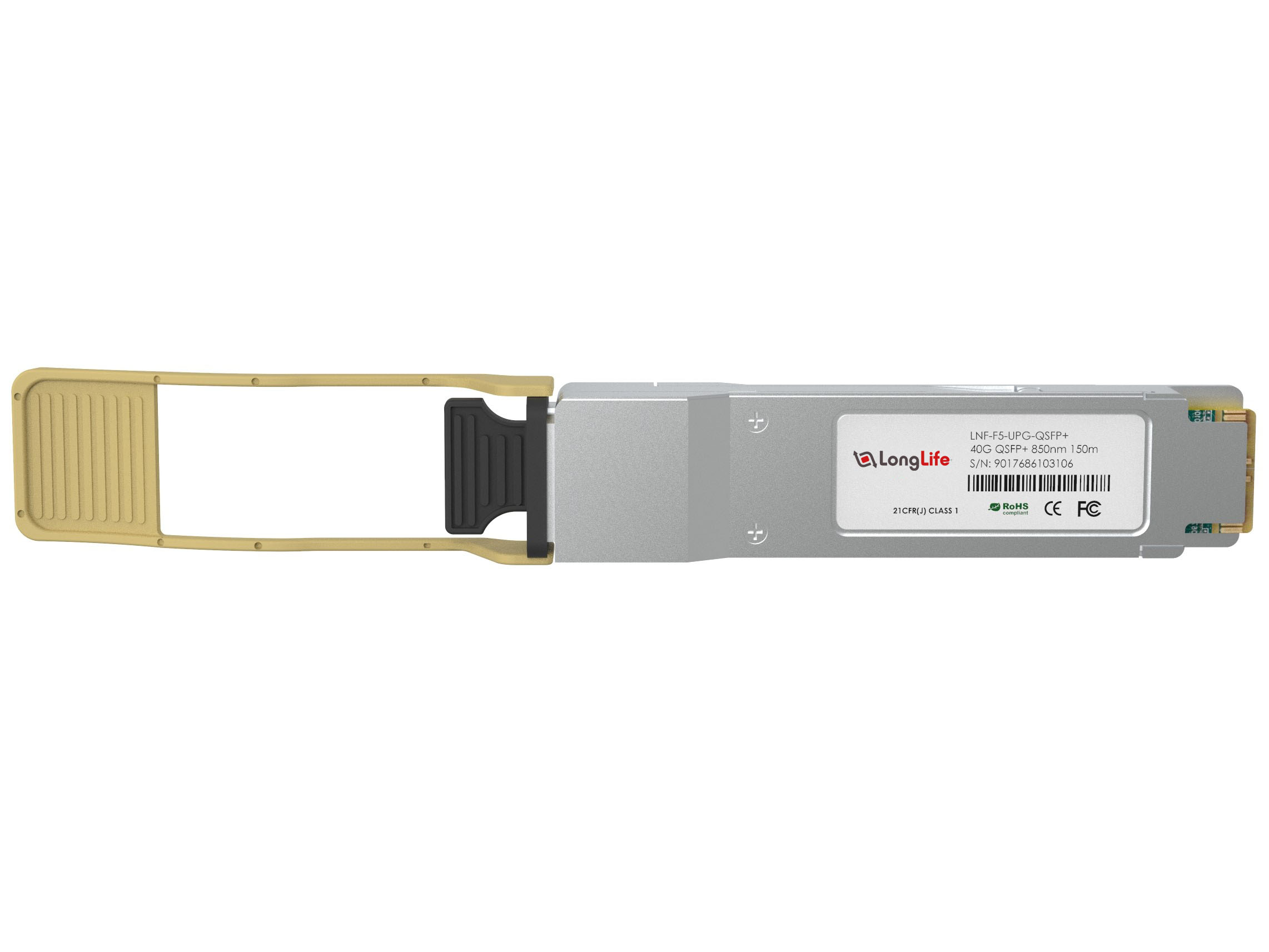

F5 Networks F5-UPG-QSFP+ Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO-12 MMF Optical Transceiver Module

Stok kodu: LNF-F5-UPG-QSFP+







    F5 Networks F5-UPG-QSFP+ Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)

    The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.

    Specifications
    F5 Compatible
    F5-UPG-QSFP+Vendor NameLonglife
    Form Factor
    QSFP+Max Data Rate41.25Gbps (4x 10.3125Gbps)
    Wavelength
    850nm

    Max Cable Distance150m@OM4/100m@OM3
    Connector
    MTP/MPO-12 Male
    Media
    MMF
    Transmitter Type
    VCSEL
    Receiver Type
    PIN
    TX Power
    -7.1~1.9dBm
    Receiver Sensitivity
    <-10.3dBm
    Powerbudget
    3.5dB
    Receiver Overload
    2.4dBm
    Power Consumption
    <1.5W
    Core Size
    50um
    Extinction Ratio
    >3dB
    Modulation
    NRZ
    Host FECSupported
    Bit Error Ratio (BER)
    1E-12
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Protocols
    IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
