1G SFP Modules, SFP

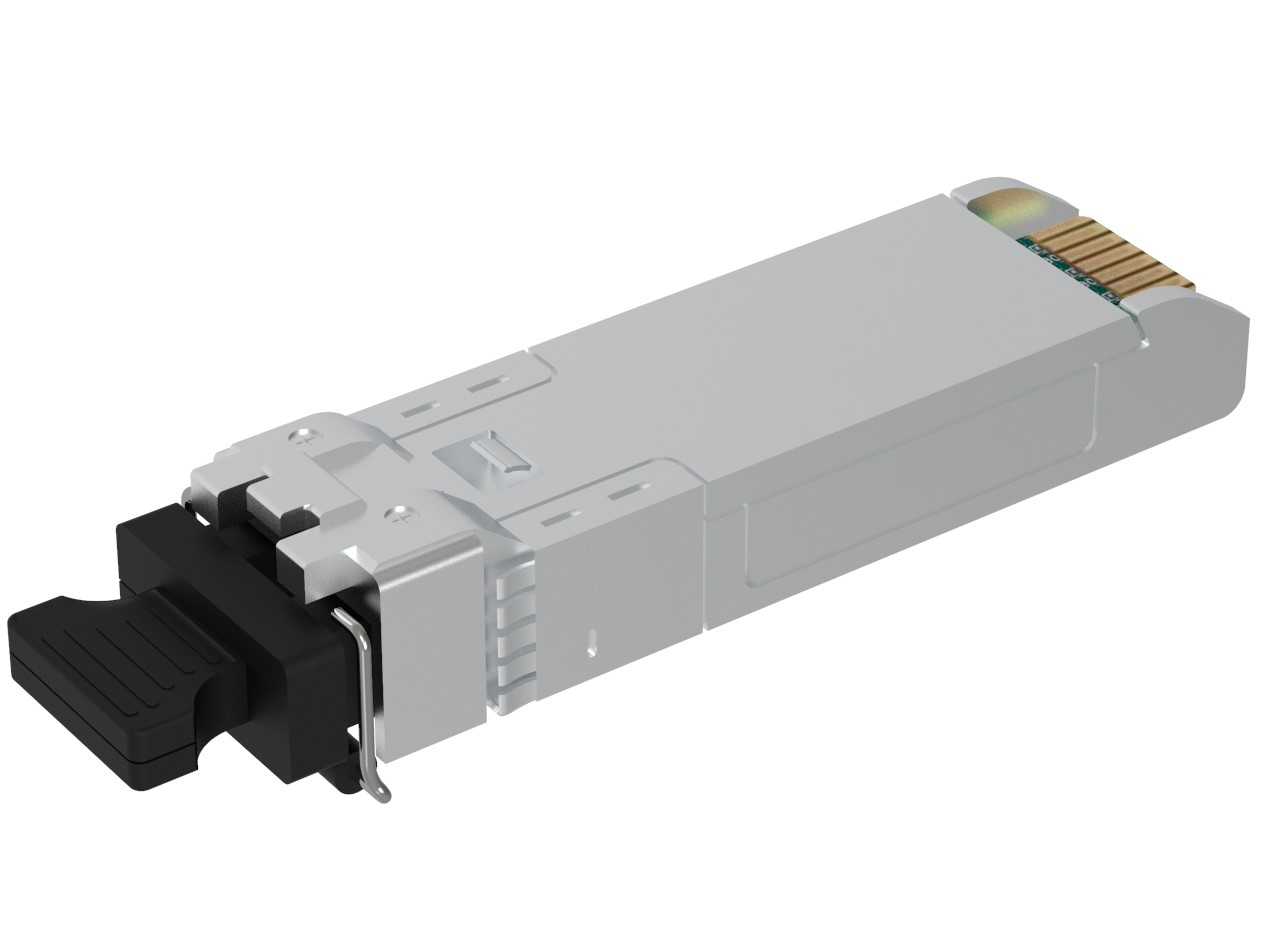

Extreme Networks MGBIC-BX10-D-1310 Compatible 1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 10km DOM Simplex LC SMF Transceiver Module
Extreme Networks MGBIC-BX10-D-1310 Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1310nm-TX/1550nm-RX, 10km, LC , DOM)
The Extreme-compatible SFP transceiver provides up to 10km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Specifications
Extreme Networks Compatible | MGBIC-BX10-D-1310 | Vendor Name | Longlife |
Form Factor | SFP | Max Data Rate | 1000Mbps |
Wavelength | 1310nm-TX/1550nm-RX | Max Cable Distance | 10km |
Connector | Simplex LC | Optical Components | FP BiDi |
Media | SMF | DOM Support | Yes |
TX Power | -9~-3dBm | Receiver Sensitivity | < -20dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
