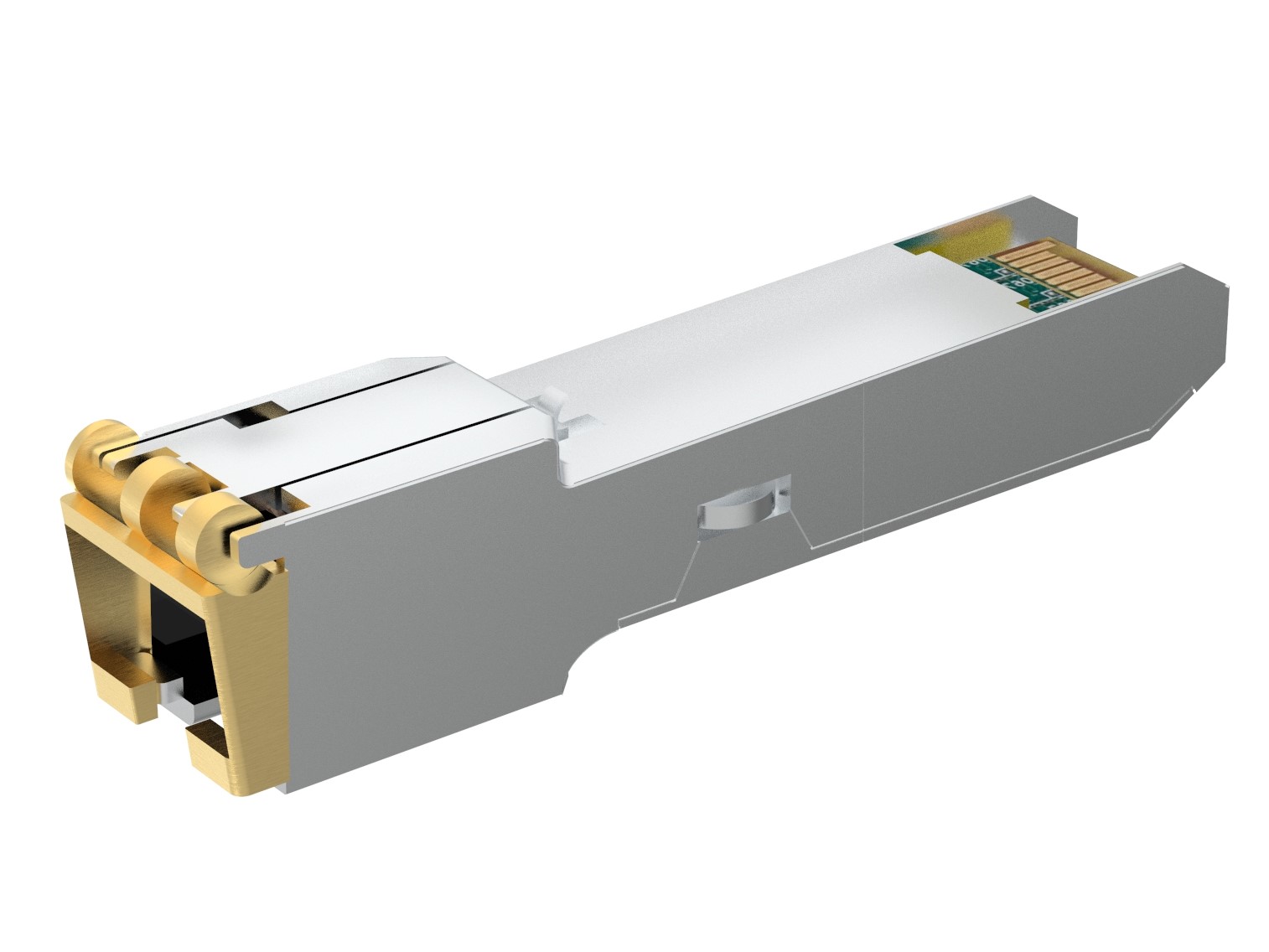

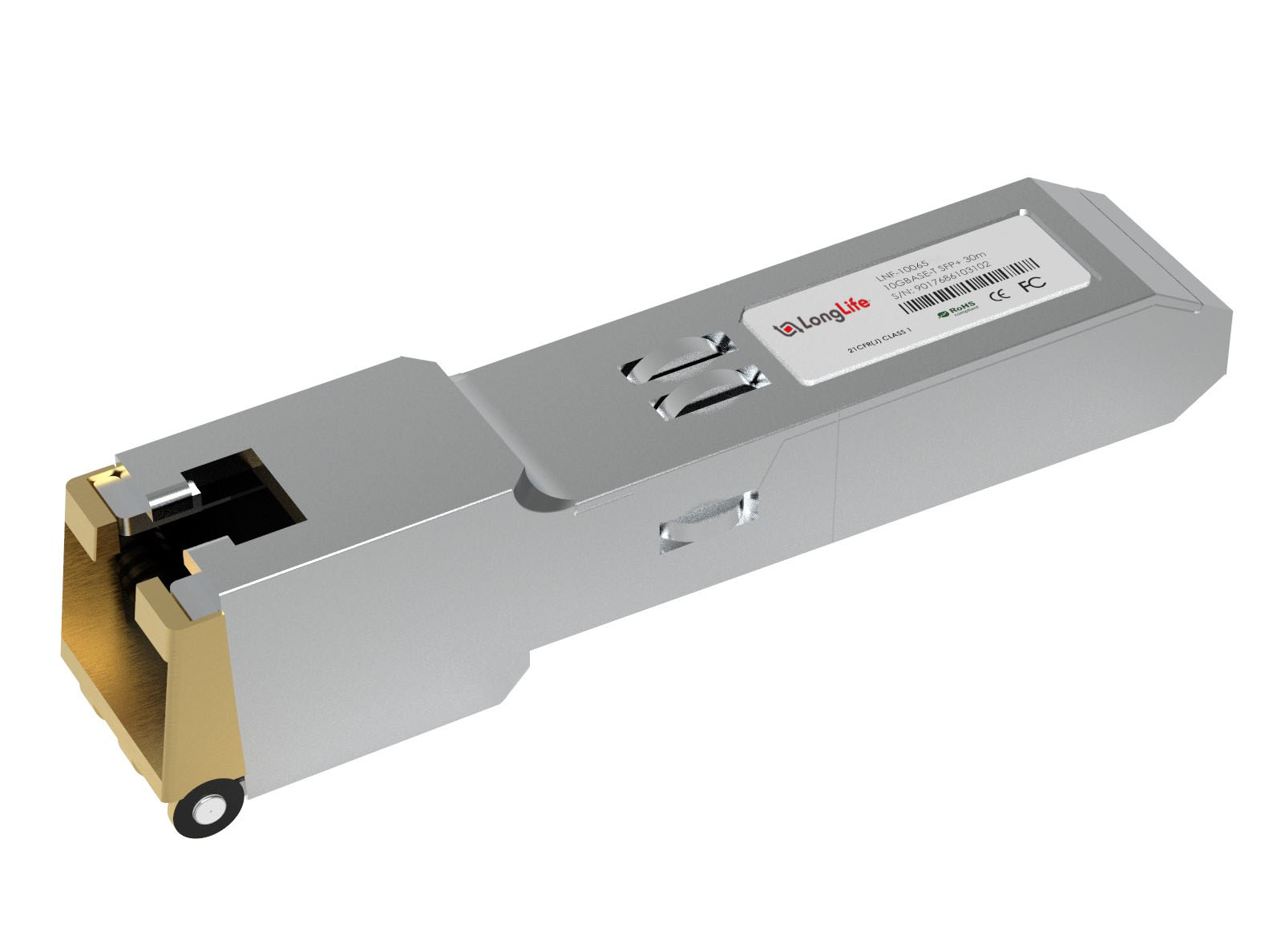

Extreme Networks 10065 Compatible 10/100/1000BASE-T SFP SGMII RJ-45 100m Transceiver Module

Stok kodu: LNF-10065







    Extreme Networks 10065  Compatible 10/100/1000BASE-T SFP SGMII Transceiver Module (Copper, 100m, RJ-45)

    Extreme Networks 10065  compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Extreme switches, routers, servers, network interface card (NICs) etc.
    Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

    Specifications

    Compatible

    10065

    Vendor Name

    Longlife

    Form Factor

    SFP+

    Max. Data Rate

    10.3125Gbps

    Wavelength

    850nm

    Max. Cable Distance

    300m@OM3/400m@OM4

    Connector

    Duplex LC

    Media

    MMF

    Transmitter Type

    VCSEL

    Receiver Type

    PIN

    TX Power

    -7.3~-1dBm

    Receiver Sensitivity

    < -11.1dBm

    Powerbudget

    3.8dB

    Receiver Overload

    -1dBm

    Typical Power Consumption

    <1W

    Extinction Ratio

    >3dB

    Commercial Temperature Range

    0 to 70°C (32 to 158°F)

    Protocols

    IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

    Stok kodu: LNF-10065 Kategoriler: ,
