Extreme 10338-I Compatible 10GBASE-T SFP+ Copper RJ-45 30m Industrial Transceiver Module

Stok kodu: LNF-10338-I

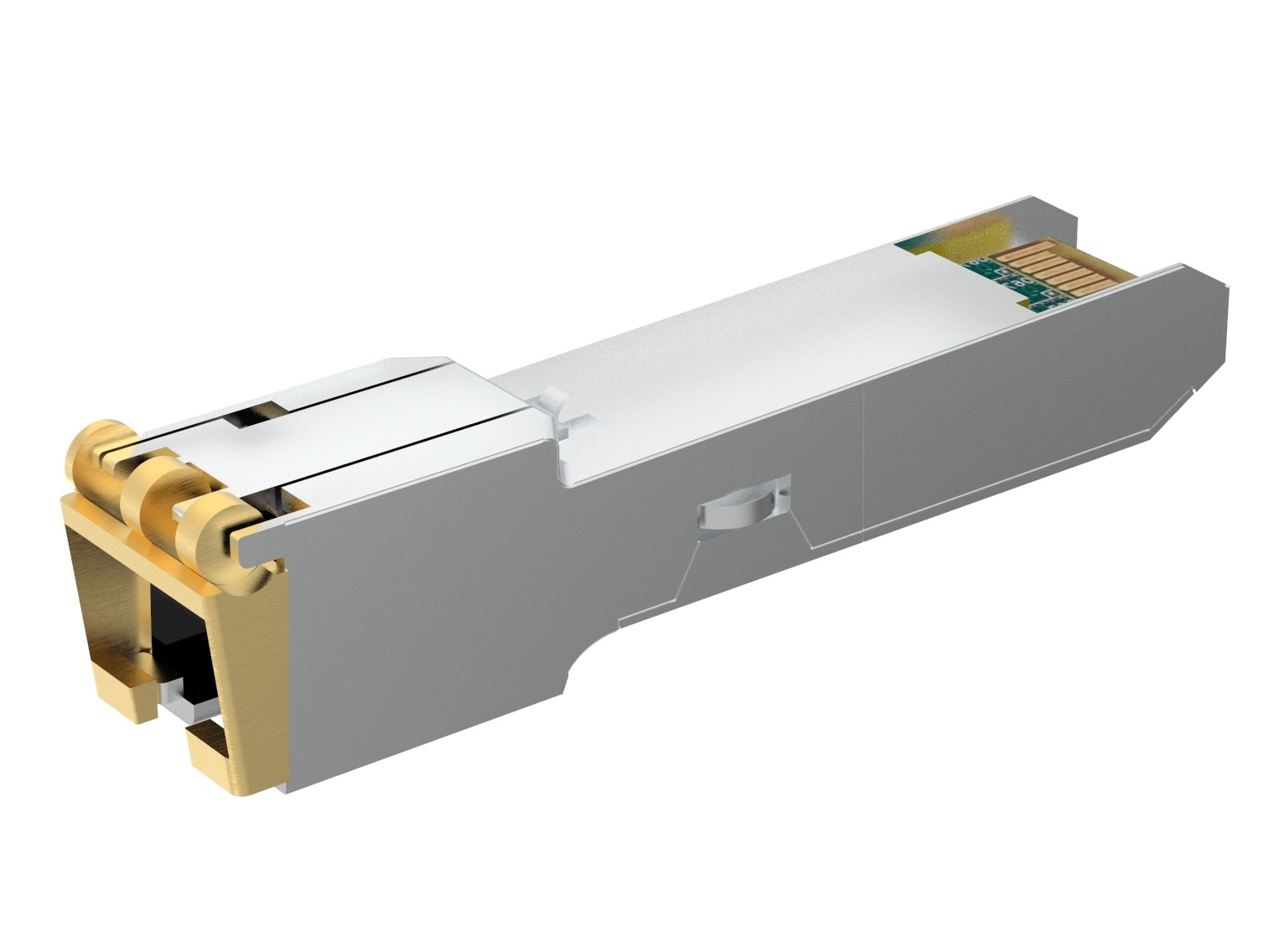

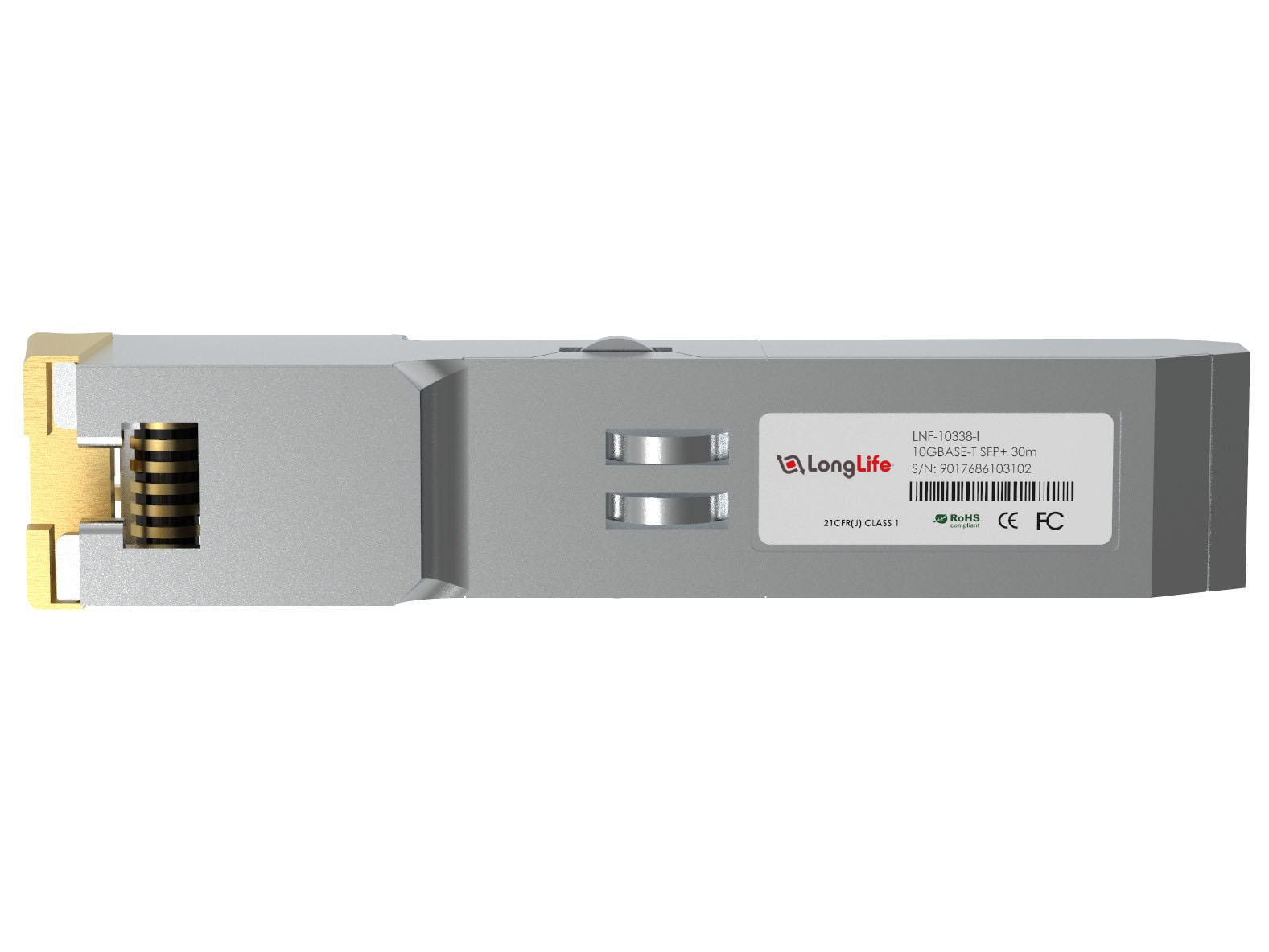

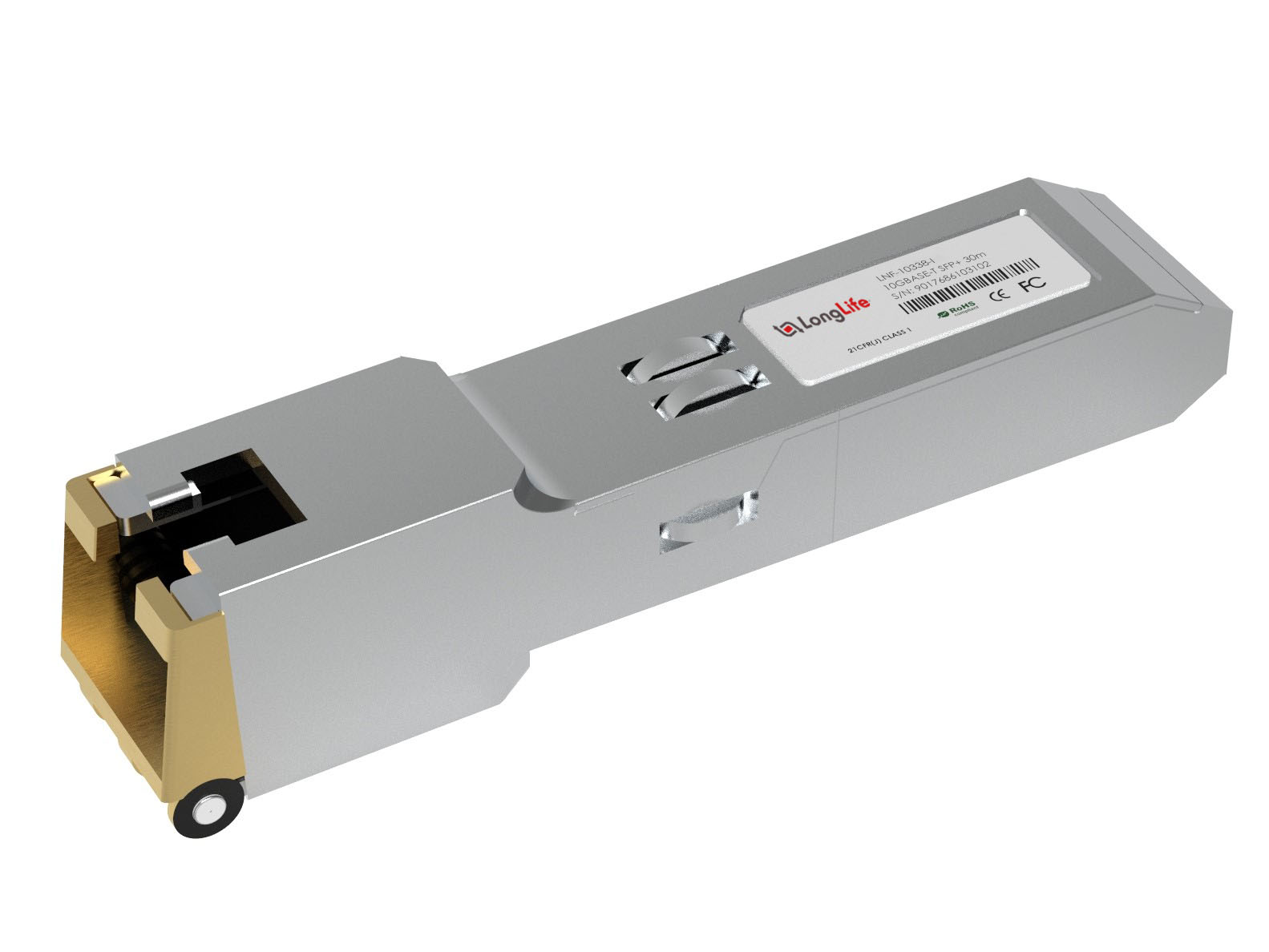

    Extreme 10338-I  Compatible 10GBASE-T SFP+ Transceiver Module (Copper, 30m, Industrial, RJ-45)

    Extreme 10338-I  compatible SFP+ transceiver provides 10GBase-T throughput up to 30m over cat6a/cat7 copper cable via RJ-45 connector. This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring an operating temperature range of -40°C to 85°C, this industrial transceiver can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

    Specifications

    Compatible

    10338-I

    Vendor Name

    Longlife

    Form Factor

    SFP+

    Max. Data Rate

    10.3125Gbps

    Wavelength

    850nm

    Max. Cable Distance

    300m@OM3/400m@OM4

    Connector

    Duplex LC

    Media

    MMF

    Transmitter Type

    VCSEL

    Receiver Type

    PIN

    TX Power

    -7.3~-1dBm

    Receiver Sensitivity

    < -11.1dBm

    Powerbudget

    3.8dB

    Receiver Overload

    -1dBm

    Typical Power Consumption

    <1W

    Extinction Ratio

    >3dB

    Commercial Temperature Range

    0 to 70°C (32 to 158°F)

    Protocols

    IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
