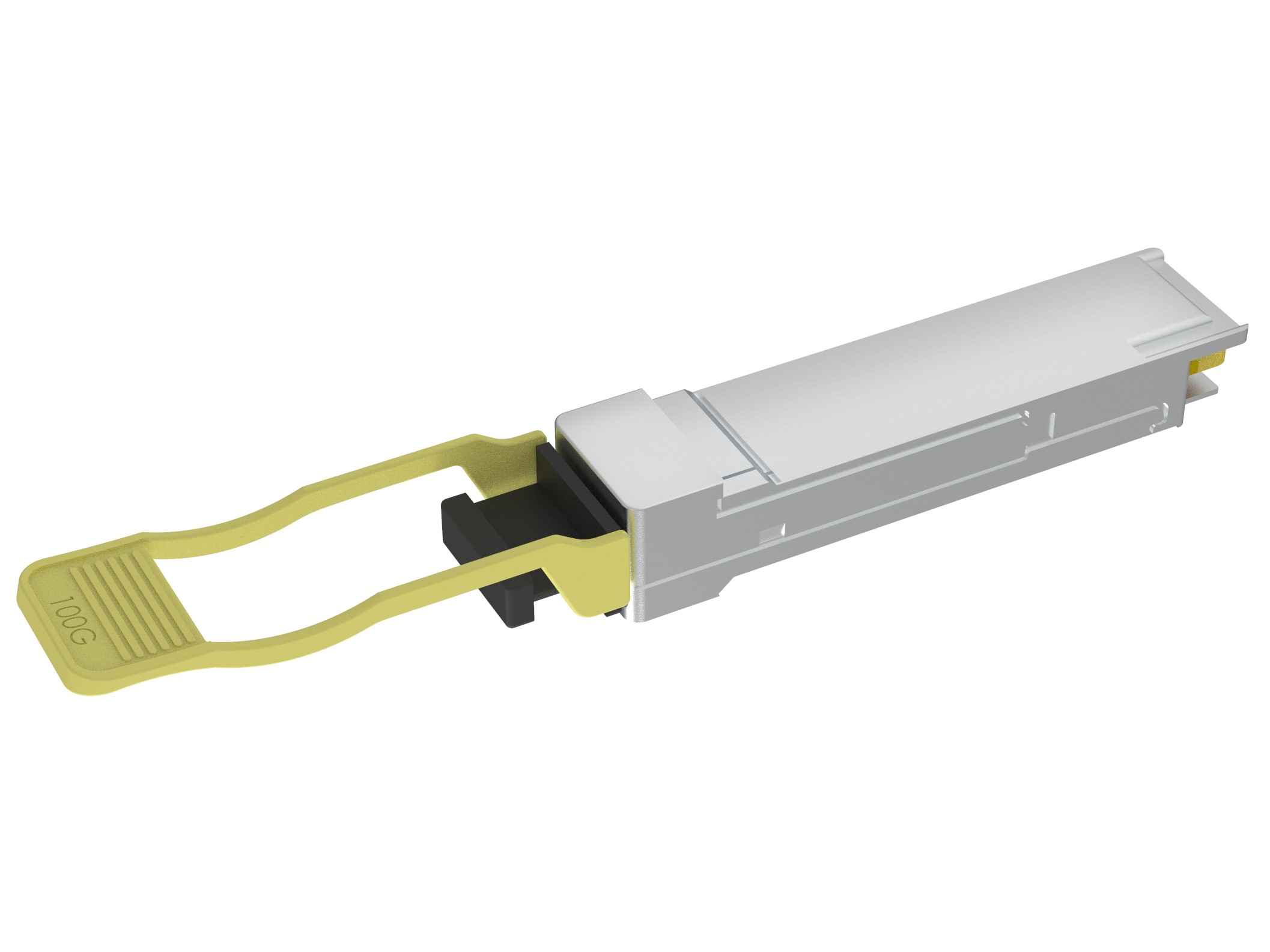

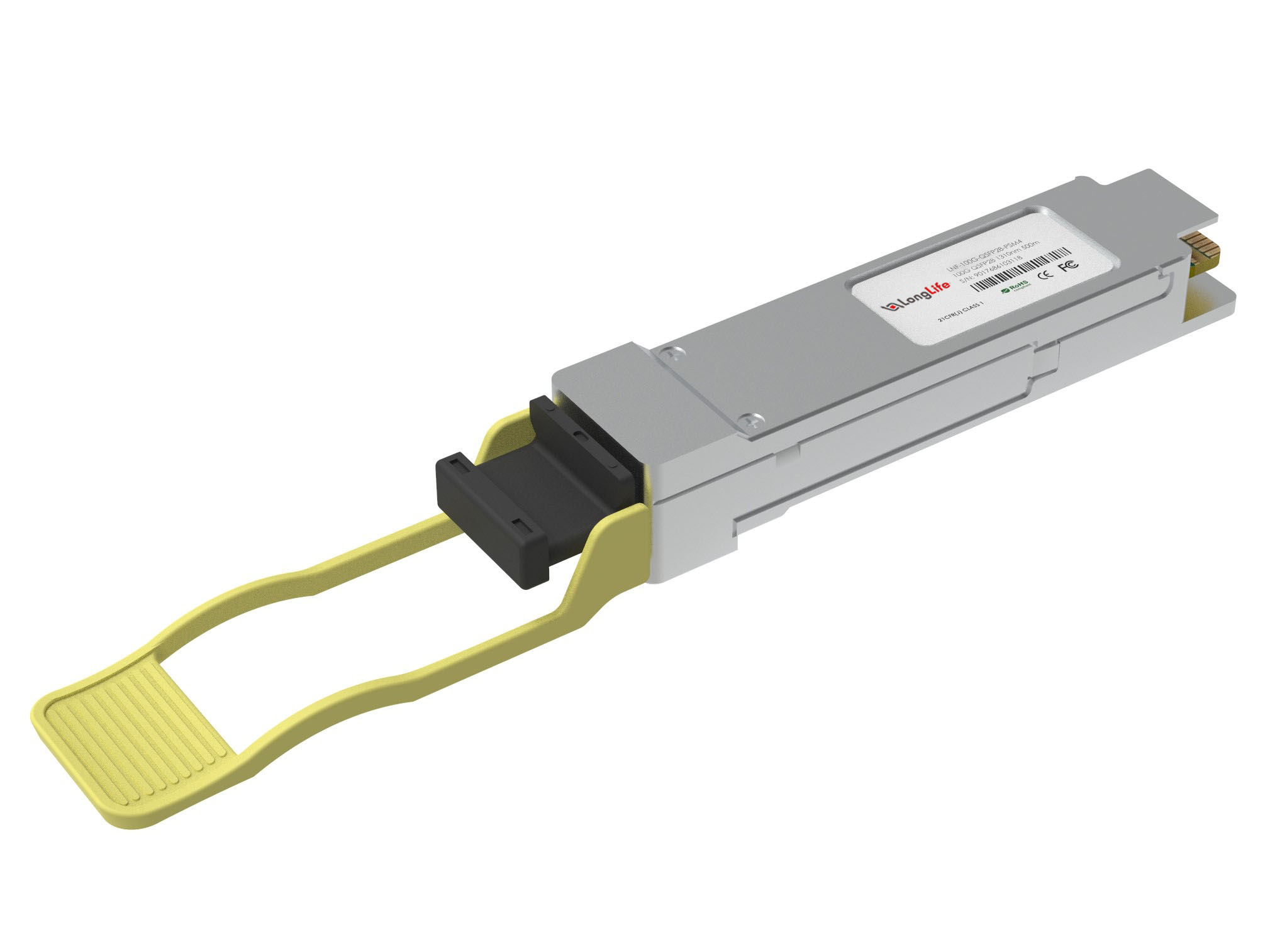

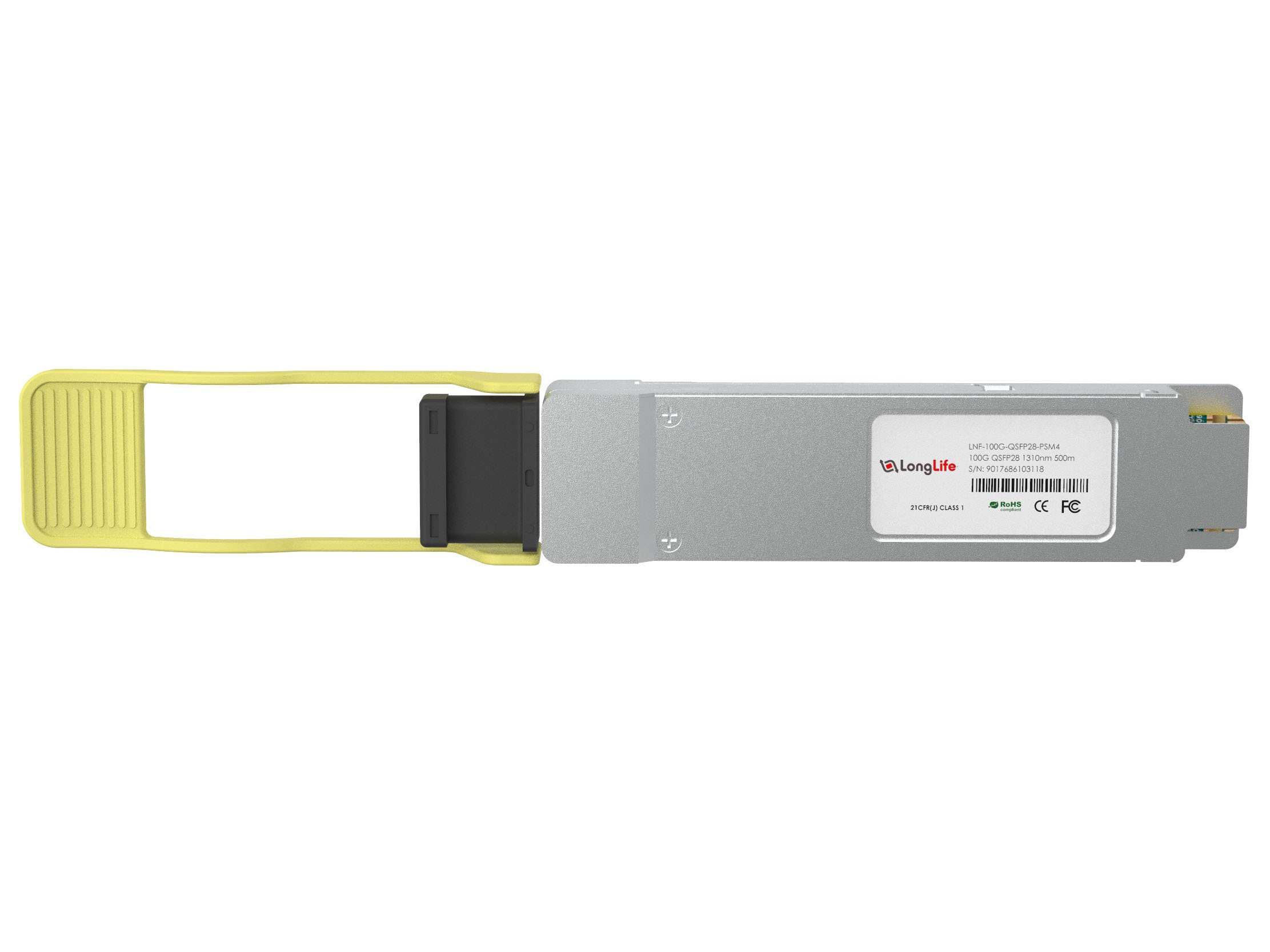

Extreme 100G-QSFP28-PSM4 Compatible 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO-12 SMF Optical Transceiver Module

Stok kodu: LNF-100G-QSFP28-PSM4







    Extreme Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)

    The Extreme Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
    Note: The FS P/N is changed from QSFP28-PIR4-100G to QSFP-PSM4-100G, but the product is the same. Only the FS P/N has been changed.

    Specifications
    Part Number
    QSFP-PSM4-100GVendor NameLonglife
    Form Factor
    QSFP28
    Max Data Rate
    103.125Gbps (4x 25.78Gbps)
    Wavelengths
    1310nm
    Max Cable Distance

    500m
    Connector
    MTP/MPO-12
    Media
    SMF
    Transmitter Type
    4x DFB
    Receiver Type
    PIN
    TX Power
    -9.4~2dBm
    RX Power
    -12.66~2dBm
    Power Consumption
    ≤3.5W
    Extinction Ratio
    >3.5dB
    CDR (Clock and Data Recovery)
    TX & RX Built-in CDR
    Inbuilt FEC
    No
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Packaging Technology
    BOX Packaging
    Modulation Format
    4x 25G NRZ
    Core Size
    9um/125um
    Protocols
    QSFP28 MSA Compliant
