1G SFP Modules, SFP

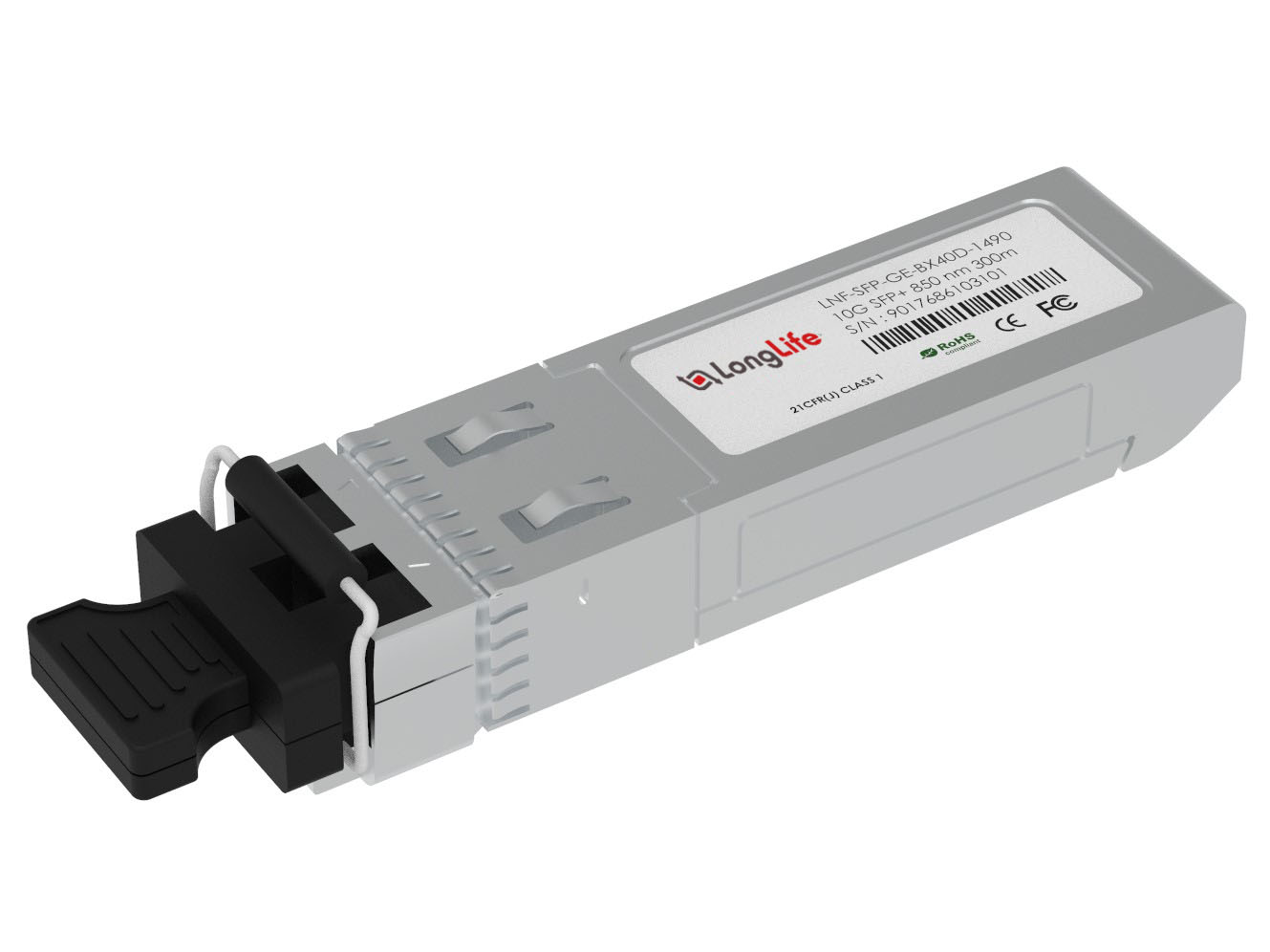

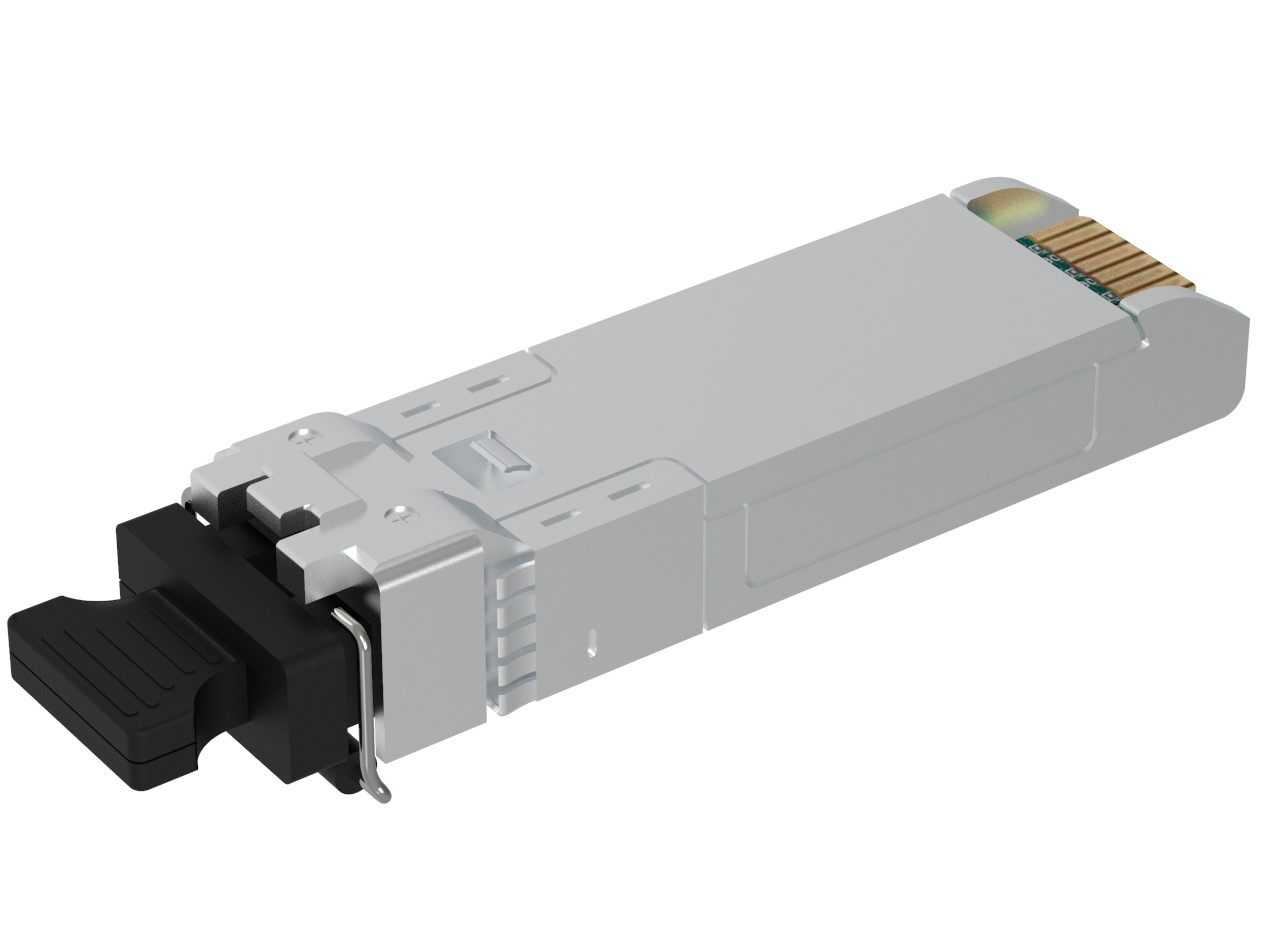

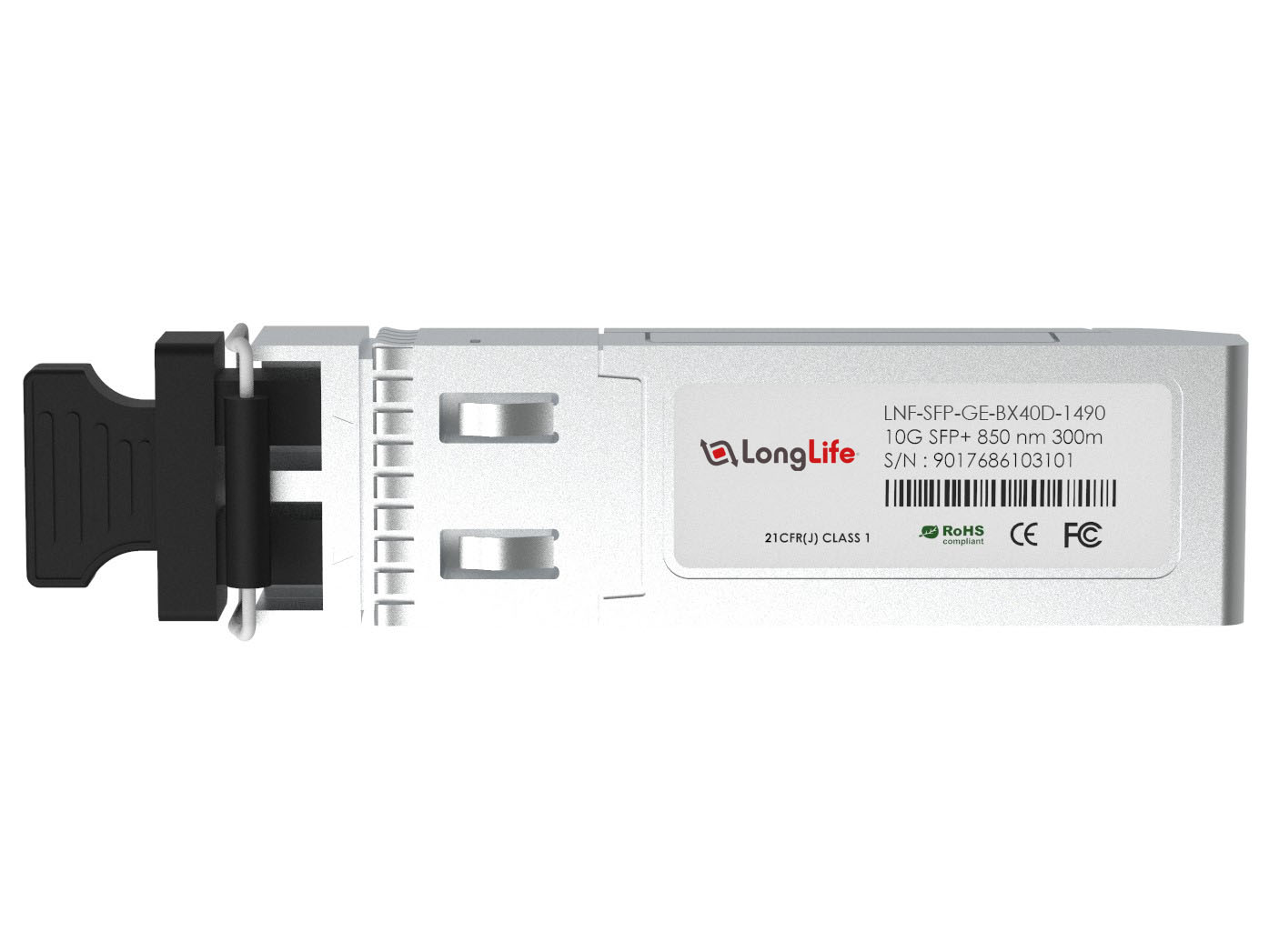

Dell SFP-GE-BX40D-1490 Compatible 1000BASE-BX BiDi SFP 1490nm-TX/1310nm-RX 40km DOM Simplex LC SMF Transceiver Module
Dell SFP-GE-BX40D-1490 Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1490nm-TX/1310nm-RX, 40km, LC, DOM)
The Dell-compatible SFP transceiver provides up to 40km of 1000Base-BX throughput over single-mode fiber (SMF) using 1490nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Specifications
|
Dell Compatible
|
SFP-GE-BX40D-1490
|
Vendor Name | Longlife |
|
Form Factor
|
SFP |
Max Data Rate
|
1000Mbps |
|
Wavelength
|
1490nm-TX/1310nm-RX
|
Max Cable Distance
|
40km
|
|
Connector
|
Simplex LC |
Optical Components
|
DFB BiDi |
|
Media
|
SMF |
DOM Support
|
Yes
|
|
TX Power
|
-5~0dBm |
Receiver Sensitivity
|
< -23dBm
|
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
