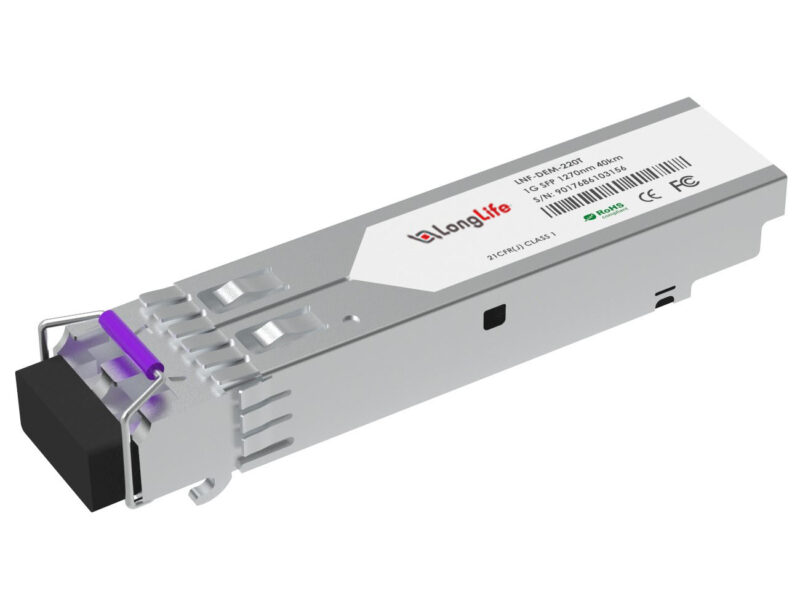

D-Link DEM-220T Compatible 100BASE-BX-D BiDi SFP 1550nm-TX/1310nm-RX 20km DOM Simplex LC SMF Transceiver Module
D-Link DEM-220T Compatible 100BASE-BX-D SFP Transceiver Module (SMF, 1550nm-TX/1310nm-RX, 10km, LC, DOM)
The D-Link-compatible SFP transceiver provides up to 10km of 100Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.
Specifications
|
D-Link Compatible
|
DEM-220T
|
Vendor Name | Longlife |
|
Form Factor
|
SFP |
Max Data Rate
|
155Mbps |
|
Wavelength
|
1550nm-TX/1310nm-RX |
Max Cable Distance
|
10km
|
|
Connector
|
Duplex LC |
Optical Components
|
FP BiDi |
|
Media
|
SMF |
DOM Support
|
Yes
|
|
TX Power
|
-15~-8dBm |
Receiver Sensitivity
|
< -30dBm
|
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
IEEE802.3ab, GR-468, MSA Compliant |
