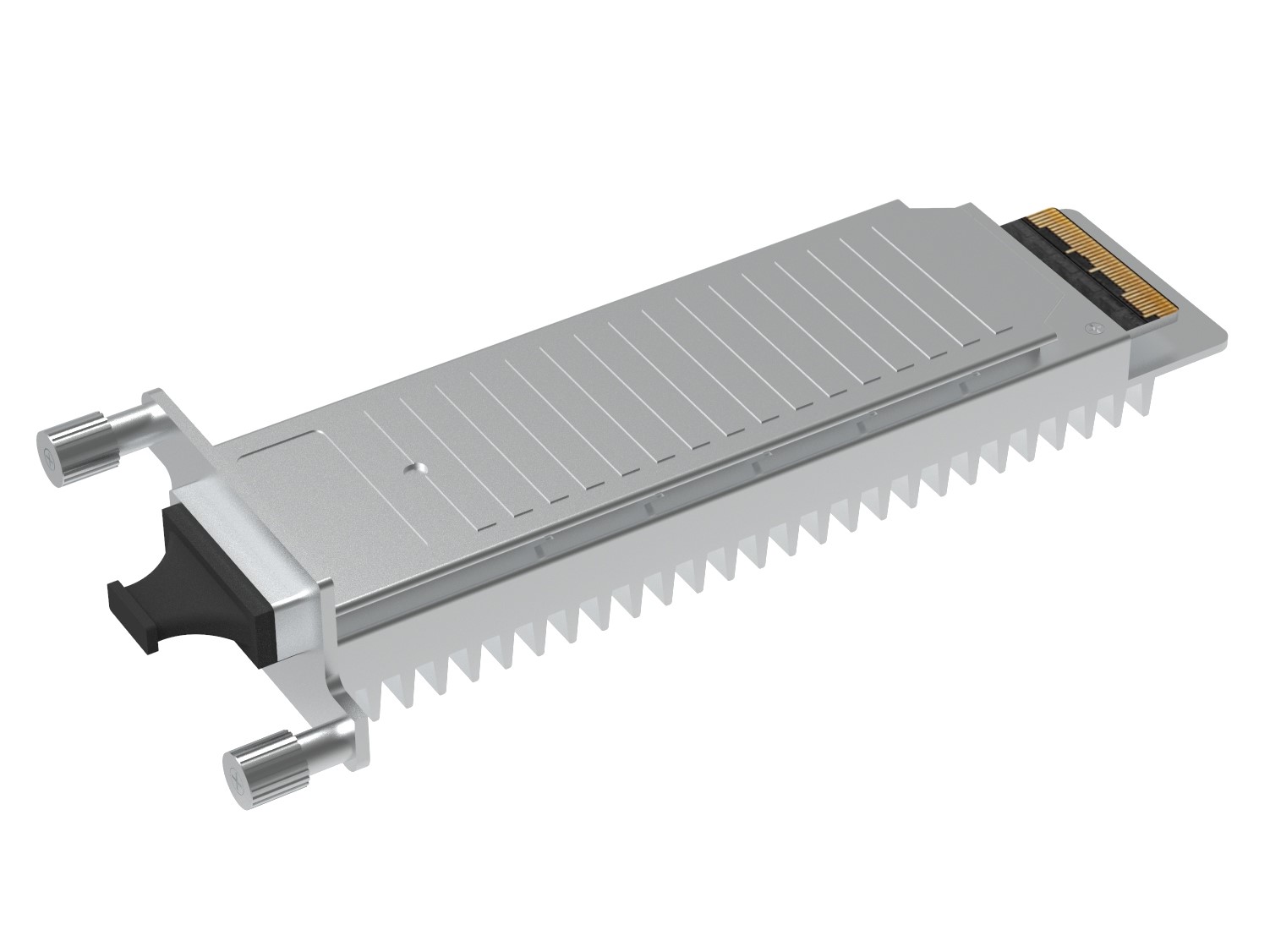

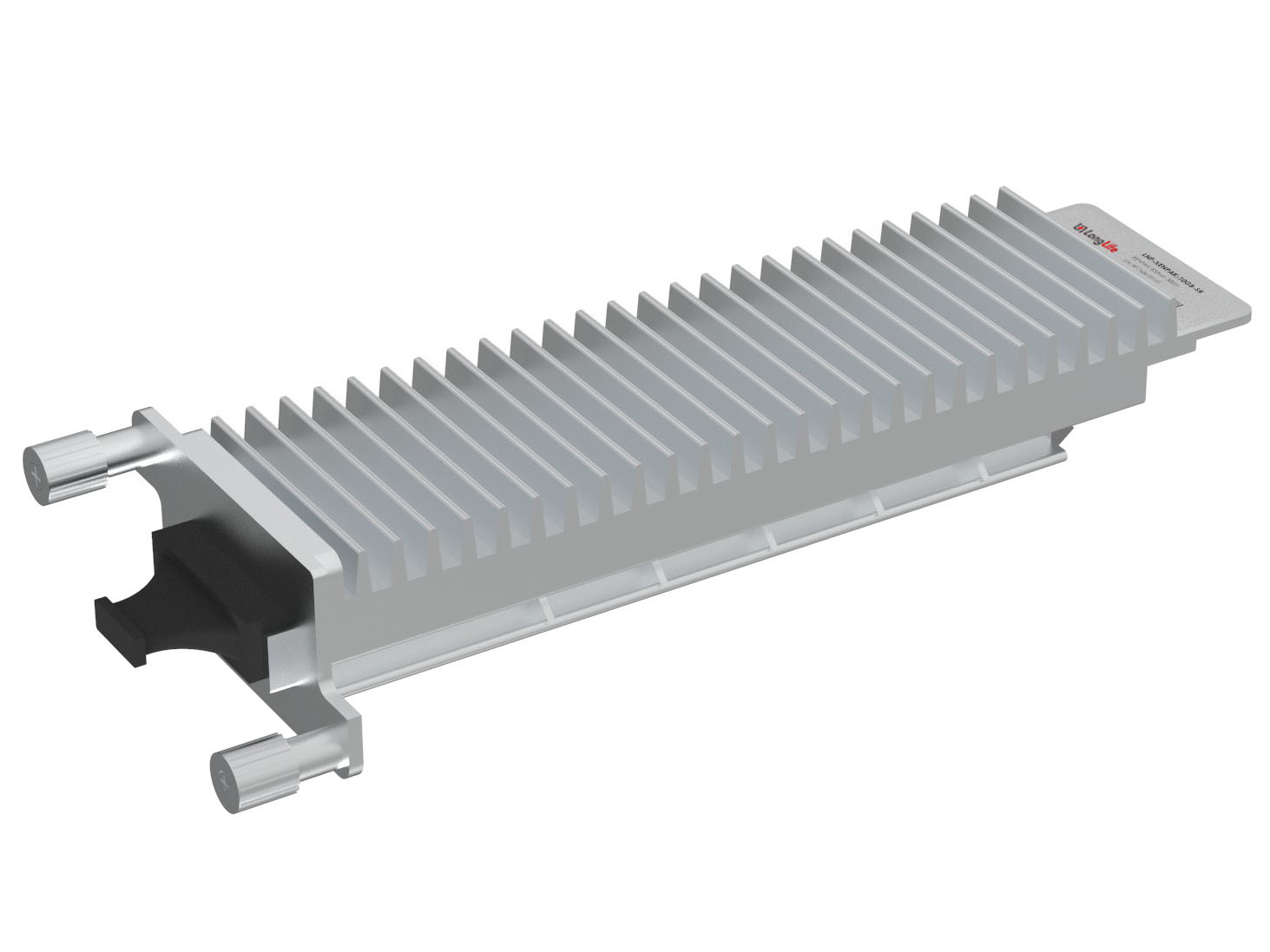

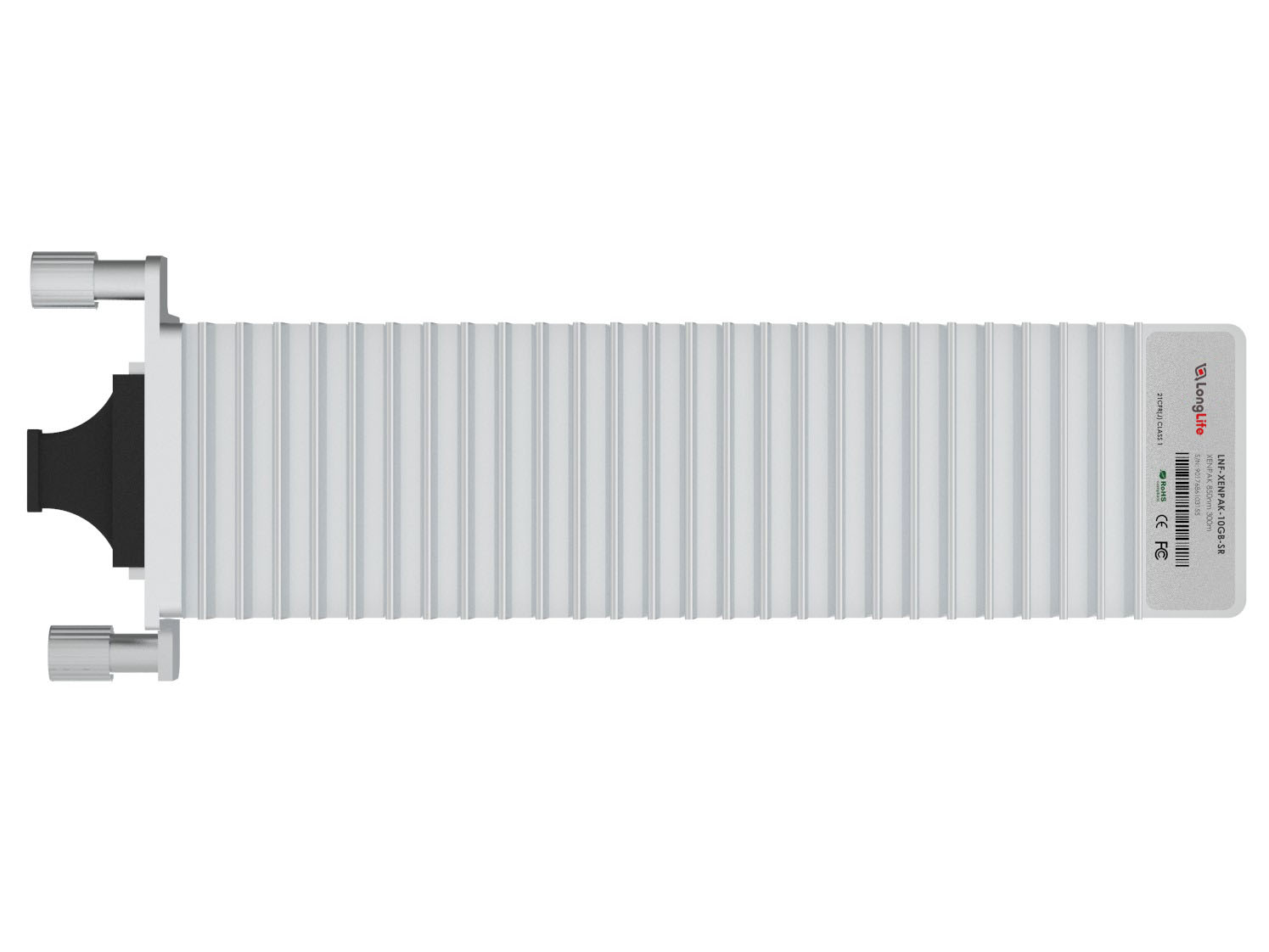

Cisco XENPAK-10GB-SR Compatible 10GBASE-SR XENPAK 850nm 300m DOM SC MMF Transceiver Module
Cisco Compatible 10GBASE-SR XENPAK Transceiver Module (MMF, 850nm, 300m, SC, DOM)
Cisco Compatible 10GBASE-SR XENPAK Transceiver Module supports up to 300m link lengths over multimode fiber (MMF) using a wavelength of 850nm via an SC connector.
Specifications
Part Number
|
XPK-10GSR-85
|
Vendor Name | Longlife |
Form Factor
|
XENPAK |
Max Data Rate
|
10Gbps |
Wavelength
|
850nm |
Max Cable Distance
|
300m
|
Connector
|
SC duplex |
Optical Components
|
VCSEL 850nm |
Media
|
MMF |
DOM Support
|
Yes
|
TX Power
|
-7.3~-1dBm |
Receiver Sensitivity
|
< -10dBm
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
