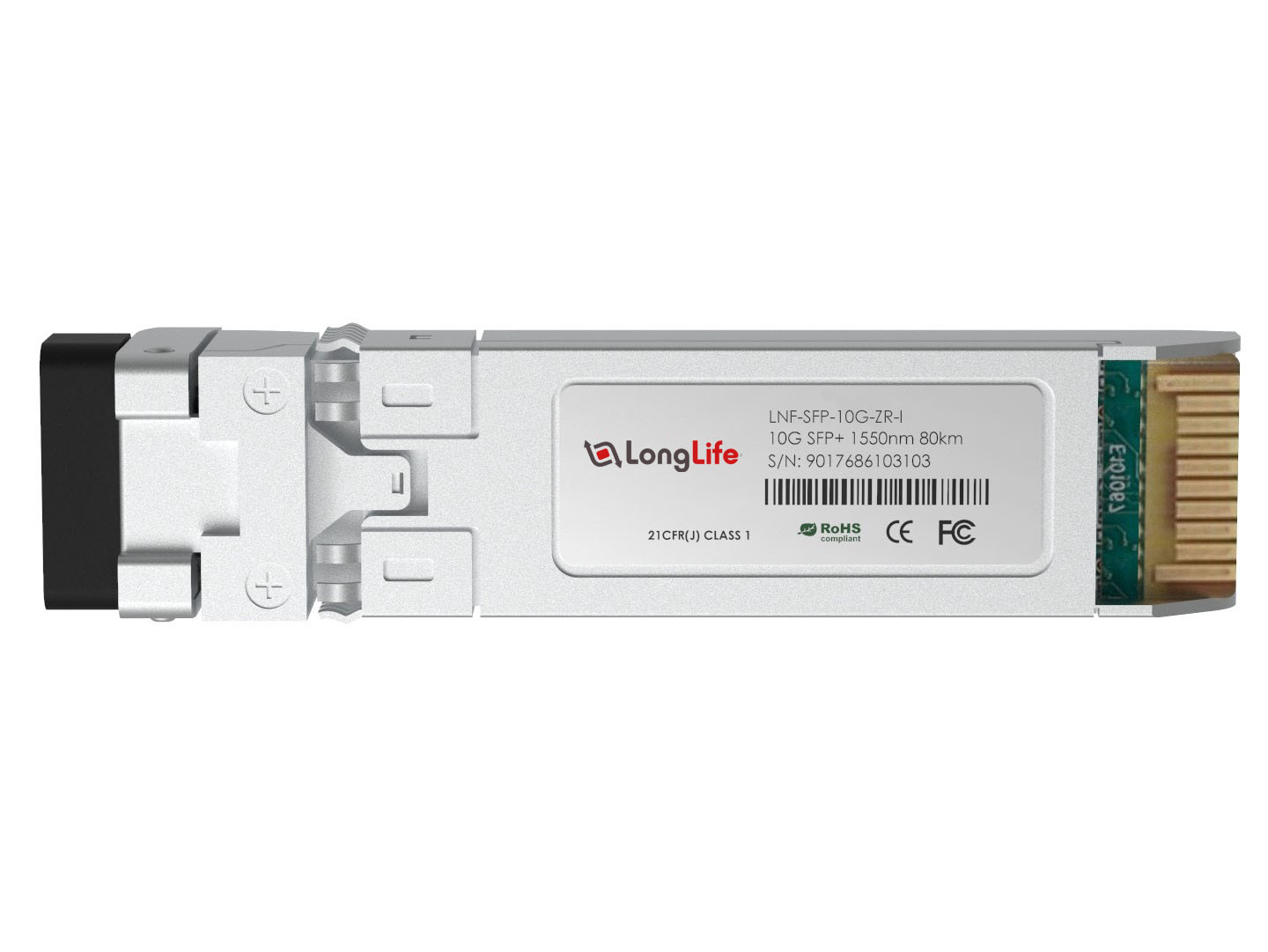

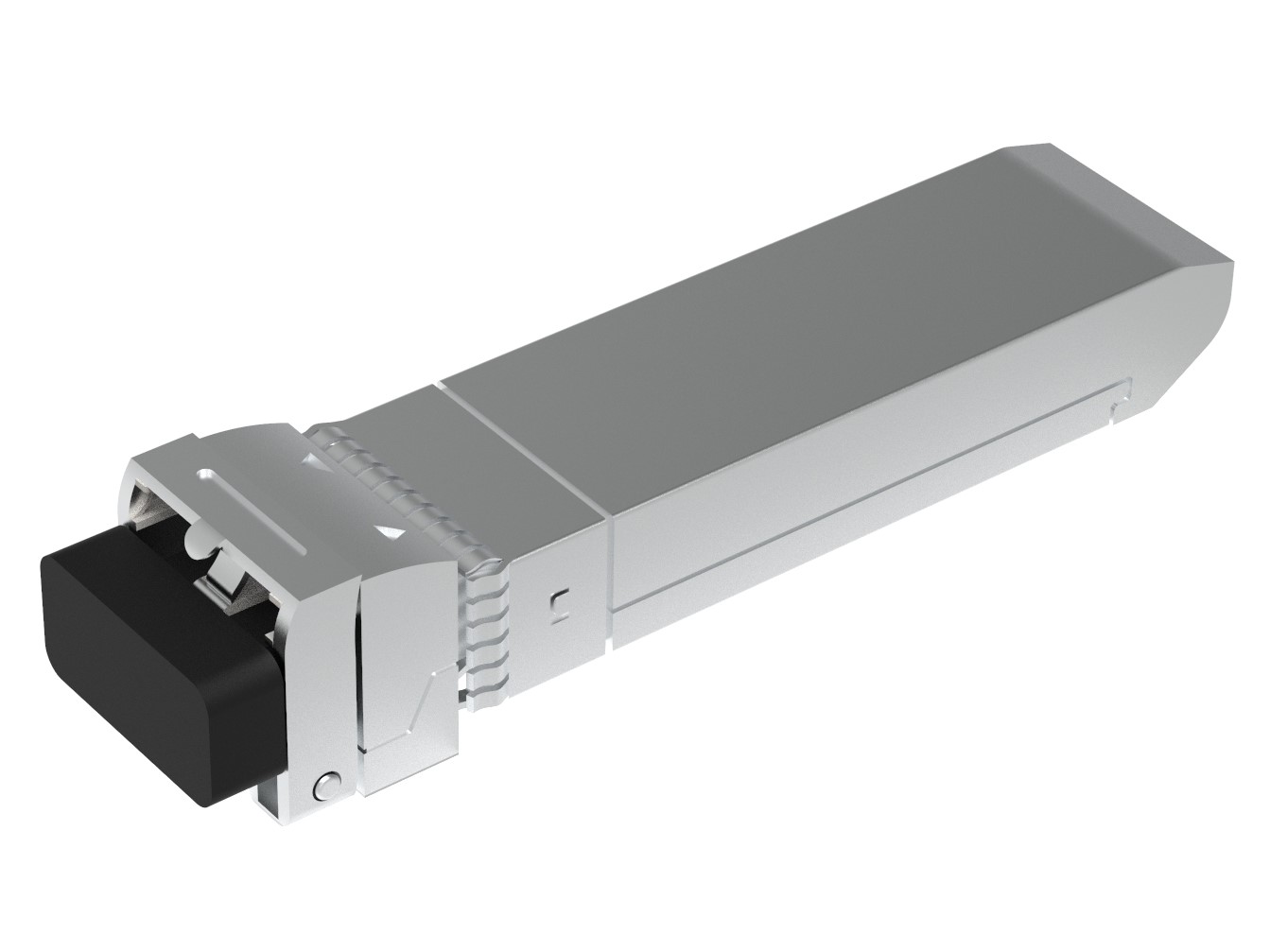

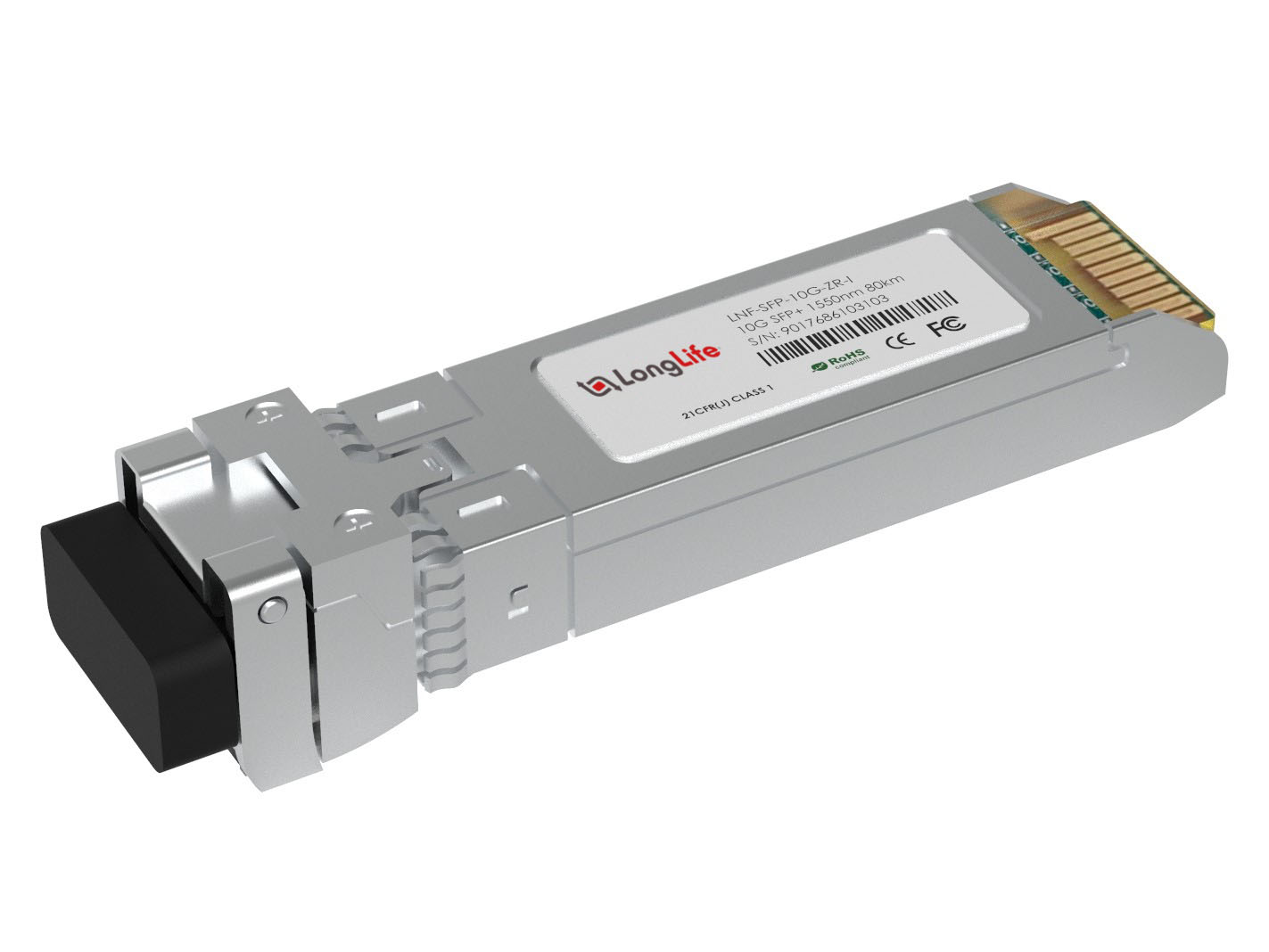

Cisco SFP-10G-ZR-I Compatible 10GBASE-ZR SFP+ 1550nm 80km Industrial DOM Duplex LC SMF Transceiver Module
Cisco SFP-10G-ZR-I Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 80km, LC, Industrial, DOM)
Cisco SFP-10G-ZR-I compatible SFP+ transceiver supports up to 80km link lengths over SMF via an LC duplex connector. This transceiver is compliant with IEEE Std 802.3by, SFF-8431, SFF-8432, SFF-8402, SFF-8472, SFF-8024. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.
The SFP-10GZR-55-I is for industrial operating temperature range and can work in harsh industrial environments, such as telecommunication, data processing and management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.
Specifications
|
Compatible |
SFP-10G-ZR-I |
Vendor Name |
Longlife |
|
Form Factor |
SFP+ |
Max. Data Rate |
10.3125Gbps |
|
Wavelength |
850nm |
Max. Cable Distance |
300m@OM3/400m@OM4 |
|
Connector |
Duplex LC |
Media |
MMF |
|
Transmitter Type |
VCSEL |
Receiver Type |
PIN |
|
TX Power |
-7.3~-1dBm |
Receiver Sensitivity |
< -11.1dBm |
|
Powerbudget |
3.8dB |
Receiver Overload |
-1dBm |
|
Typical Power Consumption |
<1W |
Extinction Ratio |
>3dB |
|
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
