Cisco SFP-10G-ER-I Compatible 10GBASE-ER SFP+ 1550nm 40km Industrial DOM Duplex LC SMF Transceiver Module

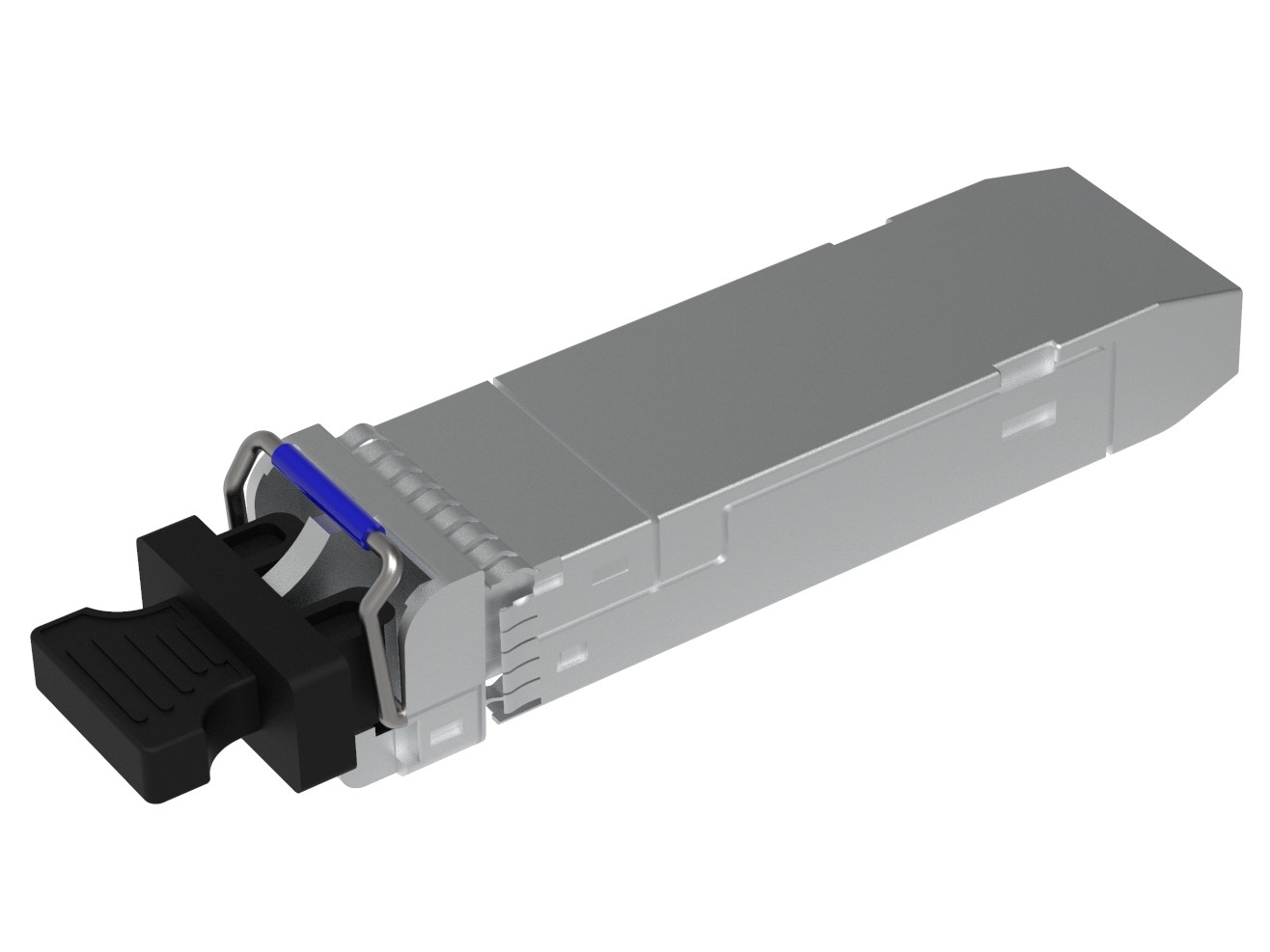

Ciena (ex.Nortel) 12400 Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 80km, LC, DOM)
Ciena (ex.Nortel) 12400 Compatible SFP+ transceiver supports up to 80km over OS2 SMF via an LC duplex connector. This transceiver is compliant with per the RoHS Directive 2011/65/EU. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.
Specifications
|
Ciena Compatible
|
12400 |
Vendor Name
|
Longlife |
| Form Factor | SFP+ |
Max Data Rate
|
11.3Gbps |
|
Wavelength
|
1550nm |
Max Cable Distance
|
80km |
|
Connector
|
Duplex LC |
Optical Components
|
EML 1550nm |
|
Media
|
SMF |
DOM Support
|
Yes |
|
TX Power
|
0~5dBm |
Receiver Sensitivity
|
< -23dBm |
|
Core Size
|
9/125µm |
Modulation
|
NRZ |
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
rotocols
|
SFP+ MSA Compliant, CPRI, eCPRI |
