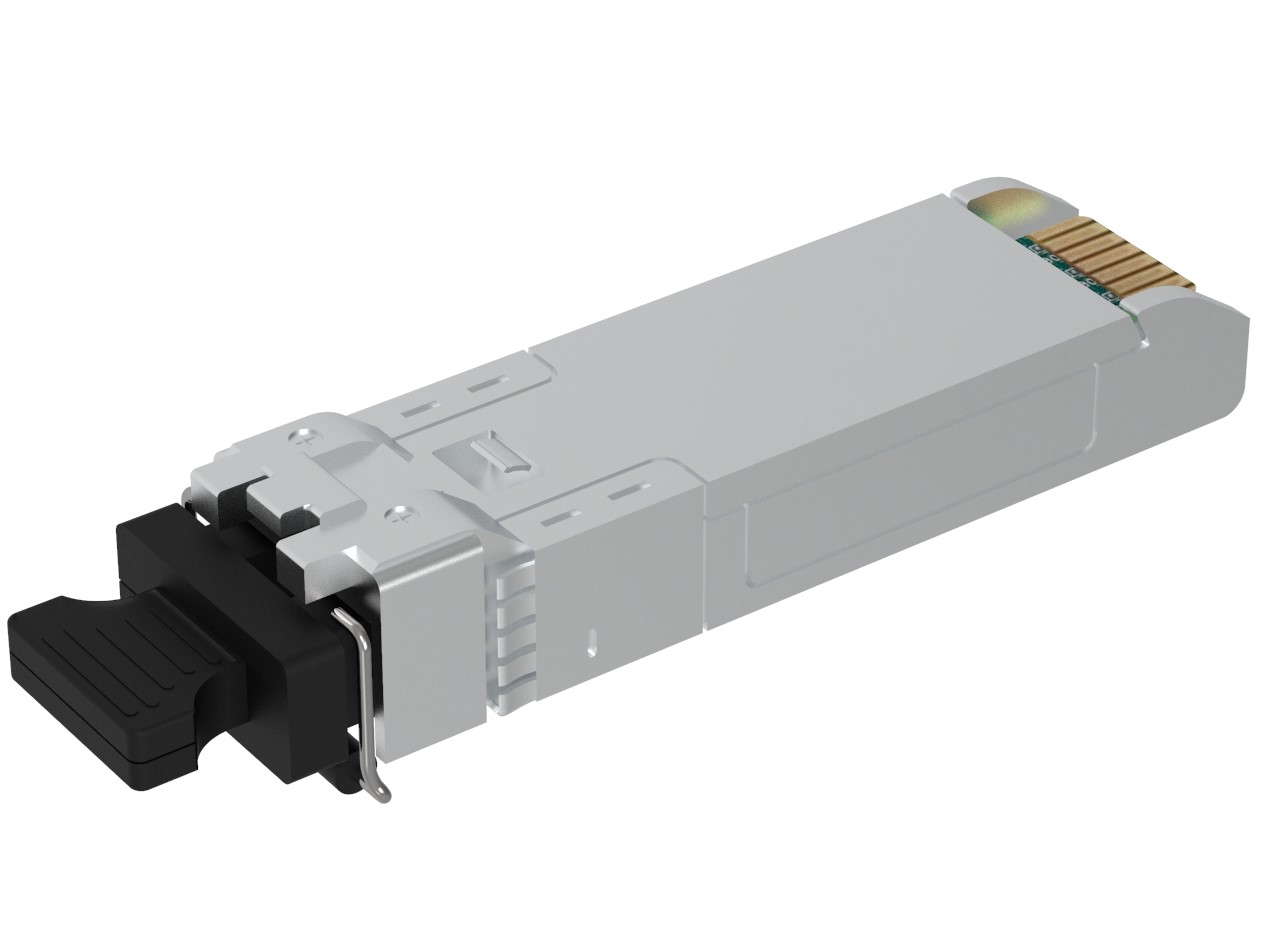

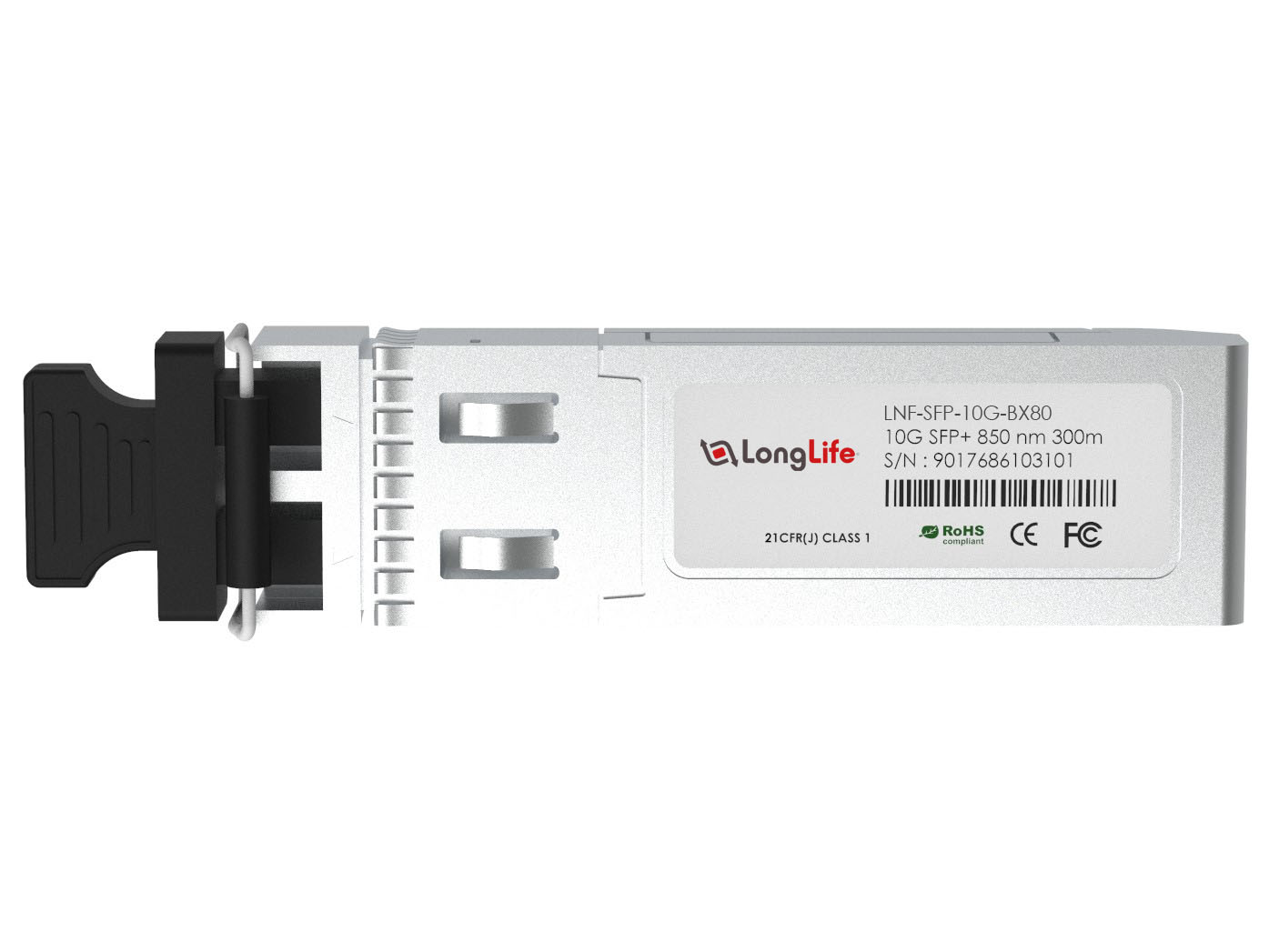

Cisco SFP-10G-BX80U Compatible 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM Simplex LC SMF Transceiver Module

Stok kodu: LNF-SFP-10G-BX80







    Cisco Compatible 10GBASE-BX80-U SFP+ Transceiver Module (SMF, 1490nm-TX/1550nm-RX 80km, LC, DOM)

    Cisco Compatible SFP+ transceiver supports up to 80km over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1490-nm channel and receives a 1550-nm signal, whereas the other BiDi SFP+ optics transmits at a 1550-nm wavelength and receives a 1490-nm signal.

    Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

    Specifications
     Part Number
     SFP-10G-BX80  Vendor Name  Longlife
     Form Factor
     SFP+
     Max Data Rate
     10.3125Gbps
     Wavelength
     1490nm-TX/1550nm-RX
     Max Cable Distance
     80km
     Connector
     Simplex LC
     Optical Components
     EML BiDi
     Media
     SMF
     DOM Support
     Yes
     TX Power
     0~5dBm
     Receiver Sensitivity
     <-21dBm
     Commercial Temperature Range
     0 to 70°C (32 to 158°F)
     Protocols
     SFP+ MSA Compliant, CPRI, eCPRI
    Stok kodu: LNF-SFP-10G-BX80 Kategoriler: ,
