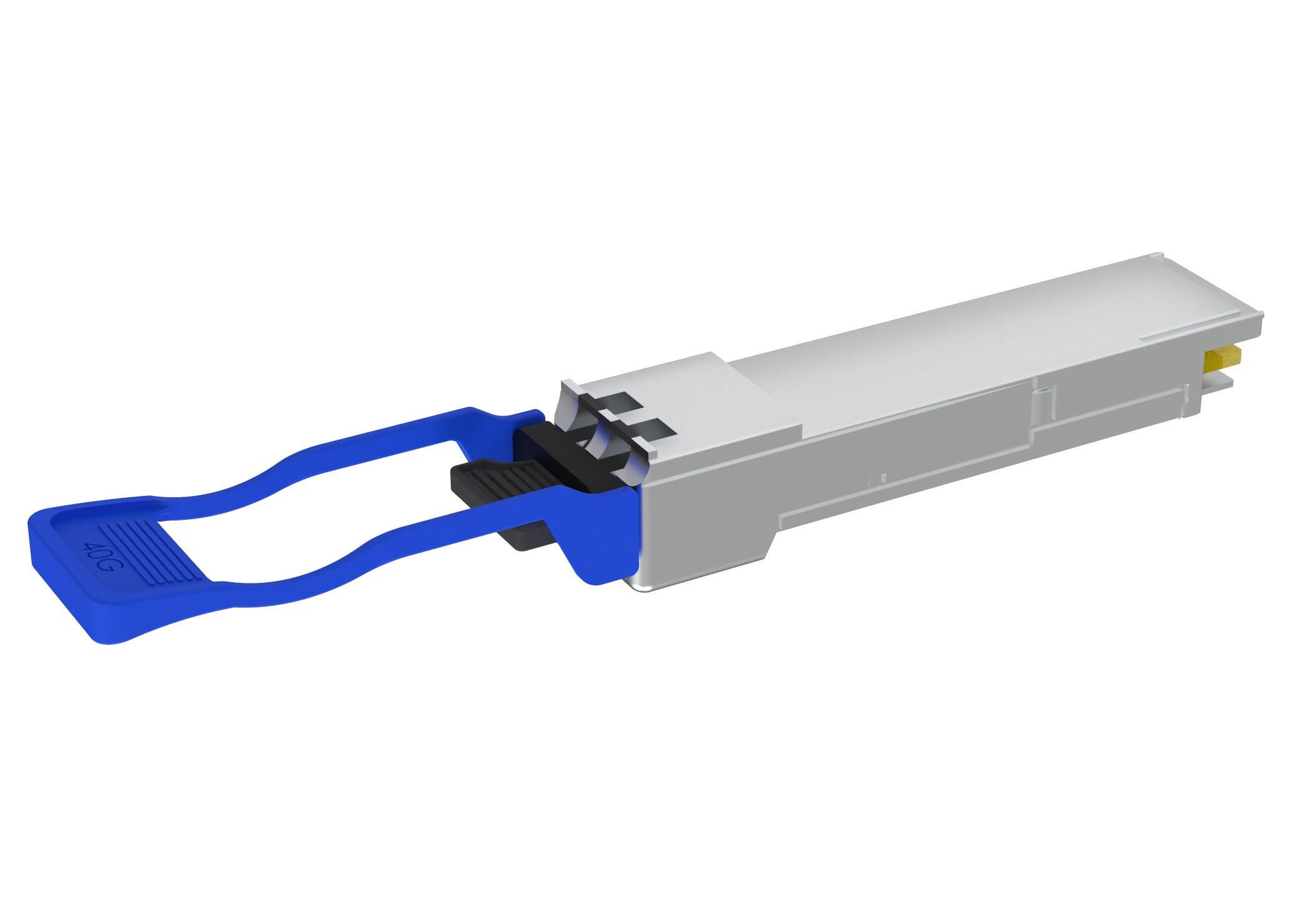

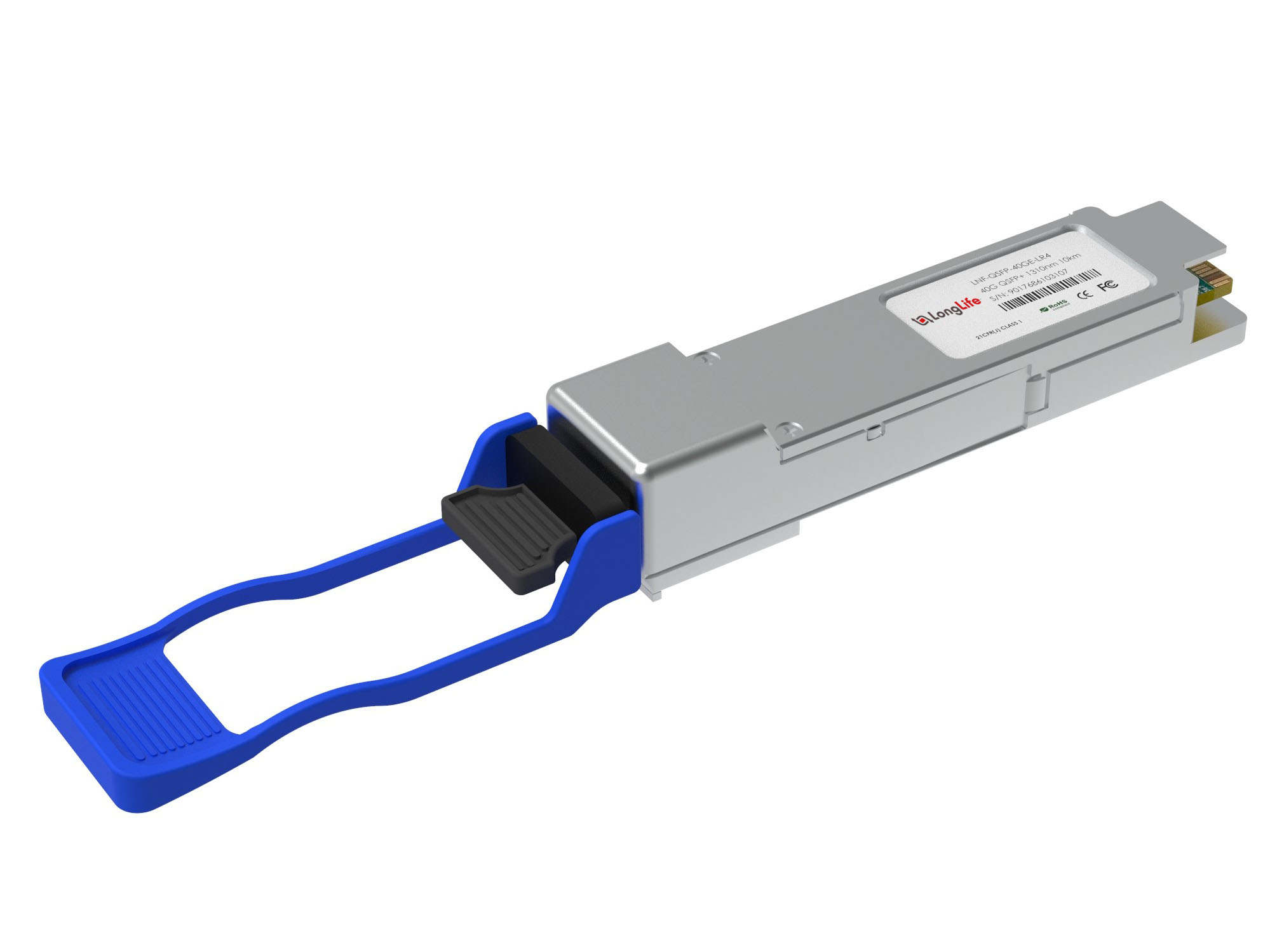

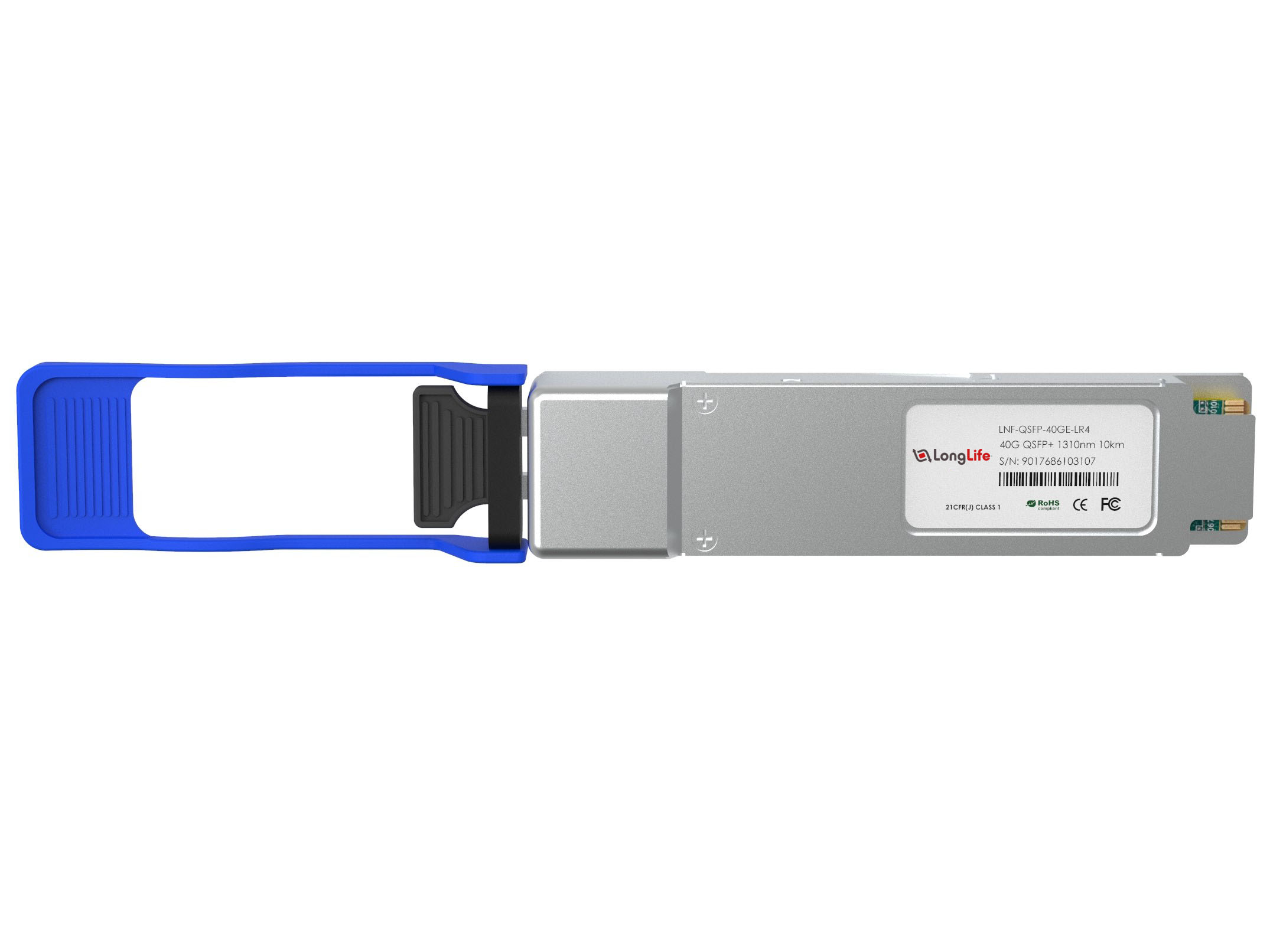

Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Stok kodu: LNF-QSFP-40GE-LR4







    Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

    The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

    Specifications
    Cisco Compatible
    QSFP-40GE-LR4Vendor NameLonglife
    Form Factor
    QSFP+
    Max Data Rate
    44.6Gbps (4x 11.2Gbps)
    Wavelength
    1310nmMax Cable Distance10km
    Connector
    Duplex LC
    Media
    SMF
    Transimitter Type
    DFB CWDM
    Receiver Type
    PIN
    TX Power
    -7~2.3dBm
    Receiver Sensitivity
    <-11dBm
    Powerbudget
    4dB
    Receiver Overload
    2.3dBm
    Power Consumption
    ≤3.5W
    Core Size
    9um
    Extinction Ratio
    >3.5dB
    Modulation
    NRZ
    Host FEC
    Supported
    Bit Error Ratio (BER)
    1E-12
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Protocols
    OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant
