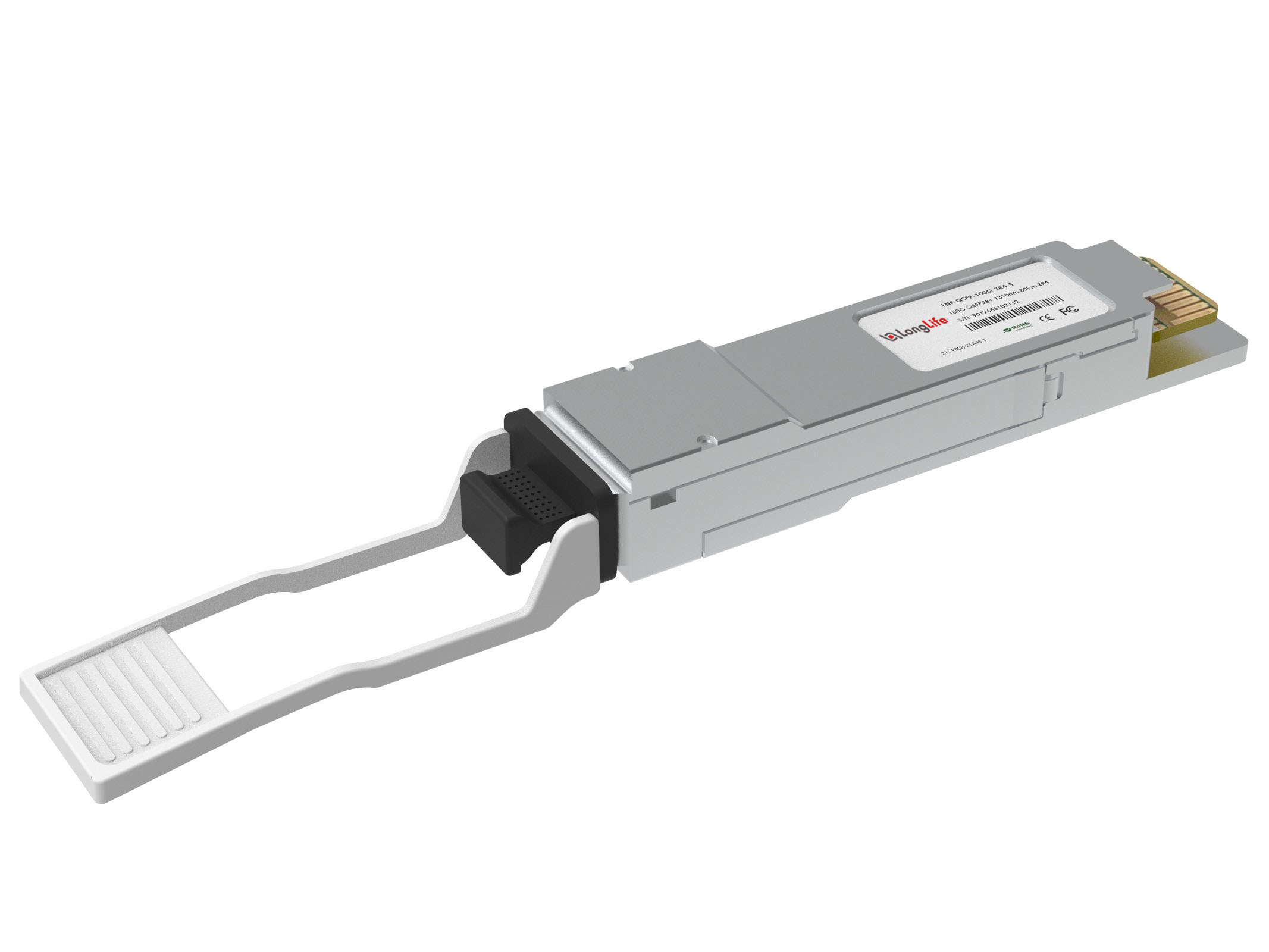

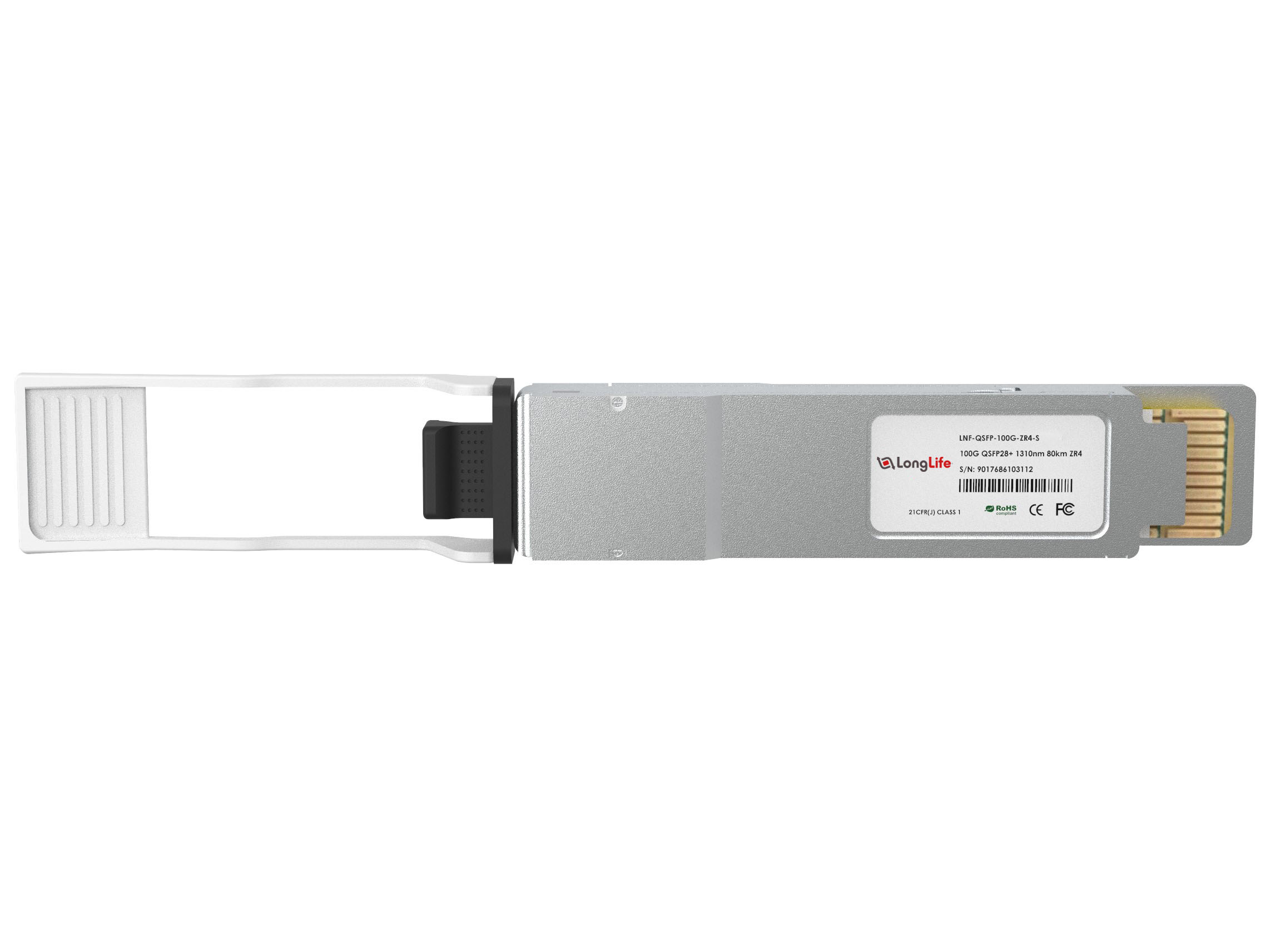

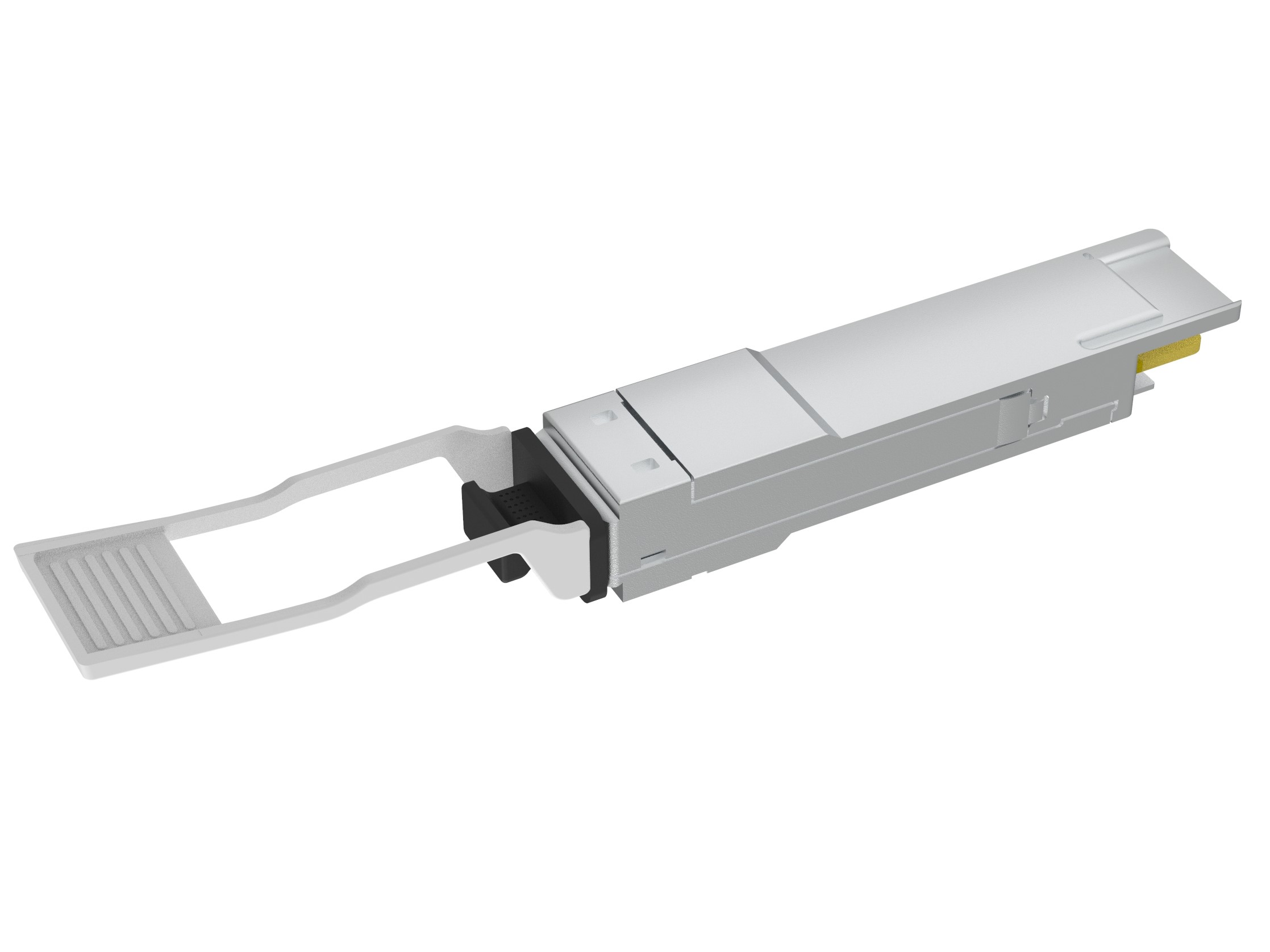

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 1310nm 80km DOM Duplex LC SMF Optical Transceiver Module

Stok kodu: LNF-QSFP-100G-ZR4-S







    Cisco QSFP28-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DOM)

    The Cisco QSFP-100G-ZR4-S compatible QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet, providing throughput up to 80 km over single-mode fiber (SMF) using a wavelength of 1310 nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. Featuring a BOX+FPC+PCBA separate design, it offers great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, such as 100G Ethernet, telecom, and data centers.
    Note: The FS P/N is changed from QSFP28-ZR4-100G to QSFP-ZR4-100G, but the product is the same. Only the FS P/N has been changed.

    Specifications
    Cisco Compatible
    QSFP-100G-ZR4-SVendor NameLonglife
    Form Factor
    QSFP28
    Max Data Rate
    103.125Gbps (4x 25.78Gbps)
    Wavelength
    1310nmMax Cable Distance80km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    EML
    Receiver Type
    APD
    TX Power
    2~6.5dBm
    RX Power
    -28~2dBm
    Power Consumption
    ≤6W
    Extinction Ratio
    >6dB
    CDR (Clock and Data Recovery)
    TX & RX Built-in CDR
    Inbuilt FEC
    Supported
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    Packaging Technology
    BOX Packaging
    Modulation Format
    4x 25G NRZ
    Core Size
    9um/125um
    Protocols
    QSFP28 MSA Compliant
