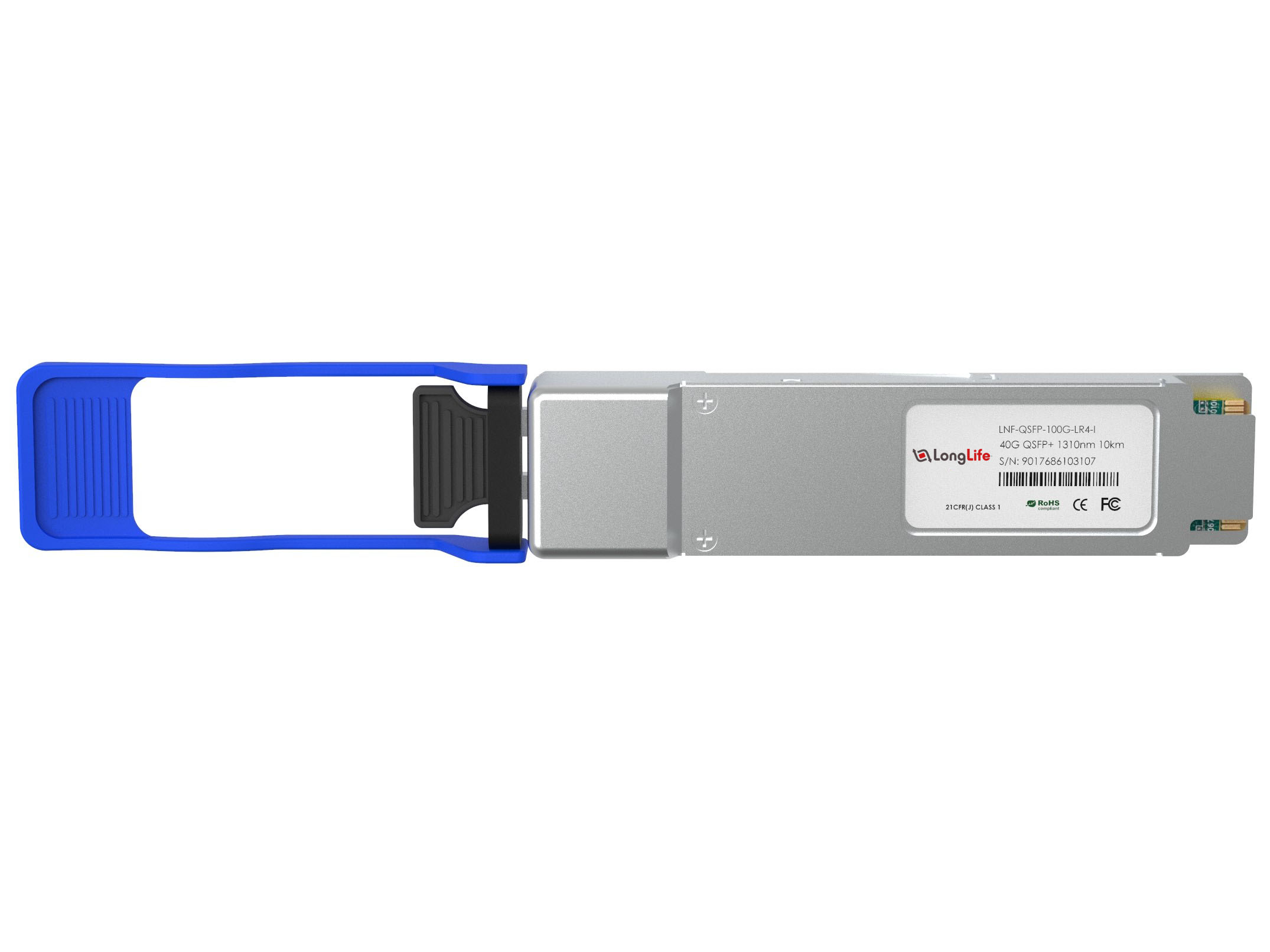

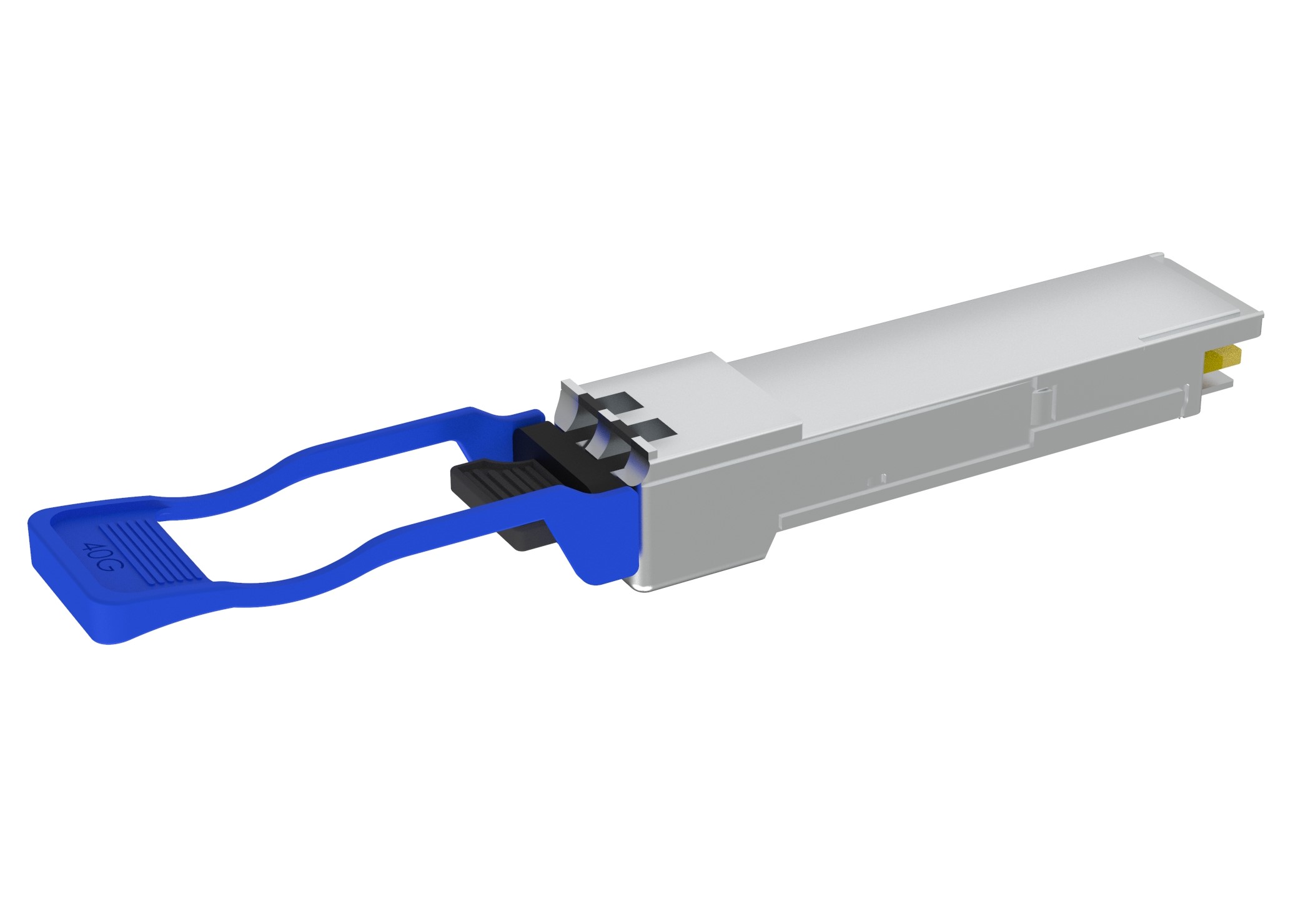

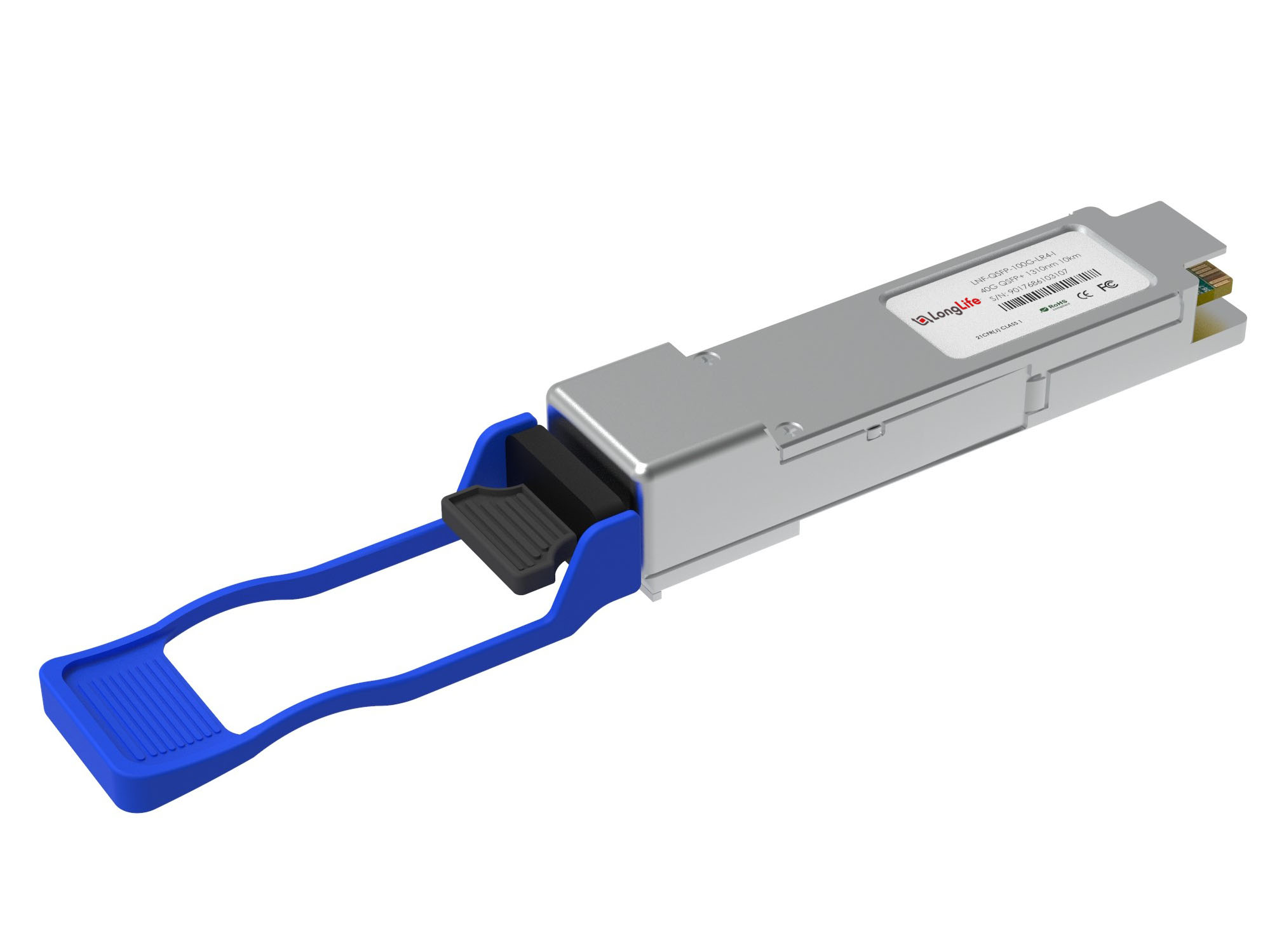

Cisco QSFP-100G-LR4-I Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module (Industrial)

Stok kodu: LNF-QSFP-100G-LR4-I







    Cisco QSFP-100G-LR4-I Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (Industrial, SMF, 1310nm, 10km, LC, DOM)

    The Cisco QSFP-100G-LR4-I Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments.

    Specifications
    Cisco Compatible
    QSFP-100G-LR4-IVendor NameLonglife
    Form Factor
    QSFP28
    Max Data Rate
    103.125Gbps (4x 25.78Gbps)
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    MTP/MPO-12
    Media
    SMF
    Transmitter Type
    LAN WDM EML
    Receiver Type
    PIN
    TX Power
    -4.3~4.5dBm
    RX Power
    -12.66~2dBm
    Powerbudget
    6.3dB
    Extinction Ratio
    >4dB
    Power Consumption
    ≤4.5W
    Modulation
    4x 25G NRZ
    DDM/DOM
    Supported
    Industrial Temperature Range
    -40 to 85°C (-40 to 185°F)
    Core Size
    9um/125um

    Packaging Technology

    BOX Packaging

    CDR (Clock and Data Recovery)
    TX & RX Built-in CDR
    Host FEC
    Supported

    Protocols

    IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant

    Warranty

    5 Years
