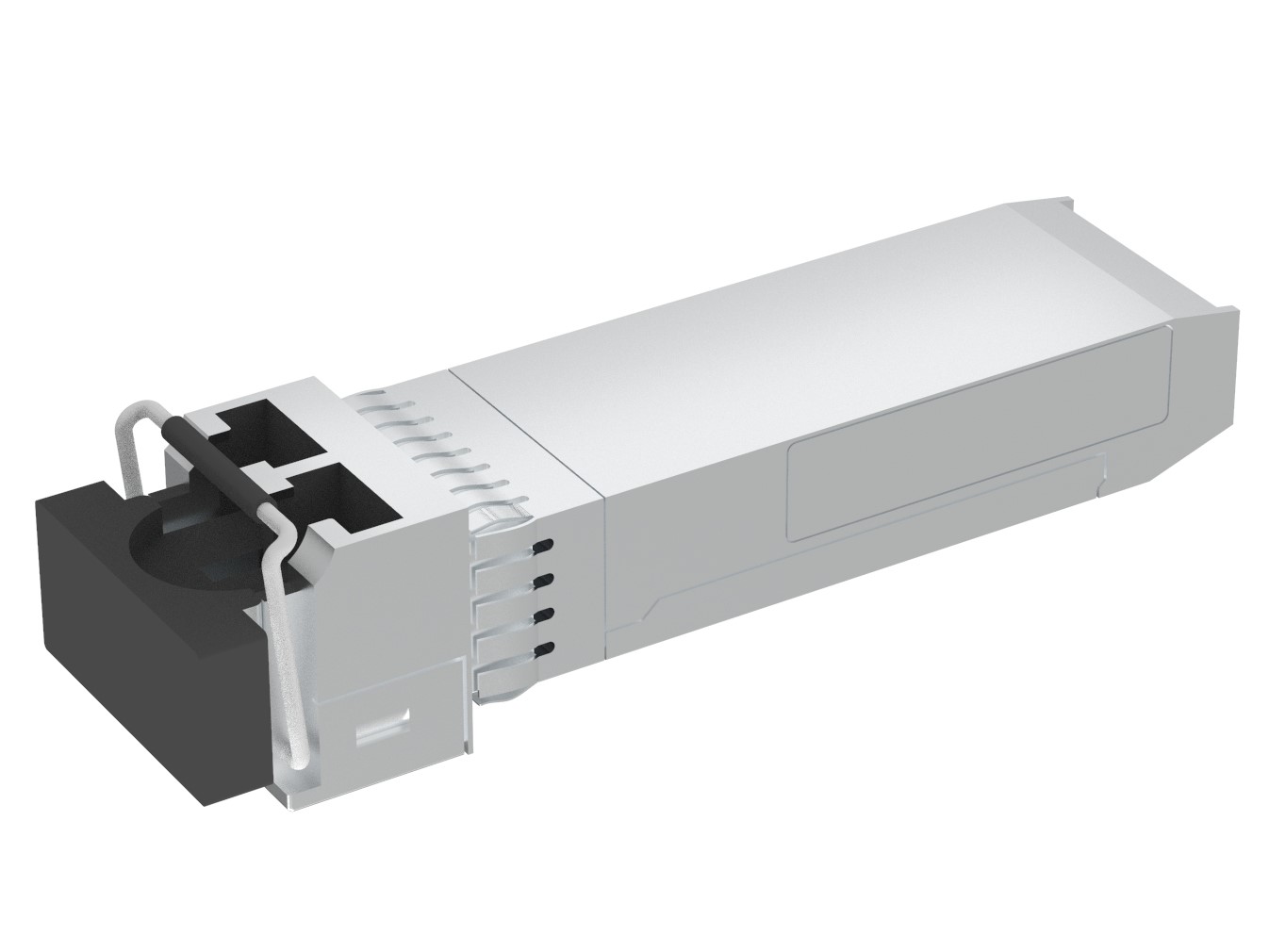

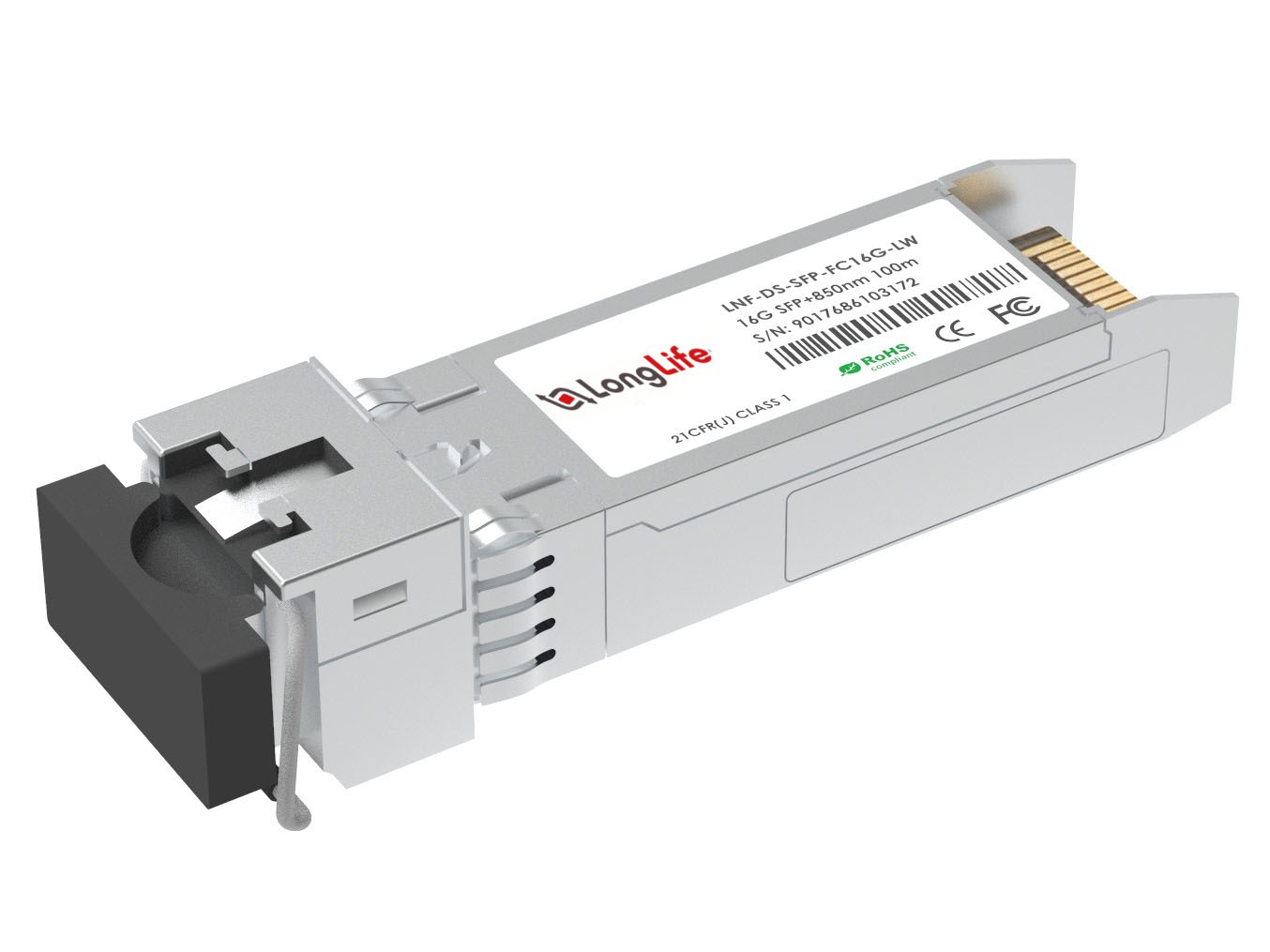

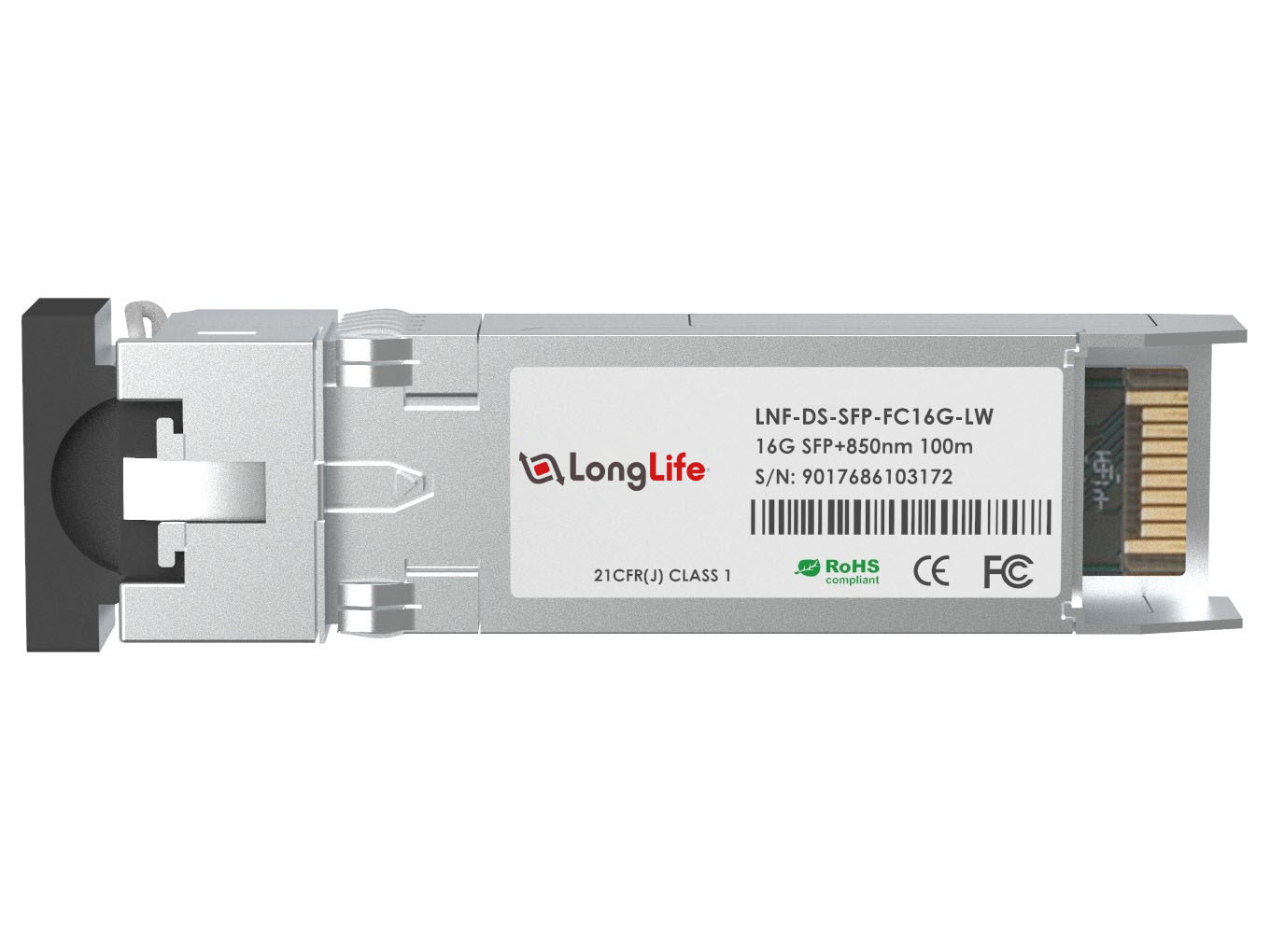

Cisco DS-SFP-FC16G-LW Compatible 16G Fiber Channel SFP+ 1310nm 10km DOM LC SMF Transceiver Module
Cisco DS-SFP-FC16G-LW Compatible 16G Fibre Channel SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The Cisco compatible Module provides 16GBase-LR throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. This transceiver is compliant with SFF-8636 standards. Digital diagnostics functions are available via a 2-wire common management interface, as specified in SFF- 8472, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for fiber communications application up to 16G. The FC transceiver is applied to Storage Area Networking in Data Centers, Data Center Fiber Channel Interconnections over Backbone, Enterprise Network SAN Interconnections, etc.
Specifications
Cisco Compatible | DS-SFP-FC16G-LW | Vendor Name | Longlife |
Form Factor | SFP+ | Max Data Rate | 16Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | LC duplex | Optical Components | DFB 1310nm |
Media | SMF | DOM Support | Yes |
TX Power | -5~+2dBm | Receiver Sensitivity | <-12dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant |
