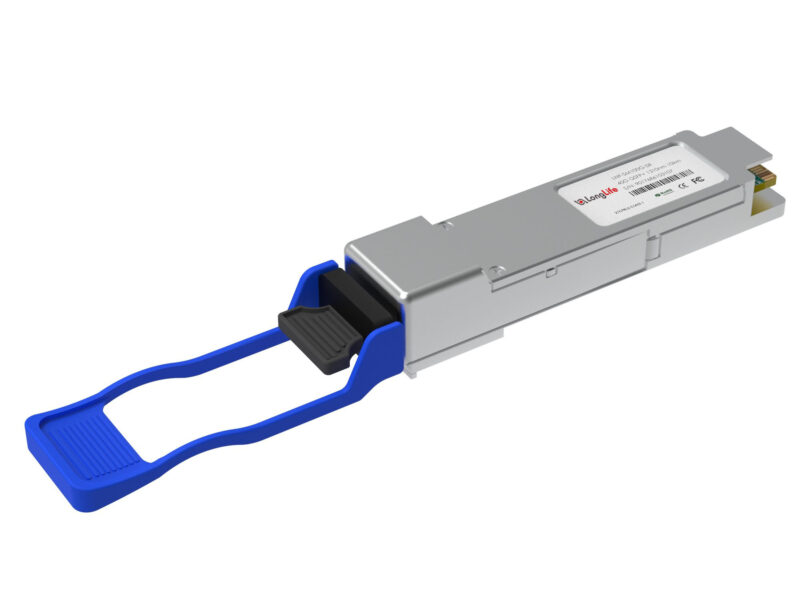

Chelsio SM100G-SR Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module
Chelsio SM100G-SR Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
The Chelsio SM100G-SR Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Note: The FS P/N is changed from QSFP28-SR4-100G to QSFP-SR4-100G, but the product is the same. Only the FS P/N has been changed.
|
Chelsio Compatible
|
SM100G-SR | Vendor Name | Longlife |
|
Form Factor
|
QSFP28 |
Max Data Rate
|
103.125Gbps (4x 25.78Gbps) |
|
Wavelength
|
850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
|
Connector
|
MTP/MPO-12 |
Media
|
MMF |
|
Transmitter Type
|
VCSEL 850nm |
Receiver Type
|
PIN |
|
TX Power
|
-8.4~2.4dBm |
Minimum Receiver Power
|
-10.3dBm |
|
Powerbudget
|
1.9dB |
Receiver Overload
|
2.4dBm |
|
Typical Power Consumption
|
≤2.5W |
Extinction Ratio
|
＞3dB |
|
DDM/DOM
|
Supported |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
|
CDR (Clock and Data Recovery)
|
TX & RX Built-in CDR |
Inbuilt FEC
|
No |
|
Protocols
|
IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI |
Warranty
|
5 Years |
