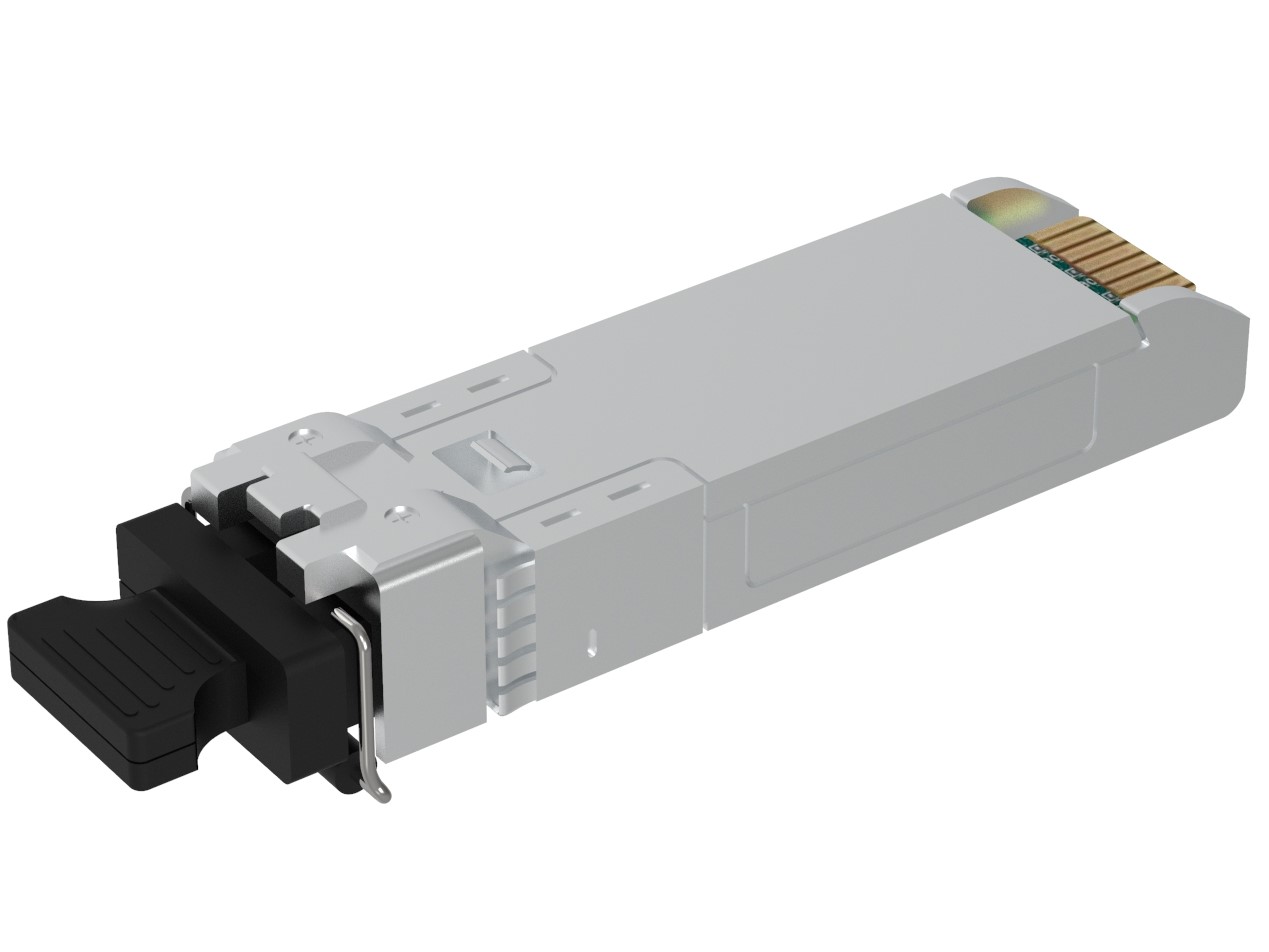

Brocade XBR-000147 Compatible 8G Fiber Channel SFP+ 850nm 150m DOM LC MMF Transceiver Module
Brocade Compatible 8G Fibre Channel SFP+ Transceiver Module (MMF, 850nm, 150m, LC, DOM)
The Brocade compatible module provides 8GBase-SR throughput up to 150m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This transceiver is compliant with SFF-8636 standards. Digital diagnostics functions are available via a 2-wire common management interface, as specified in SFF- 8472, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for fiber communications up to 8G. The FC transceiver is applied to Storage Area Networking in Data Centers, Data Center Fiber Channel Interconnections over Backbone, Enterprise Network SAN Interconnections, etc.
Specifications
Part Number
|
SFP-10GSR-85
|
Vendor Name | Longlife |
Form Factor
|
SFP+ |
Max Data Rate
|
8.5Gbps |
Wavelength
|
850nm |
Max Cable Distance
|
150m @ 8.5Gbps
|
Connector
|
LC duplex |
Optical Components
|
VCSEL 850nm |
Media
|
MMF |
DOM Support
|
Yes
|
TX Power
|
-6~-1dBm |
Receiver Sensitivity
|
<-11.1dBm
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
MSA Compliant |
