2G SFP Modules, SFP

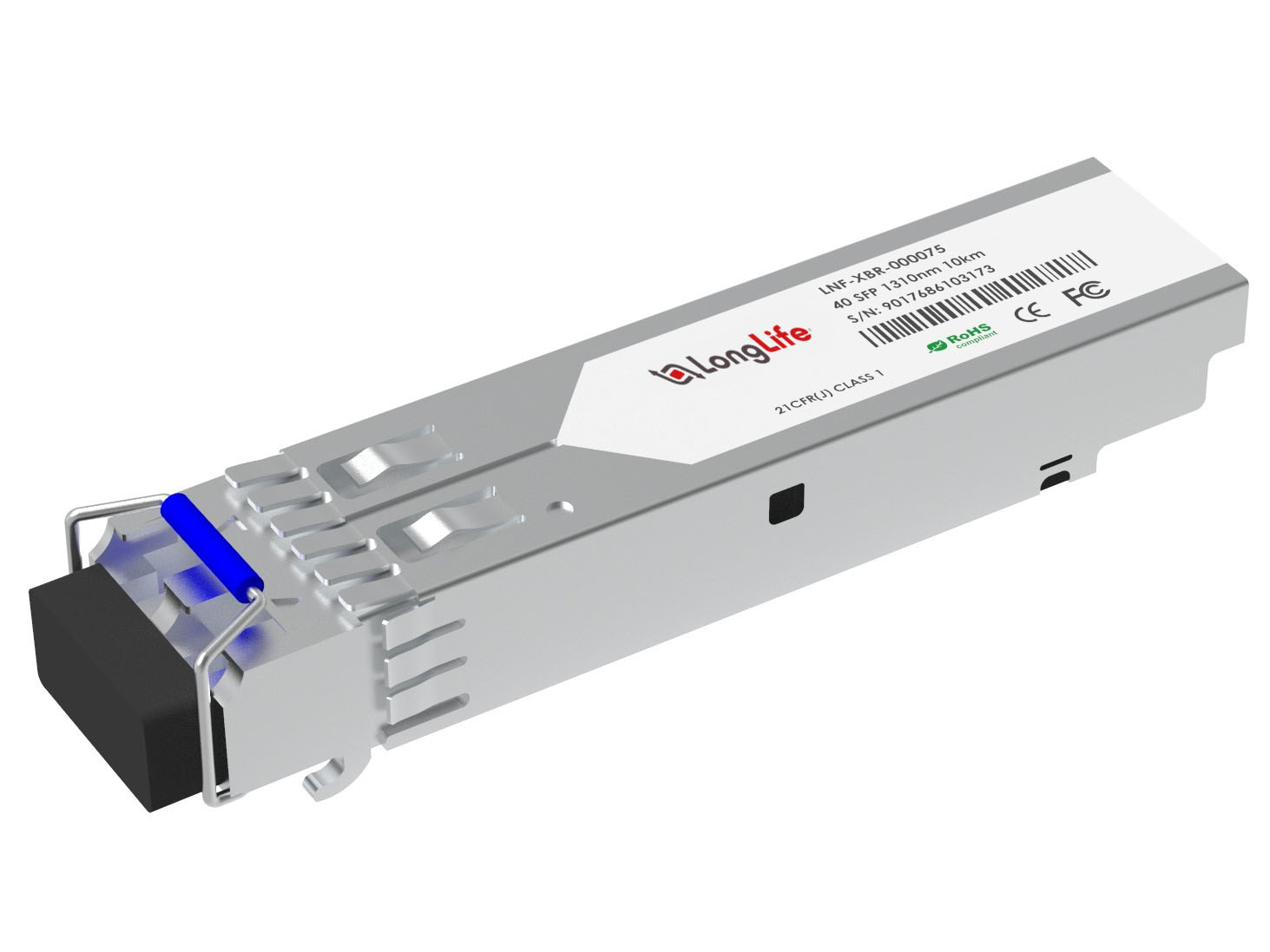

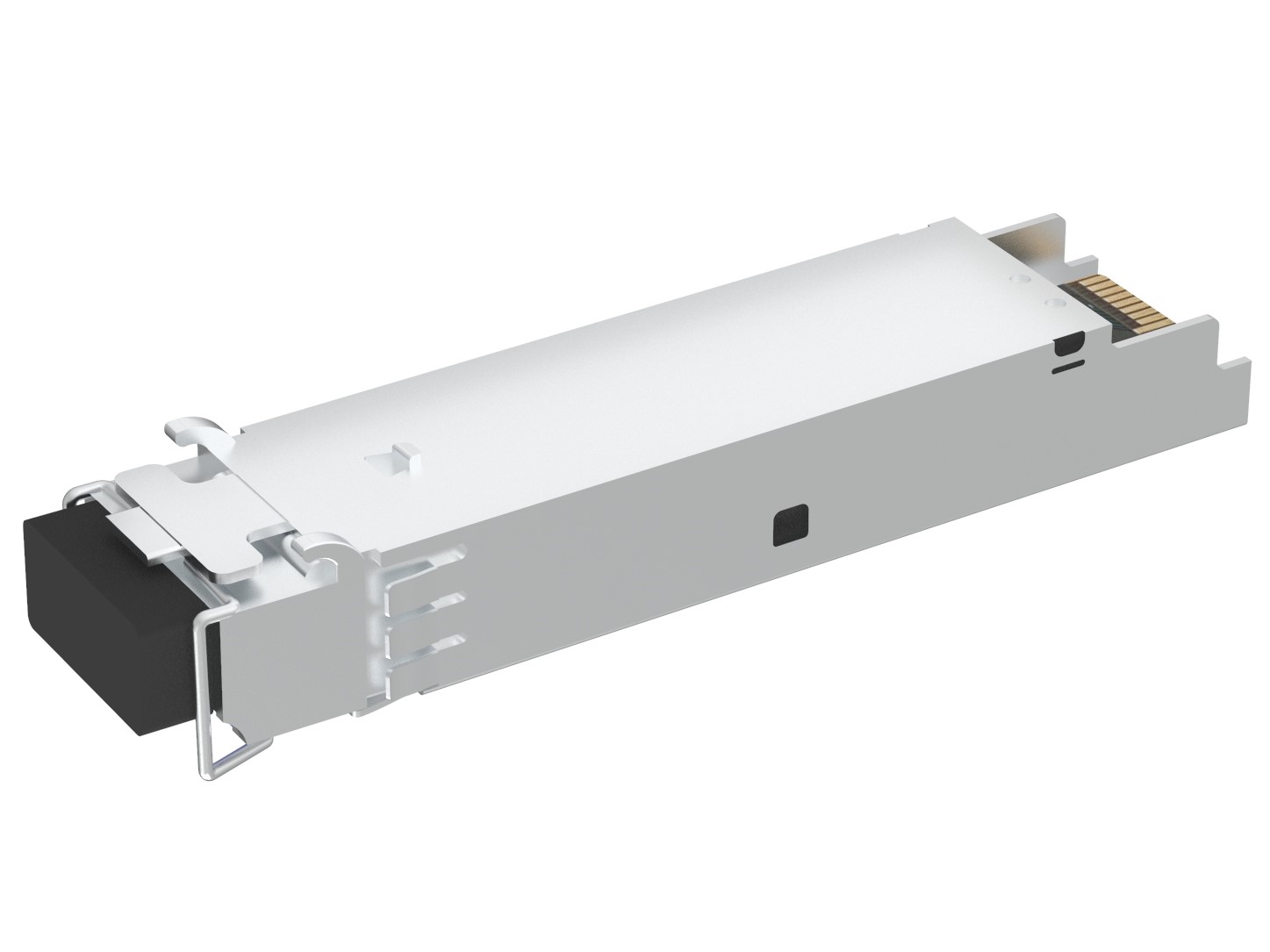

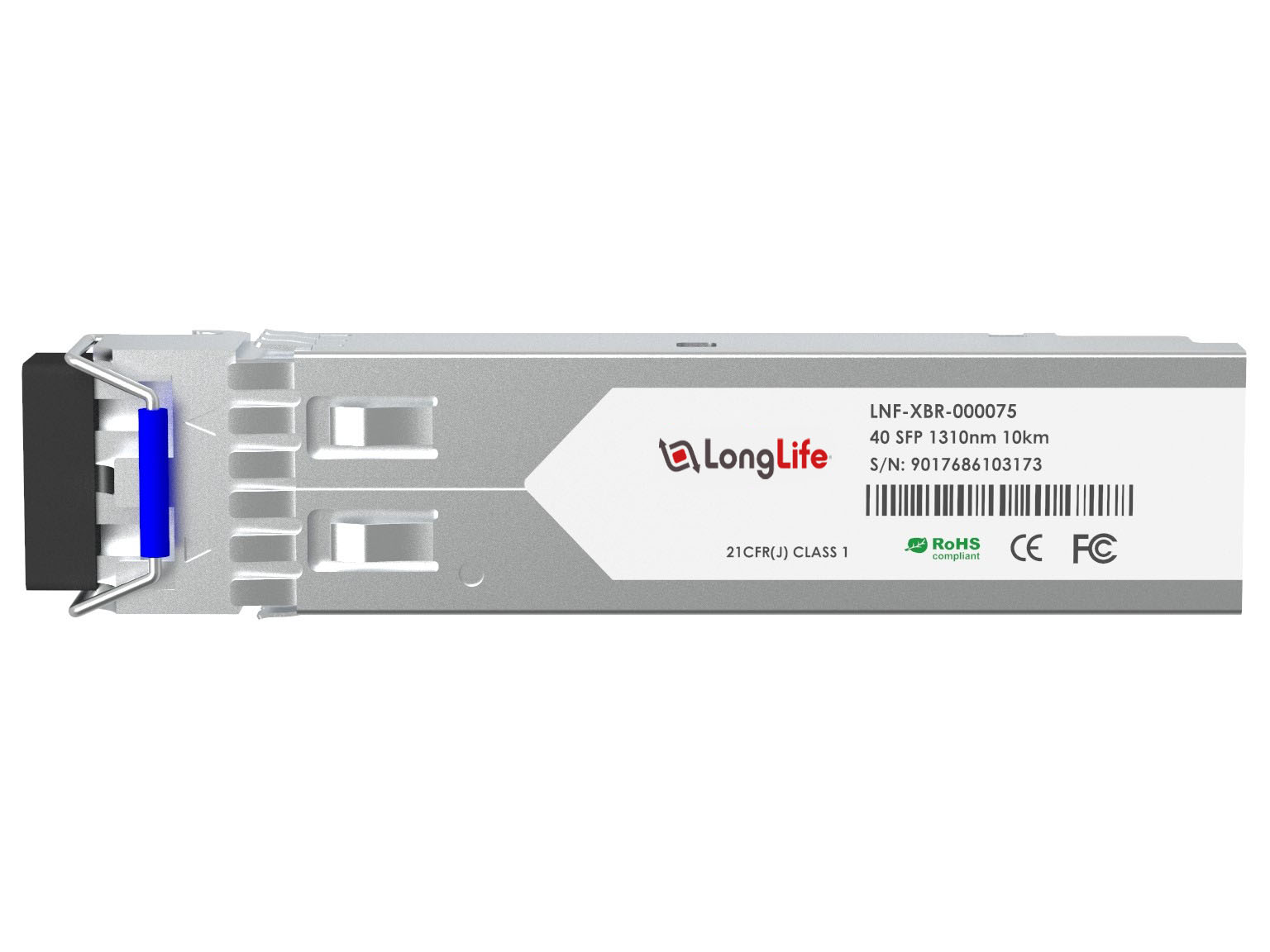

Brocade XBR-000075 Compatible 2G Fiber Channel SFP 850nm 300m DOM LC MMF Transceiver Module
Brocade XBR-000075 Compatible 2G Fibre Channel SFP Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Specifications
Brocade Compatible | XBR-000075 | Vendor Name | Longlife |
Form Factor | SFP | Max Data Rate | 2.67Gbps |
Wavelength | 850nm | Max Cable Distance | 300m @ 2.67Gbps |
Connector | LC duplex | Optical Components | VCSEL 850nm |
Media | MMF | DOM Support | Yes |
TX Power | -9~0dBm | Receiver Sensitivity | < -17 dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant |
