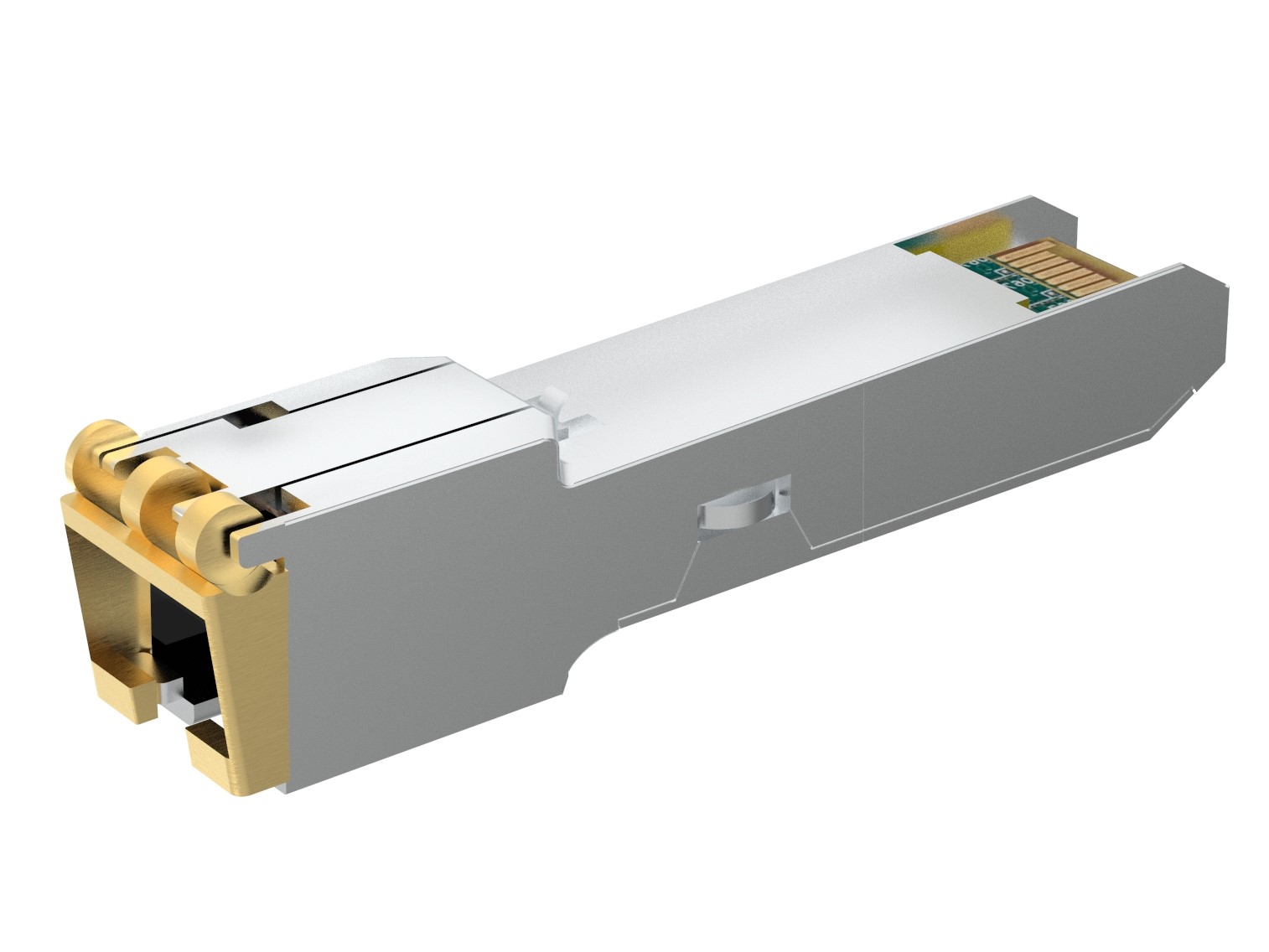

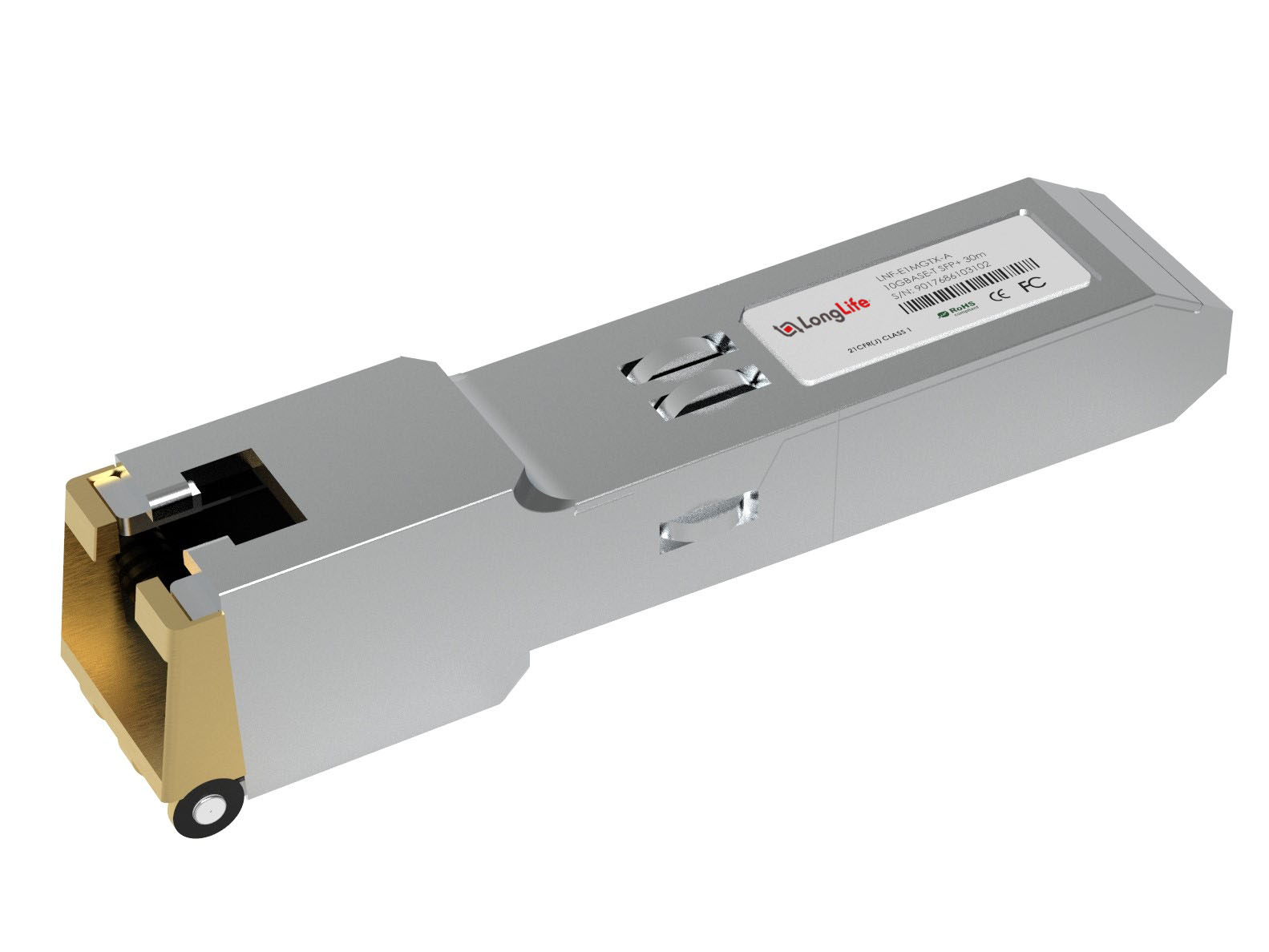

Brocade E1MGTX-A Compatible 10/100/1000BASE-T SFP SGMII Copper RJ-45 100m Transceiver Module
Brocade E1MGTX-A Compatible 10/100/1000BASE-T SFP SGMII Transceiver Module (Copper, 100m, RJ-45)
Brocade E1MGTX-A compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Brocade switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
Specifications
Compatible |
E1MGTX-A |
Vendor Name |
Longlife |
Form Factor |
SFP+ |
Max. Data Rate |
10.3125Gbps |
Wavelength |
850nm |
Max. Cable Distance |
300m@OM3/400m@OM4 |
Connector |
Duplex LC |
Media |
MMF |
Transmitter Type |
VCSEL |
Receiver Type |
PIN |
TX Power |
-7.3~-1dBm |
Receiver Sensitivity |
< -11.1dBm |
Powerbudget |
3.8dB |
Receiver Overload |
-1dBm |
Typical Power Consumption |
<1W |
Extinction Ratio |
>3dB |
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
