1G SFP Modules, SFP

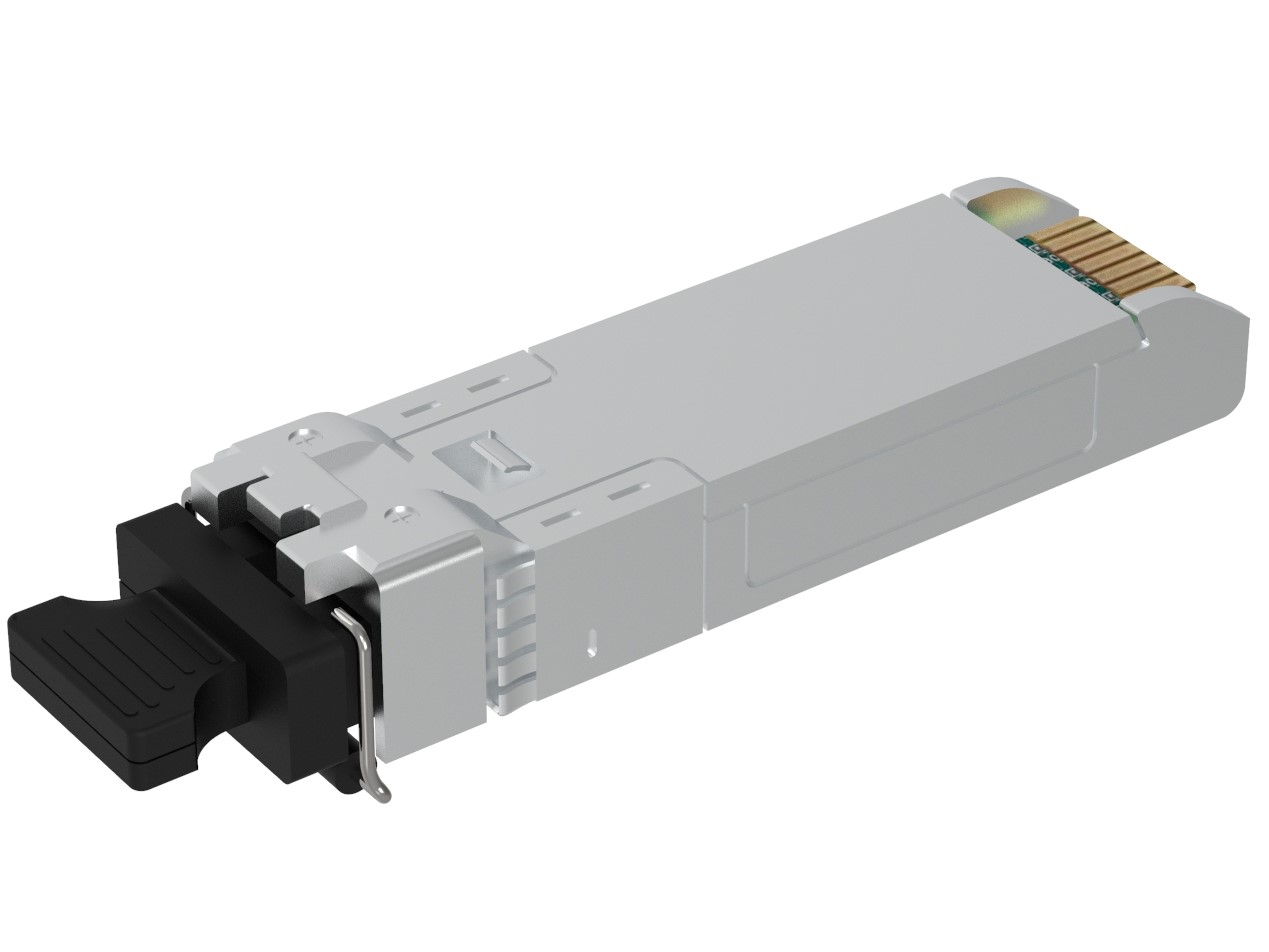

Brocade E1MG-1G-BXD-80 Compatible 1000BASE-BX BiDi SFP 1550nm-TX/1490nm-RX 80km DOM Simplex LC SMF Transceiver Module
Brocade E1MG-1G-BXD-80 Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1550nm-TX/1490nm-RX, 80km, LC, DOM)
The Brocade-compatible SFP transceiver provides up to 80km of 1000Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Specifications
|
NETGEAR Compatible
|
E1MG-1G-BXD-80
|
Vendor Name | Longlife |
|
Form Factor
|
SFP |
Max Data Rate
|
1000Mbps |
|
Wavelength
|
1550nm-TX/1490nm-RX |
Max Cable Distance
|
80km
|
|
Connector
|
Simplex LC |
Optical Components
|
DFB BiDi |
|
Media
|
SMF |
DOM Support
|
Yes
|
|
TX Power
|
-2~3dBm |
Receiver Sensitivity
|
<-24dBm
|
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
