100M SFP Modules, SFP

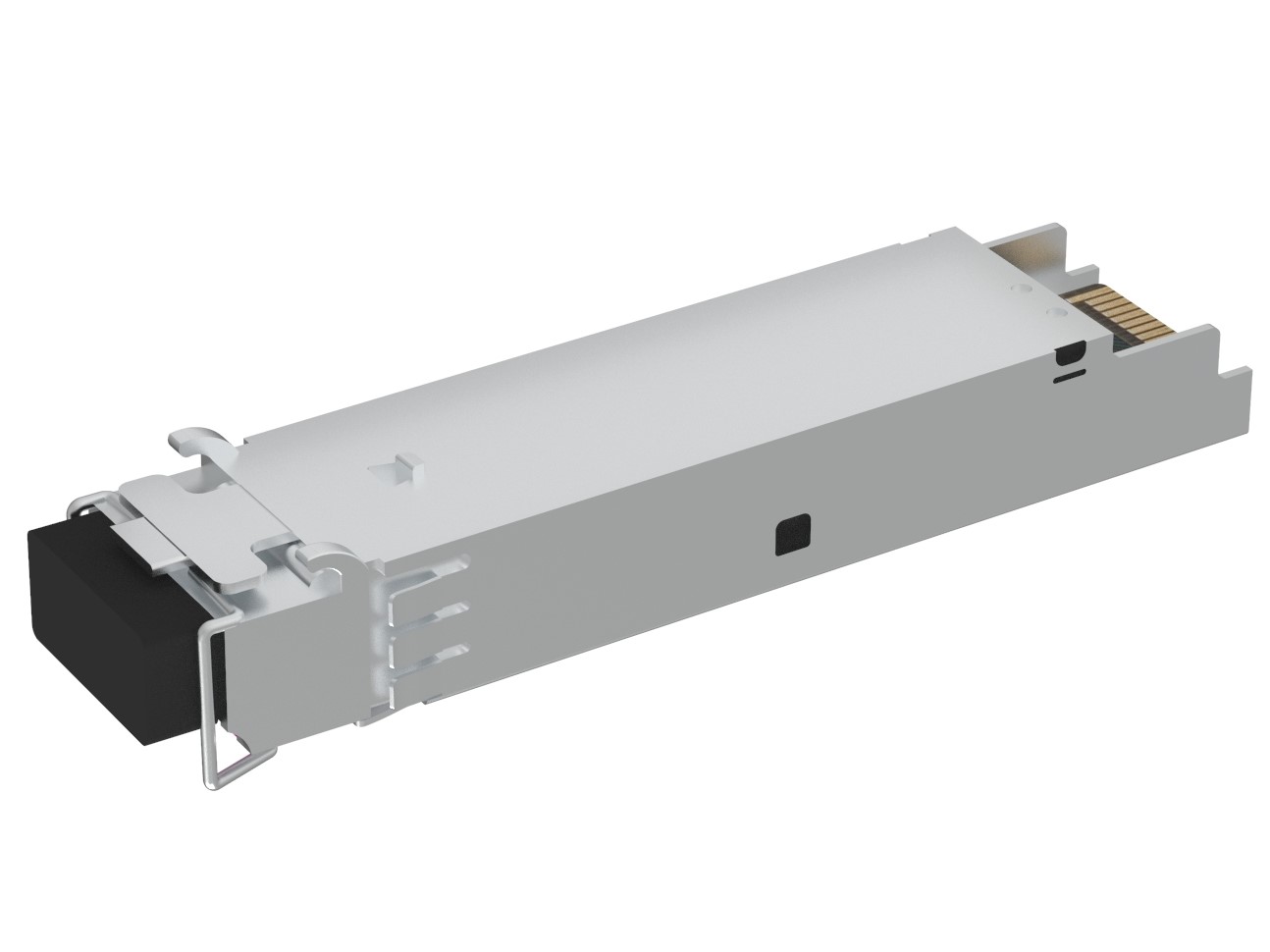

Brocade E1MG-100BXD-20 Compatible 100BASE-BX BiDi SFP 1550nm-TX/1310nm-RX 20km DOM Simplex LC SMF Transceiver Module
Brocade E1MG-100BXD-20 Compatible 100BASE-BX SFP Transceiver Module (SMF, 1550nm-TX/1310nm-RX,20km, LC, DOM)
The Brocade-compatible SFP transceiver provides up to 20km of 100Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.
Specifications
|
Brocade Compatible
|
E1MG-100BXD-20
|
Vendor Name | Longlife |
|
Form Factor
|
SFP |
Max Data Rate
|
155Mbps |
|
Wavelength
|
1550nm-TX/1310nm-RX |
Max Cable Distance
|
20km
|
|
Connector
|
Simplex LC |
Optical Components
|
FP 1310nm |
|
Media
|
SMF |
DOM Support
|
Yes
|
|
TX Power
|
-15~-8dBm |
Receiver Sensitivity
|
< -30dBm
|
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
