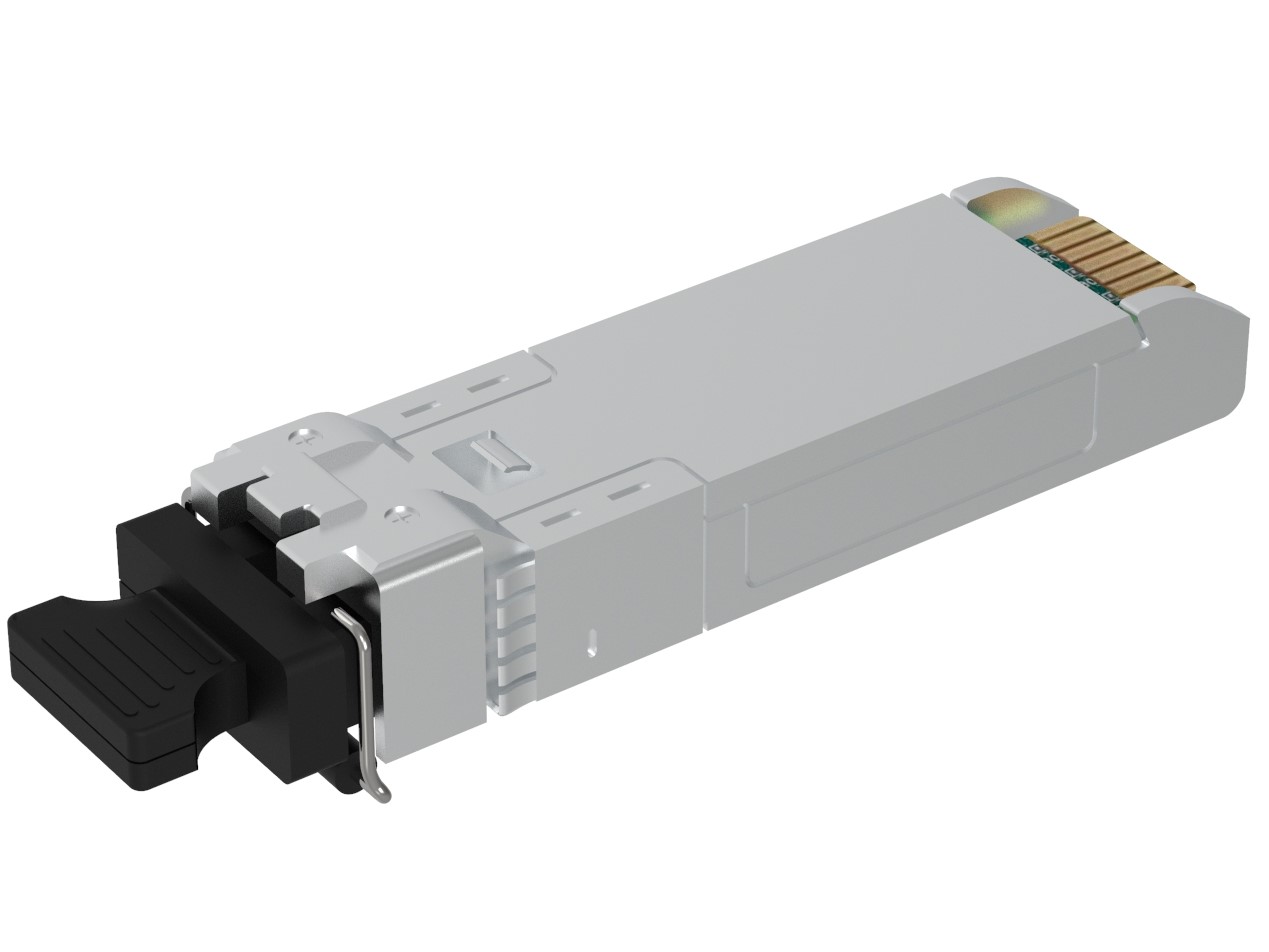

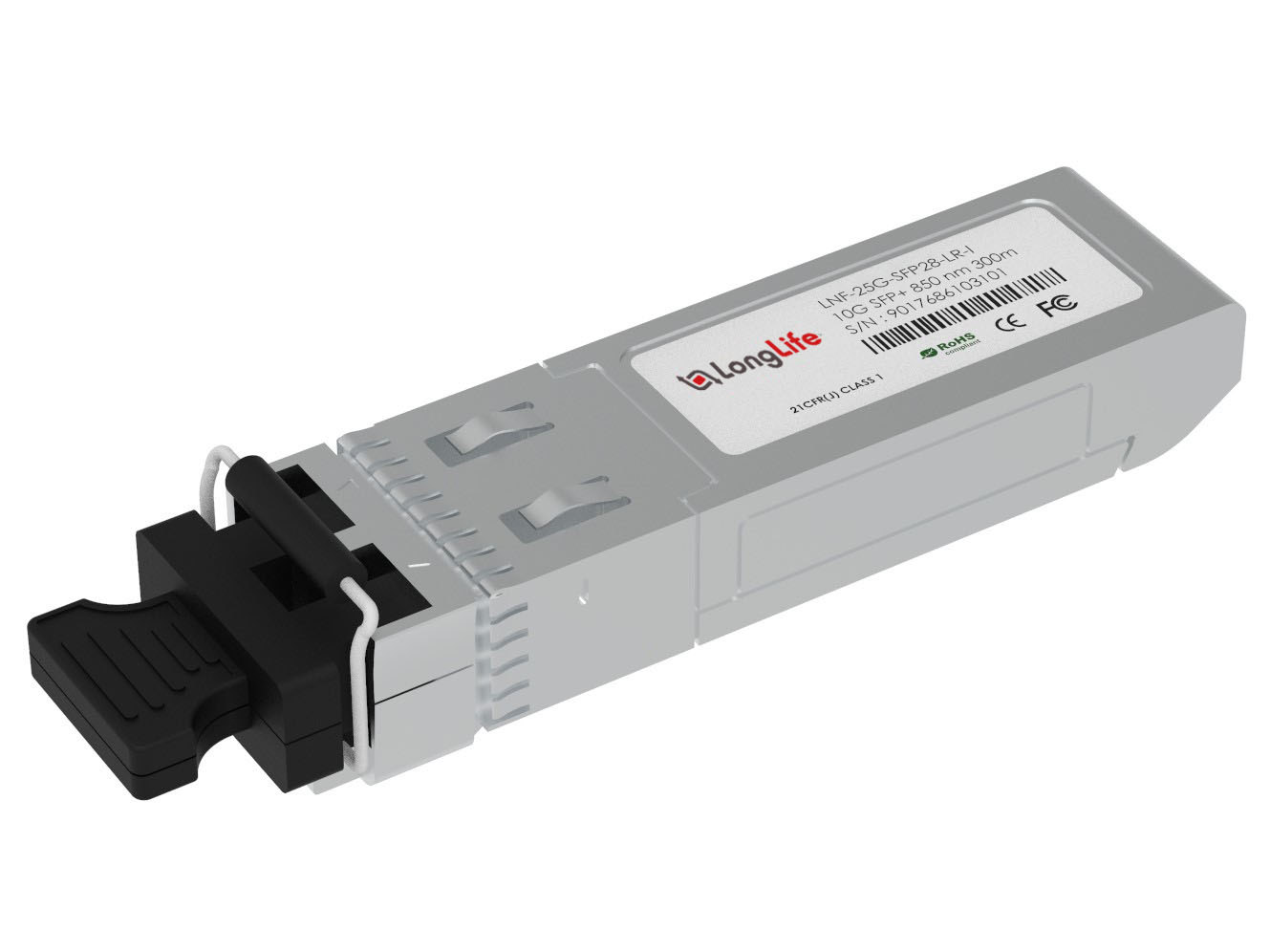

Brocade 25G-SFP28-LR-I Compatible 25GBASE-LR SFP28 1310nm 10km Industrial DOM Duplex LC SMF Optical Transceiver Module

Stok kodu: LNF-25G-SFP28-LR-I







    Brocade 25G-SFP28-LR-I Compatible 25GBASE-LR SFP28 DOM Optical Transceiver Module for Data Center and 5G Wireless Front-haul (SMF, 1310nm, 10km, LC, Industrial, DOM)

    The Brocade 25G-SFP28-LR-I compatible SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, data center, and 5G Wireless Network. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

    Specifications
    Brocade Compatible
    25G-SFP28-LR-IVendor NameLonglife
    Form Factor
    SFP28
    Max Data Rate
    25.78Gbps
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    DFB 1310nm
    Receiver Type
    PIN
    TX Power
    -4~2dBm
    Receiver Sensitivity
    <-12dBm
    Powerbudget
    8dB
    Receiver Overload
    2dBm
    Power Consumption
    ≤1.2W
    Extinction Ratio
    2.7dB
    DDM/DOM
    Supported
    Industrial Temperature Range
    -40 to 85°C (-40 to 185°F)
    CDR
    TX & RX Built-in CDR
    FEC Function
    Not Support
    Protocols
    SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR
    Warranty
    5 Years

    Core Size
    G.652
    Packaging Technology
    BOX Packaging
