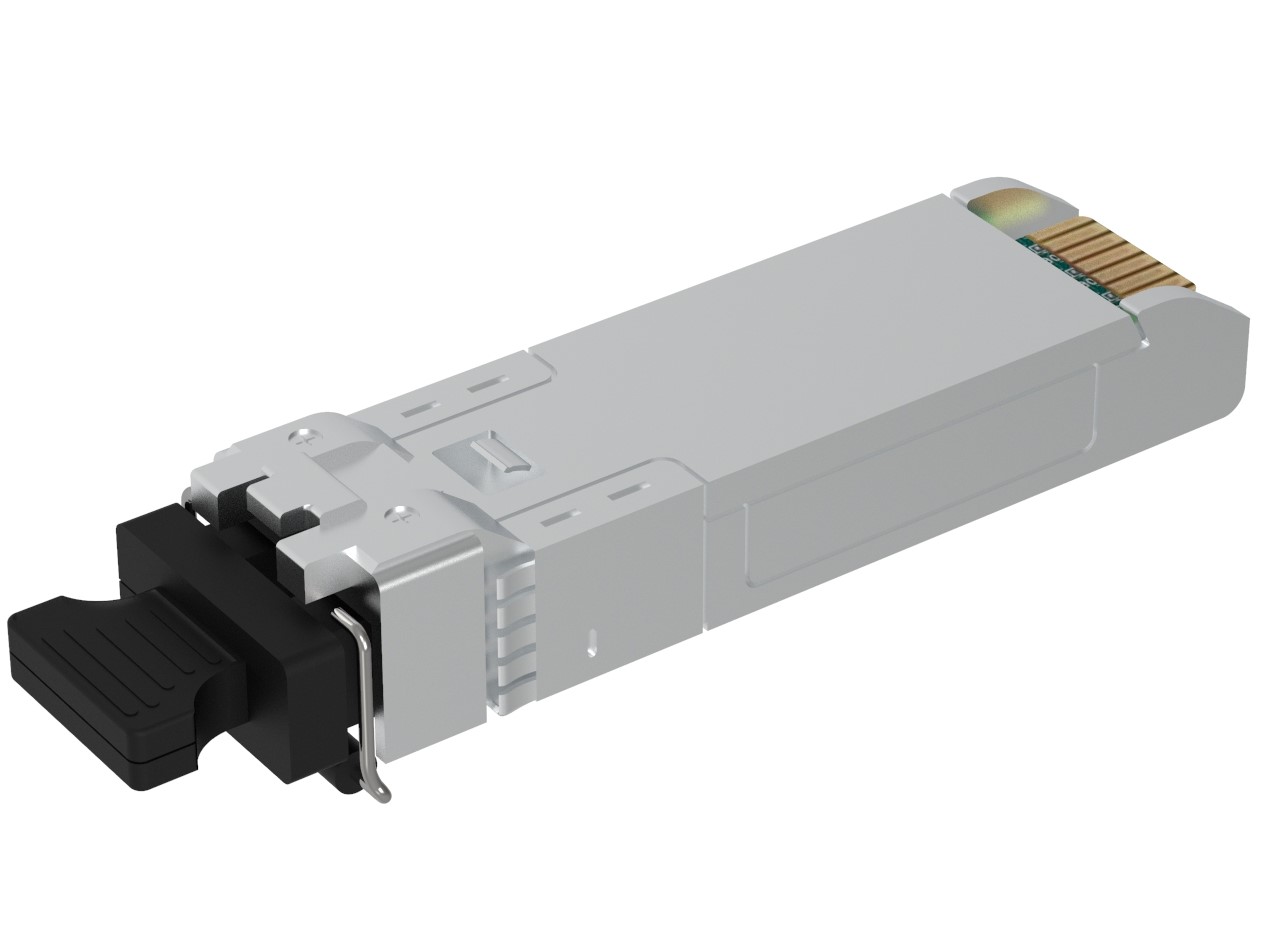

Avaya Nortel AA1419048-E6 Compatible 1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF Transceiver Module

Stok kodu: LNF-AA1419048-E6







    Avaya Nortel AA1419048-E6  Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)

    Avaya Nortel AA1419048-E6  compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Avaya switches, routers, servers, network interface card (NICs) etc.
    Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

    Specifications

    Compatible

    AA1419048-E6

    Vendor Name

    Longlife

    Form Factor

    SFP+

    Max. Data Rate

    10.3125Gbps

    Wavelength

    850nm

    Max. Cable Distance

    300m@OM3/400m@OM4

    Connector

    Duplex LC

    Media

    MMF

    Transmitter Type

    VCSEL

    Receiver Type

    PIN

    TX Power

    -7.3~-1dBm

    Receiver Sensitivity

    < -11.1dBm

    Powerbudget

    3.8dB

    Receiver Overload

    -1dBm

    Typical Power Consumption

    <1W

    Extinction Ratio

    >3dB

    Commercial Temperature Range

    0 to 70°C (32 to 158°F)

    Protocols

    IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

    Stok kodu: LNF-AA1419048-E6 Kategoriler: ,
