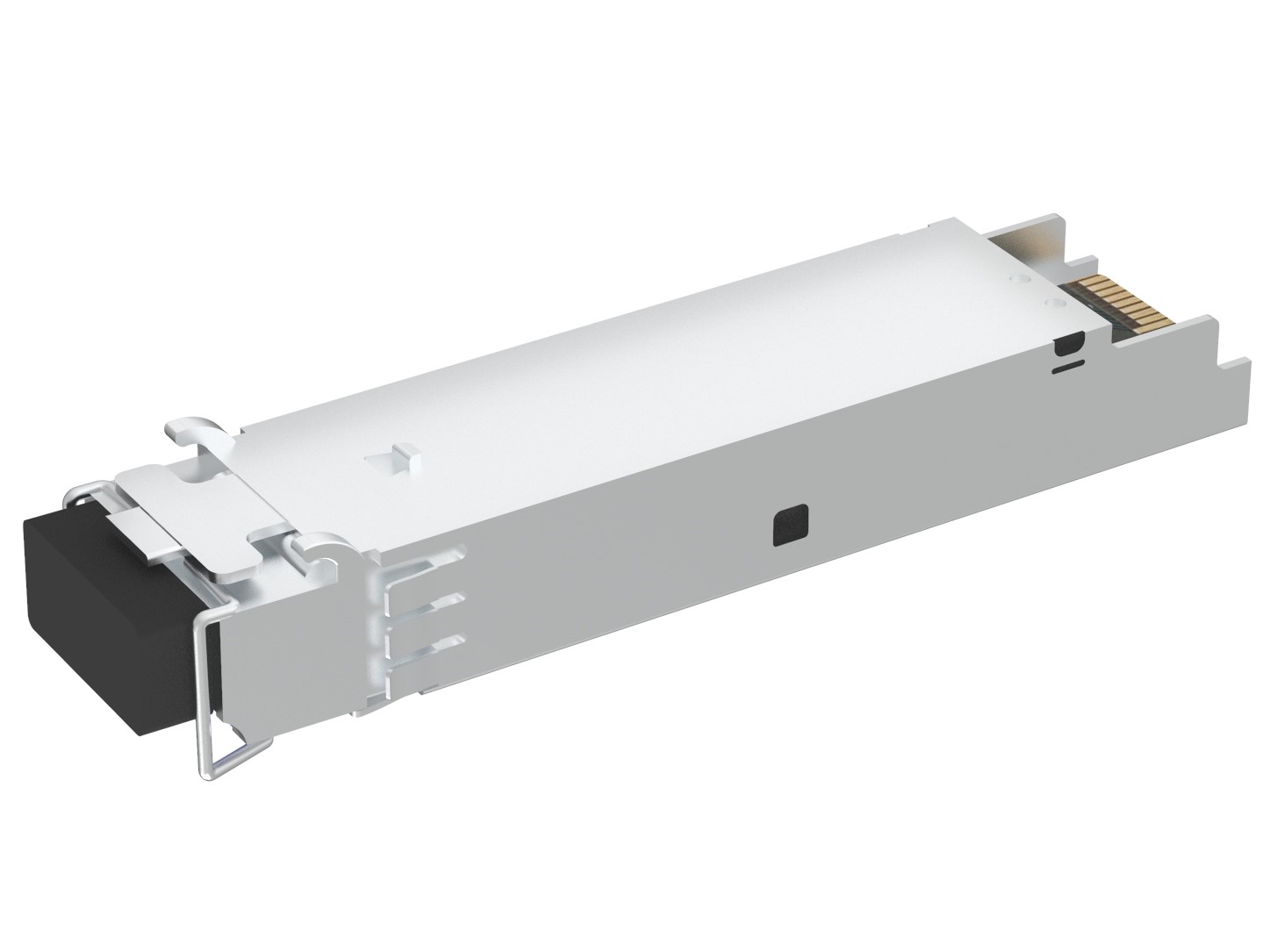

Avago AFBR-57R5AP Compatible 4G Fiber Channel SFP 850nm 150m DOM LC MMF Transceiver Module
Avago Compatible 4G Fibre Channel SFP Transceiver Module (MMF, 850nm, 150m, LC, DOM)
Avago Compatible 4G Fibre Channel SFP Transceiver Module supports up to 150m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.
Specifications
Part Number | SFP4G-SW-85 | Vendor Name | Longlife |
Form Factor | SFP | Max Data Rate | 4.25Gbps |
Wavelength | 850nm | Max Cable Distance | 150m @ 4.25Gbps |
Connector | LC duplex | Optical Components | VCSEL 850nm |
Media | MMF | DOM Support | Yes |
TX Power | -9~0dBm | Receiver Sensitivity | < -20dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant |
