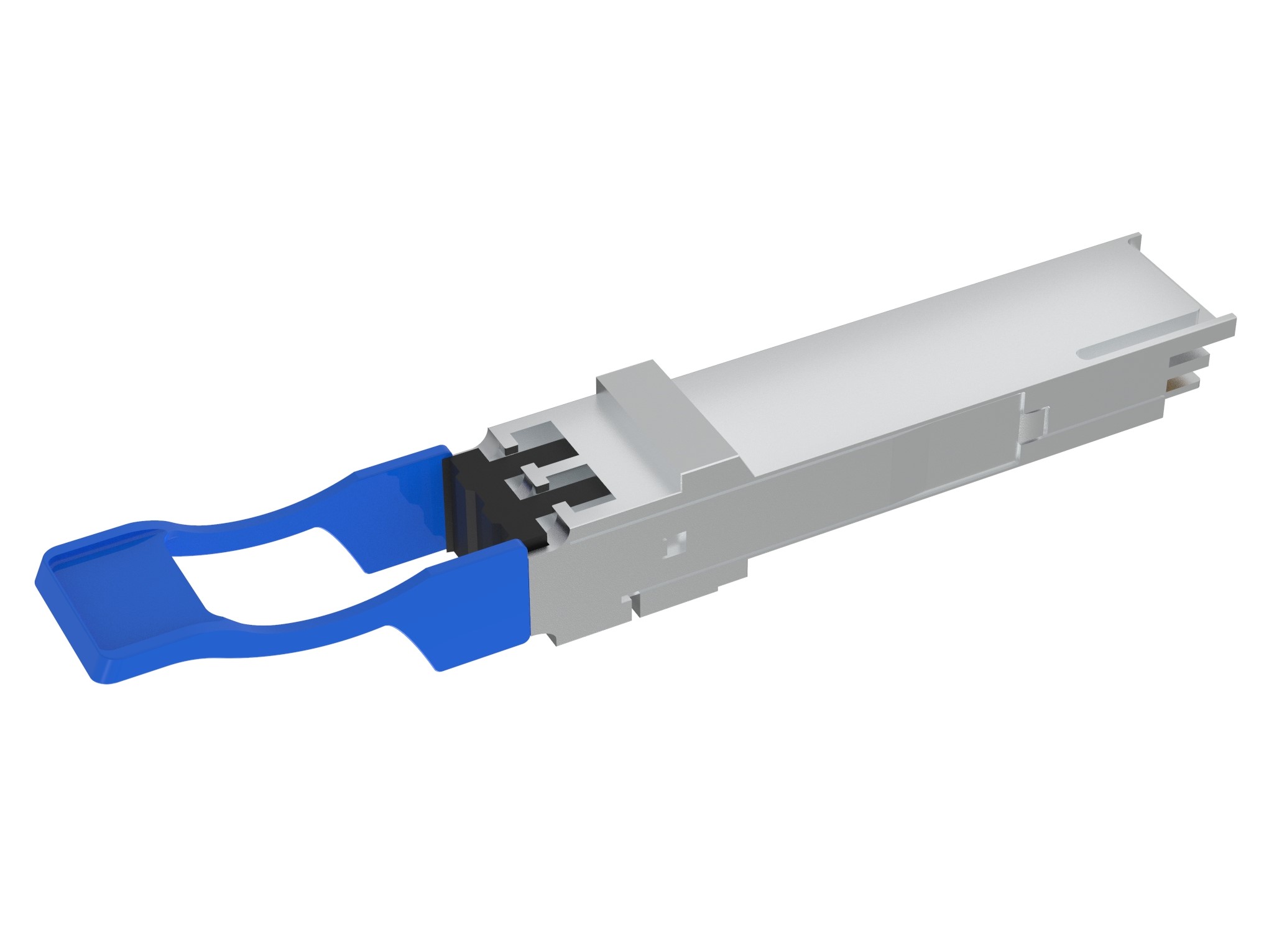

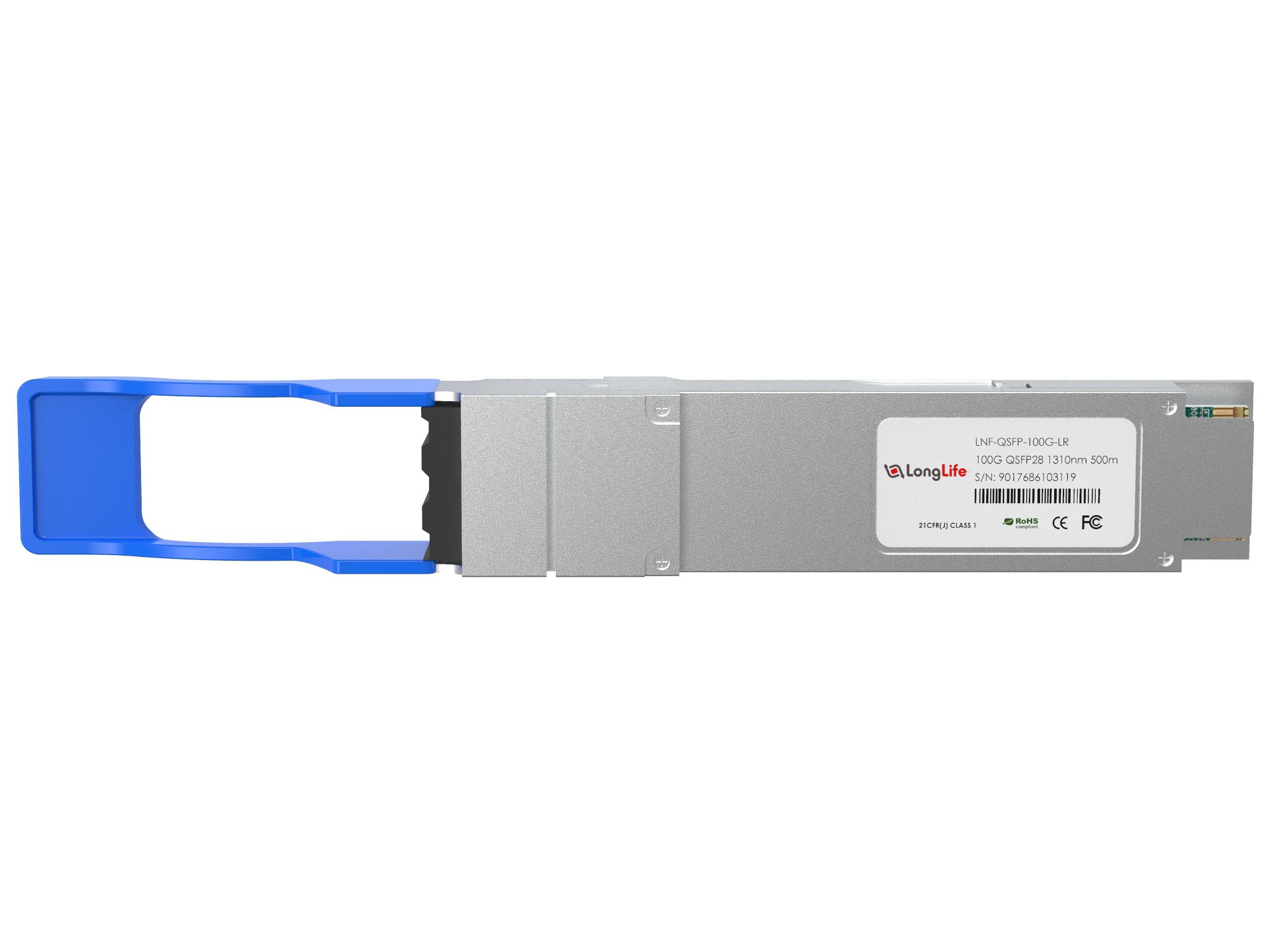

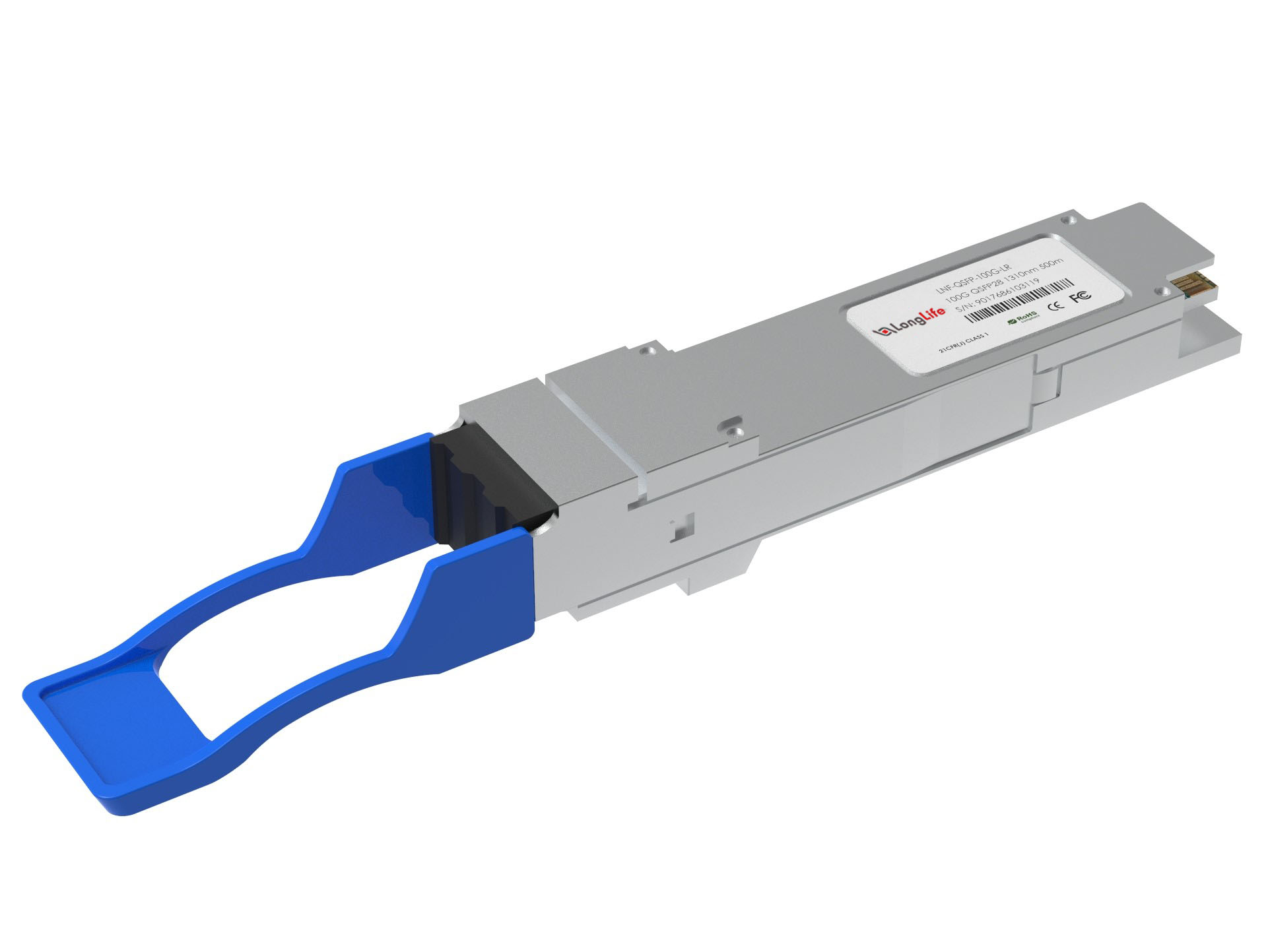

Arista QSFP-100G-LR Compatible 100GBASE-LR QSFP28 Single Lambda 1310nm 10km DOM Duplex LCSMF Optical Transceiver Module

Stok kodu: LNF-QSFP-100G-LR







    Arista QSFP-100G-LR Compatible 100GBASE-LR Single Lambda QSFP28 PAM4 Optical Transceiver Module (Single Lambda, SMF, 1310nm, 10km, LC, DOM)

    The 100GBASE-LR Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The transceiver includes a Broadcom chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA, IEEE 802.3cd and 100G Lambda MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet, 400G to 100G breakout applications.

    Specifications

    Arista Compatible
    QSFP-100G-LRVendor NameLonglife
    Form Factor
    QSFP28
    Max Data Rate
    103.125Gbps (4x 25.78Gbps)
    Wavelength
    1310nm
    Max Cable Distance
    10km
    Connector
    Duplex LC
    Media
    SMF
    Transmitter Type
    EML
    Receiver Type
    PIN
    TX Power
    -1.4~4.5dBm
    Minimum Receiver Power
    -7.7dBm
    Powerbudget
    6.3dB
    Receiver Overload
    4.5dBm
    Power Consumption
    ≤4.5W
    Extinction Ratio
    >3.5dB
    DDM/DOM
    Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    CDR (Clock and Data Recovery)
    TX & RX Built-in CDR
    Inbuilt FEC
    Yes (KP4)
    Protocols
    100G Lambda MSA 100G-LR Specification compliant
    Warranty
    5 Years
